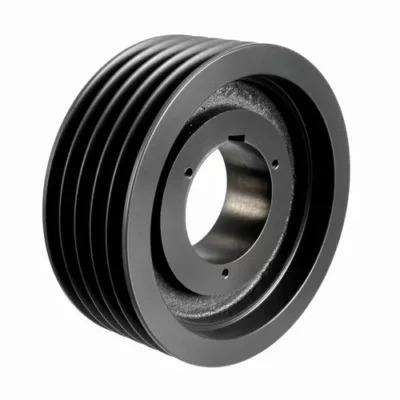

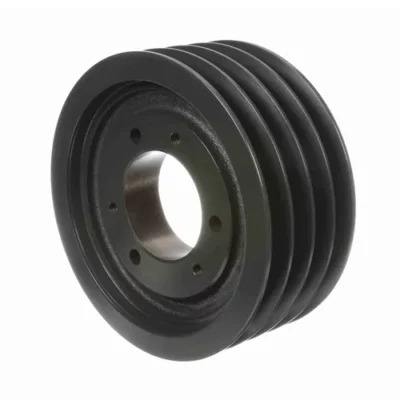

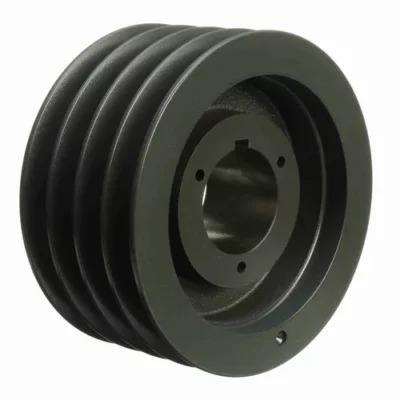

5V Series Cast Iron Four-Groove QD Sheaves for "5V" Belts

5V series four groove QD (quick removal) bushing pulley is applicable to 5V, 5VX, 5V belt and 5VX belt. They range in diameter from 4.40 "to 50.00". Depending on the pulley size, they use SD, SK, SF, E, F or J QD bushings, which we also have in stock. Our four groove 5V QD pulleys are mostly made of high-strength 35 grade cast iron, coated with phosphate and anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.

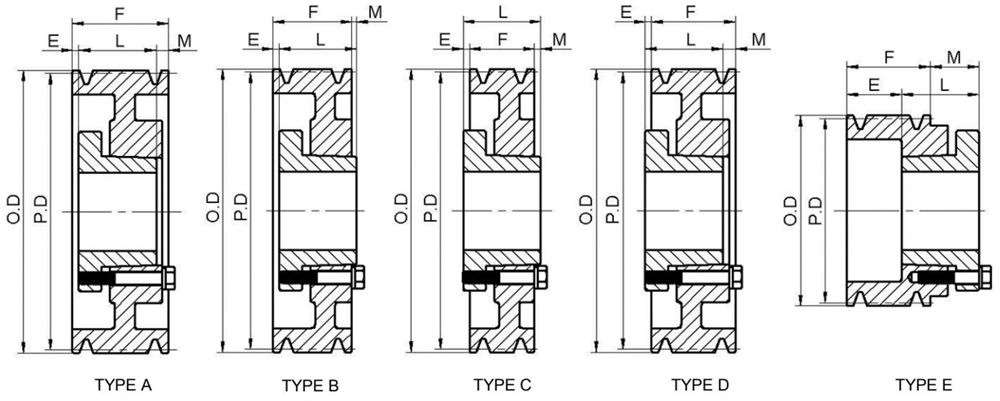

Four-Groove 5V QD Sheave Size Chart
High Quality Custom American Standard 5V Series Cast Iron QD Sheaves Four-Groove Alloy V-Belts for 5V Belts OEM Support
For more details, please click here to contact us!
Size
Bushing Type
Type
Pitch Diameter
Outside Diameter
(E)
(F)
(L)
(M)
Weight (LBS)
45V440SD
SD
E
4.30"
4.40"
1 29/32"
3 1/6"
1 13/16"
21/32"
7.5
45V465SD
SD
E
4.55"
4.65"
1 29/32"
3 1/6"
1 13/16"
21/32"
8.0
45V490SD
SD
A
4.80"
4.90"
21/32"
3 1/6"
1 13/16"
19/32"
8.5
45V520SD
SD
A
5.10"
5.20"
21/32"
3 1/6"
1 13/16"
19/32"
8.8
45V550SD
SD
A
5.40"
5.50"
21/32"
3 1/6"
1 13/16"
19/32"
9.3
45V590SD
SD
A
5.80"
5.90"
21/32"
3 1/6"
1 13/16"
19/32"
10.1
45V630SK
SK
A
6.20"
6.30"
17/32"
3 1/6"
1 15/16"
19/32"
11.8
45V670SK
SK
A
6.60"
6.70"
17/32"
3 1/6"
1 15/16"
19/32"
13.6
45V710SF
SF
A
7.00"
7.10"
7/32"
3 1/6"
2 1/16"
25/32"
14.9
45V750SF
SF
A
7.40"
7.50"
7/32"
3 1/6"
2 1/16"
25/32"
17.0
45V800E
E
B
7.90"
8.00"
11/32"
3 1/6"
2 3/4"
1/32"
18.8
45V850E
E
B
8.40"
8.50"
11/32"
3 1/6"
2 3/4"
1/32"
21.9
45V900E
E
B
8.90"
9.00"
11/32"
3 1/6"
2 3/4"
1/32"
24.2
45V925E
E
B
9.15"
9.25"
11/32"
3 1/6"
2 3/4"
1/32"
25.8
45V975E
E
B
9.65"
9.75"
11/32"
3 1/6"
2 3/4"
1/32"
28.2
45V1030E
E
B
10.20"
10.30"
11/32"
3 1/6"
2 3/4"
1/32"
29.8
45V1090E
E
B
10.80"
10.90"
11/32"
3 1/6"
2 3/4"
1/32"
30.6
45V1130E
E
A
11.20"
11.30"
9/32"
3 1/6"
2 3/4"
1/32"
31.9
45V1180E
E
B
11.70"
11.80"
11/32"
3 1/6"
2 3/4"
1/32"
33.0
45V1250E
E
A
12.40"
12.50"
9/32"
3 1/6"
2 3/4"
1/32"
36.4
45V1320E
E
A
13.10"
13.20"
9/32"
3 1/6"
2 3/4"
1/32"
38.2
45V1400E
E
A
13.90"
14.00"
9/32"
3 1/6"
2 3/4"
1/32"
40.2
45V1500E
E
A
14.90"
15.00"
9/32"
3 1/6"
2 3/4"
1/32"
43.5
45V1600E
E
A
15.90"
16.00"
9/32"
3 1/6"
2 3/4"
1/32"
44.6
45V1870E
E
A
18.60"
18.70"
3/32"
3 1/6"
2 3/4"
7/32"
53.6
45V2120E
E
A
21.10"
21.20"
3/32"
3 1/6"
2 3/4"
7/32"
62.5
45V2360F
F
C
23.50"
23.60"
15/32"
3 1/6"
3 3/4"
7/32"
83.5
45V2800F
F
C
27.90"
28.00"
15/32"
3 1/6"
3 3/4"
7/32"
126.0
45V3150F
F
C
31.40"
31.50"
15/32"
3 1/6"
3 3/4"
7/32"
148.0
45V3750F
F
C
37.40"
37.50"
15/32"
3 1/6"
3 3/4"
7/32"
170.0
45V5000J
J
C
49.90"
50.00"
3/4"
3 1/6"
4 5/8"
13/16"
248.0
Relevant supporting 5V, 5VX series V-belts (1) 5V series V-belt Classic 5V series V-belts have a top width of 0.63 ", a thickness of 0.53", and an angle of 38 °. In addition, the 5V V-belt is one of the oldest V-belts in the industry. Because of their long-term success and economic operation, they are also one of the most widely used belt series in the industry. The high-quality 5V series v-belts we provide are manufactured according to ISO 9001 specifications. They are oil and heat resistant and can be directly interchanged with other brands. They are composed of natural rubber compound and polyester rope, and are covered with a mixture of cotton and polyester, with high durability. The 5V series belts are used with HVAC, lawn and garden equipment, and agricultural equipment for most general heavy industrial applications. (2) 5V series ribbon V-belt The 5V series V-belts are part of the "classic" series of V-belts because they are one of the oldest and most common belts. Our belts are manufactured according to ARPM standards and have excellent strength, durability and performance. The top width of each 5V series v-belt (belt/rib) is 0.63 ".
(3) 5VX toothed V-belt The top width of the 5VX toothed v-belt is 0.53 "and the thickness is 0.53". Our grooved 5VX v-belts are manufactured with rough sidewalls to eliminate slip, improve efficiency and save operating costs. They are also manufactured according to ARPM standards and are oil and heat resistant. The 5VX conveyor belt is composed of high-quality neoprene compound and high-strength polyester string, and the top fabric is made of cotton polyester blend. In addition to performance, durability and energy saving advantages, our toothed v-belts will also be used with existing vertical pulleys/pulleys. Please contact us to get the quotation of 5VX toothed v-belt or pulley, and we will be happy to help you. (4) 5VX belt toothed V-belt All our v-belts are manufactured according to ARPM specifications, with excellent performance and durability. Because of its design, the belt 5VX toothed v-belt runs more smoothly and more relaxed, and is generally more durable than the standard belt C v-belt. They also provide higher efficiency than ordinary v-belts, which means less energy costs. We can also stock pulleys/pulleys for 5VX belt.
High Quality Custom American Standard 5V Series Cast Iron QD Sheaves Four-Groove Alloy V-Belts for 5V Belts OEM Support

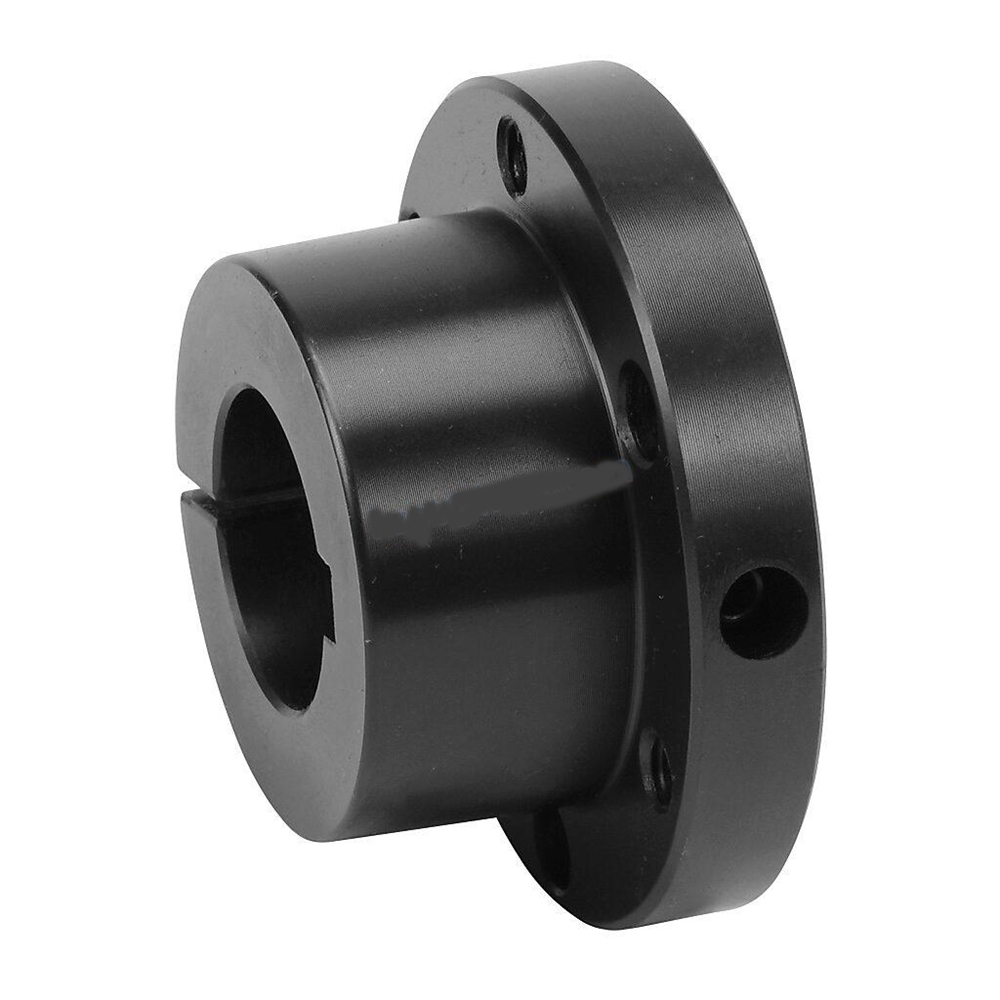

QD Bushings | Quick Disconnect Bushings QD bushings are used in various sprockets, pulleys, pulleys and synchronous drives throughout the industrial power transmission and agricultural industries. They are designed for easy installation and unloading; They are also commonly referred to as quick disconnect bushings. The QD bushing facilitates normal installation on the outside of the flange and reverse installation on the inside of the flange, and utilizes a single split that extends over the entire length of the bushing. Our QD bushings can be interchanged with other brands and are made of high-grade steel by precision machining, which is suitable for perfect installation. Advantages of QD casing compared with different types of casing include:; Easy to install/unload, strong grip and excellent strength. We stock all standard size QD bushings and provide custom QD bushings (including stainless steel bushings) upon request. QD casing is found in some of the strongest applications in the world; Please contact our customer service team immediately for a quote or other information on the quality QD casing.
Precautions for pulley assembly: 1. Gasoline must be used for the last cleaning before assembly to ensure that all parts are clean and dry, the mating surfaces are closely matched, free of oil stains, and have sufficient friction. 2. Hexagon socket head bolts for assembly shall also be cleaned and dried with gasoline before assembly. Do not apply lubricating oil or grease to the bolt or screw hole to ensure that the bolt has sufficient friction and self-locking capacity after tightening. 3. When the three hexagon socket head bolts are about to be installed, they need to be tightened to ensure that the conical sleeve is subjected to uniform axial force, and the belt pulley and the conical sleeve are well placed on the same axis. 4. Before installation, check and measure the length of the hexagonal socket head bolt for assembly to ensure that the assembly bolt can bear the bottom end of the blind hole of the conical sleeve after being tightened, to ensure that the conical surface is closely matched, and to ensure that the bolt is subject to the reverse thrust of the bottom side of the blind hole, so that the anti loosening effect of the double nut principle is the same. 5. After the belt pulley is tightened, check and adjust the relative positions of the driving and driven belt pulleys by pulling wires to ensure that the two belt pulleys are on the same plane and the belt tension is moderate. 6. The pulley cover shall be intact and firmly installed to ensure that the belt is broken or the pulley is loose and withdrawn during operation, thus leading to major safety accidents. 7. The conical sleeve is a wearing part. Inspection shall be carried out before each assembly, and spare parts shall be replaced timely if any defects are found. The inner bore and the chain groove may be damaged after prolonged operation. Common application of QD bushing pulley The pulley is a hub type part. Generally, the relative size is relatively large. The manufacturing process is usually based on casting and forging. Use less cast steel (poor performance of cast steel); Generally, smaller dimensions can be designed for development, and the material is steel). V-belt pulley is mainly used for long-distance power transmission, such as the output of small diesel engines, agricultural vehicles, tractors, automobiles, mining machinery, machining equipment, textile machinery, packaging machinery, lathes, forging presses and some small horsepower motorcycles. Transmission is the transmission of agricultural machinery power, air compressor, reducer, generator, cotton gin, etc. It is worth noting that before assembling the pulley, the last cleaning must be carried out with gasoline to ensure that the parts are clean and dry, and that the mating surfaces are closely matched, oil-free, and have sufficient friction.
