American Standard 5V Series Cast Iron Double-Groove QD Sheaves for 5V Belts V-Belt Type Durable Alloy Material Attractive Price

5V Series Cast Iron Double-Groove QD Sheaves for "5V" Belts5V series double groove QD (quick removal) bushing pulley is applicable to 5V, 5VX, 5V belt and 5VX belt. They range in diameter from 4.40 "to 28.00". Depending on the pulley size, they use SH, SDS, SK, SF or E QD bushing......
Send Inquiry
Product Description
American Standard 5V Series Cast Iron Double-Groove QD Sheaves for 5V Belts V-Belt Type Durable Alloy Material Attractive Price

5V Series Cast Iron Double-Groove QD Sheaves for "5V" Belts

5V series double groove QD (quick removal) bushing pulley is applicable to 5V, 5VX, 5V belt and 5VX belt. They range in diameter from 4.40 "to 28.00". Depending on the pulley size, they use SH, SDS, SK, SF or E QD bushings, which we also have in stock. Most of our double groove 5V QD pulleys are made of high-strength grade 35 cast iron, coated with phosphate and coated with anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.
Double-Groove 5V QD Sheave Size Chart
American Standard 5V Series Cast Iron Double-Groove QD Sheaves for 5V Belts V-Belt Type Durable Alloy Material Attractive Price
For more details, please click here to contact us!
Size
Bushing Type
Type
Pitch Diameter
Outside Diameter
(E)
(F)
(L)
(M)
Weight (LBS)
25V440SH
SH
D
4.30"
4.40"
11/32"
1 11/16"
1 5/16"
23/32"
5.8
25V465SDS
SDS
E
4.55"
4.65"
27/32"
1 11/16"
1 5/16"
15/32"
6.6
25V490SDS
SDS
A
4.80"
4.90"
1/32"
1 11/16"
1 5/16"
11/32"
6.8
25V520SDS
SDS
A
5.10"
5.20"
1/32"
1 11/16"
1 5/16"
11/32"
7.0
25V550SDS
SDS
A
5.40"
5.50"
1/32"
1 11/16"
1 5/16"
11/32"
7.2
25V590SDS
SDS
A
5.80"
5.90"
1/32"
1 11/16"
1 5/16"
11/32"
7.6
25V630SK
SK
D
6.20"
6.30"
11/32"
1 11/16"
1 15/16"
3/32"
9.4
25V670SK
SK
D
6.60"
6.70"
11/32"
1 11/16"
1 15/16"
3/32"
10.5
25V710SK
SK
D
7.00"
7.10"
11/32"
1 11/16"
1 15/16"
3/32"
11.5
25V750SK
SK
D
7.40"
7.50"
11/32"
1 11/16"
1 15/16"
3/32"
12.5
25V800SK
SK
D
7.90"
8.00"
11/32"
1 11/16"
1 15/16"
3/32"
13.0
25V850SK
SK
D
8.40"
8.50"
11/32"
1 11/16"
1 15/16"
3/32"
14.0
25V900SK
SK
D
8.90"
9.00"
11/32"
1 11/16"
1 15/16"
3/32"
15.2
25V925SK
SK
D
9.15"
9.25"
11/32"
1 11/16"
1 15/16"
3/32"
15.3
25V975SK
SK
D
9.65"
9.75"
11/32"
1 11/16"
1 15/16"
3/32"
15.5
25V1030SK
SK
D
10.20"
10.30"
11/32"
1 11/16"
1 15/16"
3/32"
15.5
25V1090SK
SK
D
10.80"
10.90"
11/32"
1 11/16"
1 15/16"
3/32"
16.5
25V1130SK
SK
D
11.20"
11.30"
11/32"
1 11/16"
1 15/16"
3/32"
17.8
25V1180SK
SK
D
11.70"
11.80"
11/32"
1 11/16"
1 15/16"
3/32"
19.0
25V1250SF
SF
D
12.40"
12.50"
13/32"
1 11/16"
2 1/16"
1/32"
21.0
25V1320SF
SF
D
13.10"
13.20"
13/32"
1 11/16"
2 1/16"
1/32"
22.6
25V1400SF
SF
D
13.90"
14.00"
13/32"
1 11/16"
2 1/16"
1/32"
25.3
25V1500SF
SF
D
14.90"
15.00"
13/32"
1 11/16"
2 1/16"
1/32"
27.4
25V1600SF
SF
D
15.90"
16.00"
13/32"
1 11/16"
2 1/16"
1/32"
29.2
25V1870SF
SF
D
18.60"
18.70"
13/32"
1 11/16"
2 1/16"
1/32"
36.0
25V2120SF
SF
D
21.10"
21.20"
13/32"
1 11/16"
2 1/16"
1/32"
43.0
25V2360E
E
C
23.50"
23.60"
29/32"
1 11/16"
2 3/4"
5/32"
55.0
25V2800E
E
C
27.90"
28.00"
29/32"
1 11/16"
2 3/4"
5/32"
67.0
Relevant supporting 5V, 5VX series V-belts (1) 5V series V-belt Classic 5V series V-belts have a top width of 0.63 ", a thickness of 0.53", and an angle of 38 °. In addition, the 5V V-belt is one of the oldest V-belts in the industry. Because of their long-term success and economic operation, they are also one of the most widely used belt series in the industry. The high-quality 5V series v-belts we provide are manufactured according to ISO 9001 specifications. They are oil and heat resistant and can be directly interchanged with other brands. They are composed of natural rubber compound and polyester rope, and are covered with a mixture of cotton and polyester, with high durability. The 5V series belts are used with HVAC, lawn and garden equipment, and agricultural equipment for most general heavy industrial applications.

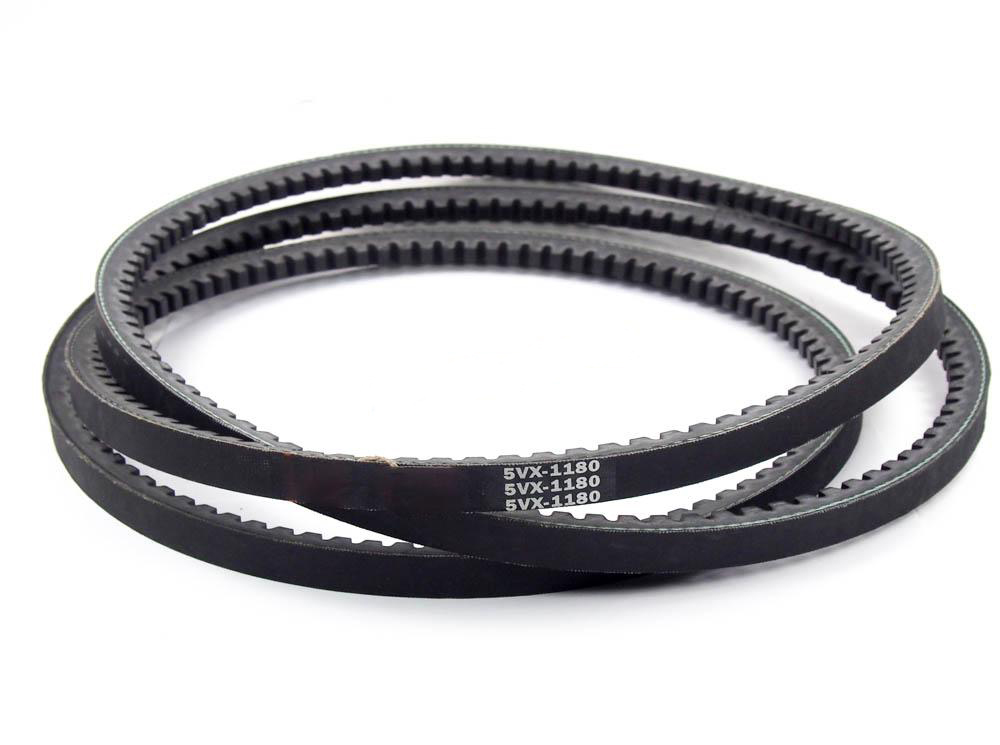

(2) 5VX toothed V-belt The top width of the 5VX toothed v-belt is 0.53 "and the thickness is 0.53". Our grooved 5VX v-belts are manufactured with rough sidewalls to eliminate slip, improve efficiency and save operating costs. They are also manufactured according to ARPM standards and are oil and heat resistant. The 5VX conveyor belt is composed of high-quality neoprene compound and high-strength polyester string, and the top fabric is made of cotton polyester blend. In addition to performance, durability and energy saving advantages, our toothed v-belts will also be used with existing vertical pulleys/pulleys. Please contact us to get the quotation of 5VX toothed v-belt or pulley, and we will be happy to help you.
(3) 5V series ribbon V-belt The 5V series V-belts are part of the "classic" series of V-belts because they are one of the oldest and most common belts. Our belts are manufactured according to ARPM standards and have excellent strength, durability and performance. The top width of each 5V series v-belt (belt/rib) is 0.63 ". (4) 5VX belt toothed V-belt All our v-belts are manufactured according to ARPM specifications, with excellent performance and durability. Because of its design, the belt 5VX toothed v-belt runs more smoothly and more relaxed, and is generally more durable than the standard belt C v-belt. They also provide higher efficiency than ordinary v-belts, which means less energy costs. We can also stock pulleys/pulleys for 5VX belt.
American Standard 5V Series Cast Iron Double-Groove QD Sheaves for 5V Belts V-Belt Type Durable Alloy Material Attractive Price
QD Bushings | Quick Disconnect Bushings QD bushings are used in various sprockets, pulleys, pulleys and synchronous drives throughout the industrial power transmission and agricultural industries. They are designed for easy installation and unloading; They are also commonly referred to as quick disconnect bushings. The QD bushing facilitates normal installation on the outside of the flange and reverse installation on the inside of the flange, and utilizes a single split that extends over the entire length of the bushing. Our QD bushings can be interchanged with other brands and are made of high-grade steel by precision machining, which is suitable for perfect installation. Advantages of QD casing compared with different types of casing include:; Easy to install/unload, strong grip and excellent strength. We stock all standard size QD bushings and provide custom QD bushings (including stainless steel bushings) upon request. QD casing is found in some of the strongest applications in the world; Please contact our customer service team immediately for a quote or other information on the quality QD casing.
What factors should be considered when selecting a V-pulley? V-pulleys are usually made of cast iron (GG) and steel. These components can also be made of aluminum, stainless steel or plastic materials if required for specific applications. If the environmental conditions require surface treatment of the drive, additional surface treatment may be provided for the V-pulley. In addition, V-pulleys can be manufactured according to customer specifications. Our turning workshop can process standard pulley according to drawings or customer requirements. V-belt drives can have multiple belts running in parallel. Therefore, the v-belt pulley not only has different diameters, but also has different grooves. On request, the pulley can provide dynamic balance with quality grade Q 6.3. Pulleys larger than 125 mm in diameter are statically balanced. When the speed exceeds 30 m/s or the diameter/width ratio is less than 4 and the speed exceeds 20 m/s, dynamic balancing is recommended. Several factors determine which V-belts are best suited to a particular drive. These include applications - that is, what is being driven, the power to be transmitted, the desired speed, the center distance of the pulley, and any possible impact loads. It is also important to understand the current environmental conditions and whether there are any space limitations.
Common application of QD bushing pulley *Machine tool *Crusher, pulverizer, crusher, classifier, vibrating screen *Material conveying system *Fans, blowers and exhausters *Pumps and compressors *Woodworking saw, milling machine, planer, lathe
American Standard 5V Series Cast Iron Double-Groove QD Sheaves for 5V Belts V-Belt Type Durable Alloy Material Attractive Price
Technological Processing
American Standard 5V Series Cast Iron Double-Groove QD Sheaves for 5V Belts V-Belt Type Durable Alloy Material Attractive Price
Warehouse inventory The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.
American Standard 5V Series Cast Iron Double-Groove QD Sheaves for 5V Belts V-Belt Type Durable Alloy Material Attractive Price
Our also provides belts matching pulleys:https://planetary-gearboxes.en.Raydafon/productgrouplist-825651128/Belt.html?spm=a2700.shop_pl.98.11
American Standard 5V Series Cast Iron Double-Groove QD Sheaves for 5V Belts V-Belt Type Durable Alloy Material Attractive Price
American Standard 5V Series Cast Iron Double-Groove QD Sheaves for 5V Belts V-Belt Type Durable Alloy Material Attractive Price
Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
