Well-Sold 5V Series American Standard Pulley New Type Cast Iron Ten-Groove QD Sheaves for V-Belts OEM Customization Supported

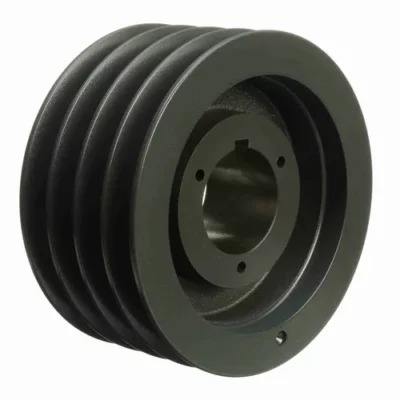

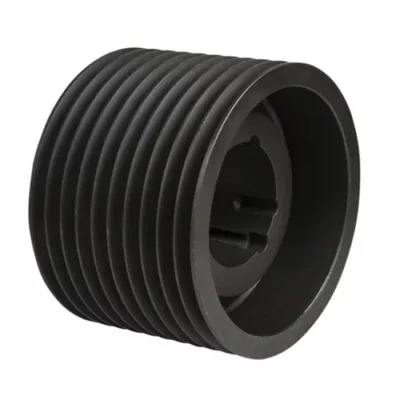

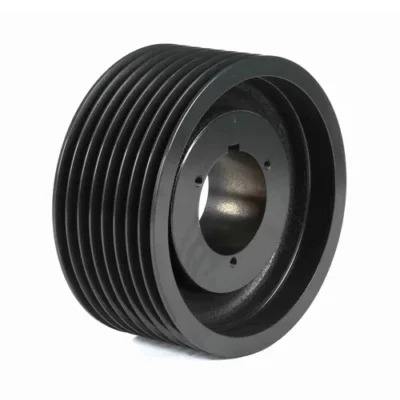

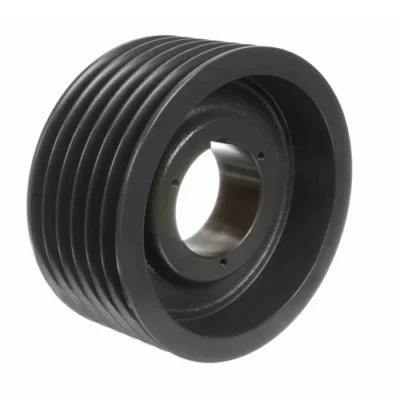

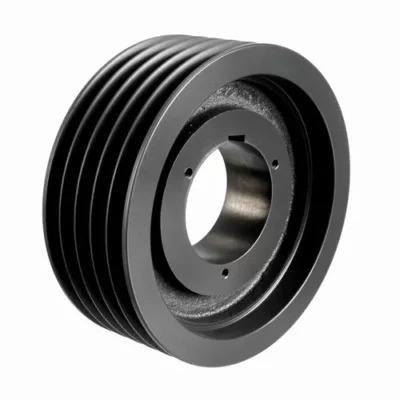

5V Series Cast Iron Ten-Groove QD Sheaves for "5V" Belts

5V series ten groove QD (quick disassembly) bushing pulley is applicable to 5V, 5VX, belt 5V and belt 5VX belts. They range in diameter from 4.40 "to 50.00". Depending on the pulley size, they use E, F, J or M QD bushings, which we also have in stock. Our ten groove 5V QD pulleys are mostly made of high-strength 35 grade cast iron, coated with phosphate and anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.

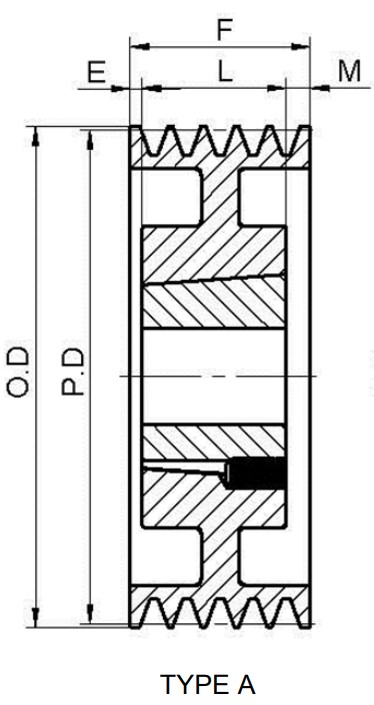

Ten-Groove 5V QD Sheave Size Chart
Well-Sold 5V Series American Standard Pulley New Type Cast Iron Ten-Groove QD Sheaves for V-Belts OEM Customization Supported
For more details, please click here to contact us!
Size
Bushing Type
Type
Pitch Diameter
Outside Diameter
(E)
(F)
(L)
(M)
Weight (LBS)
105V800E
E
A
7.90"
8.00"
2 3/32"
7 3/16"
2 3/4"
2 11/32"
37.6
105V850E
E
A
8.40"
8.50"
2 3/32"
7 3/16"
2 3/4"
2 11/32"
44.5
105V900F
F
A
8.90"
9.00"
1 31/32"
7 3/16"
3 3/4"
1 15/32"
51.3
105V925F
F
A
9.15"
9.25"
1 31/32"
7 3/16"
3 3/4"
1 15/32"
53.0
105V975F
F
A
9.65"
9.75"
1 31/32"
7 3/16"
3 3/4"
1 15/32"
56.0
105V1030F
F
A
10.20"
10.30"
1 31/32"
7 3/16"
3 3/4"
1 15/32"
64.0
105V1090F
F
A
10.80"
10.90"
1 31/32"
7 3/16"
3 3/4"
1 15/32"
72.0
105V1130F
F
A
11.20"
11.30"
1 31/32"
7 3/16"
3 3/4"
1 15/32"
77.0
105V1180F
F
A
11.70"
11.80"
1 31/32"
7 3/16"
3 3/4"
1 15/32"
81.0
105V1250J
J
A
12.40"
12.50"
2 1/8"
7 3/16"
4 5/8"
7/16"
112.0
105V1320J
J
A
13.10"
13.20"
2 1/8"
7 3/16"
4 5/8"
7/16"
116.0
105V1400J
J
A
13.90"
14.00"
2 1/8"
7 3/16"
4 5/8"
7/16"
130.0
105V1500J
J
A
14.90"
15.00"
2 1/8"
7 3/16"
4 5/8"
7/16"
138.0
105V1600J
J
A
15.90"
16.00"
2 1/8"
7 3/16"
4 5/8"
7/16"
146.0
105V1870J
J
A
18.60"
18.70"
1/8"
7 3/16"
4 5/8"
2 7/16"
157.0
105V2120J
J
A
21.10"
21.20"
1/8"
7 3/16"
4 5/8"
2 7/16"
168.0
105V2360M
M
A
23.50"
23.60"
11/32"
7 3/16"
6 3/4"
3/32"
213.0
105V2800M
M
A
27.90"
28.00"
11/32"
7 3/16"
6 3/4"
3/32"
240.0
105V3150M
M
A
31.40"
31.50"
11/32"
7 3/16"
6 3/4"
3/32"
275.0
105V3750M
M
A
37.40"
37.50"
11/32"
7 3/16"
6 3/4"
3/32"
315.0
105V5000M
M
A
49.90"
50.00"
11/32"
7 3/16"
6 3/4"
3/32"
458.0
Relevant supporting 5V, 5VX series V-belts (1) 5V series V-belt Classic 5V series V-belts have a top width of 0.63 ", a thickness of 0.53", and an angle of 38 °. In addition, the 5V V-belt is one of the oldest V-belts in the industry. Because of their long-term success and economic operation, they are also one of the most widely used belt series in the industry. The high-quality 5V series v-belts we provide are manufactured according to ISO 9001 specifications. They are oil and heat resistant and can be directly interchanged with other brands. They are composed of natural rubber compound and polyester rope, and are covered with a mixture of cotton and polyester, with high durability. The 5V series belts are used with HVAC, lawn and garden equipment, and agricultural equipment for most general heavy industrial applications.
(2) 5V series ribbon V-belt The 5V series V-belts are part of the "classic" series of V-belts because they are one of the oldest and most common belts. Our belts are manufactured according to ARPM standards and have excellent strength, durability and performance. The top width of each 5V series v-belt (belt/rib) is 0.63 ".
(3) 5VX toothed V-belt The top width of the 5VX toothed v-belt is 0.53 "and the thickness is 0.53". Our grooved 5VX v-belts are manufactured with rough sidewalls to eliminate slip, improve efficiency and save operating costs. They are also manufactured according to ARPM standards and are oil and heat resistant. The 5VX conveyor belt is composed of high-quality neoprene compound and high-strength polyester string, and the top fabric is made of cotton polyester blend. In addition to performance, durability and energy saving advantages, our toothed v-belts will also be used with existing vertical pulleys/pulleys. Please contact us to get the quotation of 5VX toothed v-belt or pulley, and we will be happy to help you. (4) 5VX belt toothed V-belt All our v-belts are manufactured according to ARPM specifications, with excellent performance and durability. Because of its design, the belt 5VX toothed v-belt runs more smoothly and more relaxed, and is generally more durable than the standard belt C v-belt. They also provide higher efficiency than ordinary v-belts, which means less energy costs. We can also stock pulleys/pulleys for 5VX belt.
Well-Sold 5V Series American Standard Pulley New Type Cast Iron Ten-Groove QD Sheaves for V-Belts OEM Customization Supported
QD sleeve | quick disconnect sleeve QD bushings are used in various sprockets, pulleys, pulleys and synchronous drives throughout the industrial power transmission and agricultural industries. They are designed for easy installation and unloading; They are also commonly referred to as quick disconnect bushings. The QD bushing facilitates normal installation on the outside of the flange and reverse installation on the inside of the flange, and utilizes a single split that extends over the entire length of the bushing. Our QD bushings can be interchanged with other brands and are made of high-grade steel by precision machining, which is suitable for perfect installation. Advantages of QD casing compared with different types of casing include:; Easy to install/unload, strong grip and excellent strength. We stock all standard size QD bushings and provide custom QD bushings (including stainless steel bushings) upon request. QD casing is found in some of the strongest applications in the world; Please contact our customer service team immediately for a quote or other information on the quality QD casing.
Installation method of pulley: 1. Check the pulley groove to ensure that there are no scratches or sharp edges, and all dimensions meet the standards; 2. Clean the surfaces of all parts, such as hub holes, tapered sleeves, bolt holes, etc. Install the tapered sleeve into the pulley and align all screw holes. 3. Coat the screw (TB1008-TB3030) and thread (TB3525-TB5050) with oil and screw them into the mounting hole, but do not tighten them. 4. Clean the surface of the drive shaft, push the belt pulley with tapered sleeve to the predetermined position on the shaft, and check whether the v-shaped belt pulley is aligned. 5. When using the keyway, it must be inserted into the hub first, and there must be a certain tolerance between the keyway and the hole hub. 6. Use a hex wrench conforming to DIN911 standard to tighten the bolts in each mounting hole alternately, gradually and evenly until the torque shown in the following table is reached. 7. After a short period of operation (0.5 to 1 hour), check the tightening torque of the bolts and retighten them if necessary. 8. To prevent foreign matters from invading, fill the connecting hole of the hole with grease.
Removal method of belt pulley: 1. Loosen all bolts, take out one or two bolts according to the number of removal holes, lubricate the bolt type and bolt tip with engine oil, and then insert the bolts into the removal holes. 2. Tighten the bolts alternately until the conical sleeve and pulley are loosened. 3. Remove the tapered sleeve and pulley from the shaft.
Six advantages of tapered bushing pulley: 1. Good interchangeability: tapered sleeve pulley is applicable to various occasions. When the drive components are operated for a long time, the inner holes and chain grooves may be damaged. If it is a transmission part using this tapered sleeve, when this happens, replace it with a tapered sleeve of accurate specification, and then it can be used again. Therefore, the service life of the transmission parts is greatly increased, the maintenance cost is reduced, and the time is saved. 2. Strong universality: the separation of pulley and conical sleeve allows the change of shaft hole only to change the diameter of conical sleeve, which increases the universality of products and greatly reduces the inventory type and cost of products. 3. Convenient installation and removal: only one inch hex wrench is needed, and no other special tools are needed. It can be completed in one minute, which is convenient and fast. 4. Wider shaft diameter tolerance is allowed:+0.05mm to -0.125mm. The groove can be equipped with V-belts, narrow V-belts, etc. Keyless transmission can be realized under light load and light load to medium load. 5. It is produced in strict accordance with international standard DIN2211, and all products have passed balance test to avoid damage to motor bearings and equipment components due to runout. 6. Surface anti rust treatment: after phosphating and blackening, the surface is smooth, beautiful and anti rust.

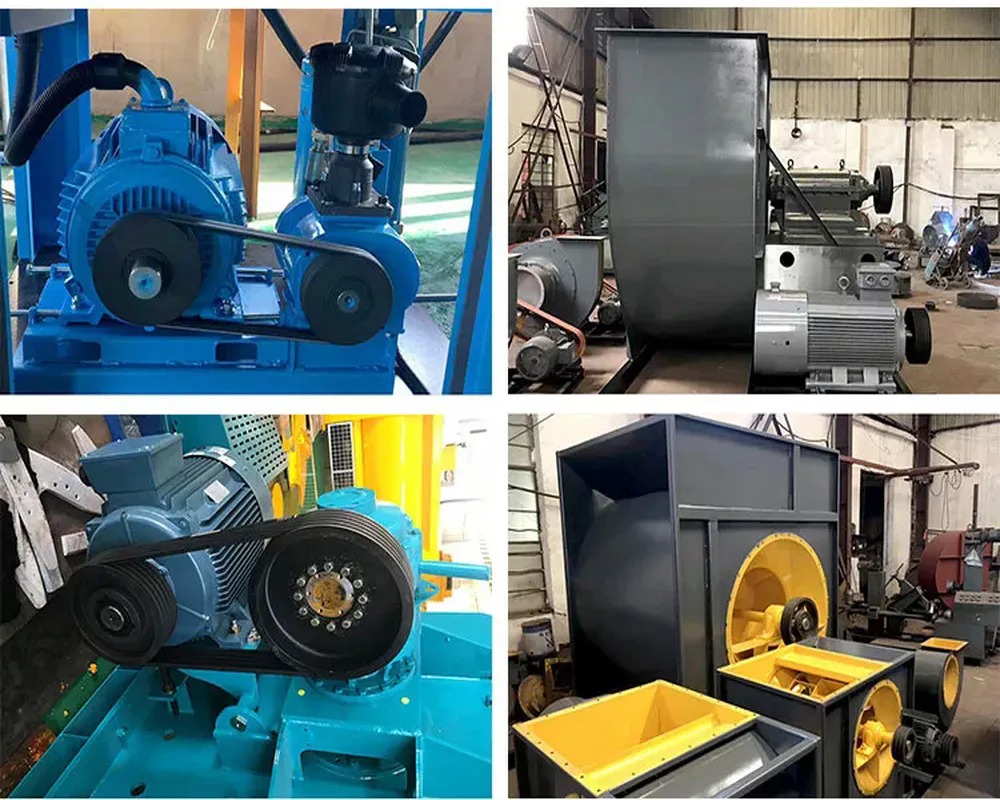

Common application of 8V series pulley *Machine tool *Crusher, pulverizer, crusher, classifier, vibrating screen *Material conveying system *Fans, blowers and exhausters *Pumps and compressors *Woodworking saw, milling machine, planer, lathe
Well-Sold 5V Series American Standard Pulley New Type Cast Iron Ten-Groove QD Sheaves for V-Belts OEM Customization Supported
Technological Processing
Well-Sold 5V Series American Standard Pulley New Type Cast Iron Ten-Groove QD Sheaves for V-Belts OEM Customization Supported
Warehouse inventory The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.
Well-Sold 5V Series American Standard Pulley New Type Cast Iron Ten-Groove QD Sheaves for V-Belts OEM Customization Supported

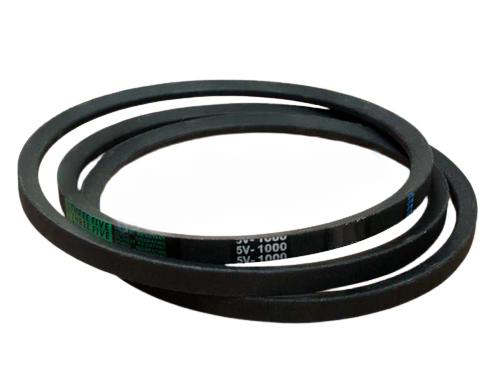

Our also provides belts matching pulleys:https://planetary-gearboxes.en.Raydafon/productgrouplist-825651128/Belt.html?spm=a2700.shop_pl.98.11
Well-Sold 5V Series American Standard Pulley New Type Cast Iron Ten-Groove QD Sheaves for V-Belts OEM Customization Supported
Well-Sold 5V Series American Standard Pulley New Type Cast Iron Ten-Groove QD Sheaves for V-Belts OEM Customization Supported
Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
