China Professional Manufacture American Standard 6C Series Cast Iron QD Sheaves for C Belts V-Belt Type Made of Alloy

6C Series Cast Iron QD Sheaves for "C" Belts6C series six groove QD bushing pulley is used for C, CX, belt and CC v-belt; Their diameters range from 6.40 inches to 50.40 inches. Depending on the pulley size, they use SF, E, F, J or M QD (quick disassembly) bushings, which we also have in s......
Send Inquiry
Product Description
China Professional Manufacture American Standard 6C Series Cast Iron QD Sheaves for C Belts V-Belt Type Made of Alloy

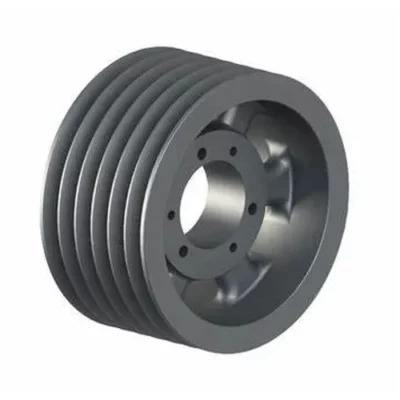

6C Series Cast Iron QD Sheaves for "C" Belts

6C series six groove QD bushing pulley is used for C, CX, belt and CC v-belt; Their diameters range from 6.40 inches to 50.40 inches. Depending on the pulley size, they use SF, E, F, J or M QD (quick disassembly) bushings, which we also have in stock. Most of the 6C QD pulleys are made of high strength grade 35 cast iron, phosphate coated and coated with anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.
6C QD Sheave Size Chart
China Professional Manufacture American Standard 6C Series Cast Iron QD Sheaves for C Belts V-Belt Type Made of Alloy
For more details, please click here to contact us!
Size
Bushing Type
Type
Pitch Diameter
Outside Diameter
(E)
(F)
(L)
(M)
Sheave Weight (LBS)
6C60SF
SF
A
6.0"
6.40"
1-1/32"
6-1/4"
2-1/16"
3-5/32"
20
6C70SF
SF
A
7.0"
7.40"
1-1/32"
6-1/4"
2-1/16"
3-5/32"
26
6C75SF
SF
A
7.5"
7.90"
1-1/32"
6-1/4"
2-1/16"
3-5/32"
29
6C80E
E
A
8.0"
8.40"
1-5/32"
6-1/4"
2-3/4"
2-11/32."
36
6C85E
E
A
8.5"
8.90"
1-5/32"
6-1/4"
2-3/4"
2-11/32"
39
6C90F
F
A
9.0"
9.40"
1-1/32"
6-1/4"
3-3/4"
1-15/32"
51
6C95F
F
A
9.5"
9.90"
1-1/32"
6-1/4"
3-3/4"
1-15/32"
55
6C100F
F
A
10.0"
10.40"
1-1/32"
6-1/4"
3-3/4"
1-15/32"
59
6C105F
F
A
10.5"
10.90"
1-1/32"
6-1/4"
3-3/4"
1-15/32"
62
6C110F
F
A
11.0"
11.40"
1-1/32"
6-1/4"
3-3/4"
1-15/32"
66
6C120F
F
A
12.0"
12.40"
1-1/32"
6-1/4"
3-3/4"
1-15/32"
70
6C130F
F
A
13.0"
13.40"
1-1/32"
6-1/4"
3-3/4"
1-15/32"
74
6C140F
F
A
14.0"
14.40"
1-1/32"
6-1/4"
3-3/4"
1-15/32"
80
6C160F
F
A
16.0"
16.40"
1-1/32"
6-1/4"
3-3/4"
1-15/32"
89
6C180F
F
A
18.0"
18.40"
1-1/32"
6-1/4"
3-3/4"
1-15/32"
102
6C200F
F
A
20.0"
20.40"
17/32"
6-1/4"
3-3/4"
1-31/32"
112
6C240F
F
A
24.0"
24.40"
17/32"
6-1/4"
3-3/4"
1-31/32"
131
6C270J
J
A
27.0"
27.40"
1/16"
6-1/4"
4-5/8"
1-9/16"
160
6C300J
J
A
30.0"
30.40"
1/16"
6-1/4"
4-5/8"
1-9/16"
190
6C360J
J
A
36.0"
36.40"
1/16"
6-1/4"
4-5/8"
1-9/16"
232
6C440J
J
A
44.0"
44.40"
1/16"
6-1/4"
4-5/8"
1-9/16"
299
6C500M
M
B
50.0"
50.40"
1/16"
6-1/4"
6-3/4"
23/32"
320
How to select the correct V-pulley? If you are looking for V-pulleys for your project, you need to know what type of pulley you need. There are four basic types: variable speed, stepping, double teeth and fractional horsepower. Knowing which type is right for your application is critical to avoiding unnecessary problems and improving project efficiency. variable speed Variable speed V-belt pulley is a V-belt pulley with variable speed and pitch. This type of pulley has higher flexibility and efficiency. These pulleys can be purchased with stock, taper, or finish machined holes. Variable speed V-pulleys are used in a variety of applications and are designed to match different types of belts. They are used with multiple belts and feature flanges that fit the standard belt angle and width. Matching the correct pulley model with the correct belt ensures the correct speed and torque. These pulleys are usually cast iron. They can vary the pitch and are suitable for 3L, 4L and 5L V-belts. They can also be used with A-type V-belts. Two piece cast iron design allows quick and easy installation. Tension cable The first step in selecting a suitable V-pulley is to know its size. There are several different ways to measure the length of the V-belt. Determining the length of the V-belt can be a challenging task. The proper height requires measuring the clamp, the specific pulley diameter, and the ability to apply a specific tension. The measurement standards are established by the Rubber Products Manufacturers Association (ARPA). There are many terms used to describe the length of a belt segment. Before purchasing a replacement V-belt, be sure to measure the dimensions of the original belt. Steel tape or long ruler can be used. You can roll the belt to measure the distance, and then use the measuring equipment to make accurate measurements. If the existing belt is worn, the length will be less than the new belt. The width of the new belt should be 0.5 inch smaller than the original belt.

China Professional Manufacture American Standard 6C Series Cast Iron QD Sheaves for C Belts V-Belt Type Made of Alloy
We also provides belts matching pulleys:https://planetary-gearboxes.en.Raydafon/productgrouplist-825651128/Belt.html?spm=a2700.shop_pl.98.11
Technological Processing
China Professional Manufacture American Standard 6C Series Cast Iron QD Sheaves for C Belts V-Belt Type Made of Alloy
Warehouse inventory The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.
China Professional Manufacture American Standard 6C Series Cast Iron QD Sheaves for C Belts V-Belt Type Made of Alloy
China Professional Manufacture American Standard 6C Series Cast Iron QD Sheaves for C Belts V-Belt Type Made of Alloy
China Professional Manufacture American Standard 6C Series Cast Iron QD Sheaves for C Belts V-Belt Type Made of Alloy
Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
