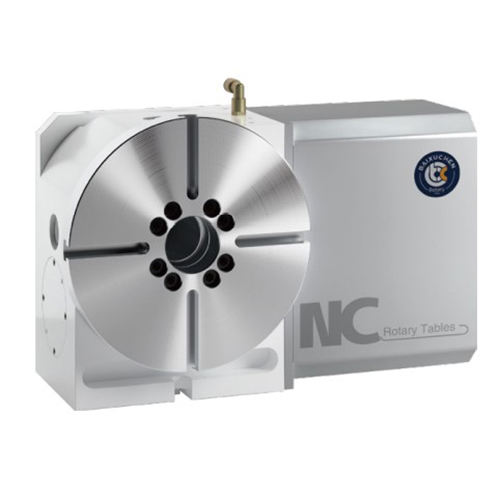

WT-170-2W Cnc Machining Center Trade Accessories for Numerical Control Machine

Large aperture design, suitable for heavy load machining High segmentation accuracy, high rigidity and high performance High efficiency and strong braking structure systemProduct ModelWT-170-2WSegmentation accuracy15 ″Disk DiameterΦ170mmRepeat positioning4 ″Center DiameterΦ55H7mmLocking Mode31kg.mSp......

Send Inquiry

Product Description

Large aperture design, suitable for heavy load machining

High segmentation accuracy, high rigidity and high performance

High efficiency and strong braking structure system

Product Model	WT-170-2W	Segmentation accuracy	15 ″
Disk Diameter	Φ170mm	Repeat positioning	4 ″
Center Diameter	Φ55H7mm	Locking Mode	31kg.m
Spindle Hole	Φ50mm	Servo Motor	β8is;HF-104
Center Height	160mm	Speed Reduction Ratio	1:90
T-Slot Width	12H7mm	Maximun Speed	33.3r.p.m
Positioning Button	14H7mm	Allowable Work Inertia	5.4kg.cm.sec2
Min lncrement	0.001°	Allowable Cutting Torque	18Kg.m
Weight(Without Motor)	150Kg	Vertical	80KG
Center Distance	260mm	Tailstock applied	160KG

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
