Worm gearbox GW10 FOR GREENHOUSE

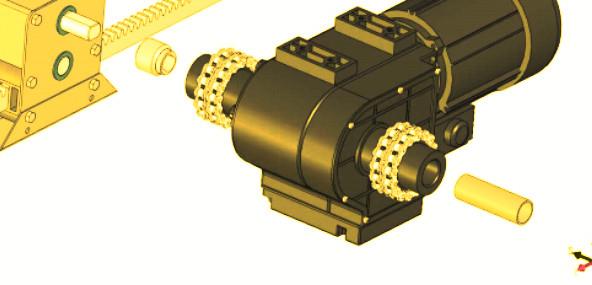

MOTOR WORM GEARBOXES GW10 WITH CHAIN COUPLING FOR GREENHOUSE

As a standard the GW10 is fitted with a chain coupling set with a duplex chain according

to DIN chain number 08B-2 or 10B-2. The sprocket wheel joint is available for a 1” (08B-

2), 5/4” or 2” (both 10B-2) drive tubes. The motor gearbox can be mounted at the side

or at the base.

The GW10 can optionally be fitted with a tube-bolt chain coupling set for 1” or 5/4” drive

tubes. Electric motors with different voltages and/or frequencies or a higher protection

class, for instance tropic winding, are available on request.
