Low Backlash Worm Gearbox

low backlash worm gearbox

Introduction

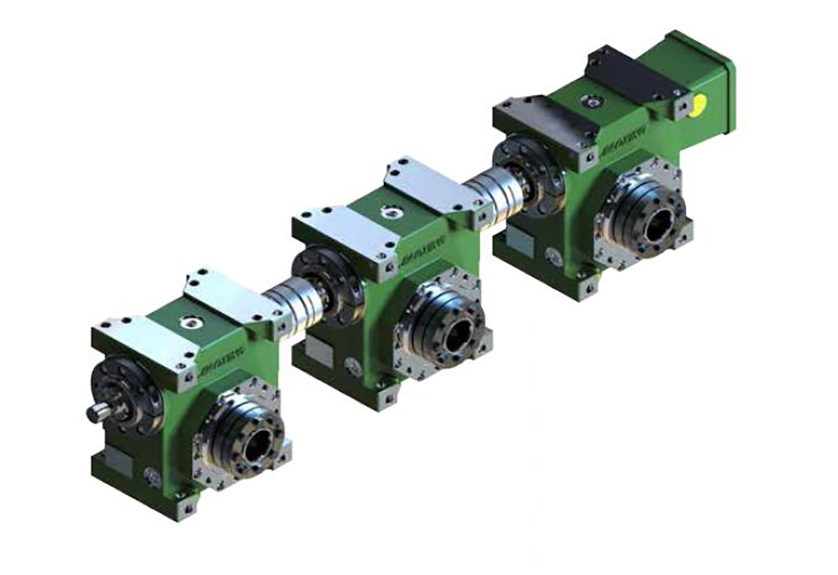

The low backlash drive units HPCNHS type are available in 4 sizes. Each size includes 2 ratios which are 30:1 and 60:1.

The drive units HPCNHS are built with a minimum backlash which can be adjusted due to the duplex toothing of the gears.

The low backlash drive units are built for medium power transmission.

Worm Gear Units:

The NHS-Range gearboxes is available in 4 model sizes and 2 standard ratios.The gearbox size is identical to the centreline distance.

Low backlash Features :

-- Worm gear gyration backlash can be adjusted to less than 1 arc.

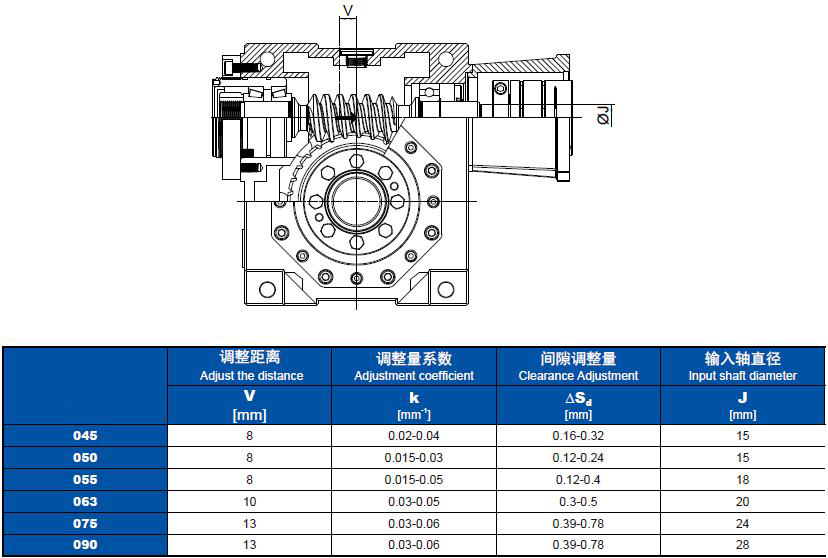

-- Reducer can be re-adjusted the gap after using .
-- Input with coupling : reliable without backlash .
-- Output using conical clamping ring couplings : reliable without backlash.

GEAR BOX SIZE:

030 045 060 090

RATIO:

< 50 - 70 Arc Sec

< 20 - 50 Arc Sec
