Product Description

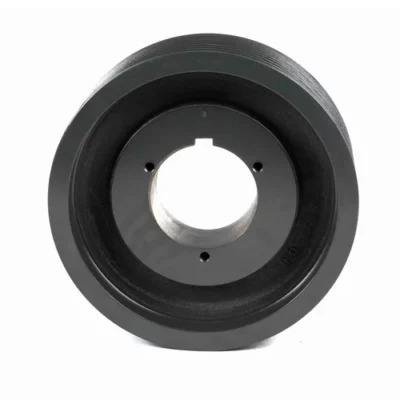

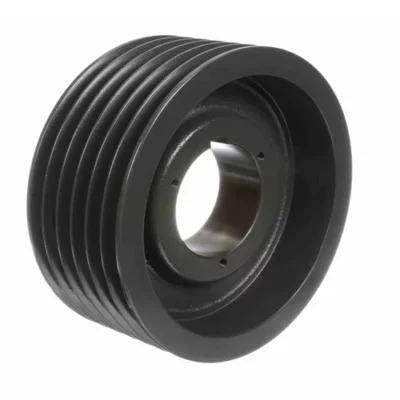

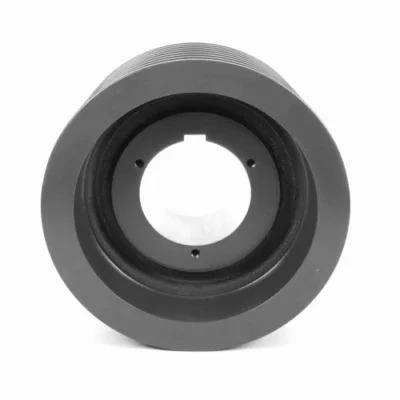

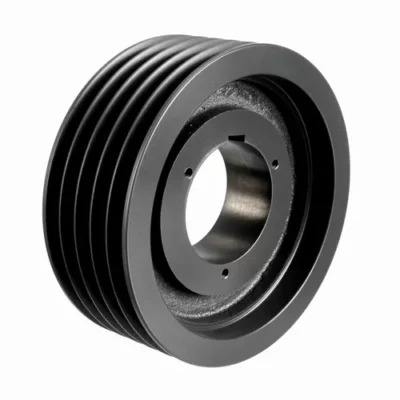

8V Series Cast Iron Five-Groove Pulley Sheaves with Split Taper Bushings

The 8V series five groove tapered bushing pulley is applicable to 8V and 8V V-belt. They range in diameter from 12.5 "to 64.0". Depending on the pulley size, they use S1 or U0 split taper bushings, which we also have in stock. Most of our five groove 8V split taper pulleys are made of high strength grade 35 cast iron, coated with phosphate coating and anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.

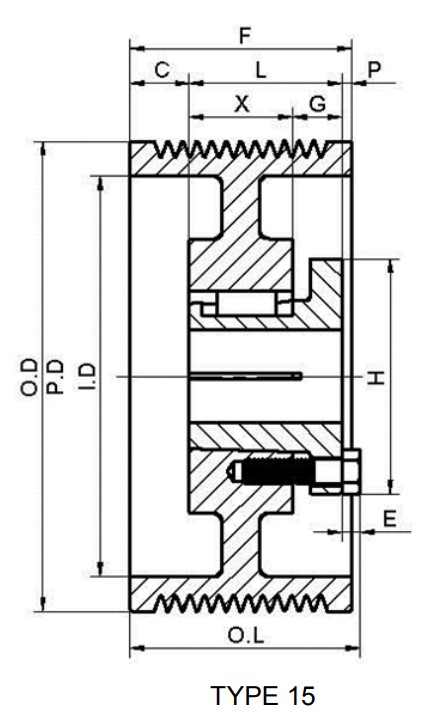

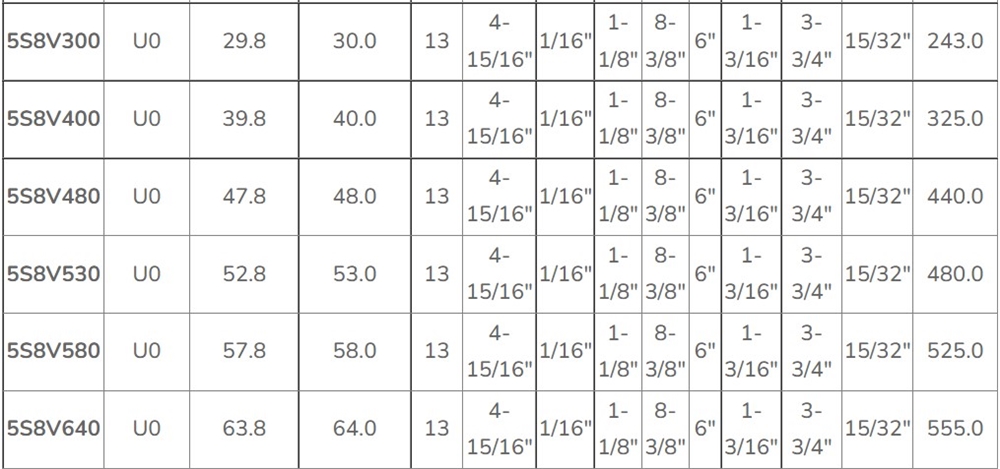

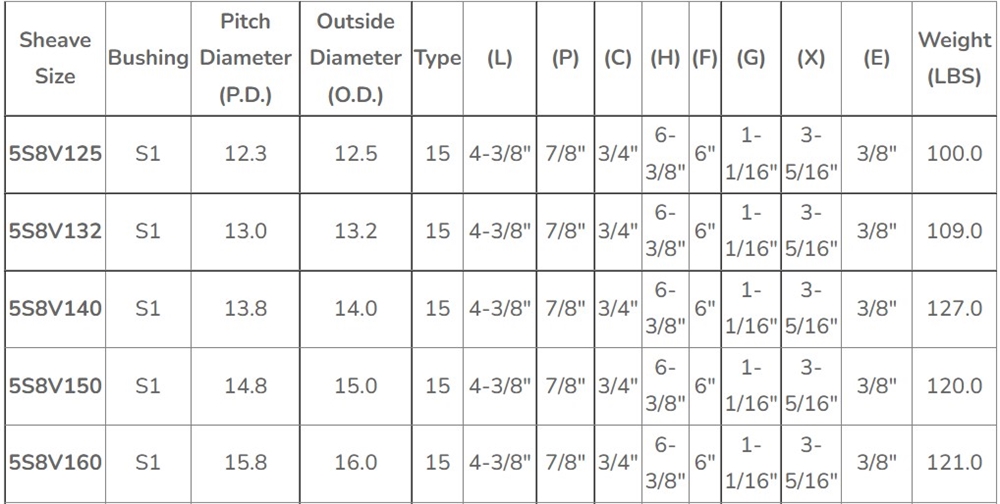

Five-Groove 8V Split Taper Sheave Size Chart

For more details, please click here to contact us!

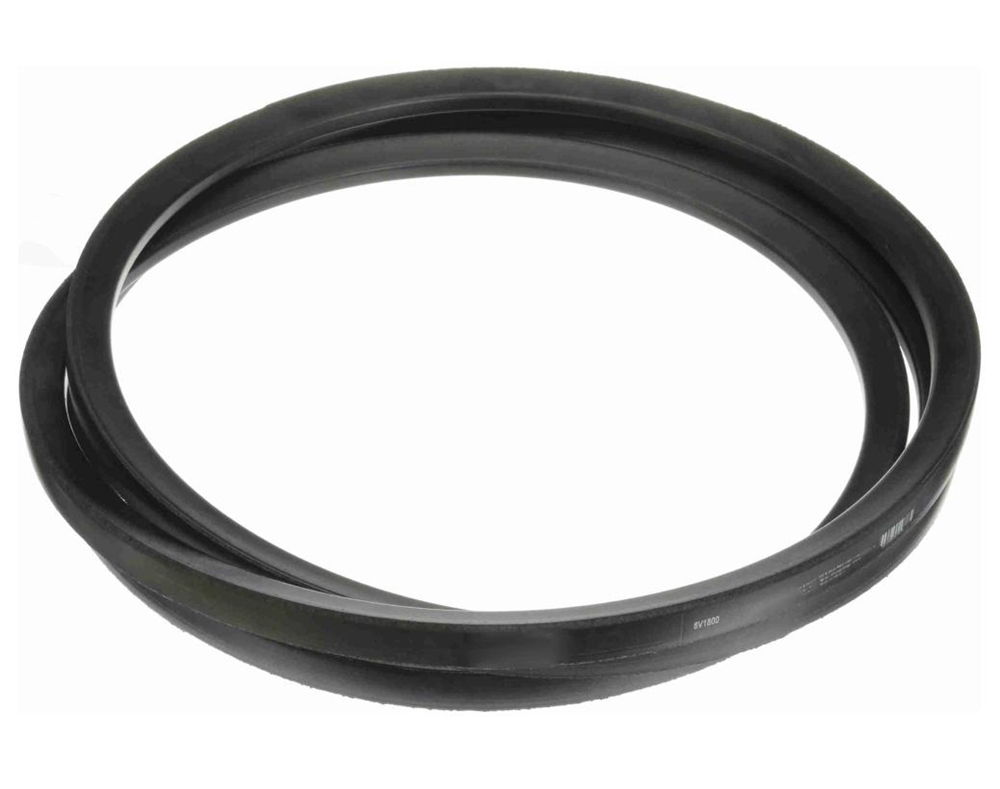

Relevant supporting 8V, 8V belt series V-belt (1) 8V series V-belt Classic 8V series V-belts have a top width of 0.63 ", a thickness of 0.53", and an angle of 38 °. In addition, the 8V V-belt is one of the oldest V-belts in the industry. Because of their long-term success and economic operation, they are also one of the most widely used belt series in the industry. The high-quality 8V series v-belts we provide are manufactured according to ISO 9001 specifications, which are oil and heat resistant and can be directly interchanged with other brands. They are composed of natural rubber compound and polyester rope, and are covered with a mixture of cotton and polyester, with high durability.

(2) 8V series ribbon V-belt The 8V series v-belts are part of the "classic" series of v-belts because they are one of the oldest styles used and one of the most common styles. Our belts are manufactured according to ARPM standards and have excellent strength, durability and performance. The top width of each belt (belt/rib) of 8V series v-belt is 1.0 inch.

Related Split Taper Bushings Split tapered bushes are one of the most commonly used bushes because of their high overall strength, ease of installation and unloading, and high retention for successfully connecting the shaft to the drive or idler gear assembly. The open tapered bushing is used for various pulleys, conveyor pulleys, and sprockets. Our high-quality split taper bushing is made of high-quality steel or casting material and can be interchanged with any other brand. It is designed as a flange bushing with a tapered cylinder and a slit on each side. We have G series to W2 series split tapered bushings, and 0.375 inch to 7.438 inch inch inch and metric hole diameters. For more information or to get a quote for our high-strength open taper bushing, please contact our customer support team and we will be happy to help you.

Always pay attention to the two main components of the pulley drive Masters who often contact v pulley know that the accuracy of belt transmission ratio is worse than that of gear meshing transmission. However, the belt transmission mechanism has the advantages of smooth transmission, low noise, simple structure and convenient maintenance. Therefore, belt drive mechanism is widely used in mechanical transmission. However, as the belt is easy to generate electrostatic discharge after friction, it cannot be used in places prone to combustion or explosion. Two dangerous components of the belt drive: 1. Where the belt enters the pulley: the distance between the belt shield and the belt shall not be less than 50mm, and the design shall be reasonable to avoid affecting the operation of the machine. If the belt breaks, it won't fall down and hurt people. If the belt breaks, it won't fall down and hurt people. If the belt breaks, it won't fall down and hurt people. The transmission mechanism shall be provided with a protective cover when it is generally less than 2m above the ground. However, in the following three cases, protection shall be provided even if the distance exceeds 2m: the distance between pulleys exceeds 3m; The belt width is more than 15cm; The belt rotation speed is greater than 9m/min. 2. The belt connector must be firm and reliable. When installing the belt, make sure that the tension is correct. The belt drive mechanism can be protected by covering the entire belt or using protective railings. However, when overloaded, the belt will slip and play the role of overload protection.

Common application of 8V series pulley *Machine tool *Crusher, pulverizer, crusher, classifier, vibrating screen *Material conveying system *Fans, blowers and exhausters *Pumps and compressors *Woodworking saw, milling machine, planer, lathe

Technological Processing

Warehouse inventory The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.

Our also provides belts matching pulleys:https://planetary-gearboxes.en.Raydafon/productgrouplist-825651128/Belt.html?spm=a2700.shop_pl.98.11

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
