Tractor Pto Gearbox

Raydafon Group's Tractor PTO Gearbox delivers robust power for agricultural machinery, offering superior durability and efficiency. Ideal for farmers and tractor owners, it ensures smooth operation, enhances productivity, and solves common gearbox failures. Its advanced design and high-quality materials set it apart, providing reliable performance in demanding conditions. Experience the difference with Raydafon Group.

Send Inquiry

Product Description

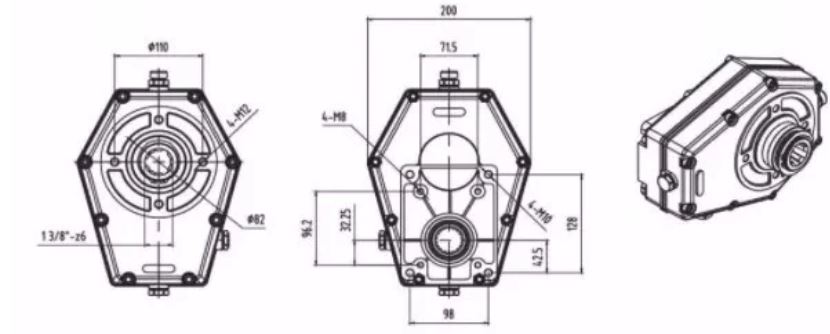

Hydraulic Tractor PTO Gearbox to Suit Group 2/3 Pump 1:3 Ratio 70004-4

These over-gears are designed for connecting hydraulic gear pumps to farm tractor power-take-offs (PTO’S).

The output speed of a PTO ( Power take off ) is 540RPM, Giving a pump shaft speed of 1620 RPM. Different input speeds can also be suitable, provided that over-gear output speed does not exceed 3000 RPM.

SPECIFICATION:

Housing: Aluminium

Shafts & Gear Material: Steel

Lubrication: SAE 90 Gear Oil

Working Temperature: 120°C Max

Female PTO Shaft 1 3/8 Quick Fitting

ASAE 1 3/8 Z6 DIN 9611 A

Pump Connection: DIN 5482 A 35 x 31 18 Tooth

Ratio: 1:3

Rating: 20Kw
