Pto Shaft & Gearbox For Vineyard Sprayer

pto shaft & gearbox for vineyard sprayer

For 60 HP Applications

Sprayer designs and connection sizes vary greatly. Rest assured we can repair or replace whatever PTO shaft your rig happens to use.

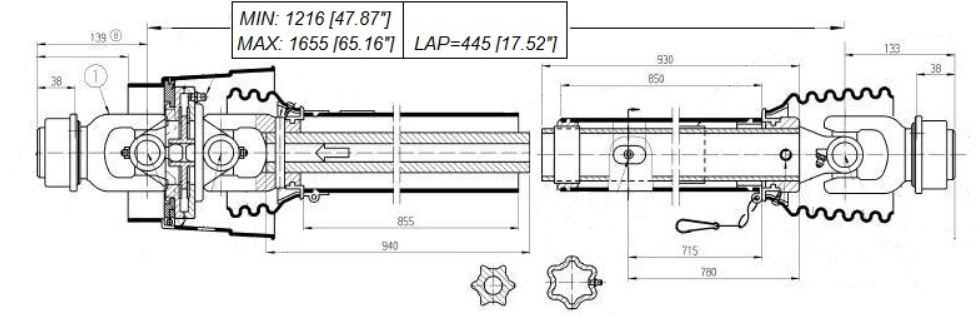

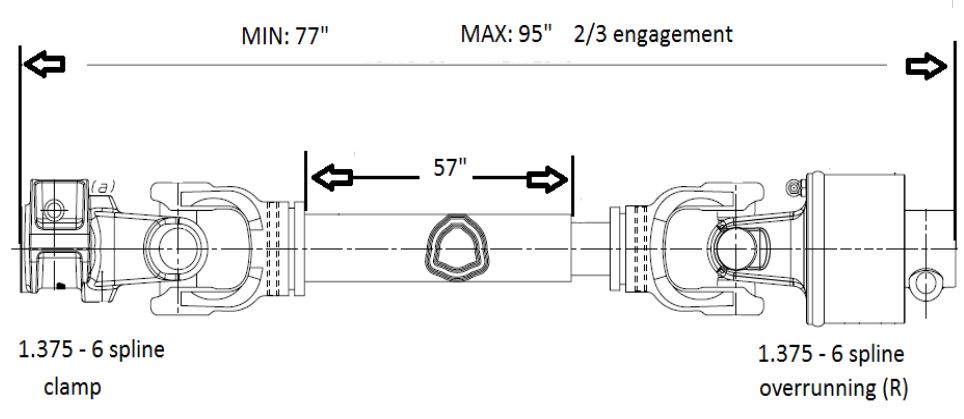

MAIN SHAFT: CAT 5 Constant Velocity

Our research indicates most tractors using 1.375-6 spline

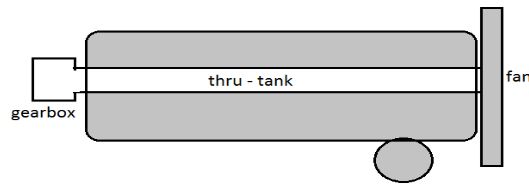

Typical thru- TANK SHAFT with overrunning protection

for 90 HP and up applications (540 RPM or 1000 RPM)

Sprayer designs and connection sizes vary greatly. Rest assured we can repair or replace whatever PTO shaft your rig happens to use

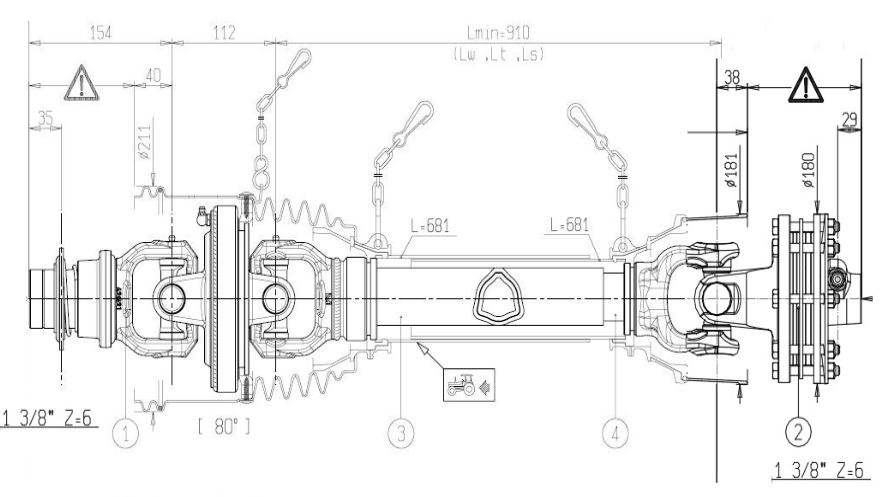

MAIN SHAFT: CAT 6 Constant Velocity

Our research indicates most tractors using 1.750-20 spline

and input shaft varies.

Other combinations are available.

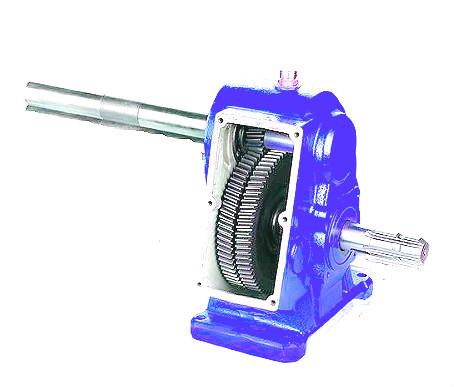

Gearboxes for different Sprayer
