POS Series Left or Right Hand Male Thread Joint Rod End Bearing With Zinc Plated

POS Rod End Bearing--Rod body with left or right-hand male thread--Outer race lined with bronze liner--Surface of rod body zinc plated,rod body with a lubricating hole or grease nipple * Easy to use: easy to install and disassemble, the bearing can produce self-lubrication during work, no maintenan......

Send Inquiry

Product Description

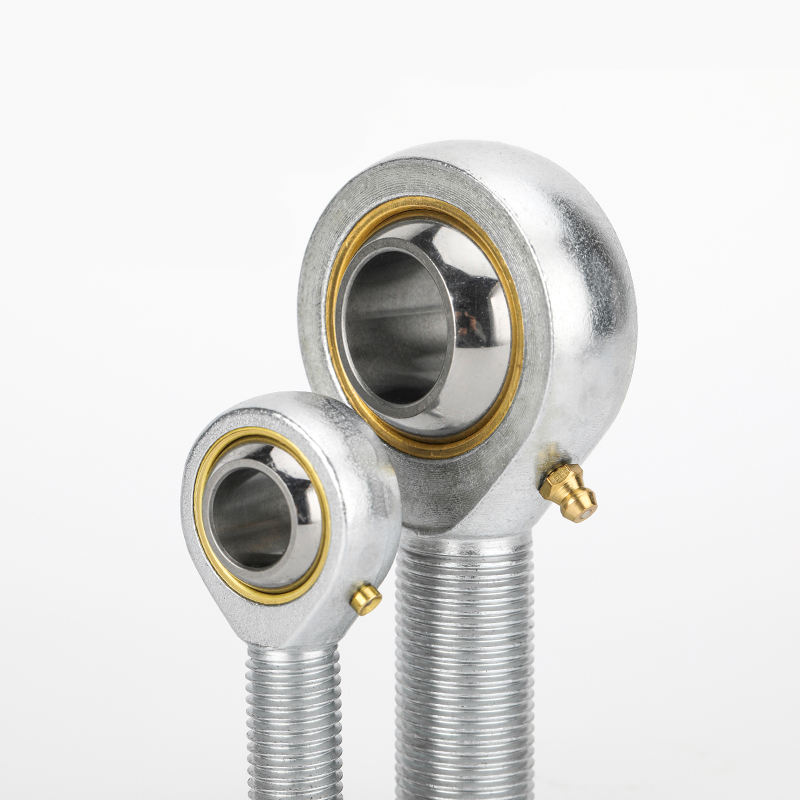

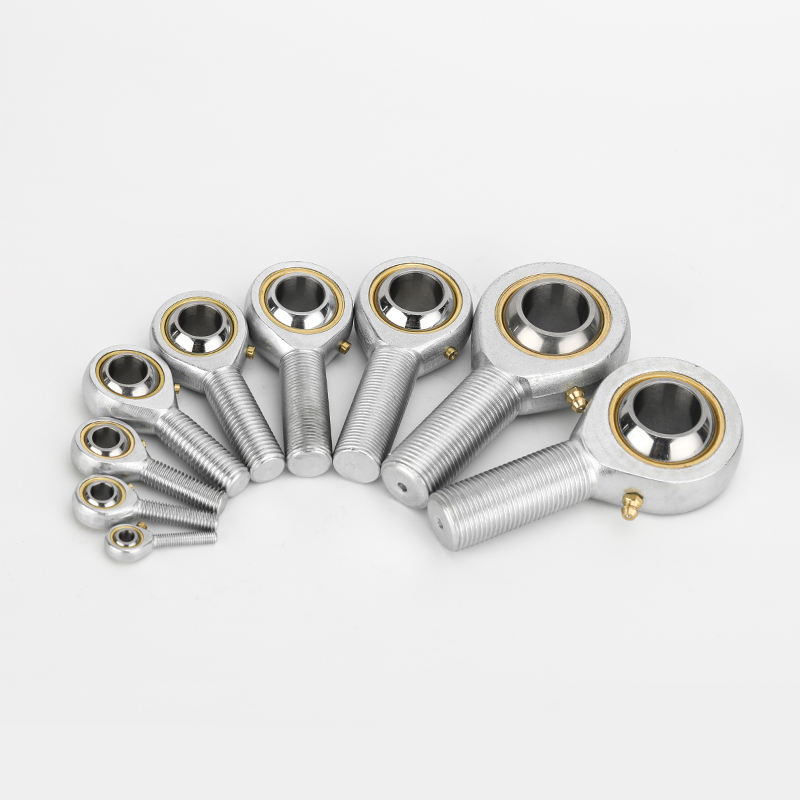

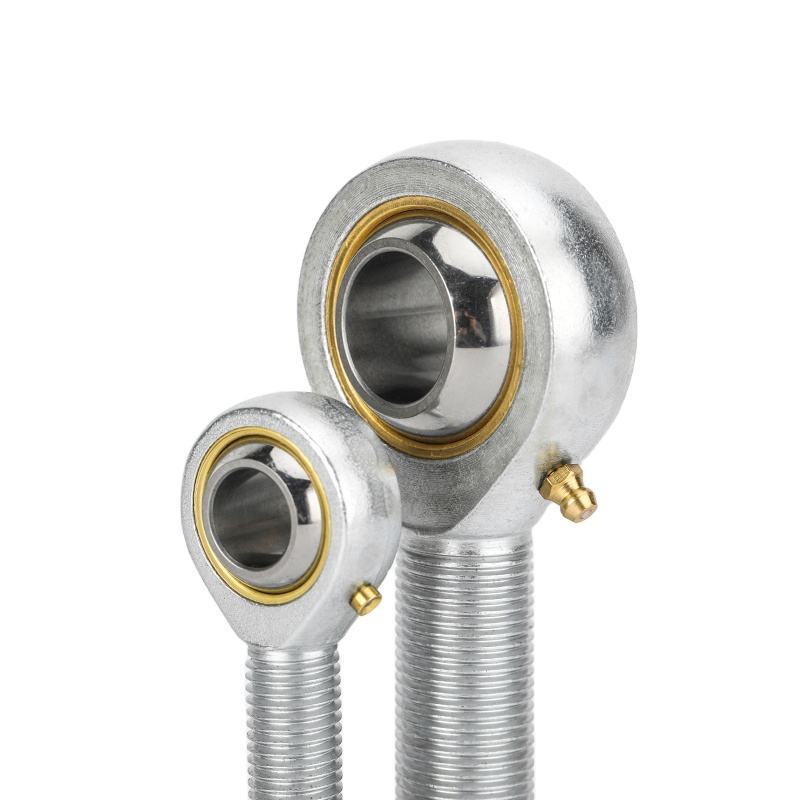

POS Rod End Bearing

--Rod body with left or right-hand male thread

--Outer race lined with bronze liner

--Surface of rod body zinc plated,rod body with a lubricating hole or grease nipple

* Easy to use: easy to install and disassemble, the bearing can produce self-lubrication during work, no maintenance required
* Features: The rod end bearing is a spherical sliding bearing, which can rotate and swing at any angle during motion
* Applicable to instrumentation, construction machinery, mining and mineral processing, industrial fans, etc.

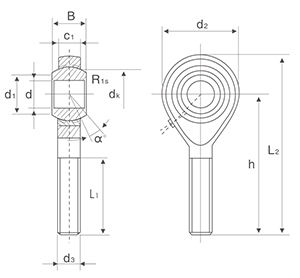

Part Number	Dimensions(mm)					Load ratings(KN)	Weight(g)
	d	d3	B	dyn.c	stat.c0
POS 5	5	M5*0.8	8	3.25	5.7	12
POS 6	6	M6*1.0	9	4.3	7.2	16.9
POS 8	8	M8*1.25	12	7.2	11.6	33.4
POS 10	10	M10*1.5	14	10	14.5	54.7
POS 12	12	M12*1.75	16	13.4	17	84.3
POS 14	14	M14*2.0	19	17	24	126.6
POS 16	16	M16*2.0	21	21.6	28.5	175.5
POS 18	18	M18*1.5	23	26	42.5	243
POS 20	20	M20*1.5	25	31.5	52.5	317
POS 22	22	M22*1.5	28	38	57	410
POS 25	25	M24*2.0	31	47.5	68	616.5
POS 28	28	M28*2.0	35	58	75.5	836.5
POS 30	30	M30*2.0	37	64	88	1020

For left-hand thread,please and surffix“L”,e.g. POSL 8
If need the stainless steel material please to add “S”in front of the model for example:SPOS 8

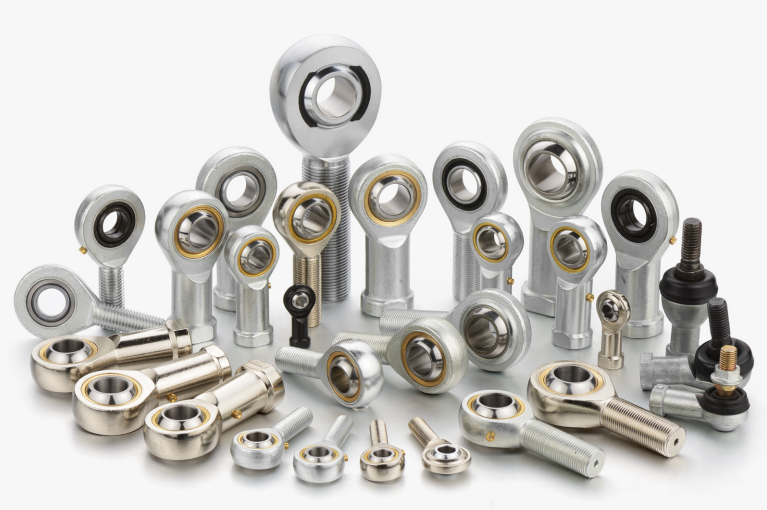

Raydafon Bearing Industry Co., Ltd. was established in 2003. It is a joint-stock company integrating R&D, manufacturing and import and export trade. The company's main products are rod ends, radial spherical bearings, linear bearings, linear slides, needle rollers, ball screws and linear guide mechanical parts. We not only design and produce various standard bearings, but also customize various non-standard bearings according to customer needs.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
