A rugged and dependable Shaft mounted helical gear motor ideal for all material handling applications involving conveyors or augers and are also suitable for a wide variety of industrial fields.

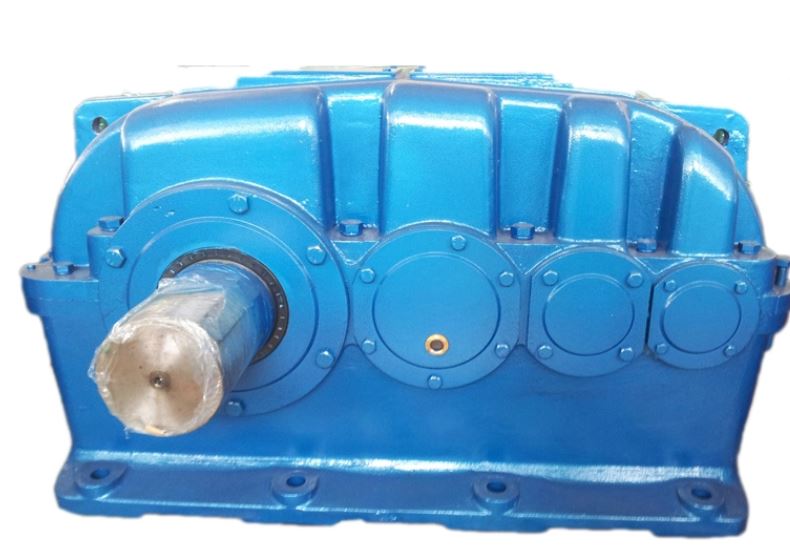

EP-series parallel shaft helical gearbox, available in cast iron casing only, Available in 6 sizes from 04 to 10, offer a large range of reduction ratios and are fully efficient in any working conditions.

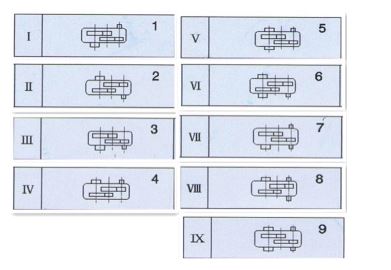

Available versions
• Foot-mounted or flange-mounted gearbox / gearmotor
• B5 or B14 Flange-mounted gearbox / gear motor
• Solid or hollow shaft gearbox / gearmotor
Ratio :
1) Double Reduction : 5.0 To 100.
2) Triple Reduction : 63 To 355.
3) Quadruple Reduction : 360 To 5600.
4) Quintuple Reduction : 4500 To 20000.
Capacity : 0.12 kW To 45 kW.
Output RPM : 0.31 To 290.
Nominal Ratio : 5 To 20000.
• Mounting: foot or flange-mounting versions (B5, B14, mixers, extruders), torque bracket
• Shaft: Solid shaft, Hollow shaft
Typical Applications of Parallel Shaft Helical Gear Motors are as follows:
• Agitator drives • Carriage drives • Shelf access equipment • Vertical conveyor
