Oil-pump-gearbox

Raydafon Group's Oil-pump-gearbox delivers reliable performance for industrial machinery, with durable materials and precision engineering. Ideal for engineers and maintenance professionals, it ensures smooth operation and extends equipment life, setting it apart with superior efficiency and quality.

Send Inquiry

Product Description

oil-pump-gearbox

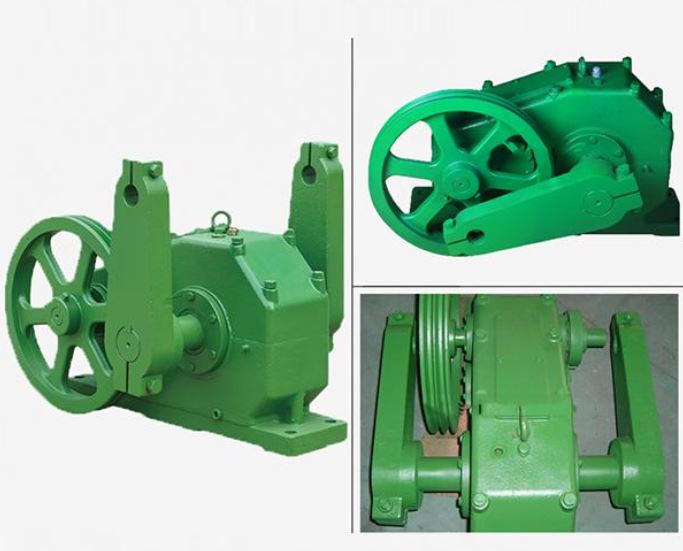

Oil Pump Gearbox

We could offer proper oil pump gearbox for our customers according to thetr agricultural machines. If the

application, dimension and Input speed and gear rabo are offered, We could offer you whatever you want.

ODM (original design manufacturing) service is provided when manufacturing oil pump gearbox.

The folloWings are its technical parameters:

Model Number	OK16
Gearing Arrangement	Bevel I Mrter
Output Torque	9-JOOON.m
Rated Power	33HP
Input Speed	540rpm
Output Speed	15'pm
Housing Material	HT250
Gear Shaft Material	20CrMnTi
Ratio	36.7:1
Input speed	540 rpm
Color	Customer Requests
Backlash	0.25-0.46
Noise	70db-1 meter
Power	33HP
Input torque	1.1-1.SNM
Output speed	15rpm
