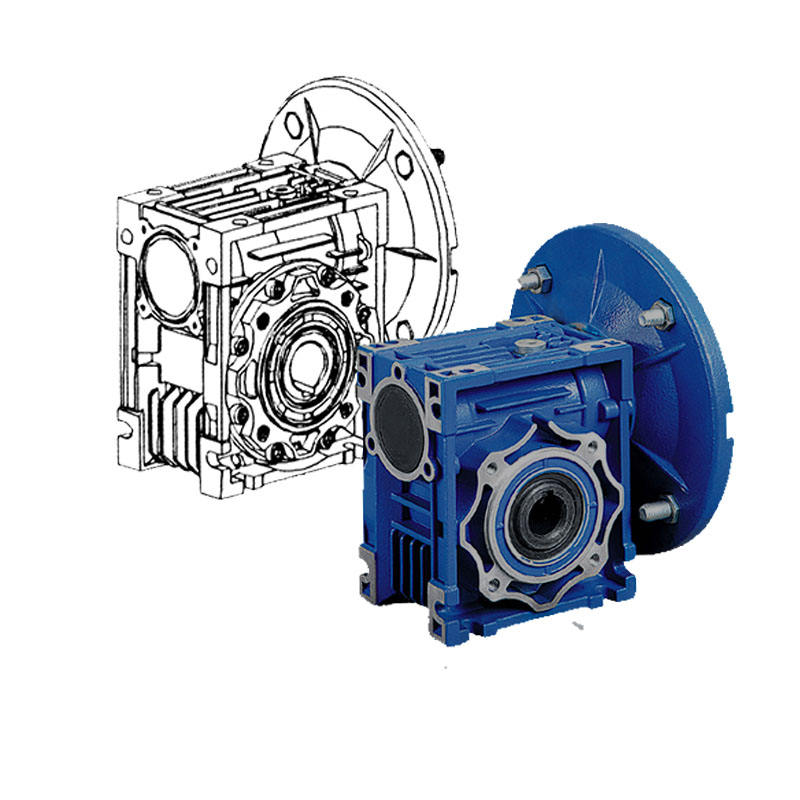

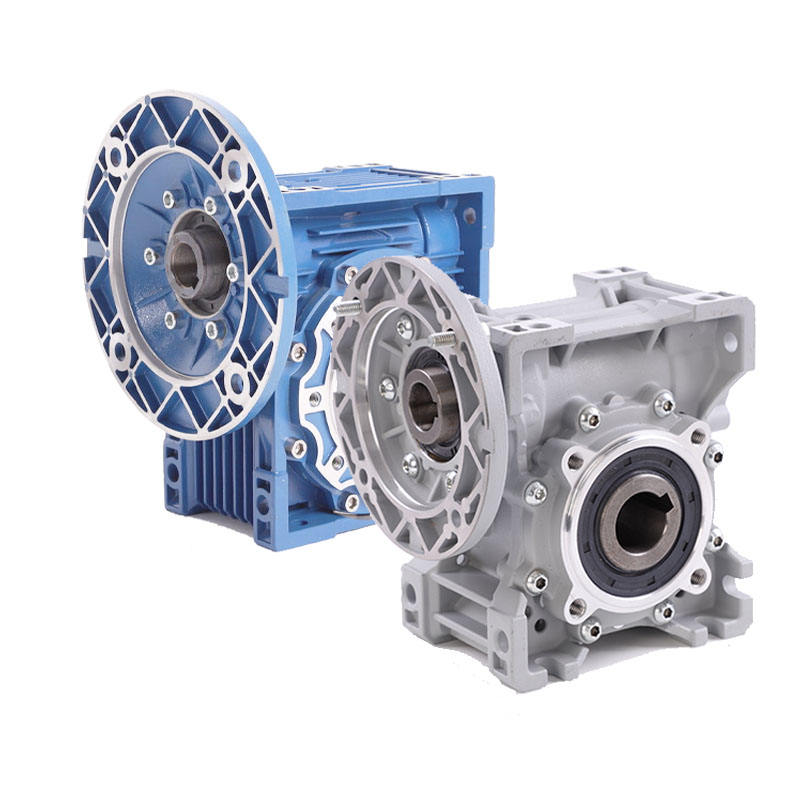

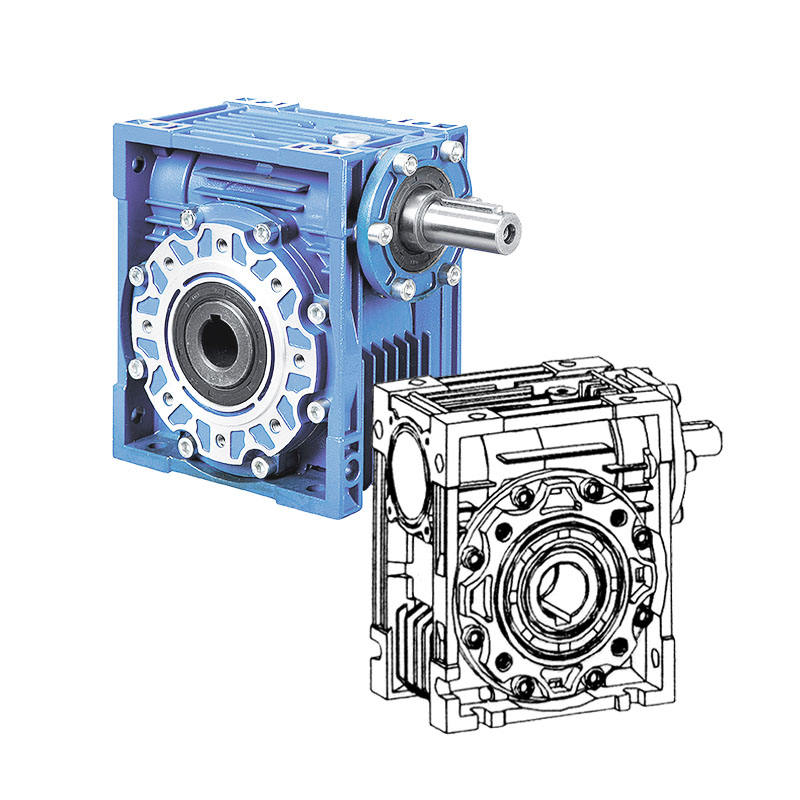

High Standard 94 Copper 20cr Worm Gear Shaft Reducer with Input Flange Replace of Nmrv Series

Raydafon Group's High Standard 94 Copper 20cr Worm Gear Shaft Reducer with Input Flange, replacing Nmrv Series, offers superior durability and efficiency for industrial applications. Its precision-engineered design ensures reliable performance, ideal for engineers and manufacturers seeking high-quality replacements. Experience seamless operation and enhanced productivity with this standout solution.

Send Inquiry

Product Description

Features of Worm Reducer /Gearbox
1.Common mounting dimensions.
2.Aluminum and cast iron housing.
3.Worm and worm wheel transmission.
4.Compact structure and light-weight.
5.Wide range of accessories.

Benefits of Worm Gearbox / Reducer
1.Unique housing design will distinguish you from other competitors.
2.Multiple choice for oil seal.
3.The dimensions can be customized according to customer's requirements.

Type	Worm Gear Speed Reducer / Gearbox / Reductor
Model	NMRV 25/30/40/50/63/75/90/110/130/150/185
Ratio	1:5/7.5/10/15/20/25/30/40/50/60/80/100
Input hole size	9MM、11MM、14MM、19MM、24MM、28MM、38MM、customized
Output hole size	11MM、14MM、18MM、25MM、28MM、35MM、42MM、45MM、50MM、customized
Color	Customized Color
Input flange	flange, large round flange, small round flange
Other accessories	Output flange, output shaft, torsion arm, etc
Packing	Carton, Honey Comb Carton, Wooden Case with Wooden Pallet
Usage	Industrial Machine, Food Stuff, Ceramics, Chemical, Packing, Dyeing, Wood Working, Glass, etc.
Flange	IEC standard flange or customized dimensions
Housing Material	Aluminum&Cast iron
Size	11 sizes(MRV25~MRV185)
Power	0.06~22 KW
Nominal torque	≤2548 N.m
