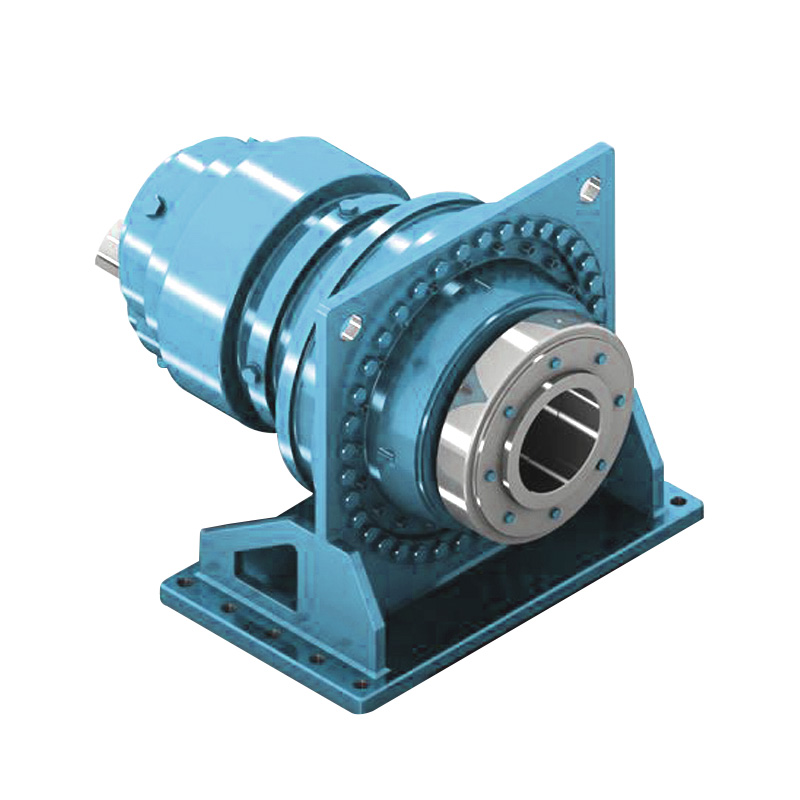

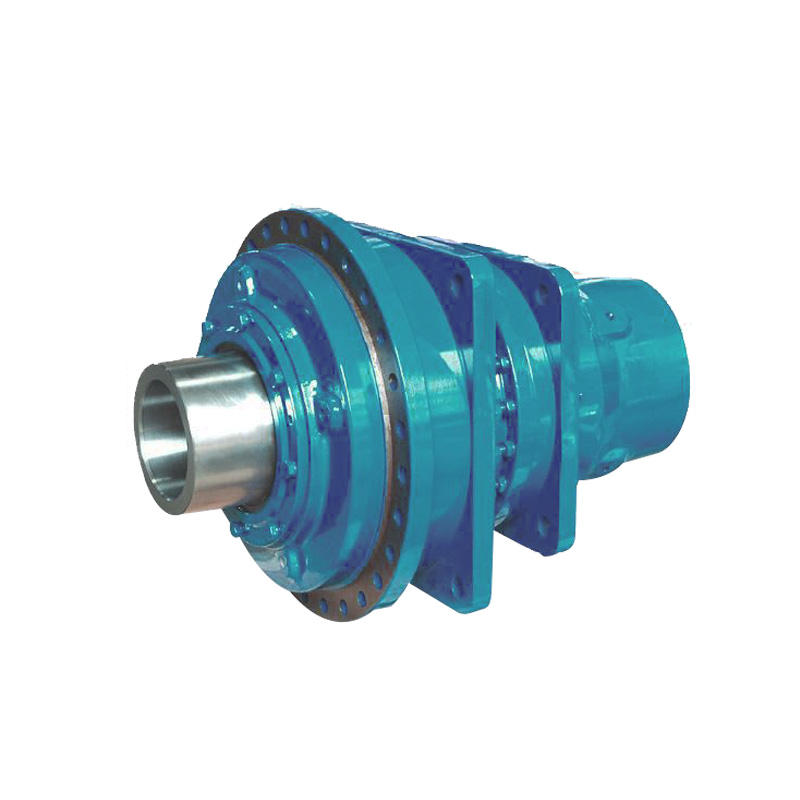

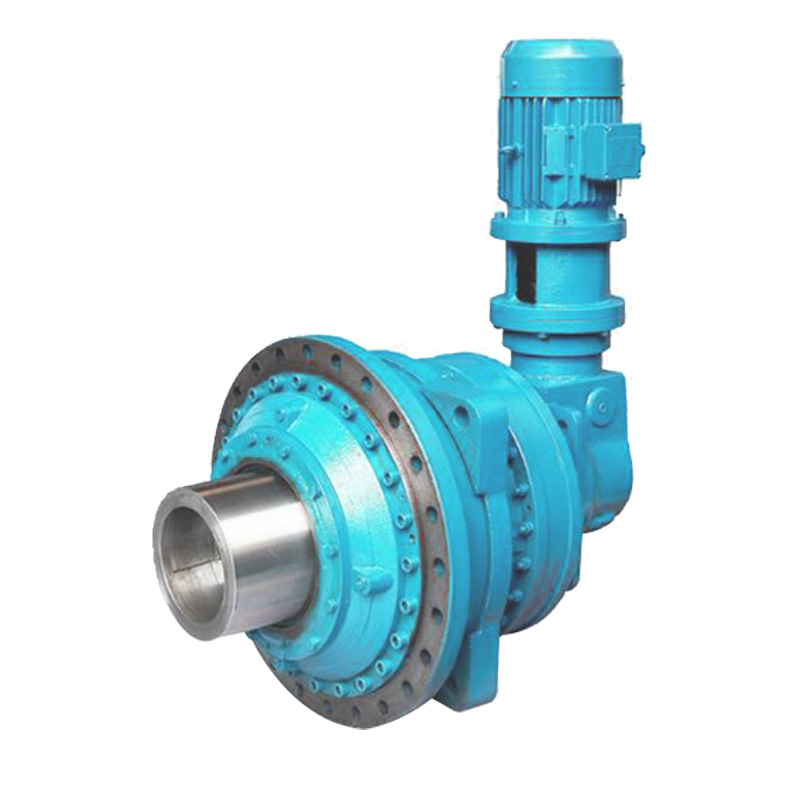

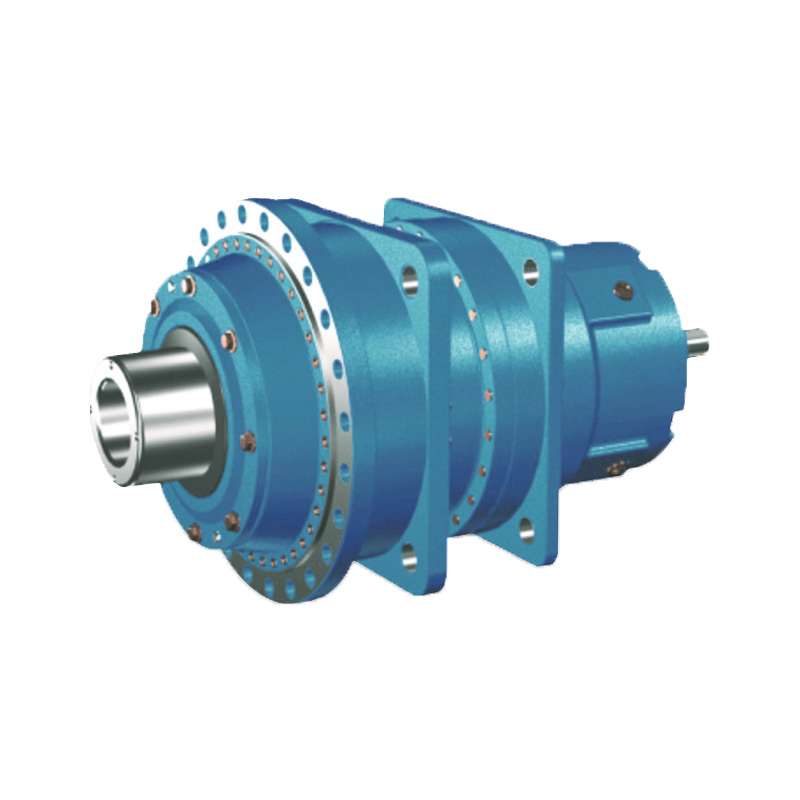

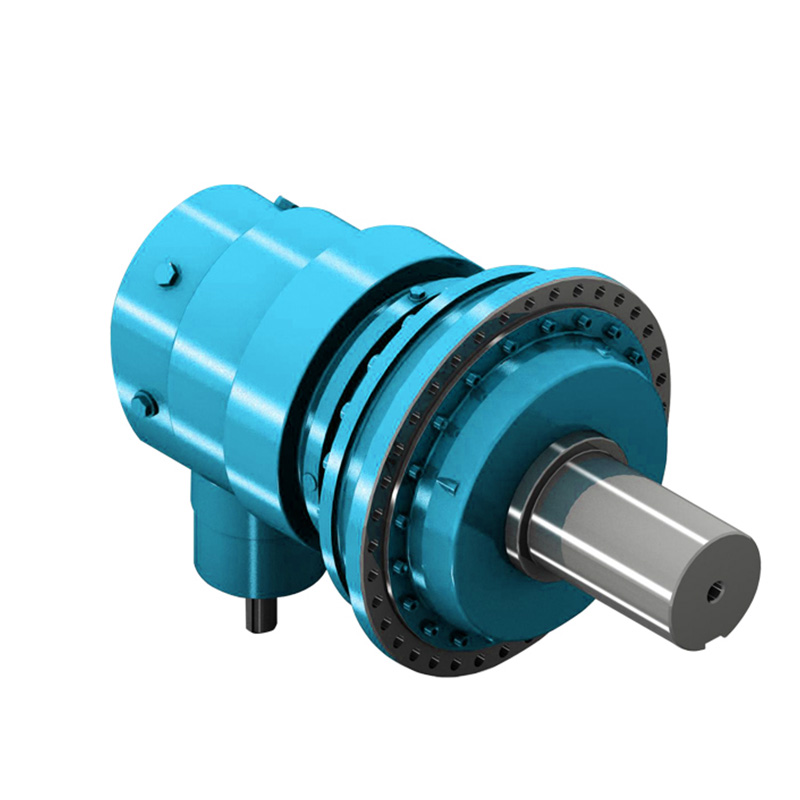

High Quality P Series Heavy Duty Planetary Gear Reducer Customized OEM Power Transmission Parts

Feature:1.P series planetary gear reducer adopts new open line planetary gear transmission, which makes rational use of internal and external combination and power split. Therefore, it has the characteristics of light weight, small volume, large transmission ratio, high efficiency, smooth operation,......

Send Inquiry

Product Description

Feature:

1.P series planetary gear reducer adopts new open line planetary gear transmission, which makes rational use of internal and external combination and power split. Therefore, it has the characteristics of light weight, small volume, large transmission ratio, high efficiency, smooth operation, low noise and strong adaptability.2.The box body is made of nodular iron, which greatly improves the efficiency.The column property and anti-seismic property of the box body.3.Programming mode: concentric shaft input, helical gear input, bevel gear helical gear input, bevel gear input4.Output mode: inner flower field type, hollow shaft shrink disc type, outer flower field type, solid shaft flat field type5.Installation form: horizontal installation, vertical installation and torsion installation.6.P series products have 9-34 type specifications, planetary transmission stage has 2 and 3. The speed ratio is 254000.Modular design, according to customer requirements to change the combination.7. Combinate with R ,K series can get larger speed ratio

If you need to customize, please click here

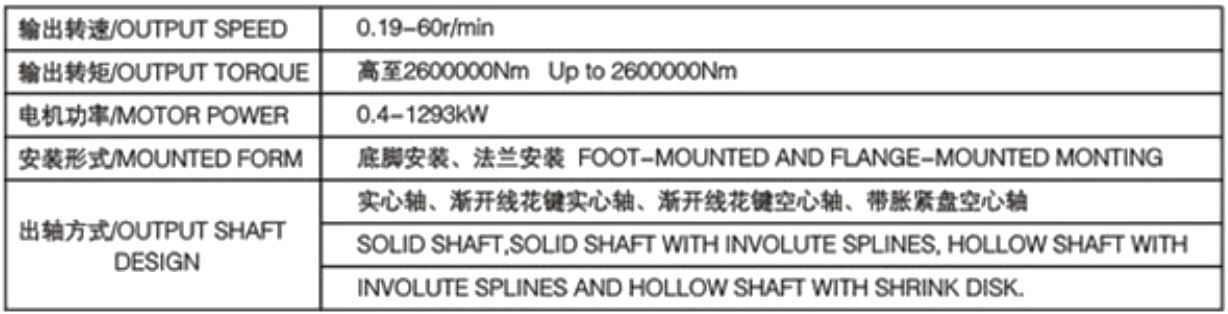

Speed ratio range	basic type 25 ~ 4000
torque range	2.6 ~ 900knm
power range	22 ~ 1920kw

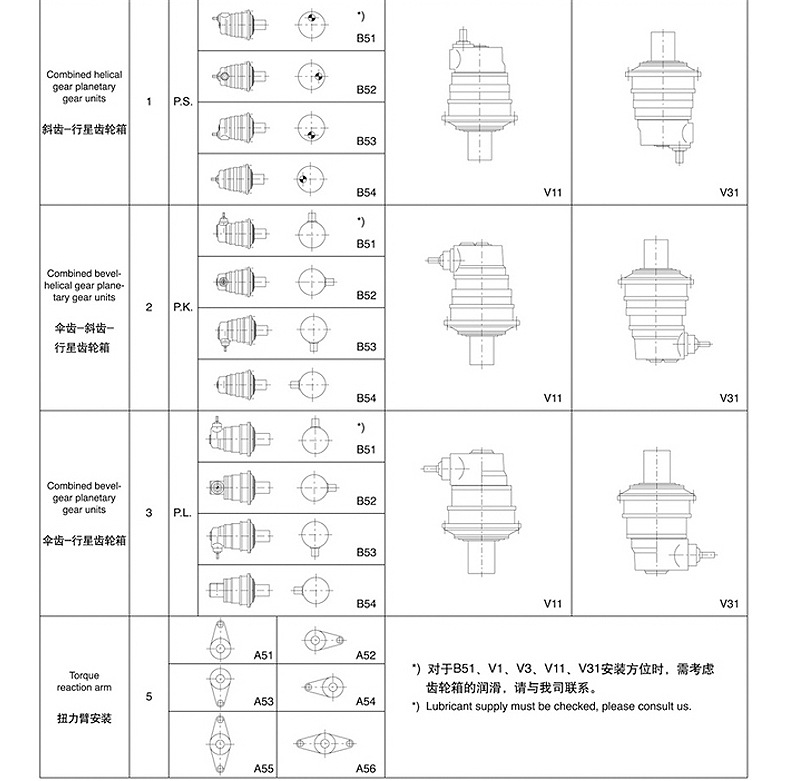

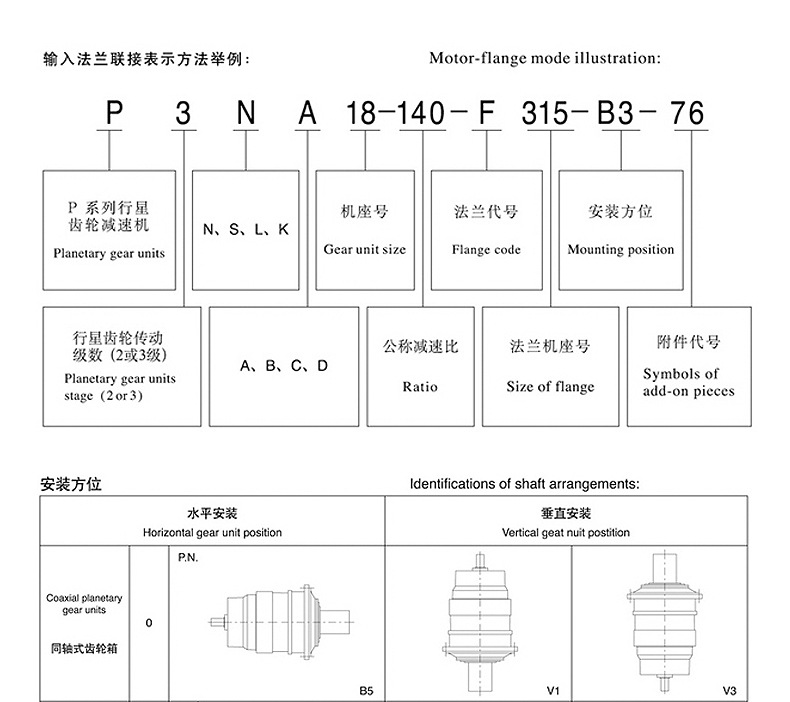

Installation form:	1. Horizontal installation / foot installation 2. Vertical installation / flange installation 3. Torsion arm installation.

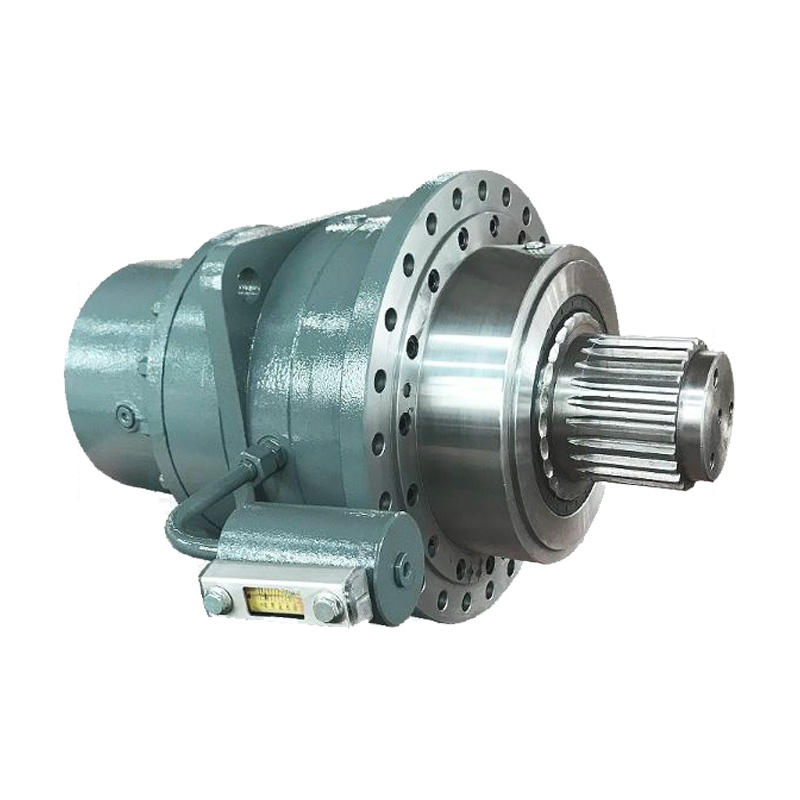

Output mode	1. Hollow output shaft with shrink disc 2. Solid output shaft with flat key 3. Hollow shaft with involute spline 4. Solid shaft with involute spline

For more models or customization, please click here!

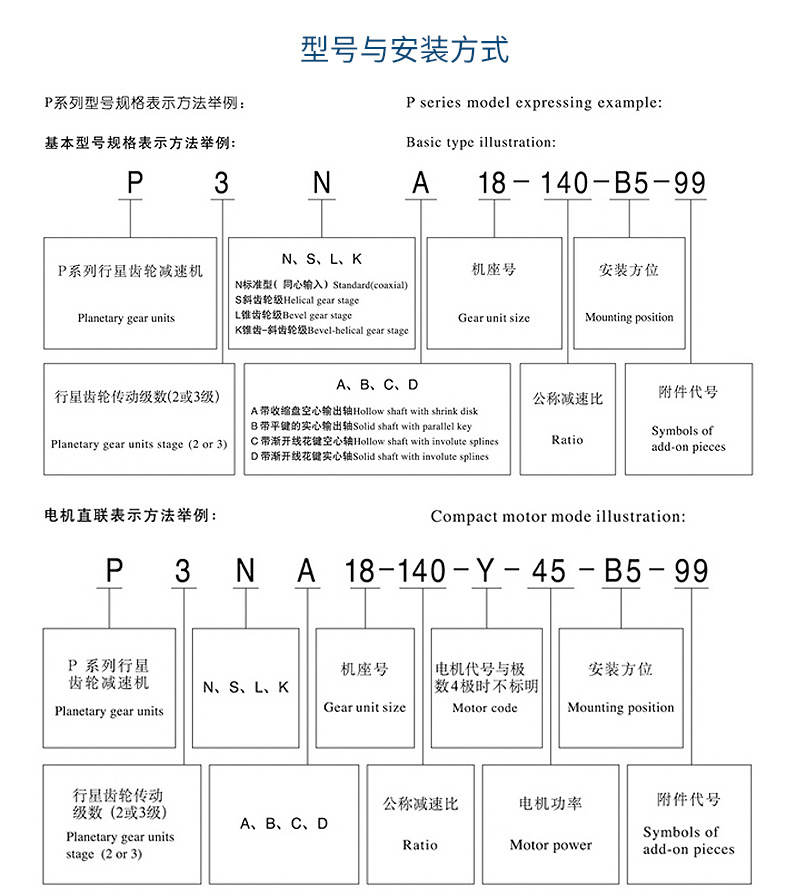

Click on the picture below for details

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.
