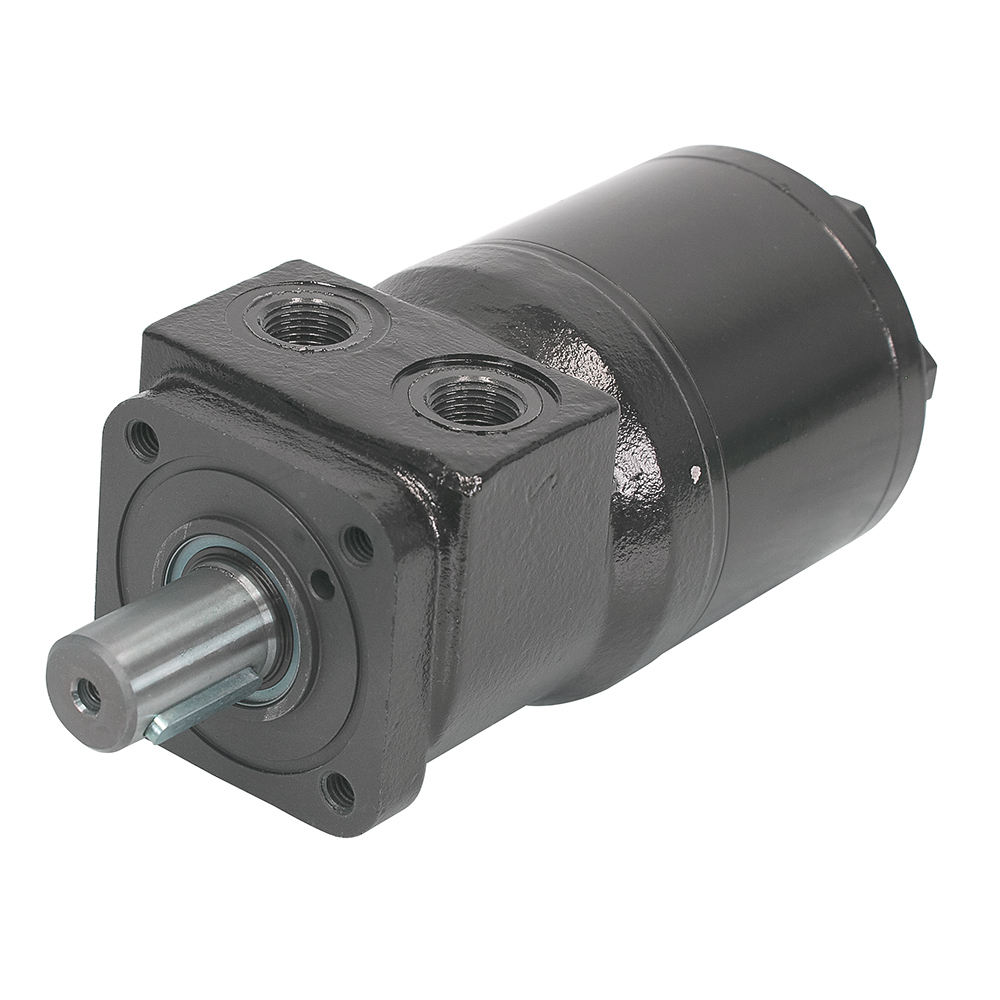

China Supplier Orbital Motor Hidroeaton Motor Hidraulicolow Speed High Torque Orbital Hydraulic Motor

TYPEBH-50BH-80BH-100BH-125BH-160BH-200BH-250BH-315BH-400Displacement(ml/r)49.376.695.8120.4153.2191.6240.8306.5383.1Max.Pressure.Drop(Mpa)cont.10.510.510.510.510.510.5977int.14141414141411.510.59peak.181818181818151411Max.torque(N.m)cont.65105130160205255275305335int.90140175220280350360410429peak.1......

Send Inquiry

Product Description

TYPE		BH-50	BH-80	BH-100	BH-125	BH-160	BH-200	BH-250	BH-315	BH-400
Displacement(ml/r)		49.3	76.6	95.8	120.4	153.2	191.6	240.8	306.5	383.1
Max.Pressure.Drop(Mpa)	cont.	10.5	10.5	10.5	10.5	10.5	10.5	9	7	7
	int.	14	14	14	14	14	14	11.5	10.5	9
	peak.	18	18	18	18	18	18	15	14	11
Max.torque(N.m)	cont.	65	105	130	160	205	255	275	305	335
	int.	90	140	175	220	280	350	360	410	429
	peak.	115	180	225	285	365	455	475	560	550
Max. Speed (cont.)(r/min)		810	520	415	330	260	205	165	125	100
Max. Speed (cont.)(r/min)		810	520	415	330	260	205	165	125	100
Max.Flow(cont.)(L/mim)		40	40	40	40	40	40	40	40	40
Max.Output.Power(cont.)(Kw)		4.5	4.8	4.8	4.8	4.8	4.6	4	3.5	3
