American Standard BKH Series Cast Iron Single Groove Sheaves Pulleys V-Belt for 4L or a Belts 5L or B Belts OEM Customizable
BKH Series Cast lron Single Groove Sheaves Pulleys for "4L" or "A" Belts and "5L" or "B" BeltsBKH series belt pulley with bushing is applicable to A, 4L, B, 5L, A.X., B.X., A.A. and B.B. belts. BKH series pulleys range in diameter from 3.15 inches to 18.75 inc......

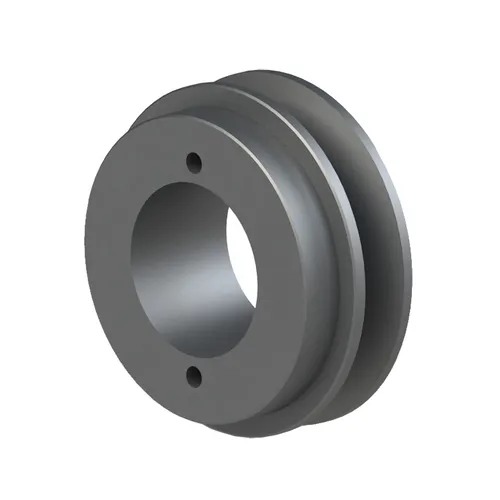

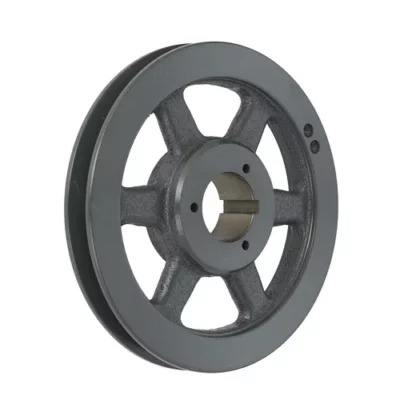

BKH Series Cast lron Single Groove Sheaves Pulleys for "4L" or "A" Belts and "5L" or "B" Belts
BKH series belt pulley with bushing is applicable to A, 4L, B, 5L, A.X., B.X., A.A. and B.B. belts. BKH series pulleys range in diameter from 3.15 inches to 18.75 inches, but can also be customized according to requirements. These pulleys use H-type bushings, which range in bore size from 3/8 "to 1-1/2" and 10mm to 38mm. We also have a complete set of these bushings.

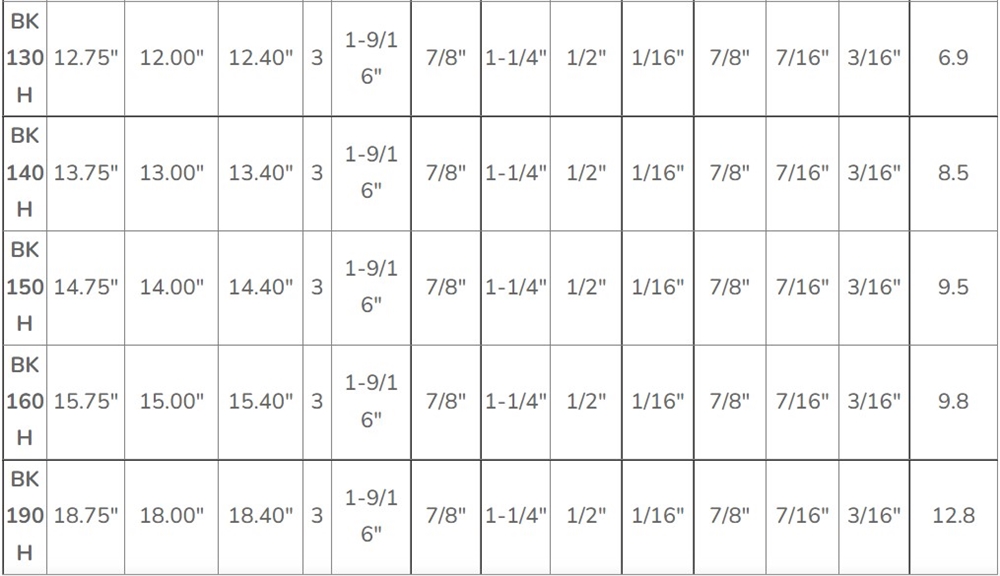

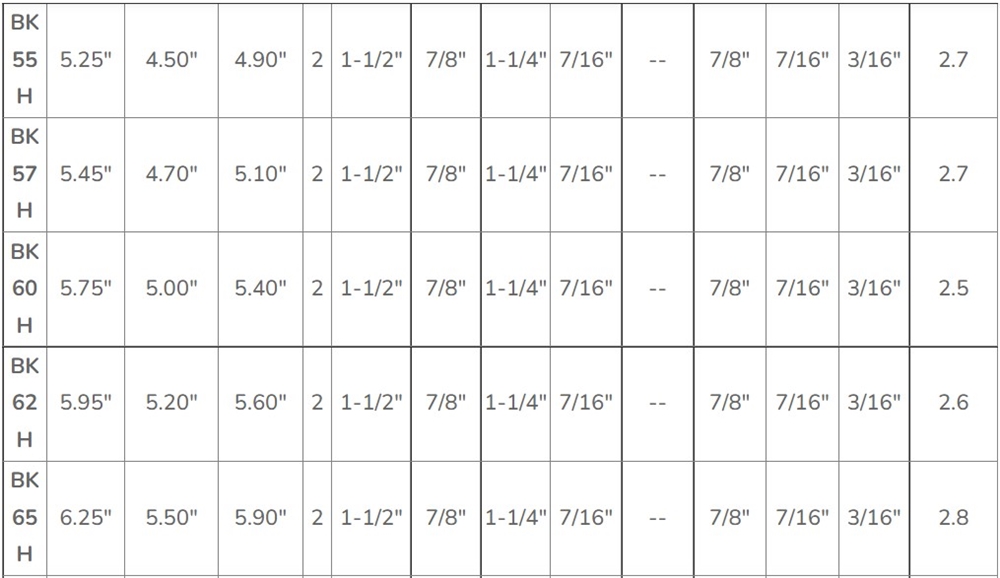

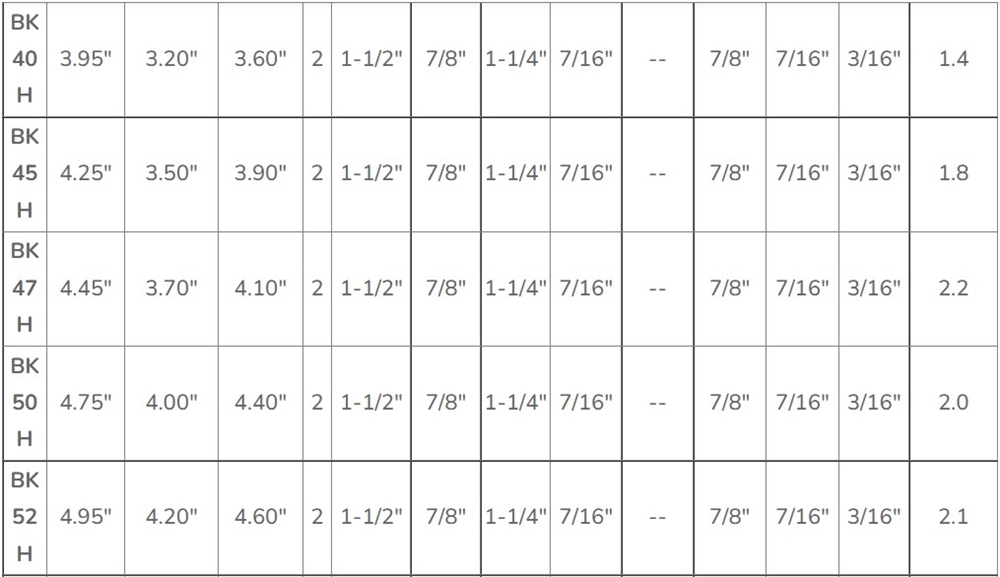

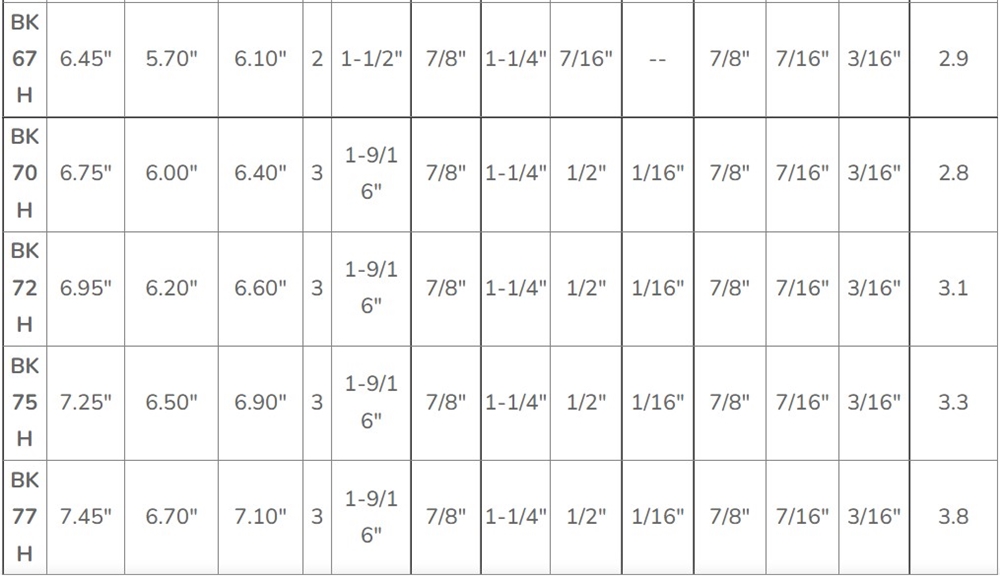

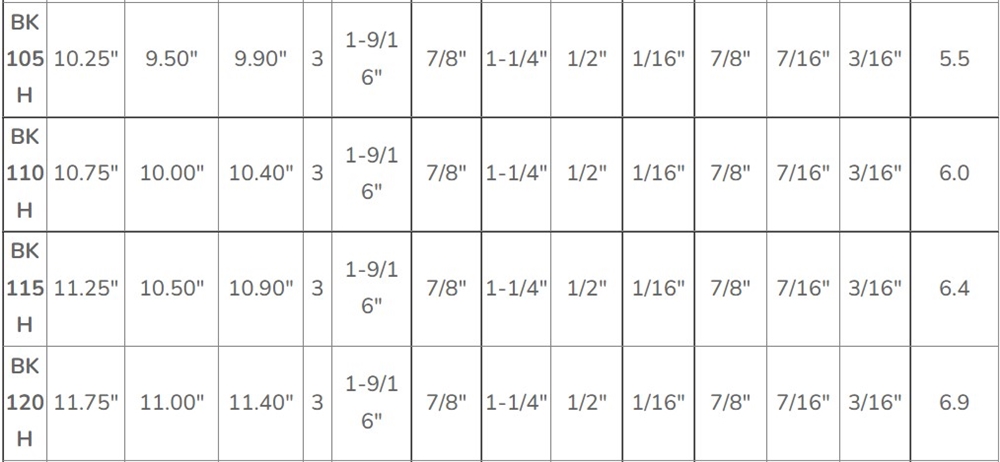

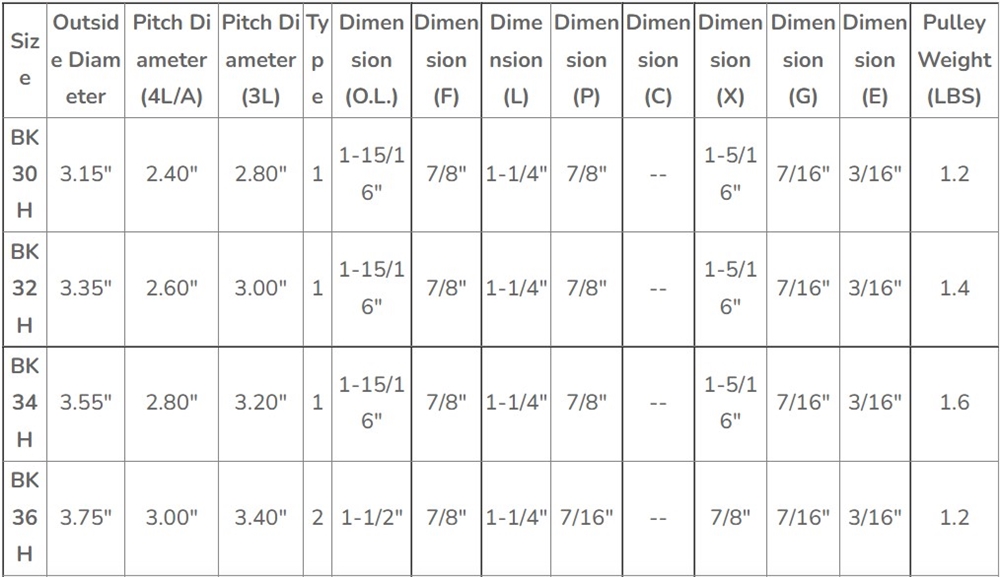

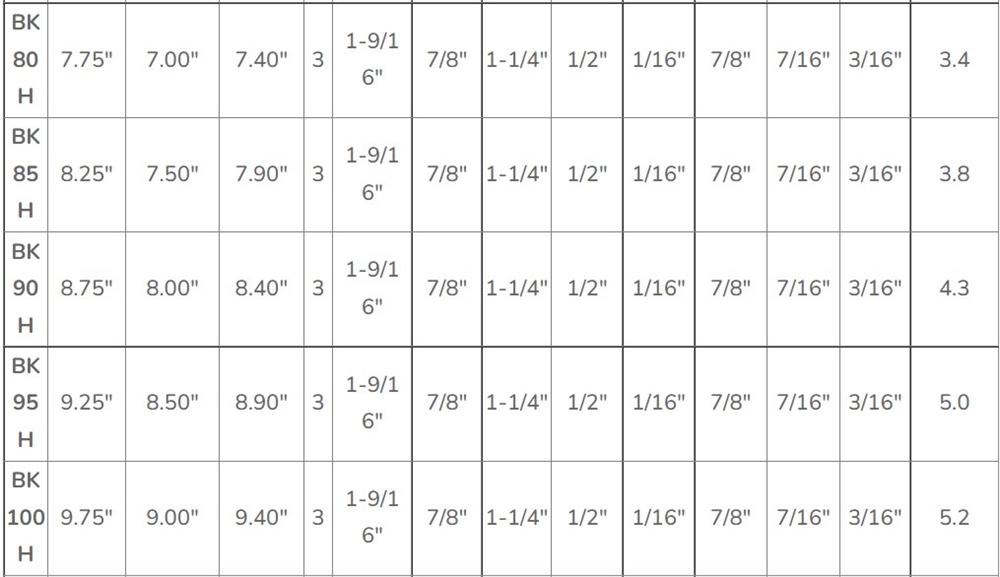

BKH-Series Pulley Size Chart
For more details, please click here to contact us!
V-pulley American Stanard BKH series
American standard pulley is manufactured according to American ANSI standard. The main material is gray cast iron, which is suitable for 2L, 3L, 4L, 5L, A, B, C, D, 3V, 5V, 8V belts, J, L and M ribbed belts. American standard pulley product types: A.K., B.K., TA, T.B., T.C., B, C, D, 3V, 5V, 8V, J, L, M, V.P., V.L., V.M. Tapered bushing Pulleys are used with STB, Q.D., or T.B. tapered bushings.

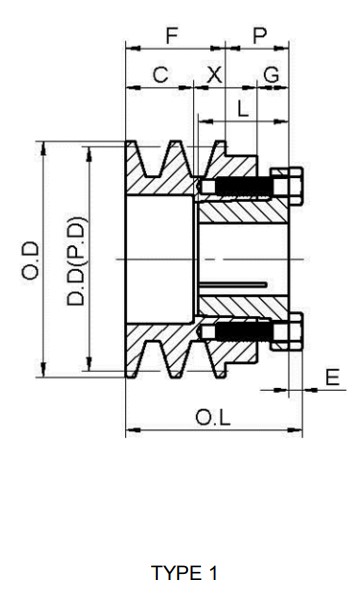

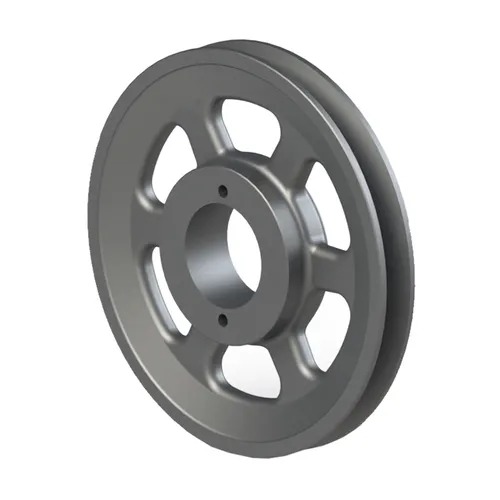

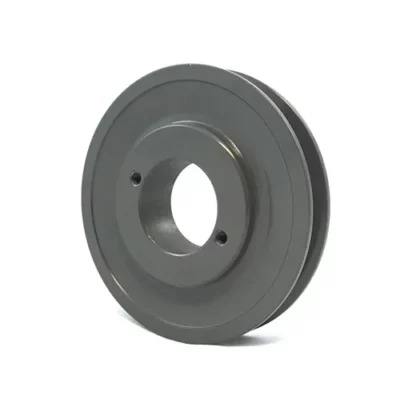

BKH series 01-TYPE1-H

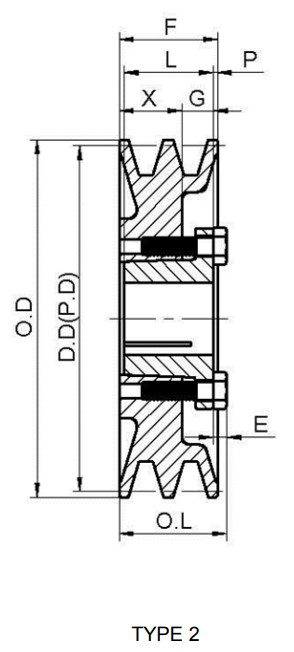

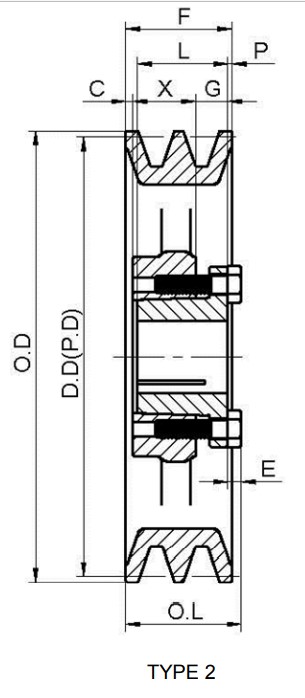

BKH series 01-TYPE2-H
BKH series 01-TYPE3-H

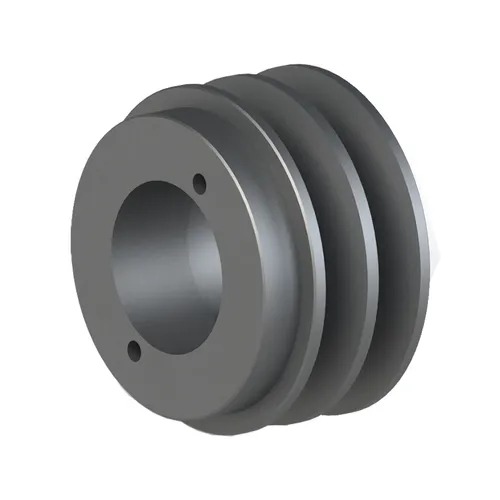

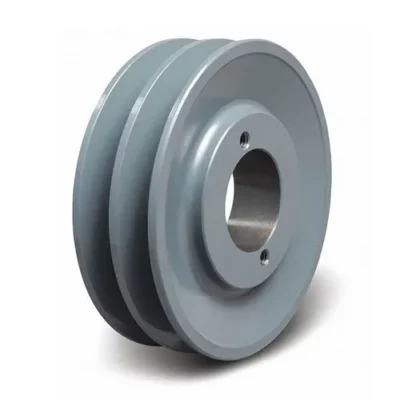

BKH series 02-TYPE1-H
BKH series 02-TYPE2-H<
BKH series 02-TYPE3-H
Features and Benefits
1, The belt is a kind of elastic body, which can reduce the impact of load and operate stably without noise
2, Overload will cause the belt to slip on the wheel, thus protecting the whole machine
3,The grooves of most American standard pulleys are applicable to several different belt types, and the design and application of belts are relatively flexible.
4,There are many types of American standard pulley grooves and tapered bushes. Some pulleys and bushings can be installed at the front and rear, which has become a solution under harsh conditions in different occasions.
5, American standard pulleys and tapered bushes provide precise balance control and perform well in the transmission.
Application cases:
Agriculture

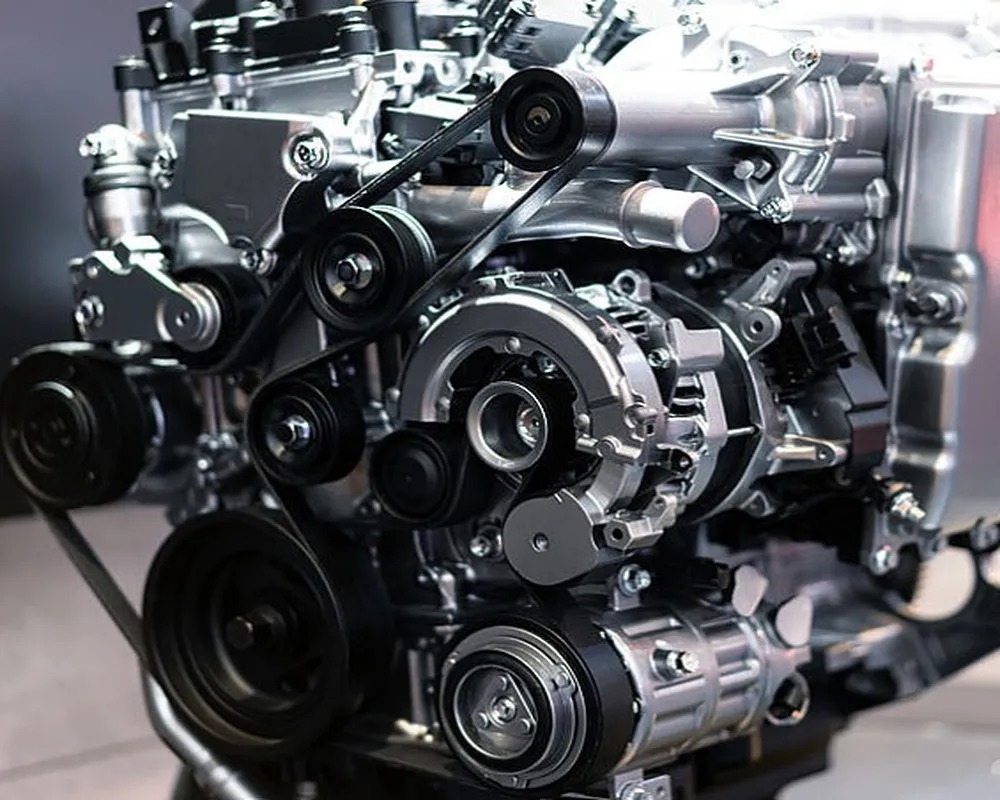

Automobile

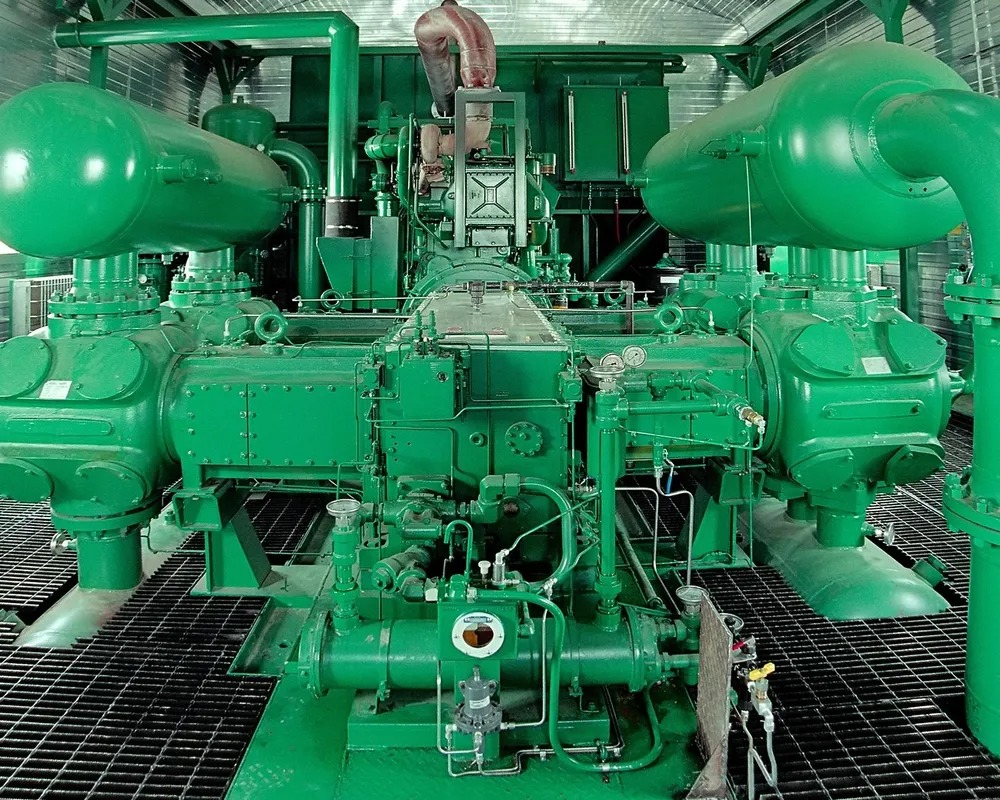

Compressors
Electric Machinery
Marine
Mining
We also provides belts matching pulleys:https://planetary-gearboxes.en.Raydafon/productgrouplist-825651128/Belt.html?spm=a2700.shop_pl.98.11
Technological Processing
Warehouse inventory
The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
FOR MORE DETAIL, PLEASE CONTACT US.
