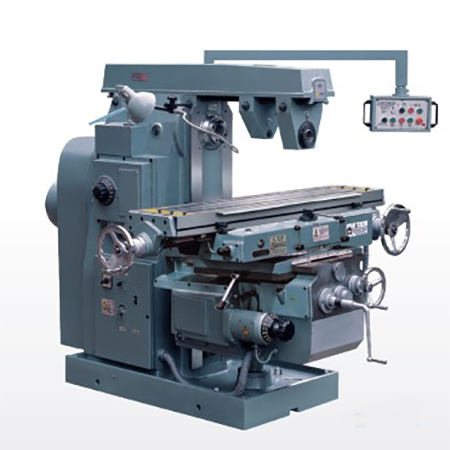

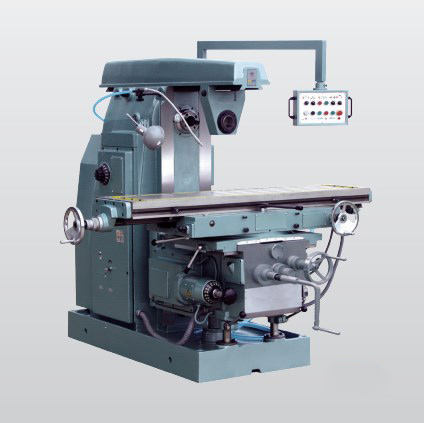

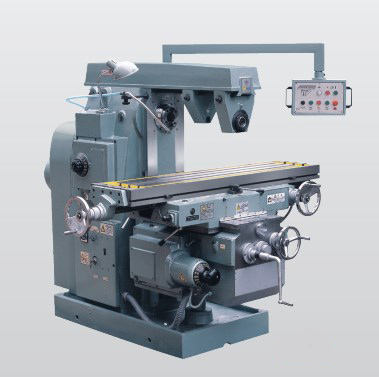

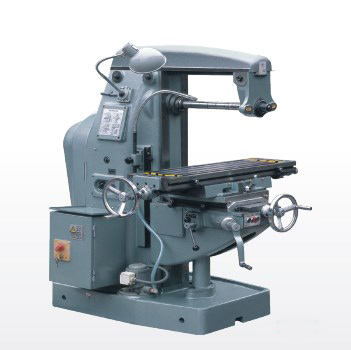

X6036Horizontal Knee-Type Milling Machine

The X6036 Horizontal Knee-Type Milling Machine is a specific model of milling machine with a horizontal spindle and a knee-type construction.

Item	Unit	57-3D	X6130C	X6132B	X6036	X6142
Worktable size	mm	250×900	300×1250	300×1320	360×1600	420×1800
T slot (N×W×D)	mm	3×14×54	3×14×63	3×18×80	3×16×63	3×18×90
Max. load bearing of worktable	kg	200	250	500	500	800
Longitudinal travel (Manual/Power) X	mm	480	800	800/780	1020/1000	1200/1180
Cross travel (Manual/Power) Y	mm	165	235	300/280	300/280	360/350
vertical travel (Manual/Power) Z	mm	300	440	410/400	410/400	470/450
Max. rotary angle of worktable	mm	±45°	±45°	±45°	/	±45°
Spindle hole taper	mm	Mt3 7:24 30#	7:24 No.40	7:24 No.50	7:24 No.50	7:24 No.50
Arbor diameter	mm	Φ22 Ø27	Φ22 Ø27	Φ22 Φ27 Φ32	Φ22 Φ27 Φ32	Φ32 Φ50
Distance from spindle end to worktable surface	mm	60 ~ 360	30 ~ 470	40 ~ 440	50 ~ 460	40 ~ 500
Distance from table center to vertical guide way	mm	205-370	190-420	235 ~ 535	235 ~ 535	280 ~ 650
Distance from spindle center to arm	mm	160	162	155	155	200
Spindle speed steps	strps	12	12	18	18	18
Spindle speed range	r/min	32 ~ 1250	35 ~ 1600	30 ~ 1500	30 ~ 1500	30 ~ 1500
Feed speed steps	steps	12	12	18	18	18
Main motor power	kw	2/2.4	4	7.5	7.5	11
Feed speed range: Longitudinal X/Y/Z	mm/min	5.6 ~ 181	15 ~ 800	15 ~ 750	15 ~ 750	22 ~ 1100
	mm/min	11.3 ~ 366	15 ~ 800	15 ~ 750	15 ~ 750	22 ~ 1100
	mm/min	4.5 ~ 146.2	6 ~ 270	5.7 ~ 280	5.7 ~ 280	8.3 ~ 410
Rapid feed speed range (X/Y/Z)	mm/min	/	2100/2100/880	2250/2250/844	2250/2250/844	2400/2400/900
Feed motor power	kw	/	0.75	1.5	1.5	3
Machine dimension	mm	1400/1330/1478	1650/1540/1720	2327/1792/1720	2327/2067/1720	2522/2262/2047
Package dimension	mm	1330/1430/1930	1650/1570/2160	2200/1780/2120	2200/2070/2280	2470/2300/2300
Machine weight	kg	1100	1750	2850	2850	4200
Voltage/ Frequency	V/Hz	380/50	380/50	380/50	380/50	380/50

Features:1. Horizontal Spindle: The machine is equipped with a horizontal spindle, which allows for horizontal milling operations. This spindle orientation is ideal for tasks such as slab milling, slotting, and facing. 2. Knee-Type Design: The knee-type construction provides stability, rigidity, and versatility. The knee can be adjusted vertically to accommodate different workpiece heights, allowing for precise positioning and easy setup. 3. Diverse Speed Range: The X6036 typically offers multiple speed options, allowing operators to select the appropriate speed for different machining operations. This flexibility enables the machine to handle various materials and cutting requirements. 4. Swiveling Milling Head: The machine features a milling head that can be swiveled, providing additional flexibility in machining angles and compound angles. This feature allows for the production of complex parts and contours. 5. Versatile Tooling Options: The X6036 is compatible with a wide range of tooling options, including different types of cutters, end mills, and drills. This versatility allows for the machining of different materials and the execution of various milling operations. Applications: 1. General Metal Machining: The X6036 is suitable for general metal machining applications. It can perform tasks such as face milling, end milling, slotting, drilling, and more on a variety of materials, including steel, aluminum, and brass. It finds application in industries such as general machinery manufacturing, automotive, and fabrication shops. 2. Production Machining: The machine's stability, rigidity, and versatility make it suitable for production machining. It can efficiently produce parts in large quantities with consistent quality and precision, making it valuable in high-volume manufacturing environments. 3. Toolroom Operations: The X6036 is commonly used in toolrooms for prototyping, repair work, and maintenance. Its flexibility and ability to handle diverse machining tasks make it a valuable asset for tool and die makers, allowing for the production and repair of various tooling components. 4. Education and Training: The machine is often used in educational institutions and training facilities for teaching milling operations and providing hands-on experience to students and trainees. Its knee-type design and ease of use make it suitable for learning the fundamentals of milling. In summary, the X6036 Horizontal Knee-Type Milling Machine offers features such as a horizontal spindle, knee-type construction, diverse speed range, swiveling milling head, and versatile tooling options. It finds application in general metal machining, production machining, toolroom operations, and educational environments where stability, versatility, and precision are required for milling operations.

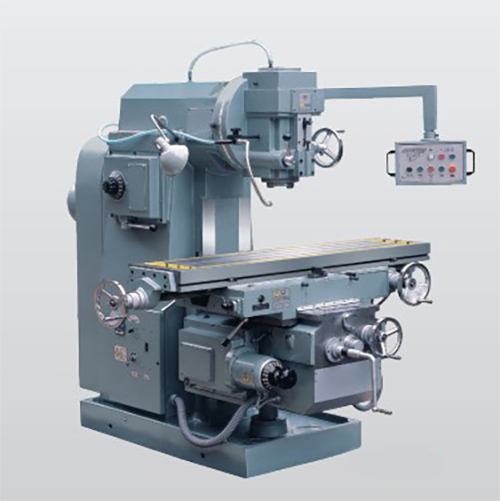

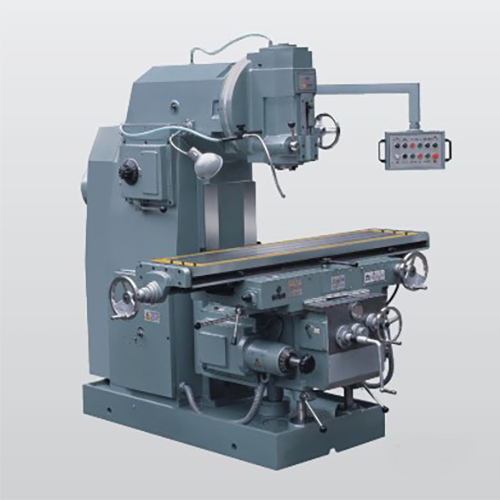

Vertical head: Vertical head can rotate ± 45 ° The spindle sleeve can move 75mm

Three axes driven by servo motor and ball screw:Three AIX are driven by servo motors and ball screws. They are controlled by a CNC system and can improve efficiency.

Transmission: The main shaft is driven by hardened gears, with a speed range of 18 levels. It provides a high rigidity process. The maximum torque can reach 2800N. M.
