LWX5 CNC Thread Grinder

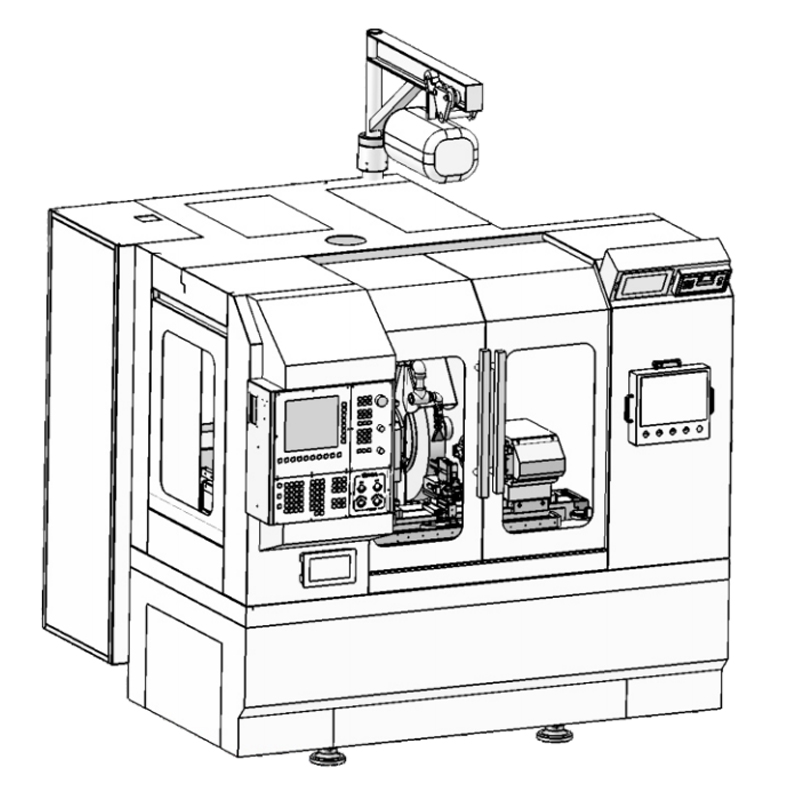

WMX series CNC cylindrical grinding machine is applicable for precise grinding of complexshaft part, stepped part, outer cylinder of tools, especially for outer cylinder of tap threadand milling tools.

Choosing Beiping machine with automatically changing Feeder, CNC three-axismanipulator, or RB6 six-axis multi- functional robot, then also with our online measurement options, small batch production or long-time unmanned automatic grinding can be easilyrealized.

Direct Drive / Linear Motors are also optional for work piece Axis (B Axis), and linear axis.An extra obvious Accuracy is created by the application of Heidenhain / Renishaw scale.Granite table is equipped for anti-collision purpose, which also reduces the negative effectcaused by temperature changes.

Our three-Axis coupling machine can grind non-cylindrical cam surfaces,improve grindinginterpolation accuracy, and ensure high tap-form, matched roughness on surface, andGrinding precison.

Grinding Spindle			Tools Range ( Grindable Too depends on its Type and Machining flequirement)
Single Spindle Tap Hole	1:5	Taper Thread	M6-M20
Power	7.5/11kw	Diameter	200mm
Diameter of Grinding Wheel	600*305mm	Length	220mm
Travel of Linear Axis			Linear Axis Controlled Resolution	0.001/0.0001mm
X Axis	300mm	Rotary Axis Controlled Resolution	0.001°
Y Axis	180mm	Linear Axis Re-Positioning Resolution	0. 0006-0. 0026mm
Rotary Axis (C Axis)			Rotary Axis Re-Positioning Resolution	1.8-8”
Standard Center Height	180mm	Automatic Loader
Max.Rotation Speed	800RPM	Diameter of Taper Thread	M6-M20
Standard Tap Hole	MT4#	Max. Length ofWork Piece	30-150mm
Measurement System ( Optional)			Connected Loading
Probe	RENISHAW/MARPOSS/XF	380V150Hz	ca.15kw
In-process measurement	MARPOSS	Size
Scale ( Optional)	HEIDENHAIN/RENISHAW	LengthxWidth	2000x1700mm
Controller	BPSYNTEC/FANUCISIEMENS	Height	1900mm
Drive and Motors	YASKAWA	Total Weight( Depends an the Configuratian )	ca.2600kg

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter

Raydafon is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Raydafon not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Raydafon is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

Raydafon has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
