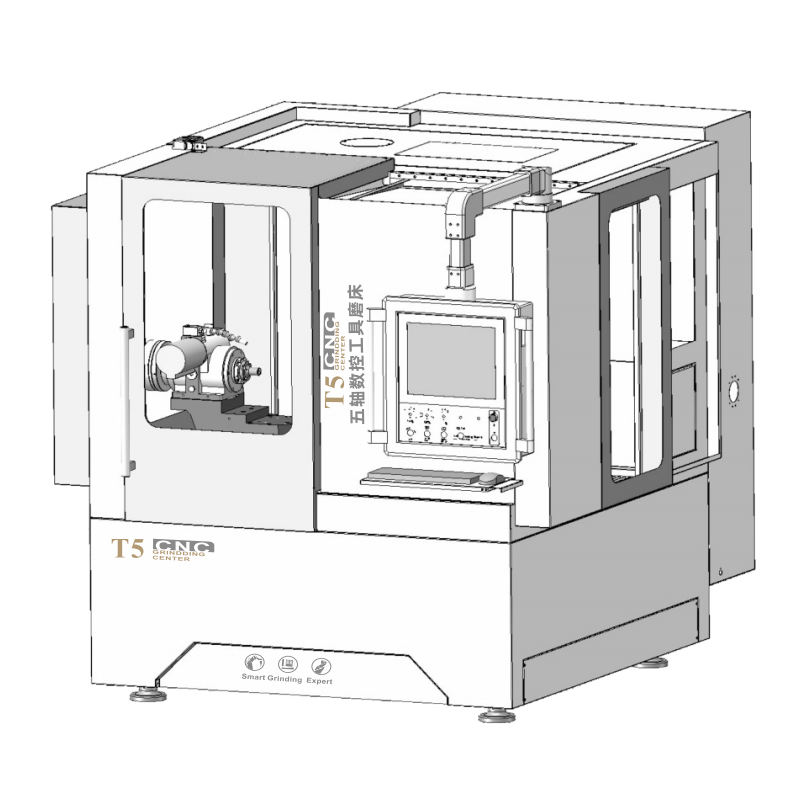

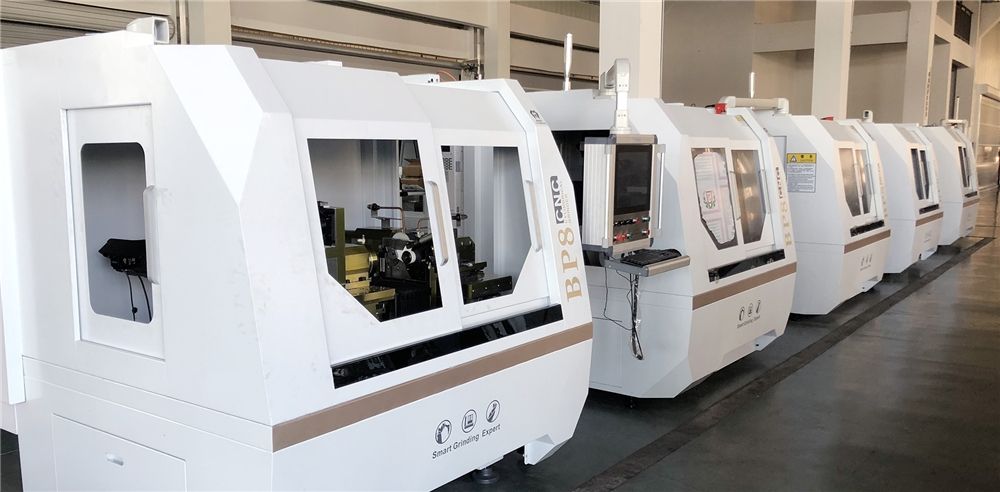

T5/MX5 5 Axis CNC Tool Grinder

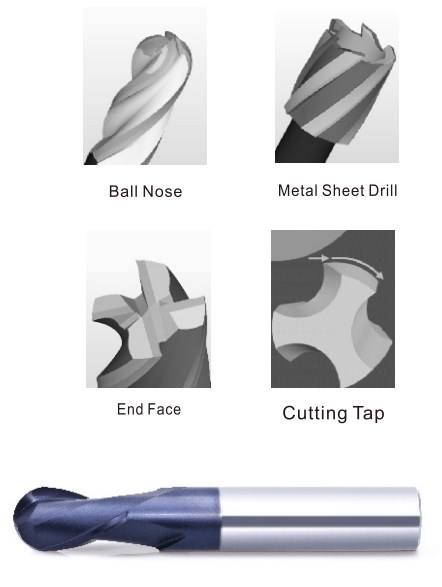

Equipped with direct drive spindle for double grinding wheel set, T6/T6A 5-axis CNC grinder is perfect forautomatically mass production of mills, drills, screw taps for aviation, automotive, molds, IT and medical industriesMain technical features

1.Direct drive/ Linear motor on workpiece swiveling axis(B), workpiece rotating axis(C)and x, Y, Z axis with HEIDEHAIN/FAGOR/RENISHAW magnet scale for higher machine accuracy.

2, Special following support devices are optional for longer drills grinding with high efficiency and high precision

3, Natural granite machine base provides excellent accuracy and temperature stability, which is a wise option forgh accuracy tool grinding

4, Automatic loading unloading system with anti-collision, maintenance free and fine adjustment function

5, Thanks to the innovative accurate press-blade system, precise grinding could be realized efficiently.

6, Workpiece axis(C axis)is equipped with pneumatic clamping and blowing device for fast change system Pressureelief window, automatic power air off, power failure automatic lock.

7, wide extension with BP/SYNTEC Provides a wide extension. Toolbox 3D grinding simulating software annnovative BP intelligent grinding software bring a smarter and easier operation experience

8, Smart tool managing system can realize automatic grinding, probing, laser engraving, etc.Real-time data collecting, remote diagnose, maintenance, supervising and management is possible

Grinding Spindle			Tool Range
Single spindle Hole	φ25mm Flange	Diameter	3-25mm
Power	12.5/20/37kw	Length	200mm
Max speed	9000rpm	Linear Controlled Resolution	0.001mm
Travel			Rotary Resolution	0.001
X aixs	440mm	Automatic Loading System
Y aixs	250mm	Diameter of Shank	3-25mm
Z aixs	250mm	Max lenath of Work Piece	250mm
B aixs Rotary axis	-15-165	Connected Loading
Linear axis	10/30m/min	380V / 50HZ	19/29/46kw
Work piece rotating axis ( C axis )		Machine Size
Max speed ( mechanical/direct drive )	30/300rpm	Length x Width	2000*2300mm
Standard taper hole type	ISO50/W20/W25	Height	2400mm
Measurement system	RENISHAW/XF	Machine Weight
Controller	BP/SYNTEC/FANUC/SIEMENS	total weight	4300kg
Axis drives and motors	YASKAWA
Spindle Converter	YASKAWA

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter

Raydafon is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Raydafon not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Raydafon is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

Raydafon has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
