SPC Vee Belt Cast Iron Pulley with Complete Dimensions

Application

Pulley is often used for transmission power with long distance ,such as output of small diesel engine power, farm vehicle,tractor,car, mining equipment, processing equipment, textile machinery, packing machinery, lathe,forging machine, small horsepower motorcycle's powertrain, transmission of agricultural machinery, air compressor, reducer, dynamo, cotton ginning machine and so on.

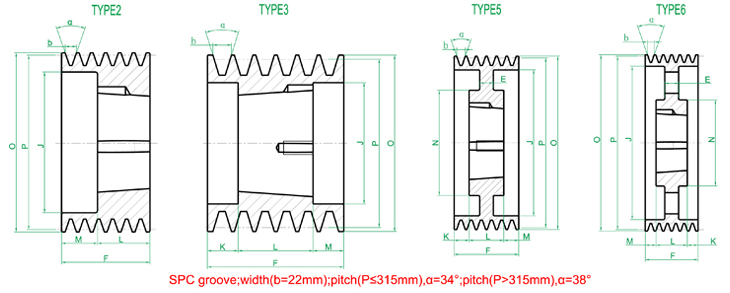

Vee belt pulley Type Drawing

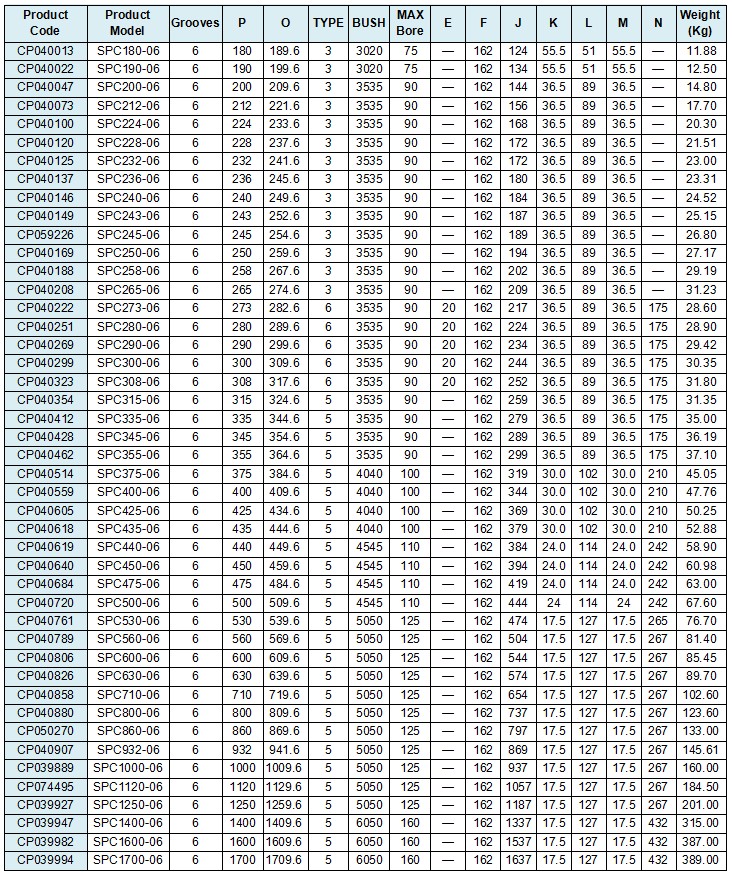

Vee belt pulley dimensions

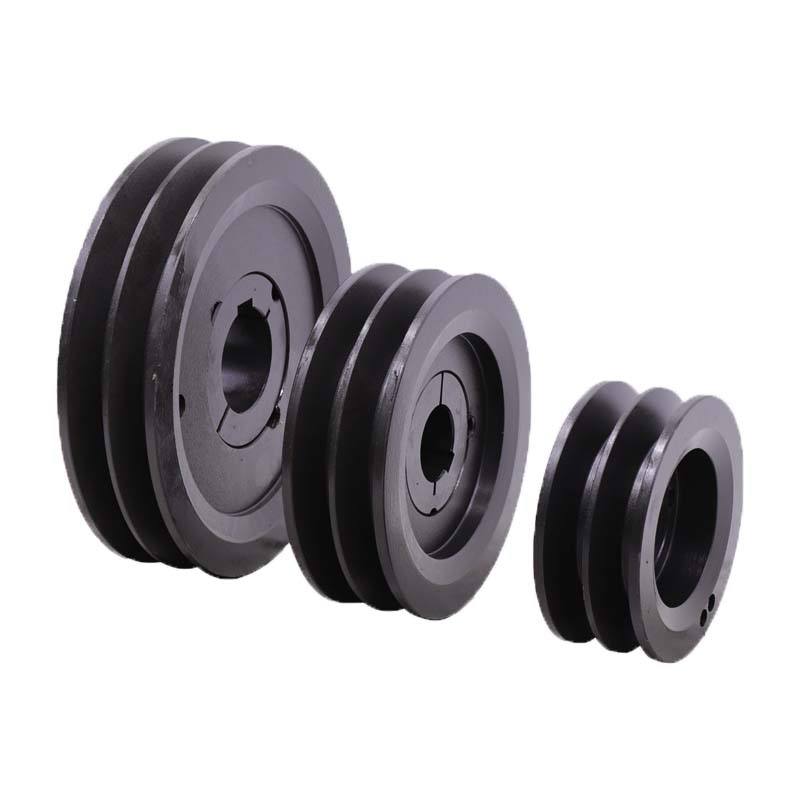

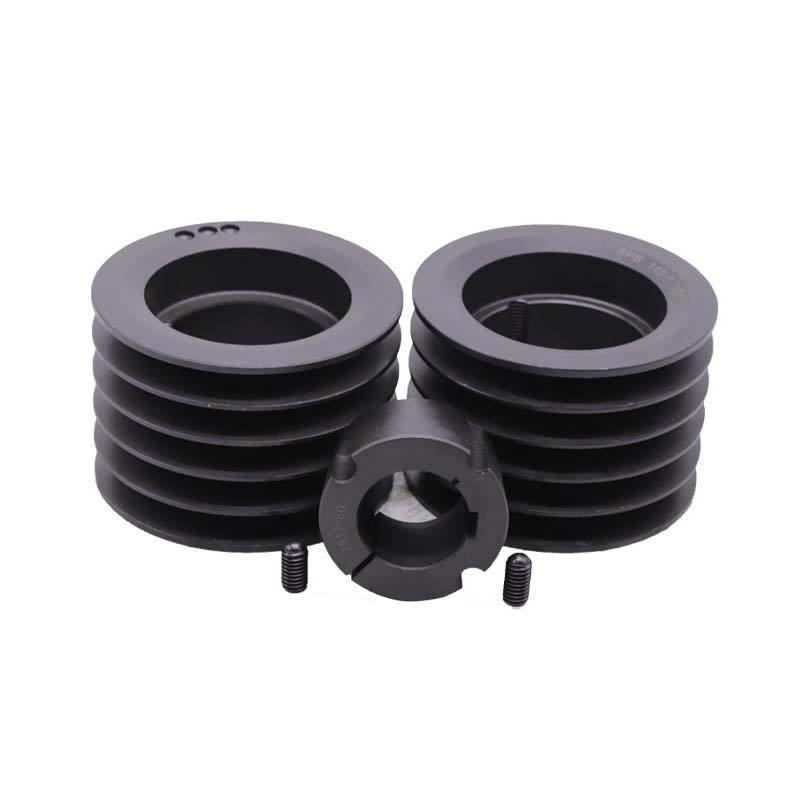

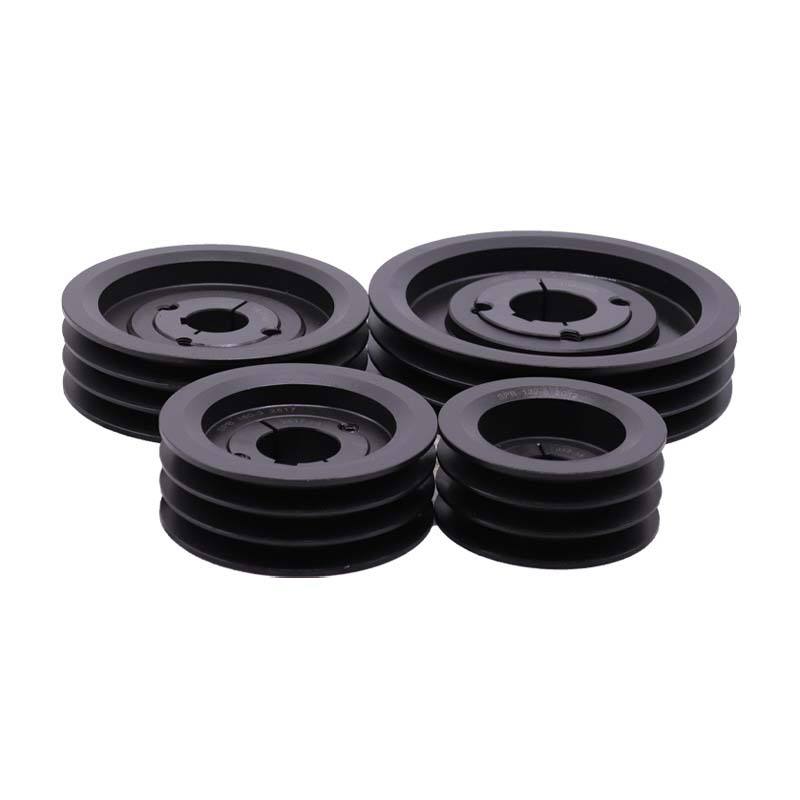

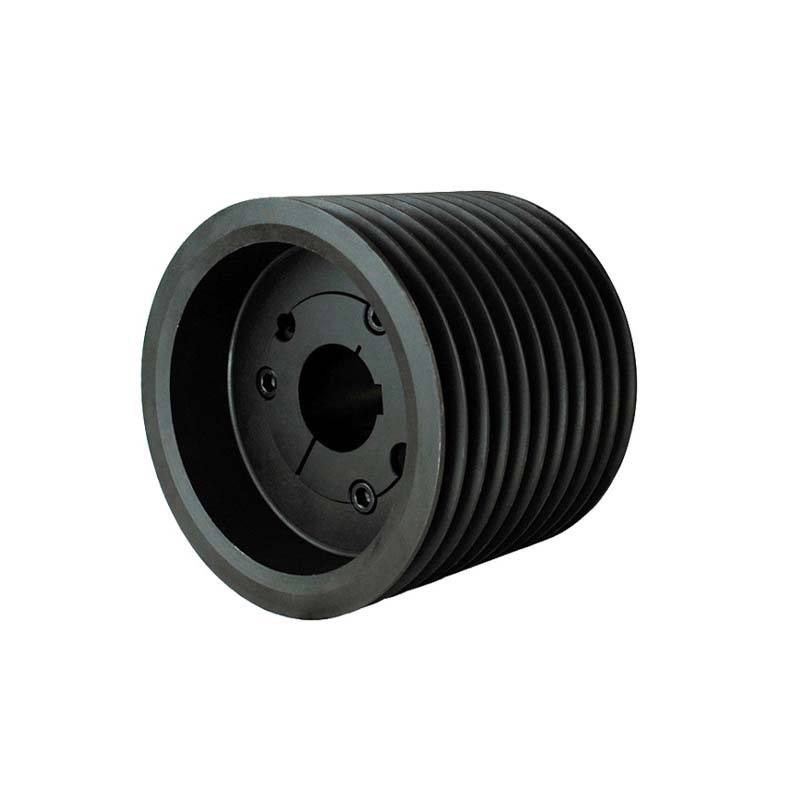

Product Name:V Belt Pulley

Belt Section:SPC

Grooves:6

Equipped with Bush:

European standard bush
	Bush	Bore Range (mm)
	3535	35,38,40,42,45,48,50,55,60,65,70,75,80,85,90
	4040	40,42,45,50,60,65,70,75,80,90,95,100
	4545	55,60,65,70,75,80,85,90,95,100,105,110
	5050	60,65,70,75,80,85,90,95,100,105,110,115,120,125
	6050	100,125,140,137.5,145,150

How to select v groove & pulley?

Please contact us or go to homepage for more product information.

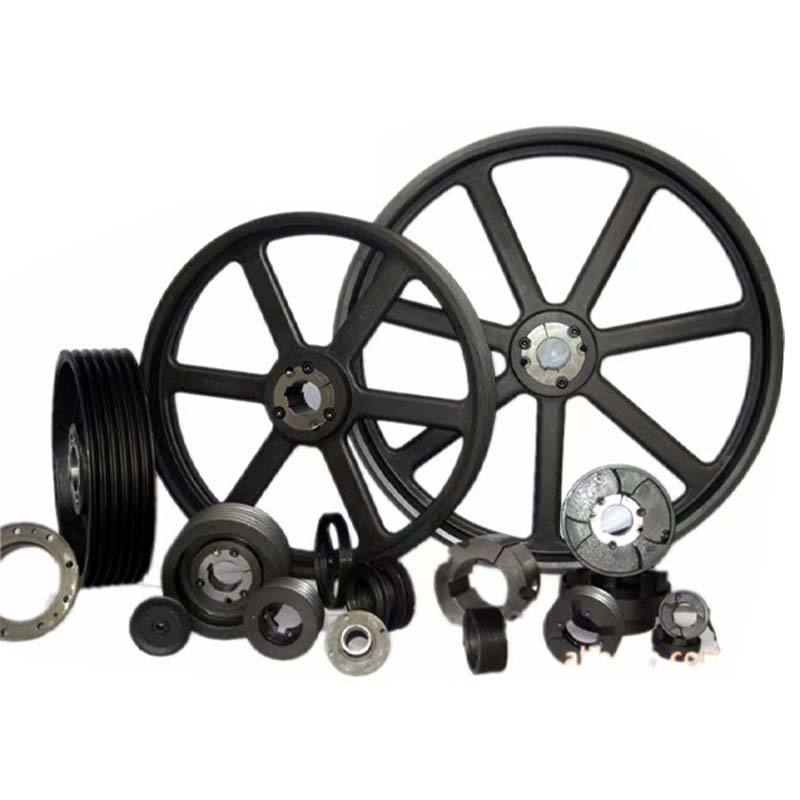

Sichuan Dawn Precision Technology Co. Ltd was founded in April 1995. Now we are the professional manufacturer of pulley, bushing , and other mechanical transmission parts. Now we own 45 product patents and 3 technological achievements , management system has integrated ISO9001,TS16949,ISO14001,OHSAS18001.

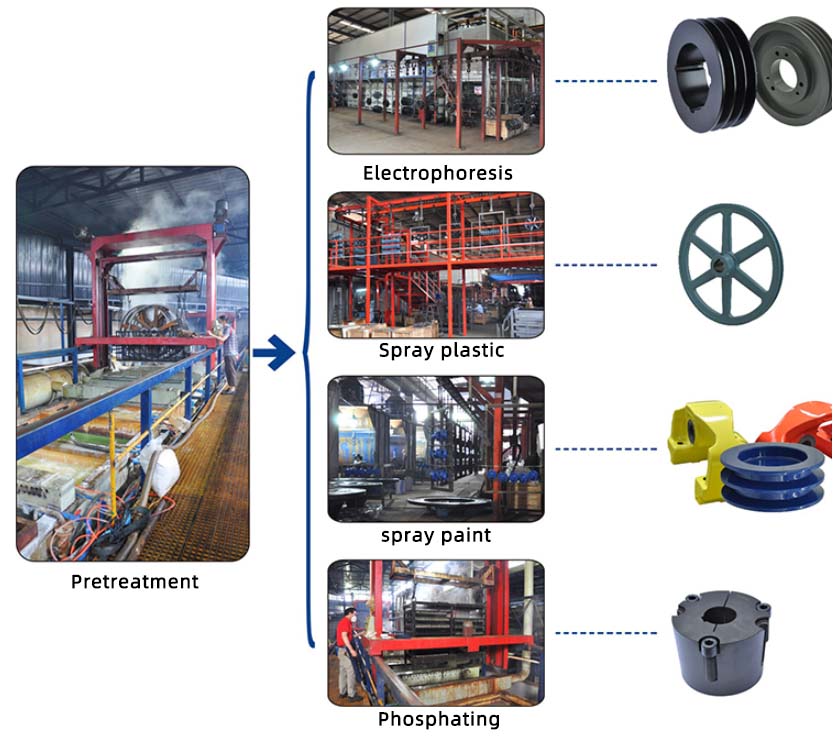

Heat treatment & surface treatment equipment mainly contains Multi-purpose furnace heat treatment line, pit and box-type furnace , black oxide surface treatment line , black phosphate surface treatment line, pre-treatment processing line, E-coating production line, plating production line,powder coating production line, sewage treatment station and so on.

Strong OEM ability will meet all your special needs!
