Second Hand Farm Heavy Disc Harrow for 120hp Lovol Tractor

Second hand farm disc harrow for 120hp lovol tractor Company Information{ heavy harrows for sale } Company information : : :. Main products :disc harrow , disc plough , cultivator, rotary tiller , trailer , sprayer , fertilizer spreader and so on. Product Description{heavy harrows for sale} Dis......

Send Inquiry

Product Description

Second hand farm disc harrow for 120hp lovol tractor

Company Information

{ heavy harrows for sale } Company information :

Main products :disc harrow , disc plough , cultivator, rotary tiller , trailer , sprayer , fertilizer spreader and so on.

Second Hand Farm Heavy Disc Harrow for 120hp Lovol Tractor

Product Description

{heavy harrows for sale} Disc harrow description :

1BQX series are used for crushing clods after tillage, preparing soil before seeding, loosening the soil, combining the soil and fertilizer, and cleaning away stubble of plants in light soil field. With reasonable structure, strong ability to rake, durable, easy to use and maintain, etc.

Specification

{heavy harrows for sale} 1BQX series light duty disc harrow specification is as following :

Model	1BJX-1.4-3	1BQX-1.3	1BQX-1.5	1BQX-1.7	1BQX-1.9	1BQX-2.2	1BQ-3.4
Working width (mm)	1100	1300	1500	1700	1900	2200	3400
Working depth (cm)	10-14	10-14	14-16	14-16	14-16	14-16	16-18
No, of disc (pcs)	12	14	16	18	20	24	42
Diameter of disc (mm / inch)	460/18	460/18	460/18	460/18	460/18	460/18	460/18
Weight (kg)	200	220	240	260	290	350	1100
Matched power (hp)	12-15	15-18	25-30	30-35	35-40	55-60	80-100

{heavy harrows for sale} 1BJX series Middle duty disc harrow specification is as following :

Model	1BJX-1.3	1BJX-1.6	1BJX-1.8	1BJX-2.0	1BJX-2.2	1BJX-2.4	1BJX-2.5
Working width (mm)	1300	1600	1800	2000	2200	2400	2500
Working depth (cm)	12-16	14-16	16-18	18-20	18-20	18-20	18-20
No, of disc (pcs)	12	14	16	18	20	22	24
Diameter of disc (mm / inch)	560/22	560/22	560/22	560/22	560/22	560/22	560/22
Weight (kg)	330	370	400	440	465	520	760
Matched power (hp)	35-40	40-45	45	50-55	55-60	60-65	75-100

{heavy harrows for sale} 1BZ series heavy duty disc harrow specification is as following :

Model	1BZ-1.8	1BZ-2.0	1BZ-2.2	1BZ-2.5	1BZ-3.0	1BZ-3.4	1BZ-3.8
Working width (mm)	1800	2000	2200	2500	3000	3400	3800
Working depth (cm)	20-25	20-25	20-25	20-25	25-28	25-30	25-30
No, of disc (pcs)	16	18	20	24	28	32	36
Diameter of disc (mm / inch)	660/26	660/26	660/26	660/26	660/26	660/26	660/26
Weight (kg)	1150	1250	1350	1500	1600	1800	2100
Matched power (hp)	60-70	70-80	80-90	90-100	100-120	120-140	140-180

Product picture show

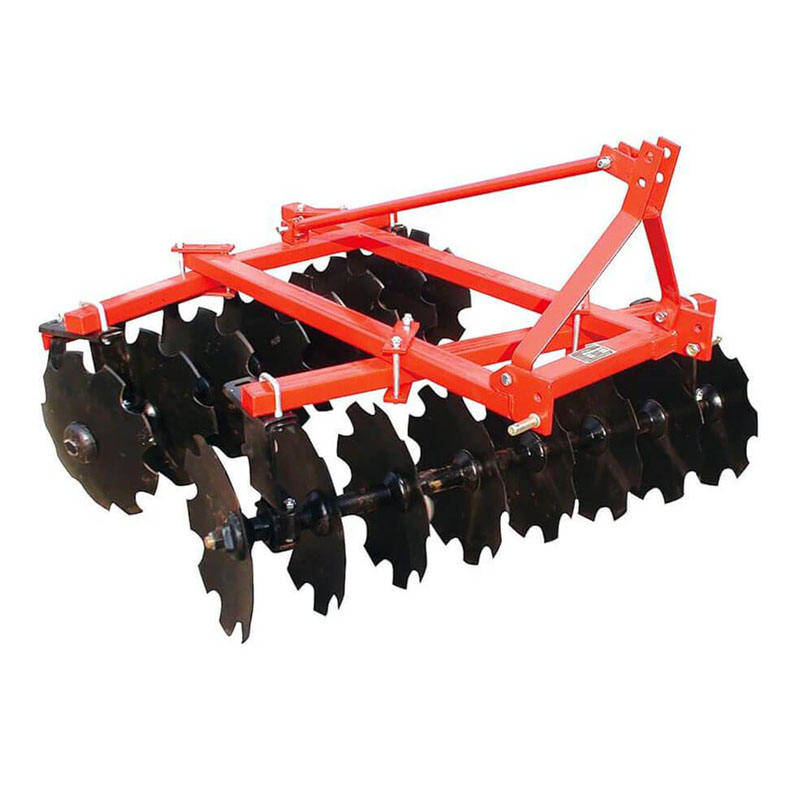

{heavy harrows for sale} Linght duty disc harrow picture :

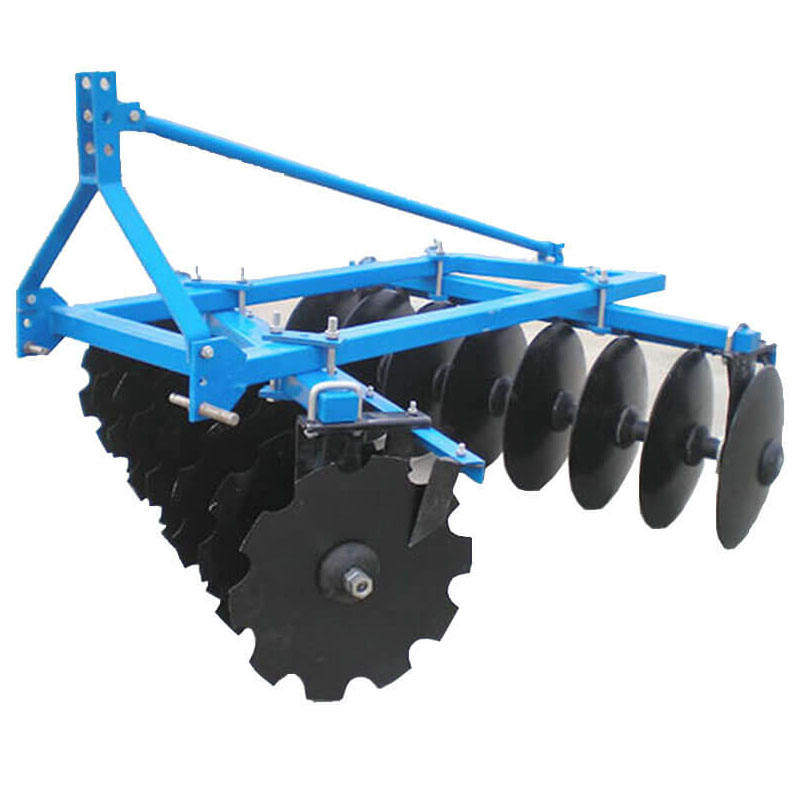

{heavy harrows for sale} Middle duty disc harrow picture :

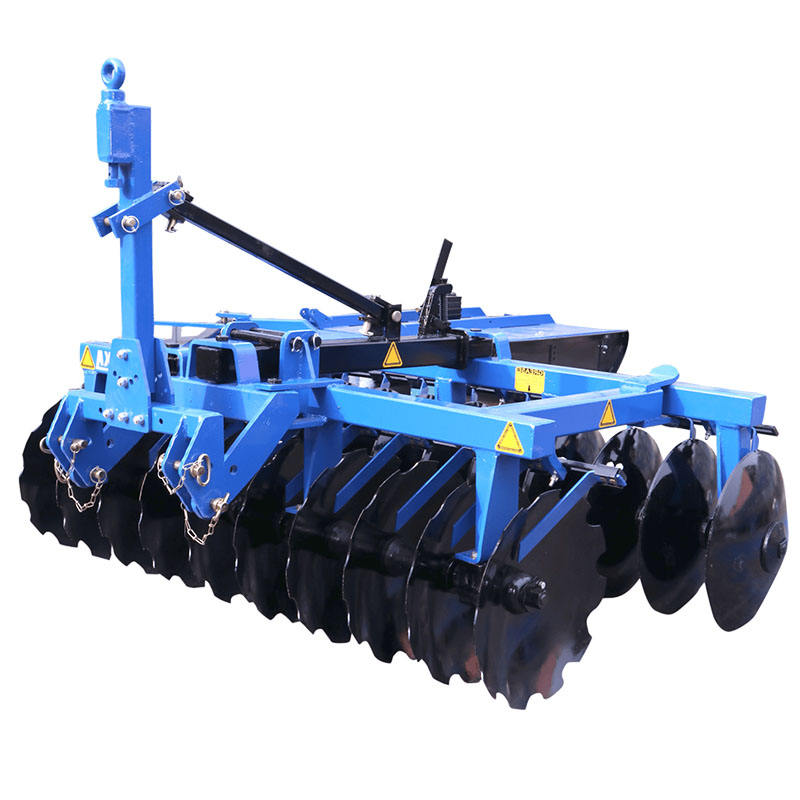

{heavy harrows for sale} Heavy duty disc harrow picture :

Packaging & Shipping

{heavy harrows for sale} Package is as following :

The light duty disc harrow package is 10sets packed in one iron case ,the package size is 2200*1000*720mm. so one 20'' containter can hold 90sets or 110sets.

Second Hand Farm Heavy Disc Harrow for 120hp Lovol Tractor

The heavy duty disc harrow is packed in pallet and iron case, and if you want to hold more sets, i will suggest you to do the nude package, so one 20 feet containter will hold 16sets .

Second Hand Farm Heavy Disc Harrow for 120hp Lovol Tractor
