SCR75EPM2 55KW 75HP 11m3/min Frequency Inverter Screw air Compressor EPM Compressor

Advantages:1. China-Japan latest technology cooperation, high reliability.2. Oil Cooling Permanent Magnetic Motor.3. IP65 protection grade & heavy duty air filter, suitable for high dusty environment. 4. IE4 Efficiency motor efficiency.5. Most energy saving mode, Only work at loading.6. Wide fre......

Send Inquiry

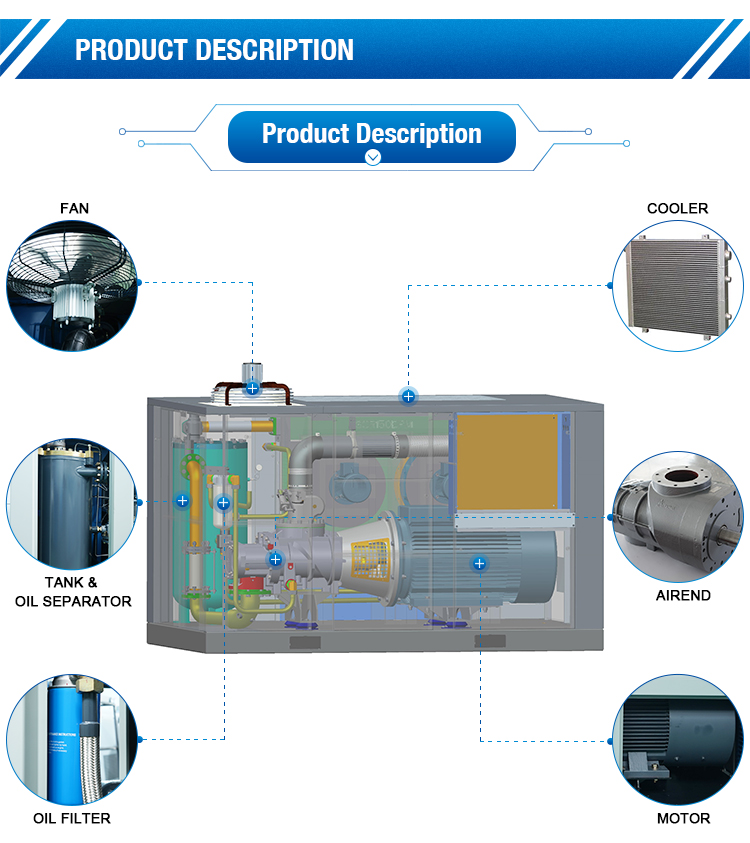

Product Description

Advantages:

1. China-Japan latest technology cooperation, high reliability.

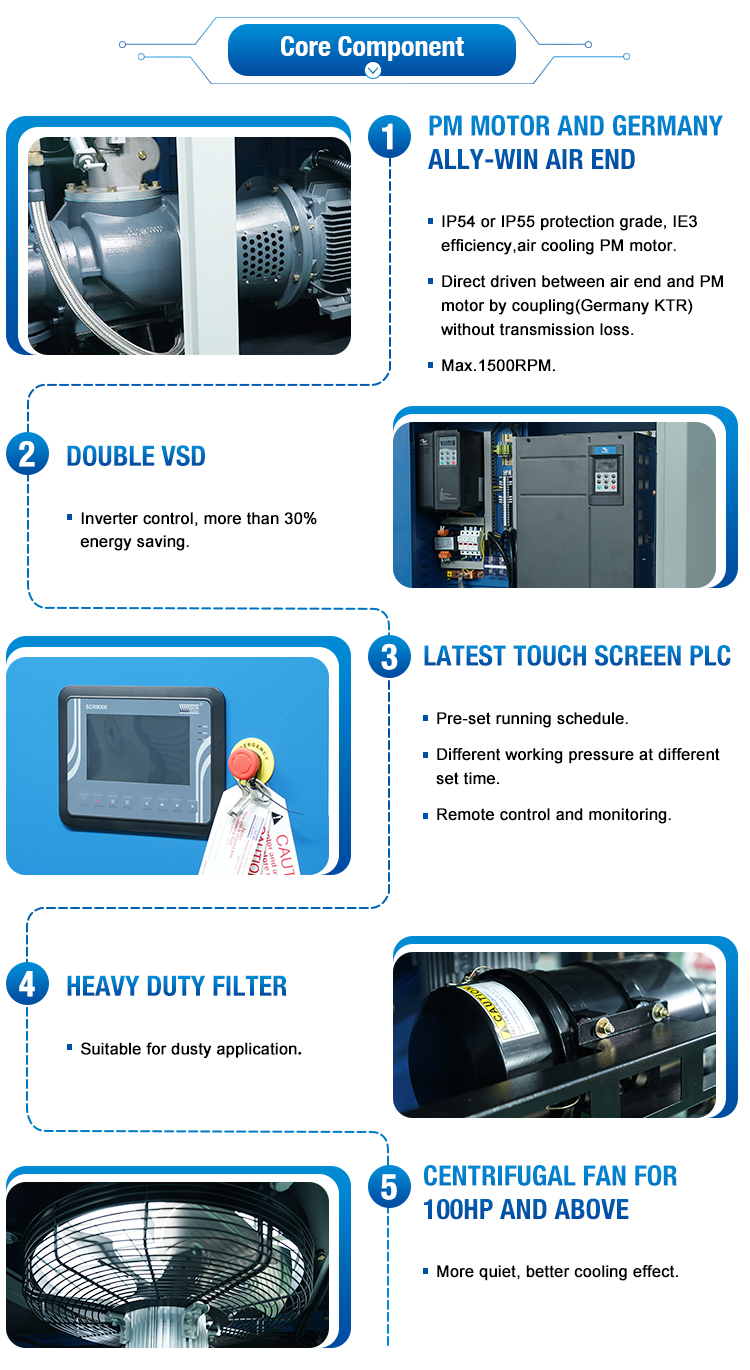

2. Oil Cooling Permanent Magnetic Motor.
3. IP65 protection grade & heavy duty air filter, suitable for high dusty environment.
4. IE4 Efficiency motor efficiency.
5. Most energy saving mode, Only work at loading.
6. Wide frequency range 25%-100%.
7. Premium Magnetic material resist more than 180℃ temp.
8. Reliable PM motor supplier from Italy.
9. Direct Taper connection, no transmission power loss, easy maintenance.
10.Touch Screen PLC with preset running schedule, more intelligent control.
11. Both main motor and fan motor are inverter control, more accurate control.
12. Easy for installation and service.

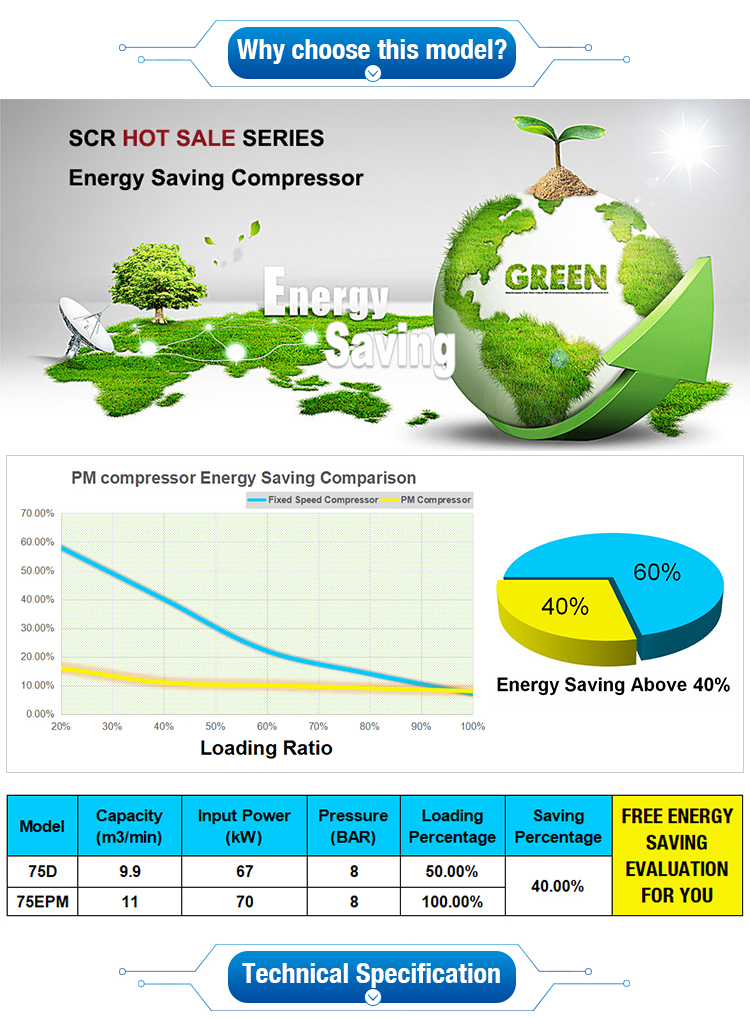

13. Fantastic Energy Saving, save up to more than 30-40%.

Model :	Energy Saving Series (EPM)
Type:	Oil Injected Permanent Magnetic Screw Compressor
Voltage:	380V/50HZ/3P, 220V/60HZ/3P, 400V/50HZ/3P, 415V/50HZ/3P or Customer′s Requirements
Working Pressure:	7~13bar
Installed Motor Power:	15~110 Kw
Color:	Blue
Driven Method:	Taper Connection Direct Driven
Air End:	Original Ally-win Air End from Germany.
Trademark:	SCR
Transport Package:	Standard Wooden Packing
Available Certificate:	CE, ISO, UL, ASME, GHOST
Origin:	Shanghai, China
application:	Casting,Metal,Plastic,Rubber

Model			SCR100EPM-7	SCR100EPM-8	SCR100EPM-10
Capacity/Pressure(m3/min,/BAR)			16.3/7	16.0/8	13.7/10
PM Motor	Power(KW)	75KW(100H.P)
		Speed(r/min)	1500
		Starting way	VSD Startup
		Volt(V)	380/400/415(220)
		Motor safety grade	IP54
		Motor isolation grade	F
Electrical Supply			380(400,415)V/50Hz/3Phase, 220V/60HZ/3P
Outlet Temperature(ºC)			≤ Environment Temperature+10ºC
Driven way			Direct Driven
Noise level at 1 meter			75±3dB(A)
Cooling method			Air cooling
Oil content			1~3 ppm
Outlet Connection			DN65
Dimension	Length(mm)	2900
		Width(mm)	1620
		Height(mm)	1692
Weight(KG)			2800

1 What trade terms do we provide? What kind of settlement currency do we offer?
Trade term :CIF ,CFR ,FOB,Ex-Works As far Our business traded in Dollars ,Euros and RMB .

2 How long is our delivery?
Our standard delivery time is 30-40 days after confirmation order & receiving recipets for standard compressors, for the other non standard requirement will be discussed case by case.

3 What is the voltage of the compressor?
The available voltage include 380V/50HZ/3Phase, 400V/50HZ/3P, 415V/50HZ/3P, 220V/60HZ/3P, 380V/60HZ/3P, 440V/60HZ/3P. At the same time we provide other voltage according to customer requirement.

4 Can our compressor run in high temperature environment? What is the working temperature range for our machine?
Yes ,our machine would run in high temperature environment ,until now our products have been sold to many countries which wouldmeet high temperature in summer ,such like Iraq, Saudi Arabia, Egypt, Algeria, etc. Work temperature range :1-45 ℃(33.8℉-113℉)

5 What’s the min. Order requirement ?
Min. Order requirement is 1PCS.
