High quality china online hydraulic drive motor troubleshooting

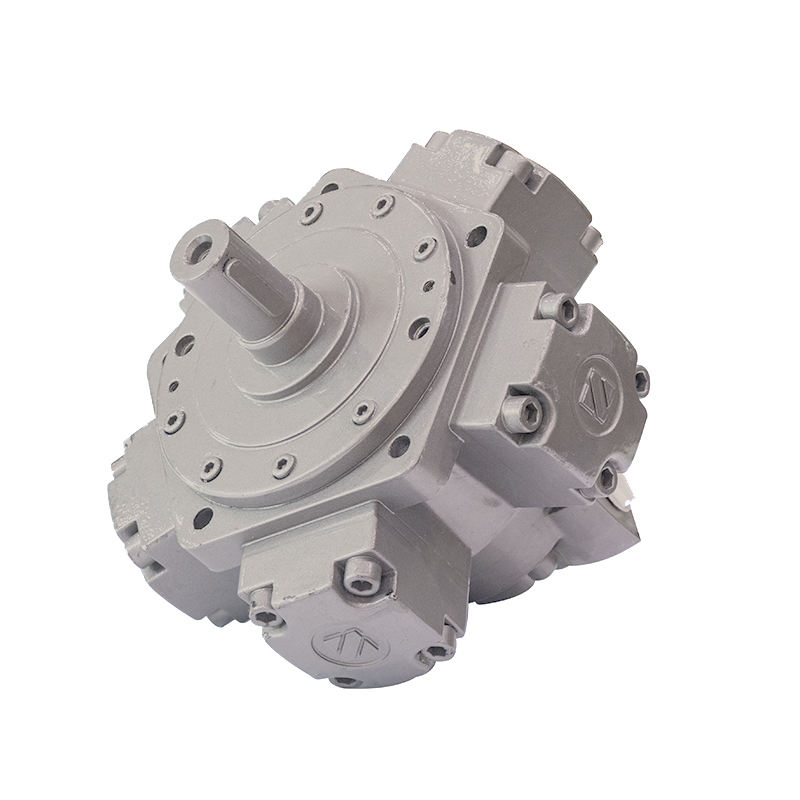

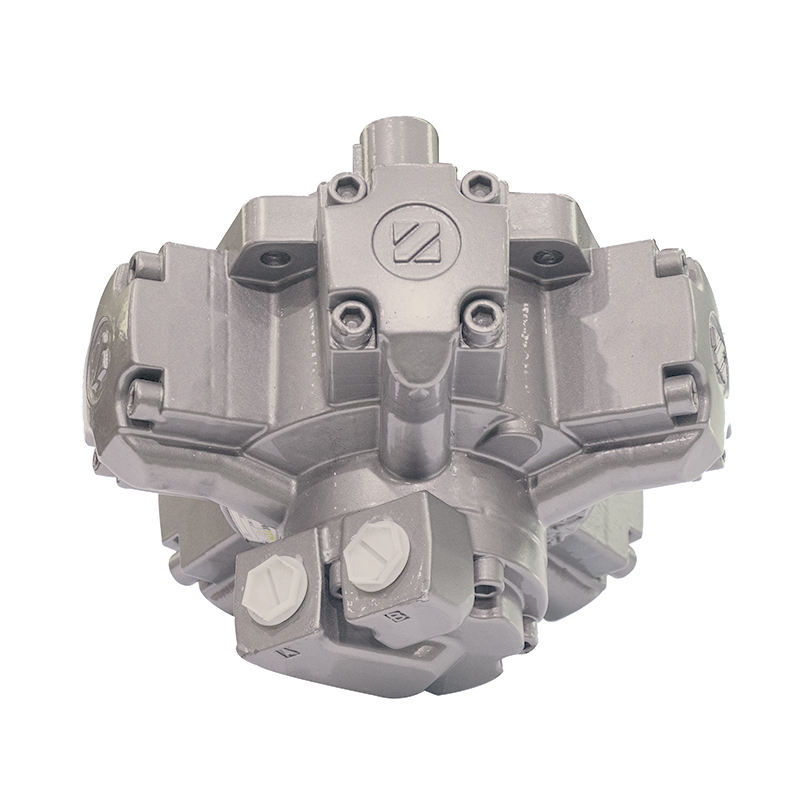

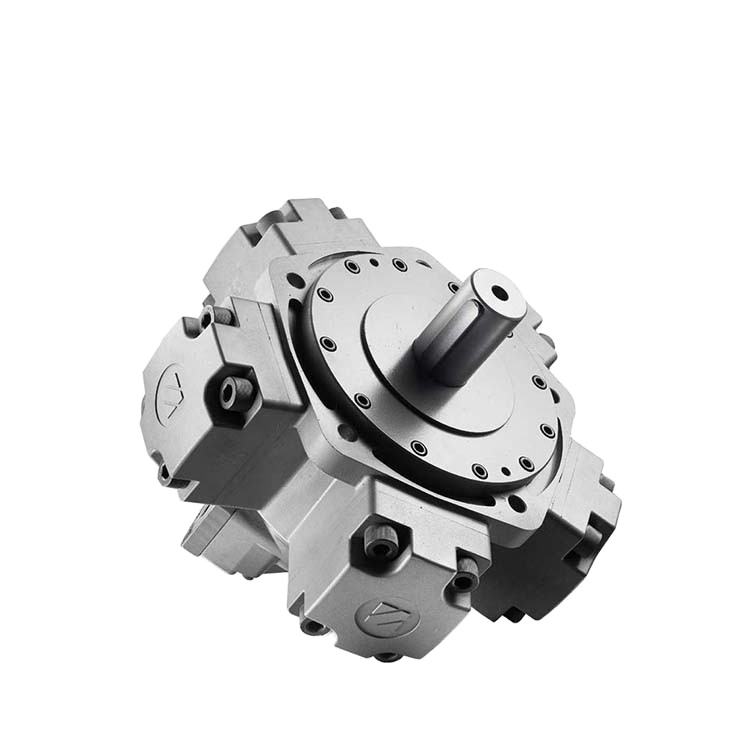

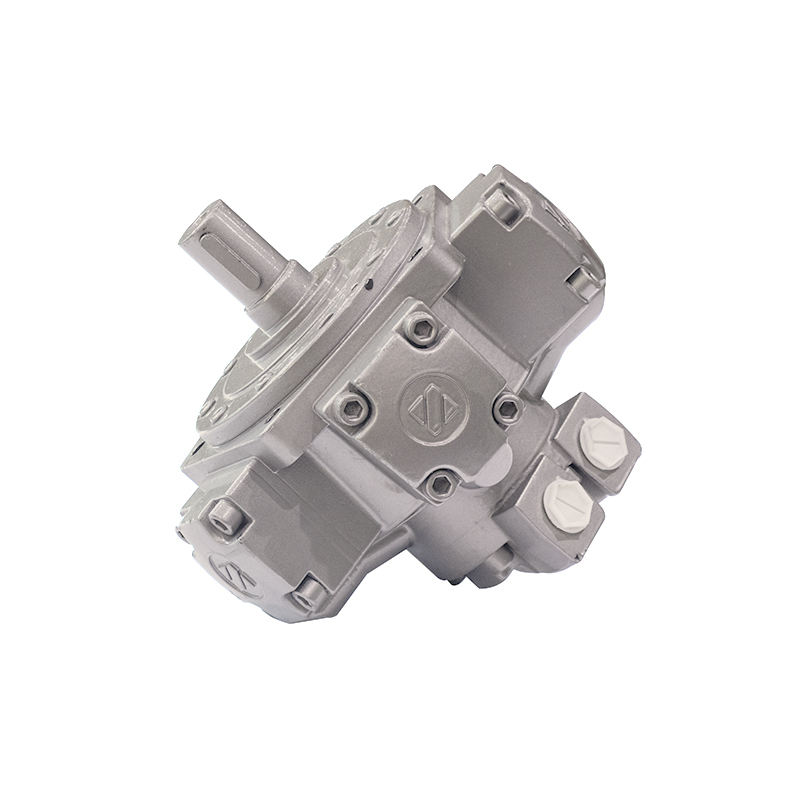

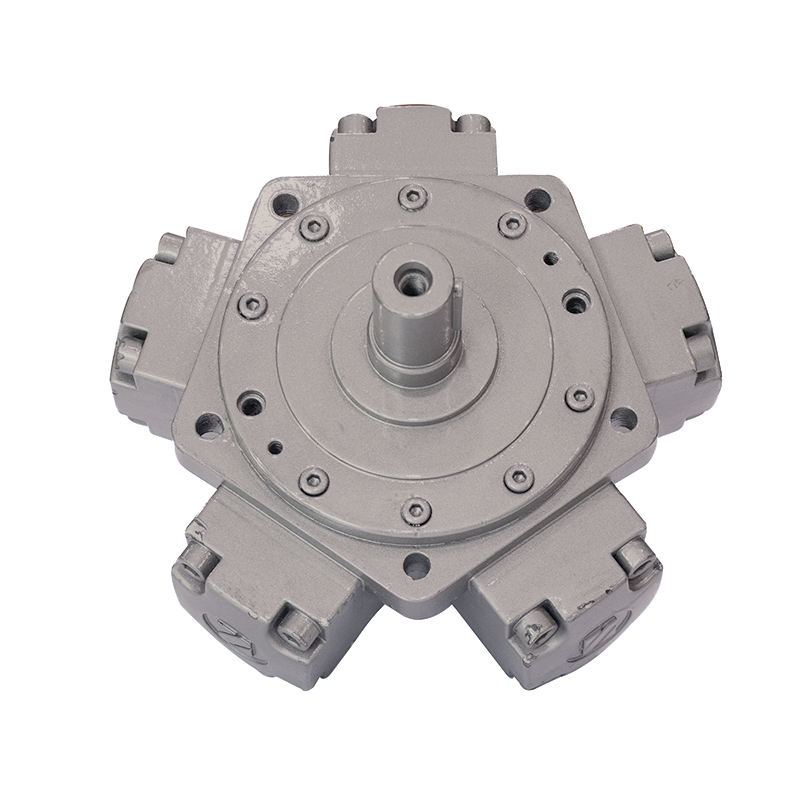

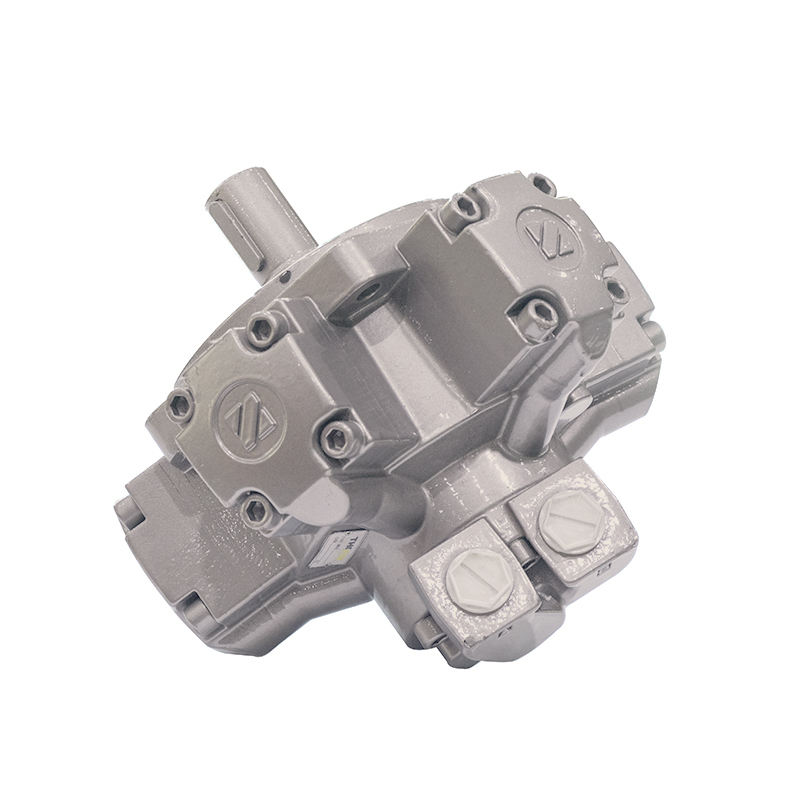

Hydraulic Piston Motor is one kind of low speed high torque radial piston hydraulic motor. It can be widely
applied inpetroleum industry, chemical industry, mining, shipping, constructing machinery, especially for plastics
injection molding machinery, hydraulic winch, transmission ect.
Characteristics:
1.Low noise
2.High staring torque ( mechanical efficiency improved to over 0.9 ), good stability when low speed.
3.High volumetic efficiency
4.Higher mechanical efficiency
5.Opposite rotating available
6.Radial and axial load available
7.Higher kw/kg rati
TECHNICAL DATA
| TYPE | Displacement | Pressure(Mpa) | Torque(N.m) | Speed range | Max.cont.Power | Weight | ||
| ml/r | peak. | cont. | Rate | Theoric | r/min | kw | kg | |
| JMDG1-50 | 56 | 32 | 25 | 207 | 8.2 | 15-1250 | 16 | 23 |
| JMDG1-63 | 64 | 32 | 25 | 237 | 9.5 | 15-1250 | 16 | 23 |
| JMDG1-80 | 78 | 32 | 25 | 300 | 12 | 15-1000 | 16 | 23 |
| JMDG1-100 | 96 | 32 | 25 | 355 | 14 | 15-1000 | 16 | 23 |
| JMDG1-125 | 126 | 25 | 20 | 380 | 19 | 15-1000 | 16 | 23 |
| JMDG1-160 | 159 | 25 | 20 | 472 | 23 | 15-1000 | 16 | 23 |
| JMDG2-100 | 113 | 32 | 25 | 420 | 18 | 10-1250 | 25 | 28 |
| JMDG2-150 | 157 | 32 | 25 | 581 | 25 | 10-1000 | 25 | 28 |
| JMDG2-175 | 176 | 25 | 20 | 532 | 27 | 10-1000 | 25 | 28 |
| JMDG2-200 | 201 | 25 | 20 | 600 | 32 | 8-800 | 25 | 28 |
| JMDG2-250 | 254 | 20 | 16 | 607 | 38 | 8-630 | 25 | 28 |
| JMDG2-280 | 271 | 20 | 16 | 642 | 40 | 8-630 | 25 | 28 |
| JMDG3-200 | 199 | 32 | 25 | 736 | 29 | 8-630 | 37 | 36 |
| JMDG3-250 | 254 | 32 | 25 | 949 | 40 | 8-630 | 40 | 36 |
| JMDG3-300 | 289 | 25 | 20 | 864 | 46 | 6-500 | 40 | 36 |
| JMDG3-350 | 351 | 25 | 20 | 1040 | 55 | 6-400 | 40 | 36 |
| JMDG3-400 | 397 | 20 | 16 | 949 | 63 | 6-400 | 40 | 36 |
| JMDG6-400 | 397 | 32 | 25 | 1483 | 63 | 5-630 | 60 | 65 |
| JMDG6-450 | 452 | 32 | 25 | 1638 | 72 | 5-630 | 63 | 65 |
| JMDG6-500 | 491 | 25 | 20 | 1463 | 78 | 5-500 | 62 | 65 |
| JMDG6-600 | 594 | 25 | 20 | 1775 | 94 | 4-500 | 65 | 65 |
| JMDG6-700 | 683 | 20 | 16 | 1633 | 103 | 4-400 | 65 | 65 |
| JMDG6-750 | 754 | 20 | 16 | 1785 | 112 | 4-320 | 65 | 65 |
| JMDG8-600 | 617 | 32 | 25 | 2282 | 91 | 4-500 | 70 | 71 |
| JMDG8-700 | 710 | 32 | 25 | 2626 | 105 | 4-400 | 70 | 71 |
| JMDG8-800 | 810 | 25 | 20 | 2396 | 120 | 4-400 | 65 | 71 |
| JMDG8-900 | 889 | 25 | 20 | 2629 | 131 | 3-350 | 65 | 71 |
| JMDG8-1000 | 1000 | 20 | 16 | 2366 | 148 | 3-300 | 65 | 71 |
| JMDG11-700 | 714 | 32 | 25 | 2667 | 114 | 4-400 | 80 | 90 |
| JMDG11-800 | 782 | 32 | 25 | 2959 | 120 | 4-400 | 80 | 90 |
| JMDG11-1000 | 995 | 25 | 20 | 2974 | 158 | 3-320 | 85 | 90 |
| JMDG11-1100 | 1116 | 25 | 20 | 3336 | 177 | 3-320 | 85 | 90 |
| JMDG11-1200 | 1175 | 25 | 20 | 3512 | 187 | 3-320 | 85 | 90 |
| JMDG11-1300 | 1296 | 20 | 16 | 3080 | 206 | 3-250 | 80 | 90 |
| JMDG16-1400 | 1375 | 32 | 25 | 5138 | 210 | 2-400 | 100 | 160 |
| JMDG16-1600 | 1648 | 32 | 25 | 6158 | 262 | 2-320 | 110 | 160 |
| JMDG16-1800 | 1814 | 25 | 20 | 5433 | 283 | 2-320 | 110 | 160 |
| JMDG16-2000 | 2034 | 25 | 20 | 6030 | 323 | 2-250 | 110 | 160 |
| JMDG16-2400 | 2412 | 20 | 16 | 5763 | 384 | 2-250 | 97 | 160 |
| JMDG31-2500 | 2550 | 32 | 25 | 9523 | 405 | 1-200 | 150 | 325 |
| JMDG31-2800 | 2826 | 32 | 25 | 10559 | 443 | 1-200 | 150 | 325 |
| JMDG31-3000 | 3050 | 25 | 20 | 9135 | 485 | 1-200 | 140 | 325 |
| JMDG31-3150 | 3142 | 25 | 20 | 9392 | 500 | 1-200 | 140 | 325 |
| JMDG31-3500 | 3419 | 25 | 20 | 10220 | 544 | 1-200 | 140 | 325 |
| JMDG31-4000 | 4170 | 25 | 20 | 12841 | 665 | 1-160 | 130 | 325 |
| JMDG31-4500 | 4522 | 20 | 16 | 10698 | 669 | 1-160 | 130 | 325 |
| JMDG31-5000 | 5190 | 20 | 16 | 12387 | 825 | 1-160 | 130 | 325 |
| JMDG71-4600 | 4617 | 25 | 20 | 13624 | 735 | 1-150 | 145 | 415 |
| JMDG71-5400 | 5459 | 25 | 20 | 16168 | 869 | 1-125 | 145 | 415 |
| JMDG71-6300 | 6361 | 20 | 16 | 16050 | 1000 | 1-120 | 145 | 415 |
| JMDG100-6300 | 6133 | 32 | 25 | 22916 | 975 | 0.5-125 | 168 | 700 |
| JMDG100-8000 | 7693 | 32 | 25 | 28744 | 1223 | 0.5-125 | 168 | 700 |
| JMDG100-10000 | 10688 | 25 | 20 | 31942 | 1699 | 0.3-100 | 200 | 700 |
| JMDG160-12500 | 13335 | 25 | 20 | 39433 | 1972 | 0.3-80 | 220 | 1000 |
| JMDG160-16000 | 16040 | 20 | 16 | 37948 | 2554 | 0.3-63 | 220 | 1000 |
| OEM | yes |
| Lead Time | 5-20 working days for less than 1500pcs |
| Payment | L/C,T/T |
| 30% advance payment,the balance paid before shipment | |
| Packing | Motor each have their own carton,the outer packing is a five-layer plywood boxes |
| Shipping | 1)By air or sea or combined transportation |
| 2)Express:TNT,FEDEX,UPS,DHL |
