Pto Shaft & Gearbox For Tillers

Raydafon Group's PTO Shaft & Gearbox For Tillers ensures smooth power transmission, enhancing agricultural efficiency with durable materials and precision engineering. Ideal for farmers seeking reliable performance, it solves driveline issues, offering superior durability and seamless operation compared to competitors. Experience effortless tilling today!

Send Inquiry

Product Description

PTO SHAFT & GEARBOX FOR TILLERS

The torque limiter is activated when the operating torque exceeds the setting value. Duringthe limiting phase, the device transmits reduced power in pulses The elimination of the externacause and the reduction of the PTO speed allows the normal power transmissionto be re-established When the limiter is activated, it is recommended to disconnect the PTO to avoidunnecessary wear and overheating.

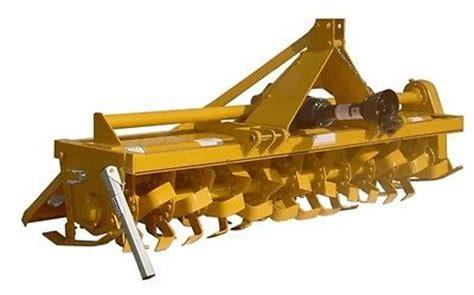

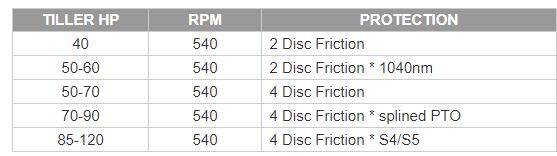

Models : Almost all tillers, regardless of the manufacturer, use a basic PTO with a friction clutch -3 Point PTO with Friction Clutch

Pto Shaft & Gearbox For Tillers

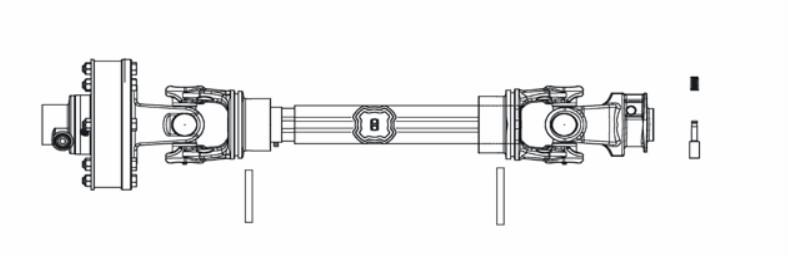

PTO SHAFT SIZE FOR TILLERS

TILLERS	PTO SHAFT SERIES NO.	MIN. LENGTH	MAX. LENGTH	TRACTOR END	TILLERS
Tiller Light Duty with 7" Clutch	Series 4	33"	43"	1-3/8 Z6-QD Pin	1-3/8 Z6-Friction Clutch 2 Discs with Bolt
Tiller Medium Duty with 6" Clutch	Series 4	41"	55"	1-3/8 Z6-QD Pin	1-3/8 Z6-Friction Clutch 2 Discs with Bolt
Tiller Heavy Duty with 7" Clutch	Series 6	45"	60"	1-3/8 Z6-QD Pin	1-3/8 Z6-Friction Clutch 2 Discs with Bolt
PTO ADAPTER-	540	extends	4.5"	1-3/8’ Z6-QD Pin female	1-3/8’ Z6 male

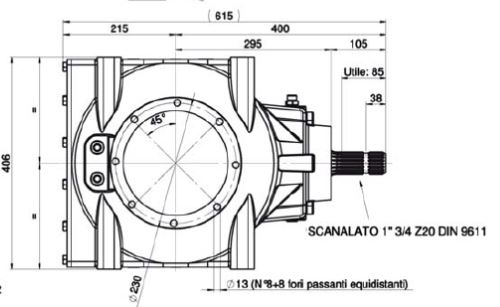

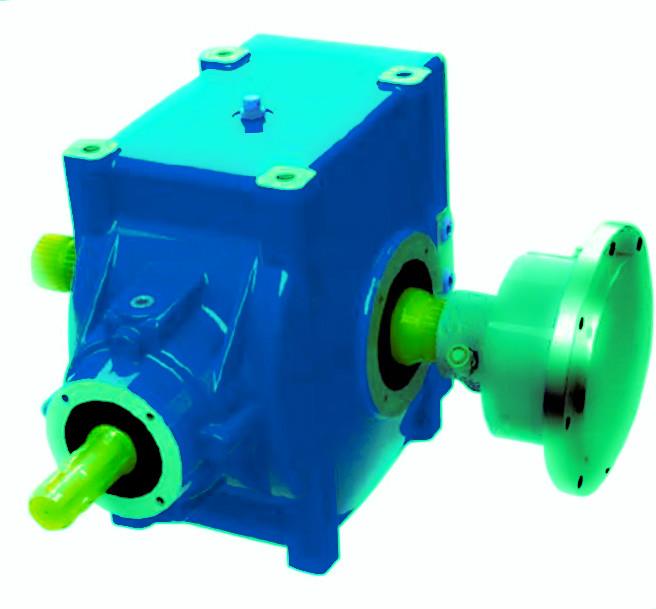

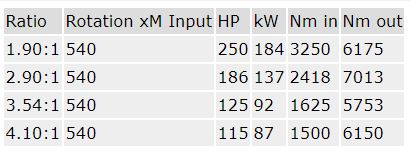

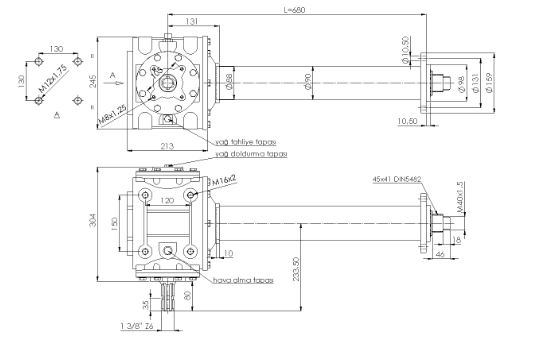

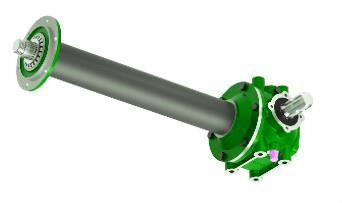

PTO GEARBOX SIZE FOR TILLERS

Pto Shaft & Gearbox For Tillers

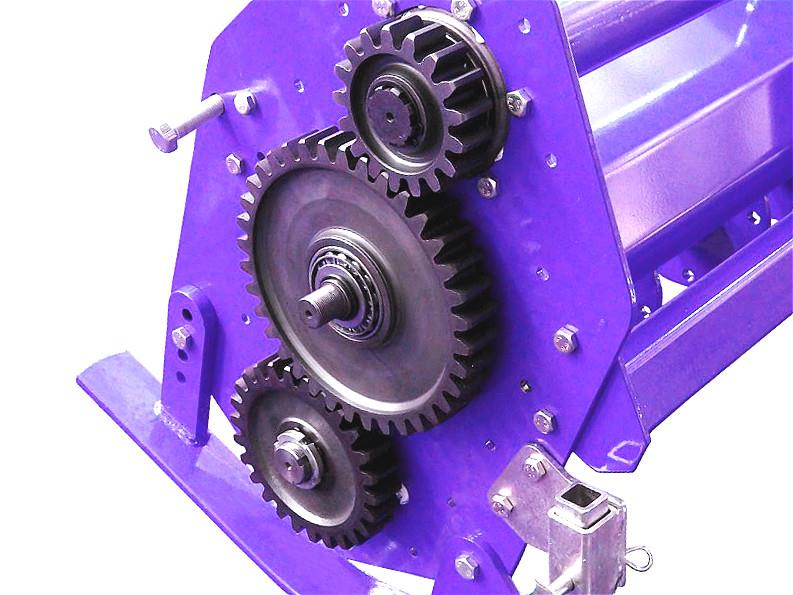

Also we produce all spur gear and spline shafts for the side gearbox of tiller.

Pto Shaft & Gearbox For Tillers

Hot Tags: PTO Shaft For Tillers, Tiller Gearbox Supplier, Agricultural Gearbox Wholesale
