Professional for Four-wheel Drive All Terrain Vehicle Differential Lock Electric Car Rear Axle With Low Price

Product FeaturesThis product is currently used on the rear axle of 800CC-1000CC UTV four-wheel drive all terrain vehicles, with differential lock.Product PerformanceMax Input TorqueT maxN.mMax Input Rotation Raten maxr/minCentre.to-centre SpacingAmmGear RatioU37/10=3.7Different types of AlxeUsually,......

Send Inquiry

Product Description

Product Features

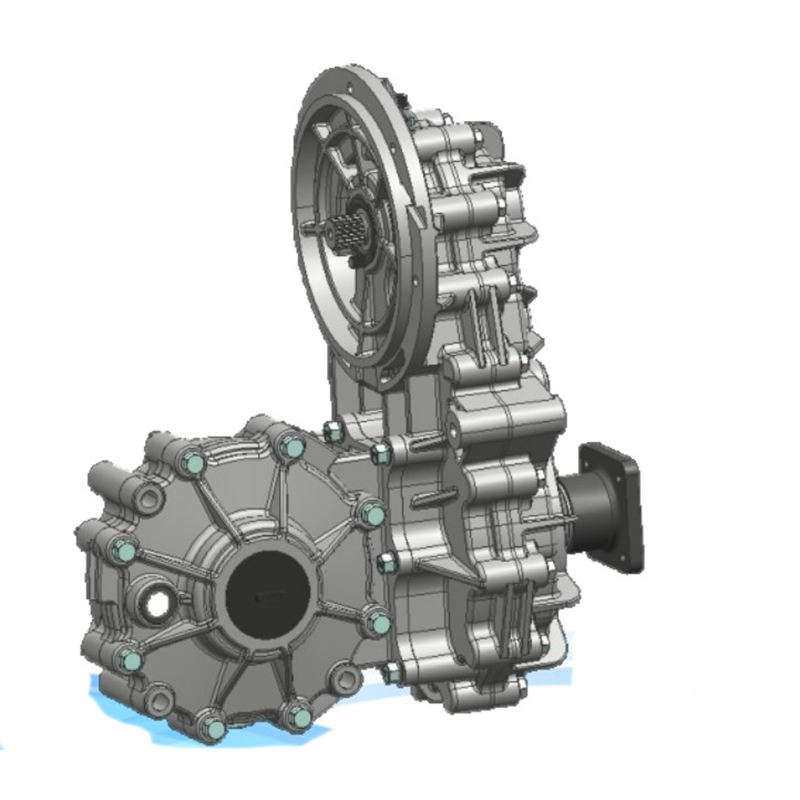

This product is currently used on the rear axle of 800CC-1000CC UTV four-wheel drive all terrain vehicles, with differential lock.

Product Performance
Max Input Torque	T max	N.m
Max Input Rotation Rate	n max	r/min
Centre.to-centre Spacing	A	mm
Gear Ratio	U	37/10=3.7

Different types of Alxe Usually, a car has two basic types of axles. One type is called a dead axle, which exists in cars to withstand weight and does not rotate with the wheels. The other is a movable shaft that is connected to the wheel and pushes it. The constant velocity universal joint connects the wheel and the movable shaft, so that the shaft can smoothly transmit power to the wheel. In addition to dividing the axles into active or dead axles, they can also be classified into other categories, such as front axle, rear axle, or short axle. --Front axle As the name suggests, the front axle is located at the front of the car. The function of the front axle is to support steering and handle impacts caused by road bumps. The front axle may be live or powered off. The active front axle can perform the work of turning the wheels as described above.

--Rear axle The rear axle is located at the rear of the vehicle. Most rear axles are electrically charged, which means they are responsible for transmitting power to the drive wheels. The drive shaft is connected to the engine and rotates the rear axle, thereby turning the wheels of the car. --Short axis The short axle in rear wheel drive cars is connected to both ends of the front axle through a kingpin. According to the arrangement of the short shaft and its sub components, the short shaft can be divided into four types: ·Elliot: This type uses a yoke, kingpin, and cotter pin to connect to the front axle. ·Reverse Elliot: This short axis is arranged in reverse with Elliot's short axis. ·Lamoine: In Lamoine short shafts, L-shaped mandrels and kingpins are used instead of yokes. ·Ramoin reverse: The reverse arrangement of the Ramoin short axis.

Input & Output Spline Parameters
		Input internal spline	Output end internal spline
Tooth system
modulus	m	1.25	1.05833
number of teeth	z	26	27
Pressure angle	a	20°	45°
the modification coefficient	x

Over Dimension & Weight
Weight(kg)	16.7
Length	374
AxleTrack	203
Height	220

For more details, please click here to contact us!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
