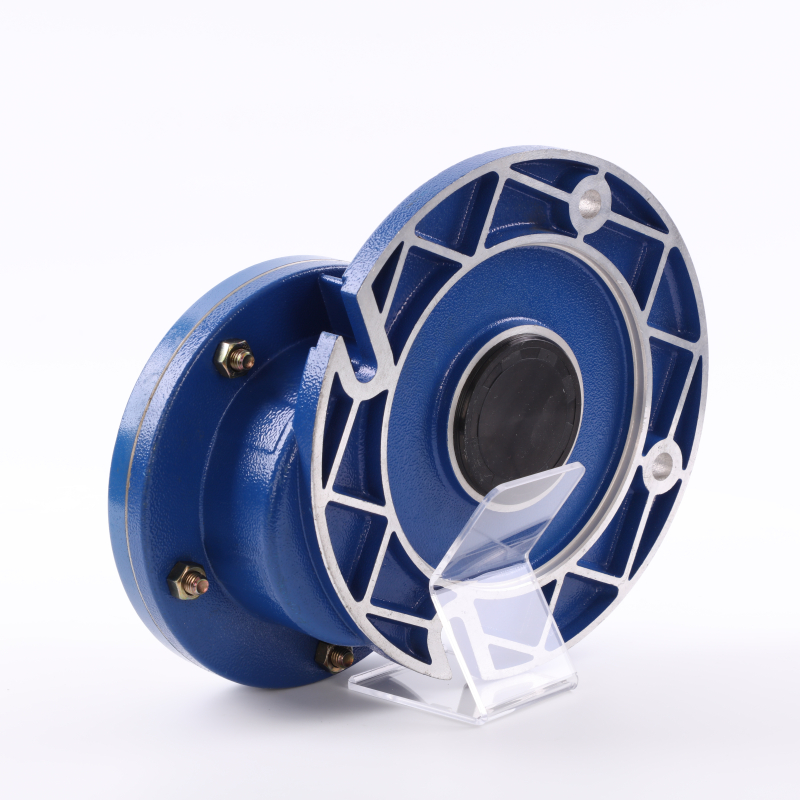

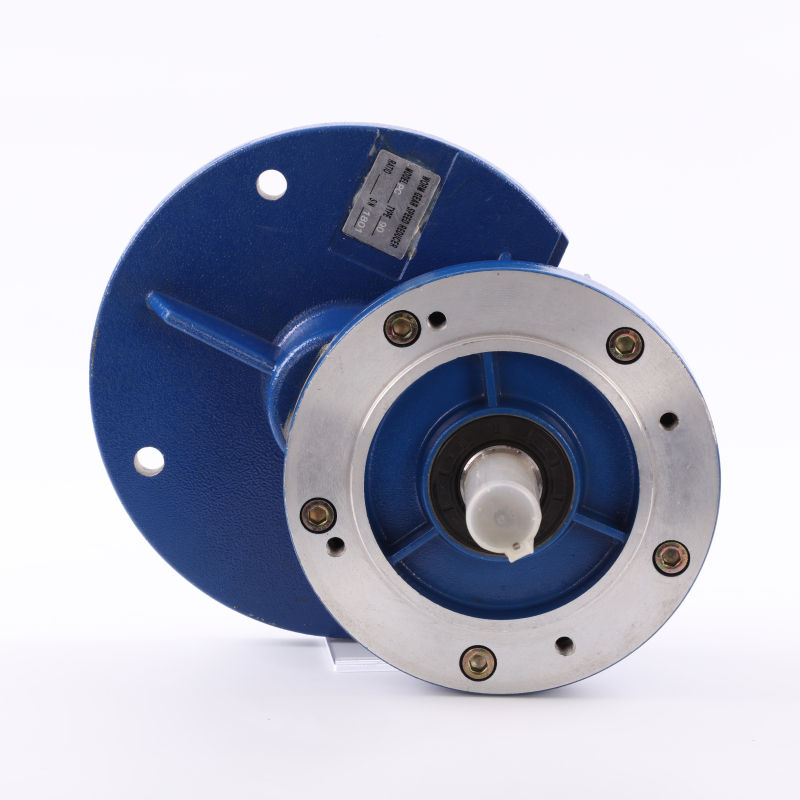

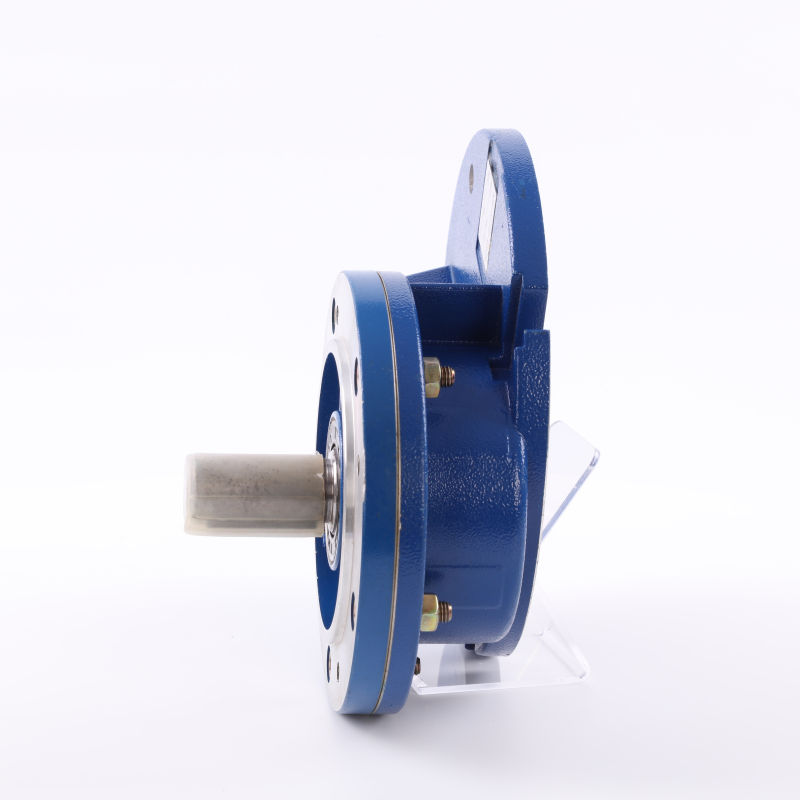

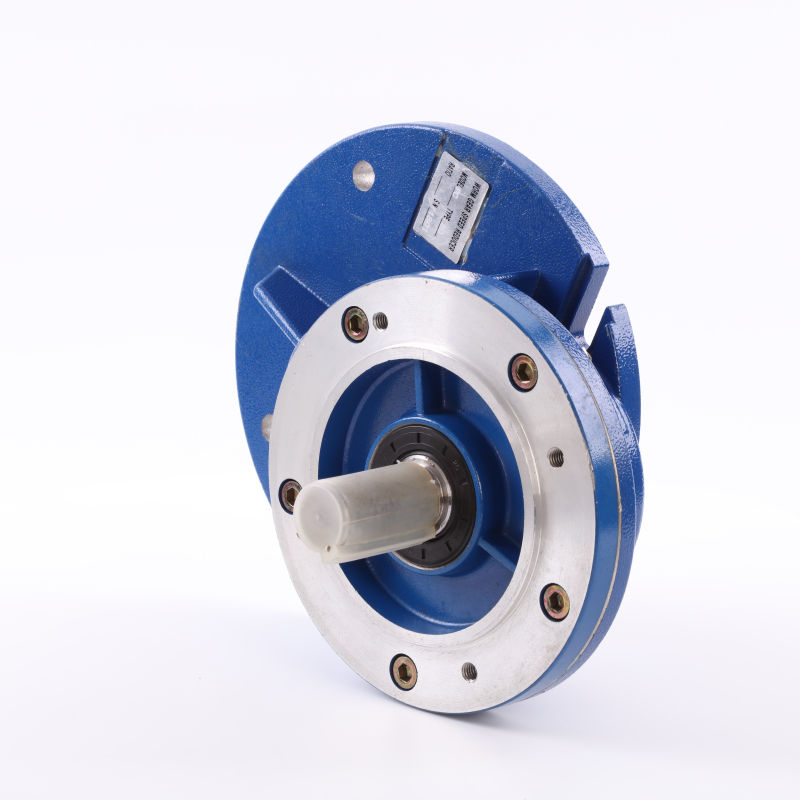

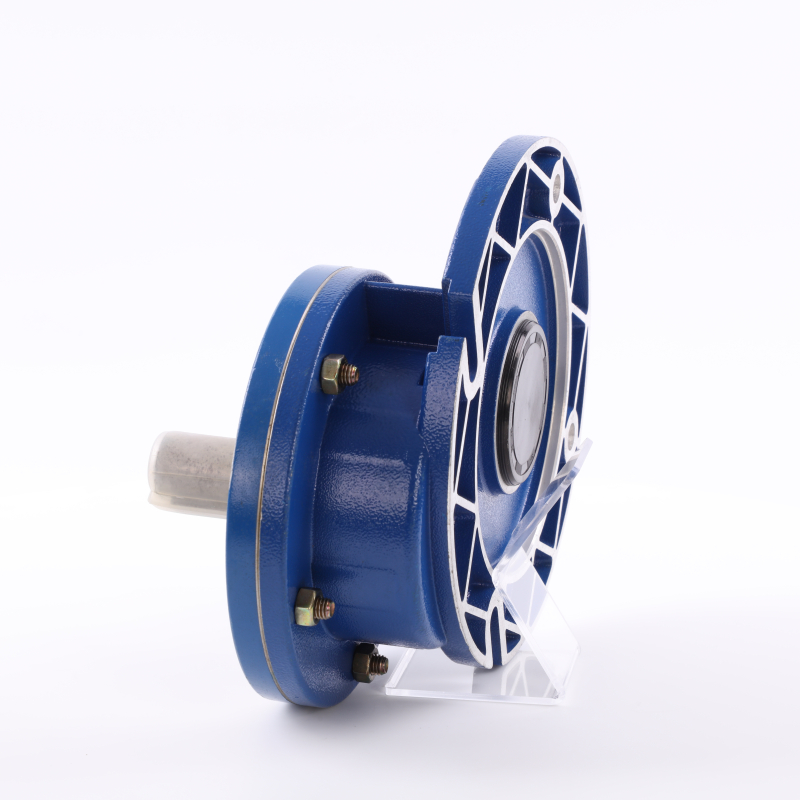

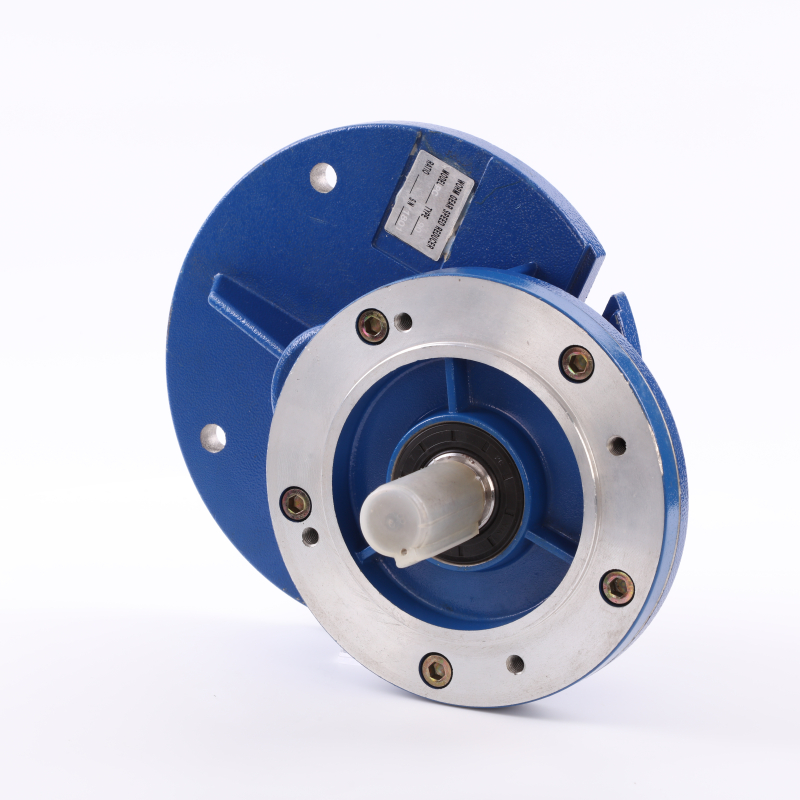

Prestage Helical Pc 071 Parallel Shaft Gearbox Gear Motor Speed Reducer
PC Series Helical Gear Speed ReducerOur PC helical gear speed reducer is equipped with housing made of high-performance aluminum alloy and high strength gears that can be powered by DC or AC power. And the PC helical gearbox can be cooperatively used with other types of reducers to increase the spee......
Our PC helical gear speed reducer is equipped with housing made of high-performance aluminum alloy and high strength gears that can be powered by DC or AC power. And the PC helical gearbox can be cooperatively used with other types of reducers to increase the speed ratio and torque. As a leading manufacturer of helical gear reducers, we are keenly aware of the importance of efficiency and convenience of the gearbox for the customer, so all the speed reducers we offer are easy to maintain and replace. We offer a wide range of helical gear reducers for customers to choose from, so you can find any type of reducer you need in our product list. Features * The housing is made of aluminum alloy with good quality and beautiful appearance. * The gear is made of carburized 20CrMnTi, with good wear resistance and no noise. * It is suitable for omnidirectional installation and is easy to adjust. * It is suitable for situations require higher horsepower and long-term operation.
Model:
PC063 Ratio:1:2.73 PC071 Ratio:1:2.73 PC080 Ratio:1:2.8 PC090 Ratio:1:2.45 Motor power:0.12KW~1.5KW

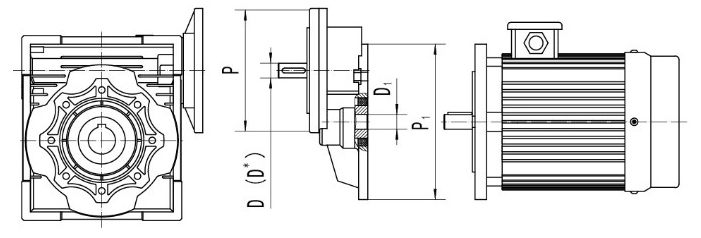

P
D
D*
P1
D1
* Only on request
PC063
105
11
14
11
140(63B5)
PC071
120
14
19
14
160(71B5)
PC080
160
19
24 28
19
200(80B5)
PC090
160
24
19 28
24
200(90B5)
