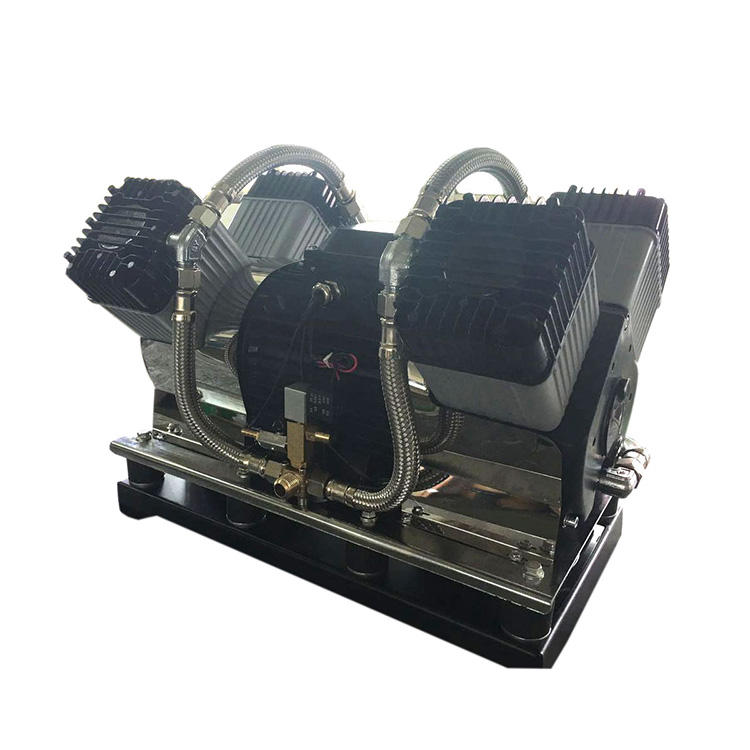

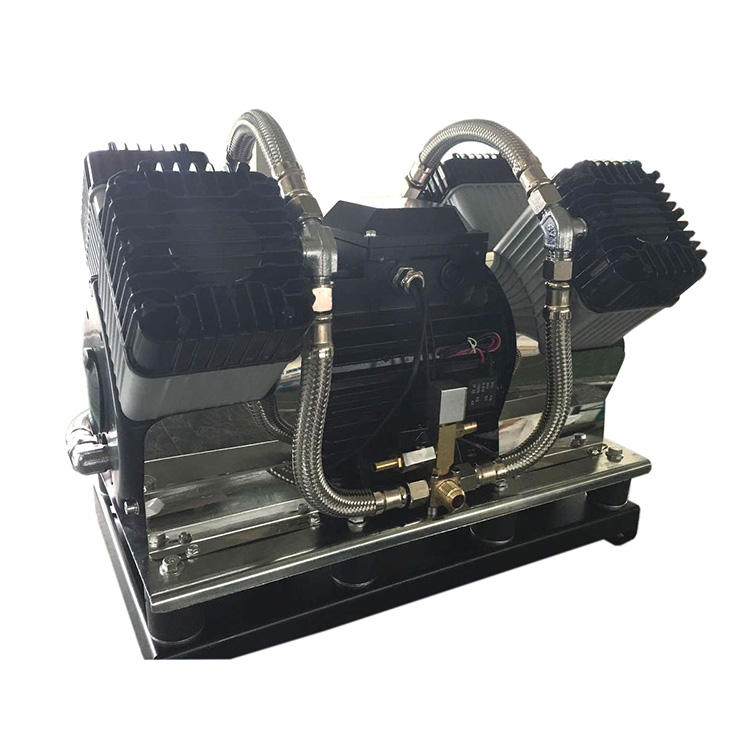

Piston type oil-free Air Compressor
| Item No.: SY50-4V |
| 1. Power:(KW) 2.2 |
| 2. Max Power: (KW) 2.3 |
| 3. Power factor: 0.81 |
| 4. Voltage: (V) 380 |
| 5. Rated current: (A) 4.8 |
| 6. Max current: (A) 5.16 |
| 7. Frequency: (Hz) 50 |
| 8. Speed: (r/min) 1440 |
| 9. Pole:4 |
| 10. Efficiency: 80% |
| 11. Insulation grade: F |
| 12. Working form: S1 |
| 13. Levels of protection: IP67 |
| Air compressor parameters: |
| 1. Discharge volume: 400L/min |
| 2. Work efficiency: 270 l.min– 1/ 5 bar |
| 3. Working pressure: 10bar |
| 4. Compressed gas: Air |
| 5. Oil free in the air |
| 6. No need oil |
| 7. Maximum exhaust temperature: |
| 8. Safety valve opening pressure: 10.5bar |
| 9. Overtemperature Protection of Equipment: Temperature protector |
| Assembly parameters: |
| 1. Starting mode: Direct startup(Frequency Converter Performs 2-3S Soft Start and Soft Stop) |
| 2. Cooling mode: Air cooling |
| 3. Noise: <77db(A) |
| 4. Permissible working environment temperature: -50-75 degree |
| 5. Structure: Direct Portable Oilless Piston Air Compressor |
| 6. Connection length: According to customers requirement |

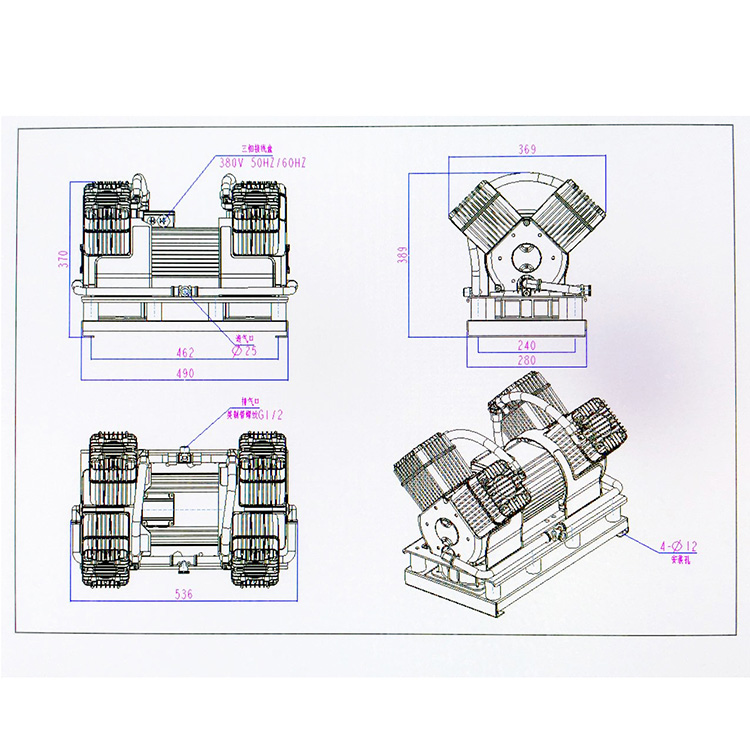

| 7. Installation space requirements: 590×470×440mm |
| 8. Net weight: 45Kg |
| 9. Exhaust port standard: G1/2(outside screw thread)or can OME according to customer's requirement |
| 10. High Voltage Connection Plug: YD28K4TSJ |
| 11. Low Voltage Connection Plug: YD18K4TS |
