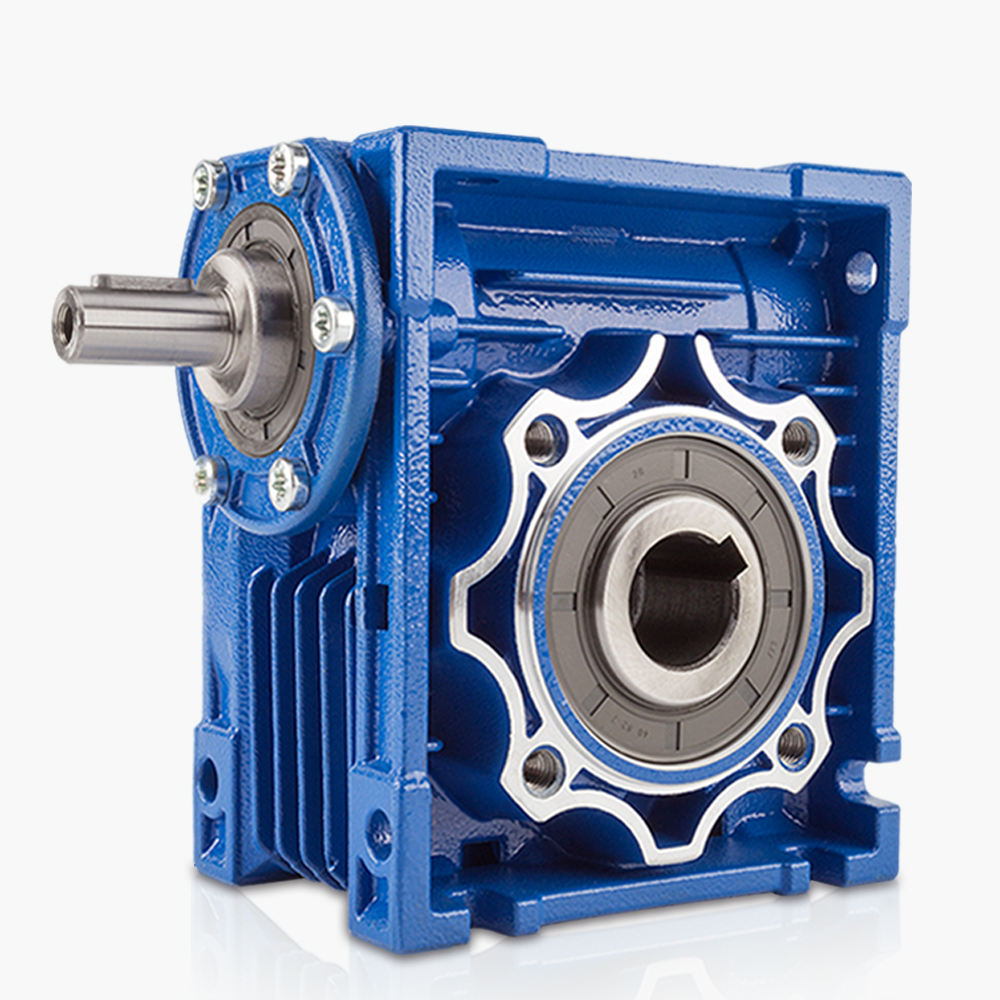

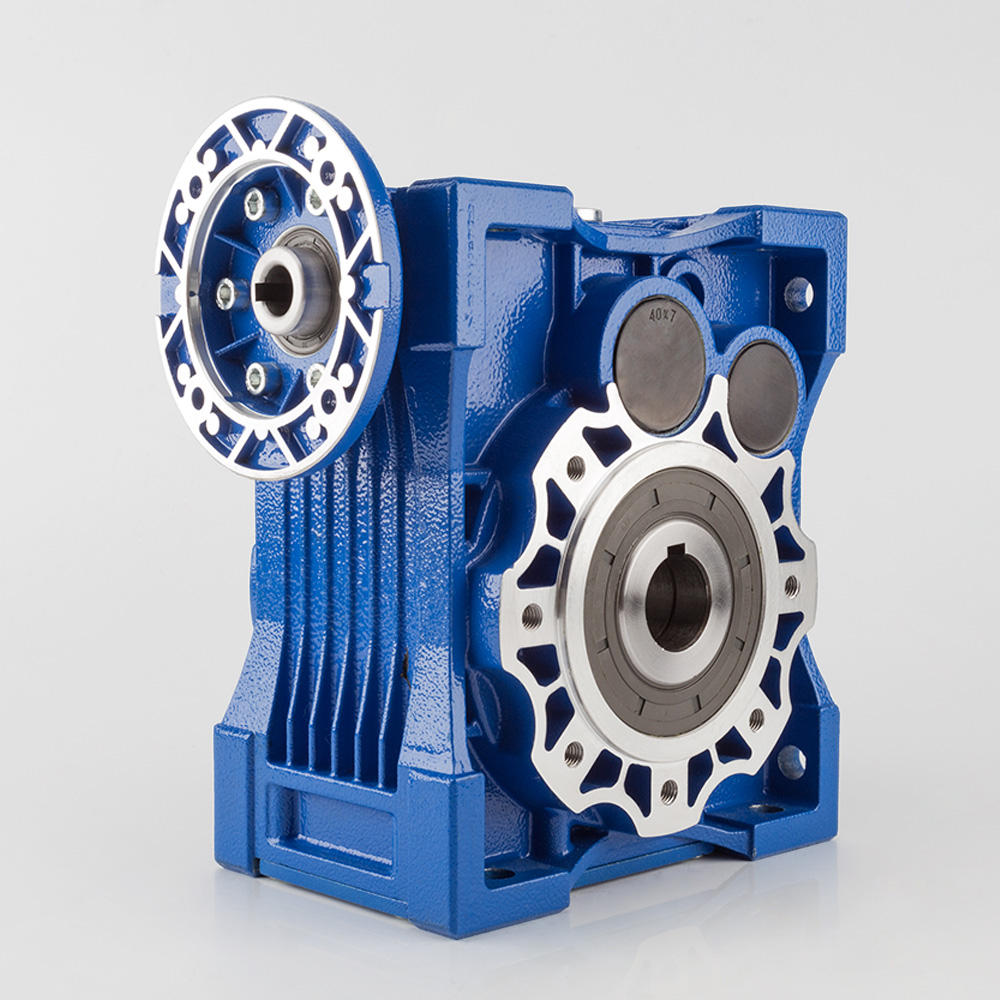

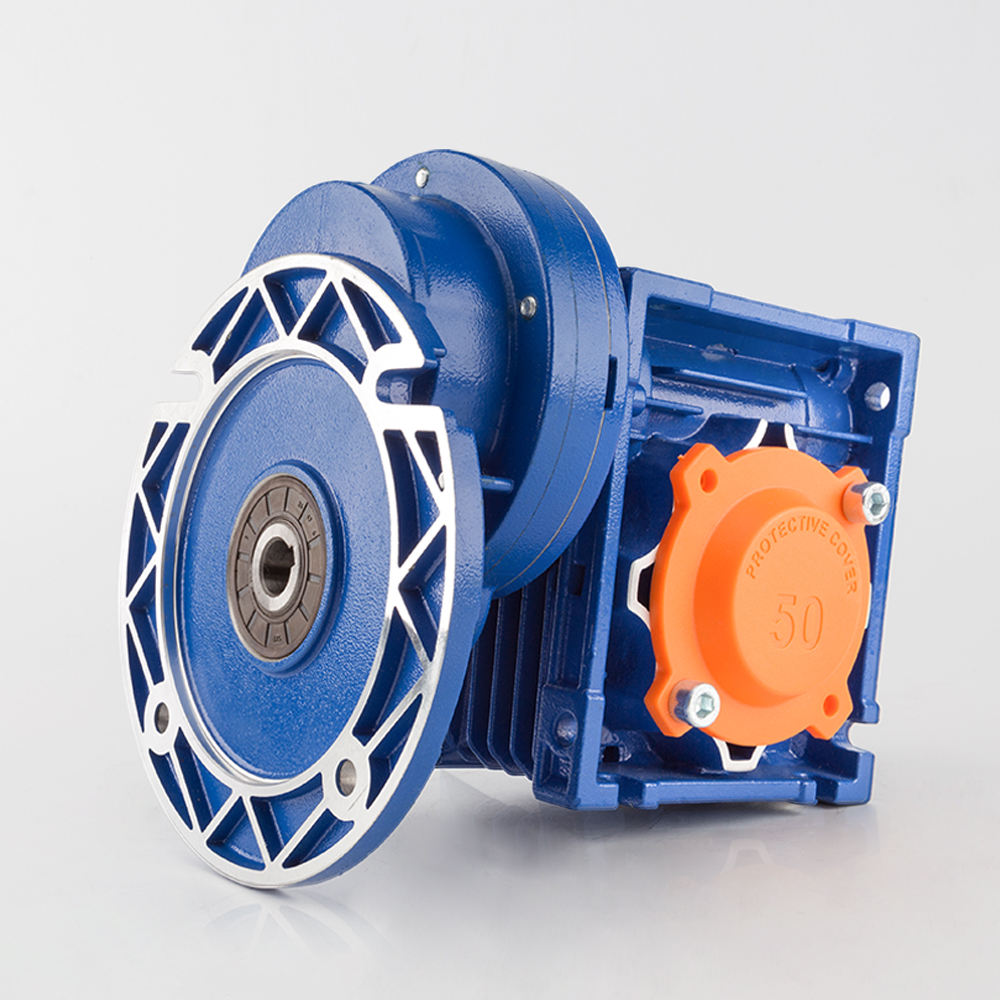

NMRV Series 90 Degree Aluminium Industrial Gear Box

The Raydafon Group NMRV Series 90 Degree Aluminium Industrial Gear Box delivers robust performance with lightweight, corrosion-resistant aluminium construction. Ideal for industrial automation, it ensures smooth, efficient power transmission, solving torque and space challenges. Users experience enhanced reliability and durability, setting it apart from standard gearboxes. Trust Raydafon for superior engineering that boosts productivity.

Send Inquiry

Product Description

NMRV worm industrial gear boxes can be supplied in good quality & competitive prices,

Features

Wide transmission rate, strong output torque
Structure: base-mounted, input shaft, input flange, additional single or double output shafts
Compact mechanical structure, light weight, small volume
Good temperature change resistance
Smooth operation with little noise or vibration
Easy mounting, free linking, high efficiency
Wide usage range

Applications

Widely used in material handing, automation, machine tool, aerospace, food, packing, pharamceutical, printing industry

Technical data:

Model	RV025 030 040 050 063 075 090 110 130 150
Single unit versions	NMRV - fitted for motor flanged coupling, NRV - with input shaft, NMRV-E motor flanged coupling with worm extension shaft, NRV-E with double extension worm shaft,
Power	0.06----15KW
Single unit reduction ratio	1:5 7.5 10 15 20 25 30 40 50 60 80 100
Output torque	2.6---1195N.M

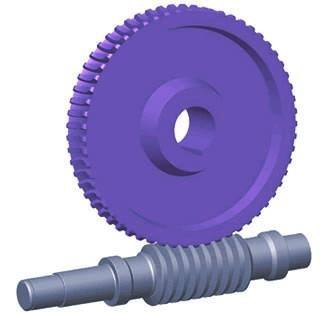

Worm shaft	20CrMnTi with carburizing and quenching.The hardness of surface is 56-62HRC with carbonized layer 0.5-0.8mm
Worm wheel	worm mandrel is HT250,and worm ring gear,ZQSn10-1
