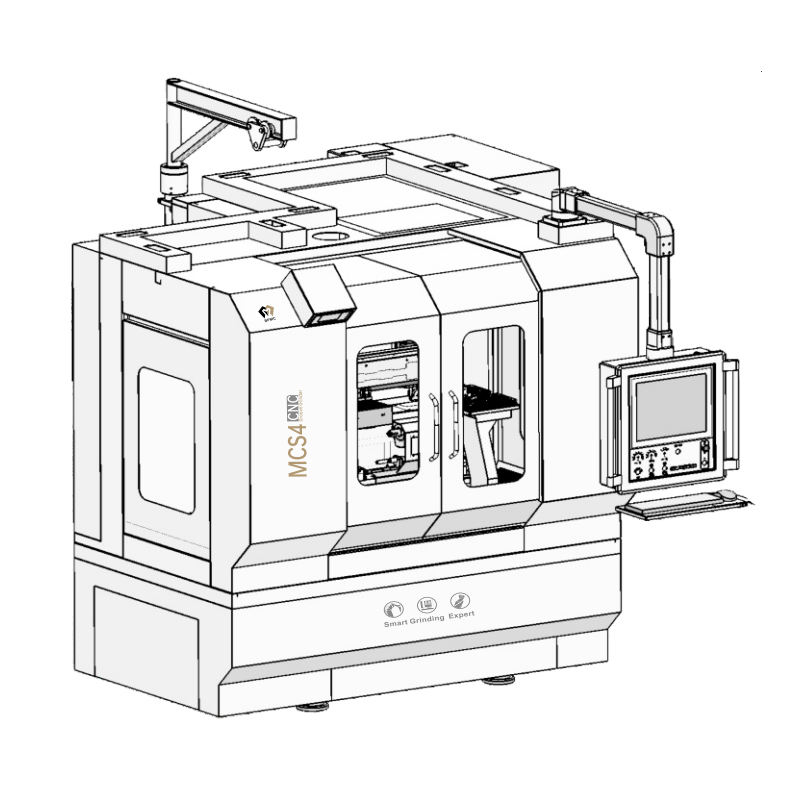

MCS4/MCS5 CNC Tap Groove Grinder Machine

---Our CNC Flute Grinder is applied for grinding the straightFlute,helix flute, flute on taper Thread in Range of M1-M3/M3-M10/M10 ---For Grinding HSS material made products, Beiping Software hasprofessional solution for grinding wheel dressing .------------Multi-functional manipulator and in-process measurement systemmake both the small batch production and the long-time unmannedautomatic grinding very easily realized.

---Powerful and fast grinding technology is 3-5 times more efficientthan the traditional grinder. ---High quality automatic grinding: our engineer can providecustomized grinding solution according to our customers'individuaequirements.

The operator only has to spend little time to input several parametersin our grinding operation system to generate regular programs forstandard tools

Grinding Wheel			OOlS Range ( Grindable Tool depends on its Type and Machining Requirement )
Single Spindle Tap Hole	1:5 externalcone	Taper Thread(MCS Series)	M1-M3/M10/M20
Grinding Head Motor Power	7.5/15kw	Length	150mm
Travel			Controller	BP/SYNTEC/FANUC/SIEMENS
X Axis	220mm	Automatic Loading System
Y Axis ( Grinding Wheel Dressing Axis )	70mm	Diameter of shank	3-20mm
Z Axis	110mm	Max. Length of Work Piece	30/50-150mm
C Axis	360°	Connected Loading
Rotary Axis (C Axis)			380V/50Hz	ca.15/25kw
Standard Center Height	145mm	Size
Clamping Method	Tap Square+Pitch	Length x Width	1900X2300mm
Measurement System	RENISHAW/XF	height	1900mm
Linear Controlled Resolution	0.001mm	Weight
Rotary Controlled Resolution	0.001°	Total Weight ( Depends on the Configuration )	4100kg
