HangZhou EPG High Efficiency S37 Auger Gearbox

Product Description GS series helical-worm reduction gearbox 1. Size:37,47,57,67,77,87,97 2. S series helical-worm speed reducer adopts the helical gear worm wheel type to make the structure more reasonable.3.The series not only has higher transmission efficiency and loading capability than those o......

Send Inquiry

Product Description

GS series helical-worm reduction gearbox

1. Size:37,47,57,67,77,87,97
2. S series helical-worm speed reducer adopts the helical gear worm wheel type to make the structure more reasonable.
3.The series not only has higher transmission efficiency and loading capability than those of single-stage worm wheel
transmission, but also reduces space.Moreover,under the close volume,the series can obtain higher transmission ratio and is more favorable for equipment setting.
4. The product can be combined with various reducers and variators to meet the different requiements.
5. Mounting position: Vertical, horizontal,Shaft ,Falnge

GS series helical-worm reduction gearbox
Efficiency	55%-80%(Depends on the transmission stage)
Housing Material	HT250 high-strength cast iron
Gearing Material	20CrMnTi Alloy Steel
Surface Hardness Of Gears	HRC58°~62 °
Input/Output Shaft Material	40CrMnTi Alloy Steel
Machining Precision Of Gears	Accurate grinding, 6 Grade
Heat Treatment	Tempering, Cementiting, Quenching, etc
Specification	37-97 Seven type totally
Temp. rise(MAX)	40C
Temp. rise(Oil MAX)	50C
Noise(MAX)	65-70dB

Advantage

1. High modularization design:may equip with various motor or other power input conveniently. Same machine type may equip with various power motor. It is easy to realize the combination and junction between every machine type.
2. Transmission ratio:fine division, wide scope. The combined machine type may form very large transmission ratio, i.e. output very low rotary speed.
3. High strength, compact structure: the box body is made of high strength cast iron. Gear and gear shaft adapts the gas
carbonization, quenching and fine grinding process, therefore the bearing capacity of unit volume is high.
4. Long life: Under the condition of correct type chosen (including choosing suitable operation parameters) normal operation and maintenance, the life of main parts of speed reducer (except wearing parts) should not be less than 20000 hours. The wearing parts include lubricating oil, oil seal and bearing.
5. Low noise: because main parts of speed reducer are processed, assembled and tested critically, therefore the noise of speed reducer is low.
6. May bear larger radial load.
7. It may bear the axial load that is not more than 15% of radial force.

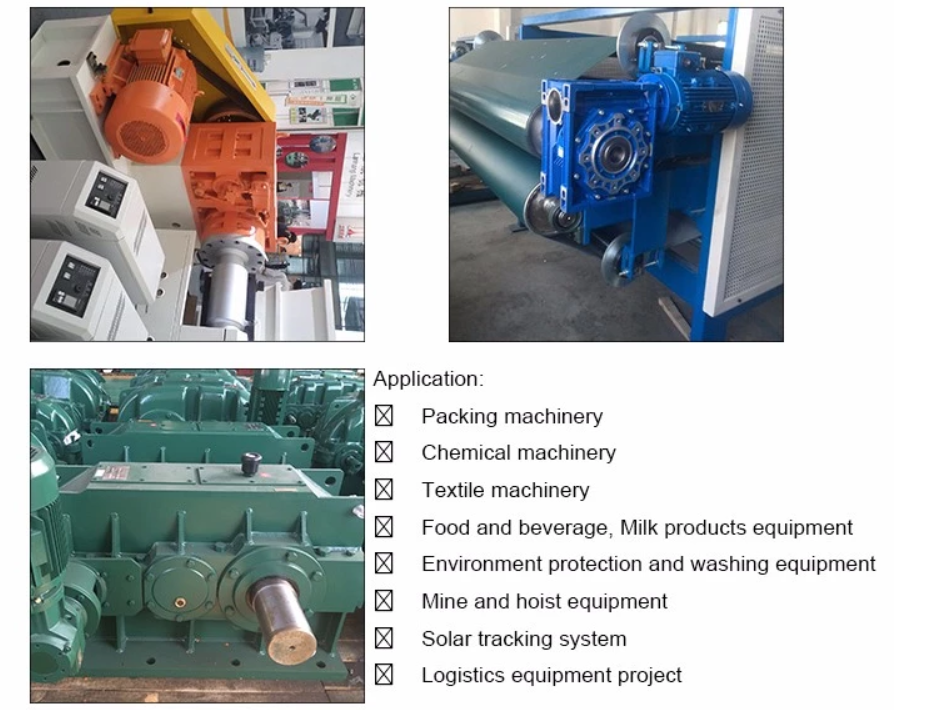

Application

Certifications

Related Products

Product packaging

FAQ

Q: Are you trading company or manufacturer ?

A: HZPT group consists in 3 factories and 2 abroad sales cooperations.we are making vacuum pumps,air compressors and gearboxes.

Q: How long is your delivery time ? What is your terms of payment ?

A: Generally it is 30-45 days. The time may vary depending on the product and the level of customization. For standard products,
the payment is: 30% T/T in advance ,balance before shippment.,for customized products,50% downpayment is requested normally.

Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with detail size, material and further specifications;when you place orders,pleasure contact us in advance to communicate all details.
