Factory Price High Load Carrying High-Speed High Precision Wearable Low Noise Slewing Bearing for Excavator

Slewing BearingThe slewing bearing is also called "turntable bearing" because its shape resembles a plate, usually with a diameter ranging from 0.2 to 10 meters. It is a large bearing that can withstand axial and radial loads and overturning moments. The slewing ring bearing is composed of......

Send Inquiry

Product Description

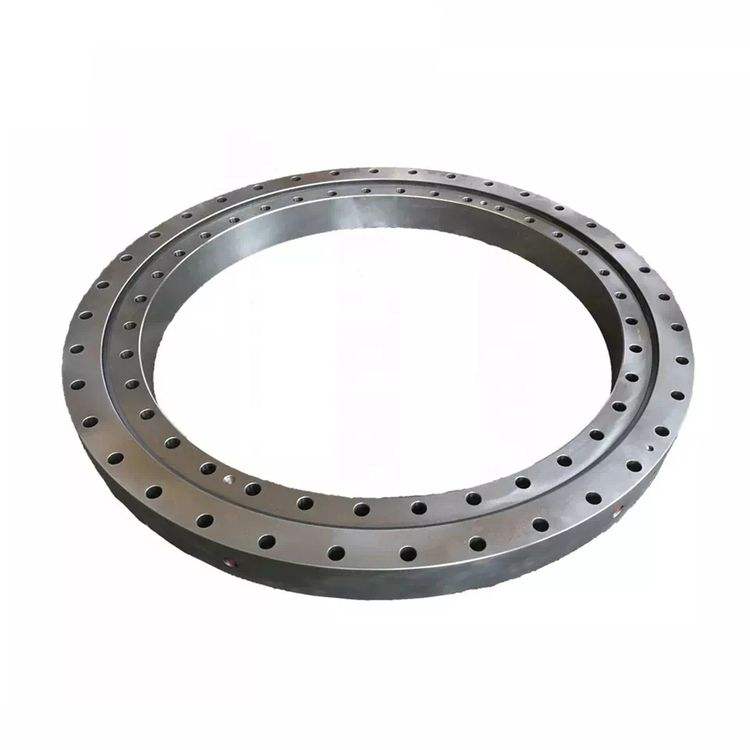

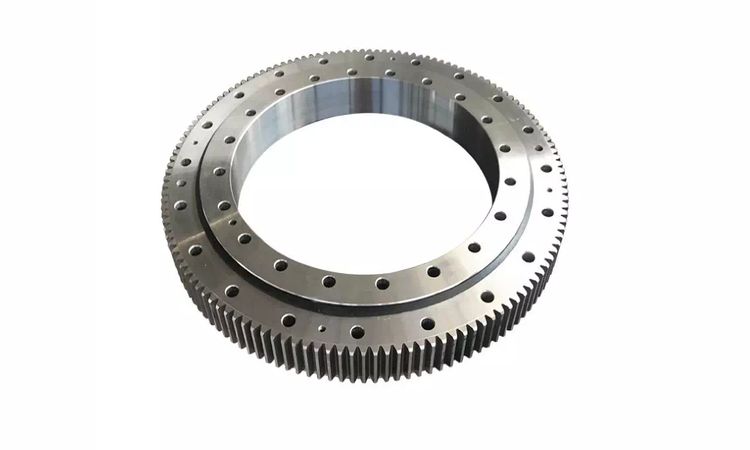

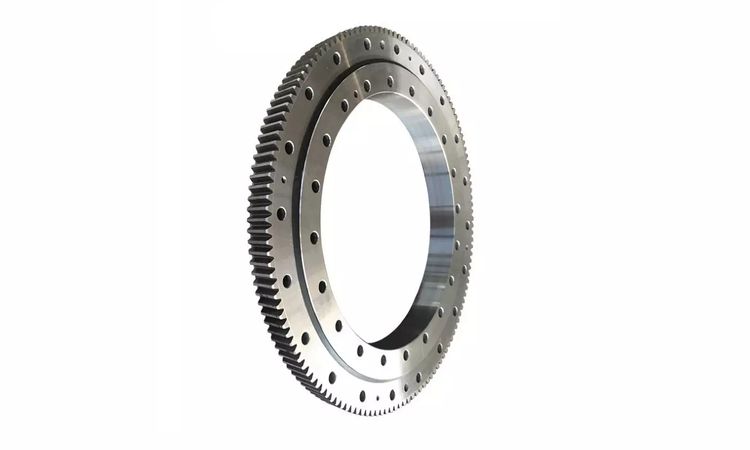

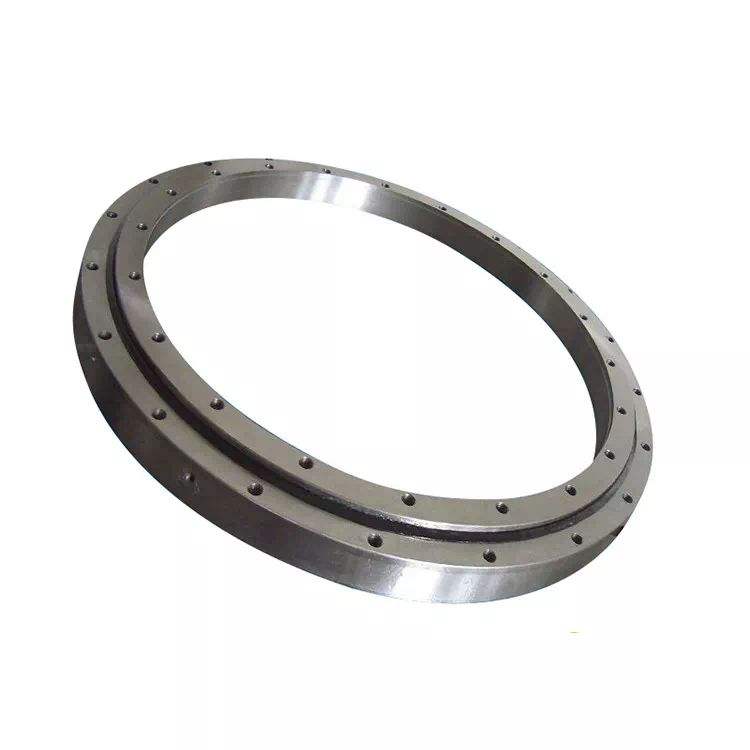

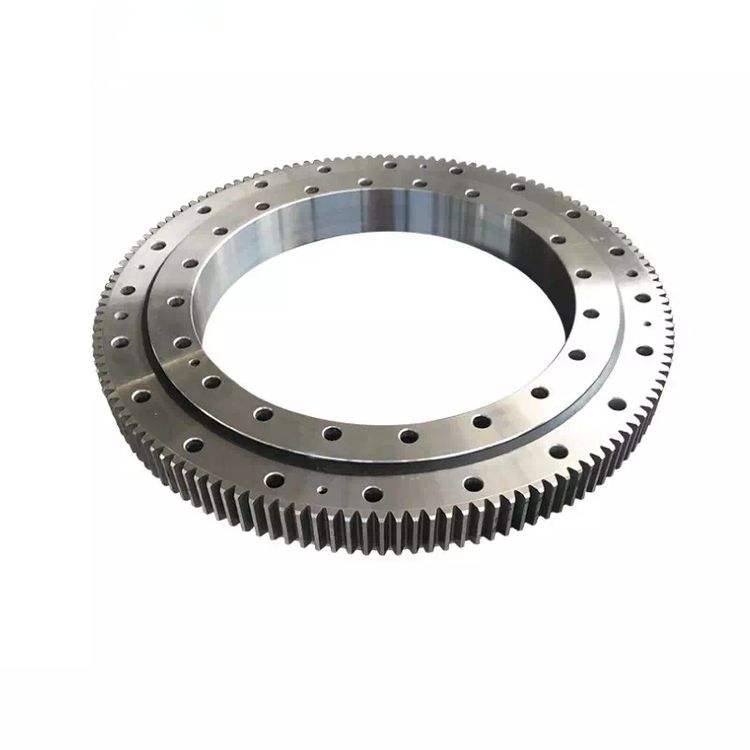

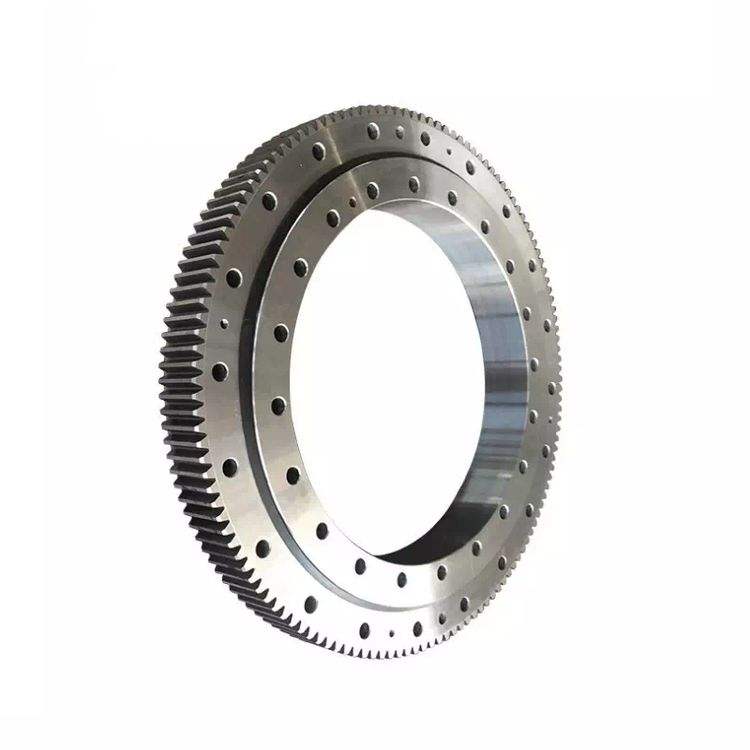

Slewing Bearing

The slewing bearing is also called "turntable bearing" because its shape resembles a plate, usually with a diameter ranging from 0.2 to 10 meters. It is a large bearing that can withstand axial and radial loads and overturning moments. The slewing ring bearing is composed of mounting holes, inner gear ring or outer gear ring, spacer block, cage, lubricating oil hole, and sealing device, so it can make the design of the main engine compact, easy to guide, and easy to maintain.

Classification of Slewing Bearings

(1) Single row cross roller slewing

The single row cross roller slewing bearing consists of two races, with compact structure, high manufacturing accuracy, small assembly clearance, and high requirements for installation accuracy. Overturning moment and large radial force are widely used in transportation, construction machinery, and products.

(2) Three-row roller slewing bearing

The three-row roller slewing bearing has three races, and the upper, lower, and radial raceways are separated so that the load of each row of rollers can be accurately determined. The axial and radial dimensions are large, and the structure is firm. It can bear various burdens at the same time and is the one with the most significant bearing capacity among the four products. It is especially suitable for heavy machinery requiring large diameters, such as bucket wheel excavators, wheel Cranes, marine cranes, port cranes, molten steel running tables, large tonnage truck cranes, and other machinery.

(3) Single row four-point contact ball slewing bearing

The single row four-point contact ball slewing bearing is composed of two races with a compact structure, and the steel ball contacts the arc raceway at four points. They are mainly used in truck cranes, tower cranes, excavators, pile drivers, engineering vehicles, radar scanning equipment, and other machines subjected to overturning moment, vertical axial force, and horizontal inclination force.

(4) Double row ball slewing bearing

The double row ball slewing bearing has three races, and the steel balls and spacers can be directly discharged into the upper and lower raceways. Under stress conditions, two rows of steel balls with different diameters are arranged. This kind of open assembly is very convenient, and the bearing angle of the upper and lower arc raceways is 90°, which can bear a considerable axial force and tipping moment. The raceway must be specially designed when the radial force is more significant than 0.1 times the axial force. The axial and radial dimensions of the double-row ball slewing bearing are relatively large, and the structure is tight. It is especially suitable for loading and unloading machinery such as tower and truck cranes requiring medium or larger diameters.

(5) Light series slewing bearing

The light slewing bearing has the same structural form as the standard slewing bearing, with lightweight and flexible rotation. They are widely used in food machinery, filling machinery, environmental protection machinery, and other fields.

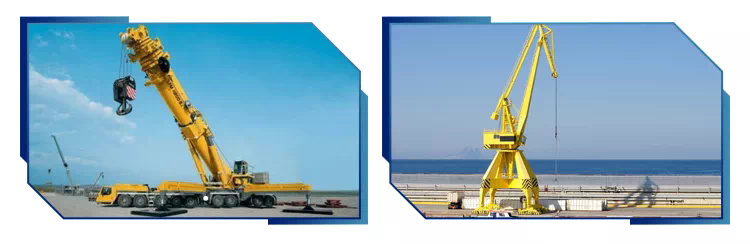

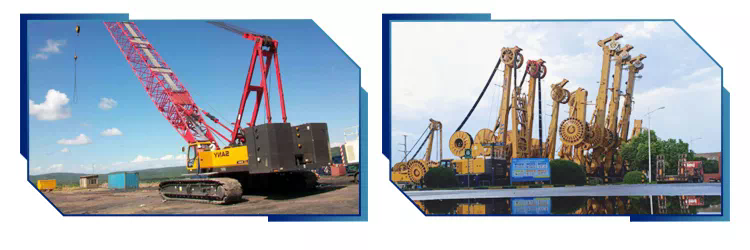

Application areas of Slewing Bearing

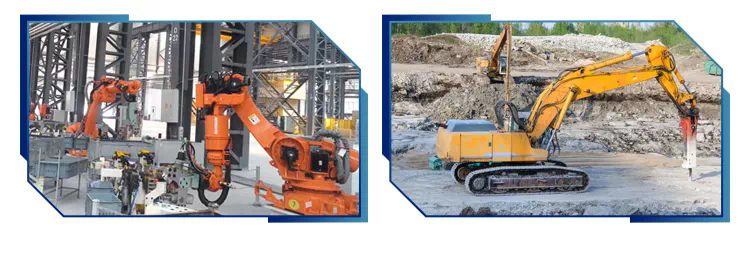

Slewing bearings are widely used in construction machinery, concrete machinery, feeding machinery, hoisting machinery, ground processing machinery, light industrial machinery, ship cranes, port equipment, new energy equipment, metallurgical equipment, playground equipment, airport equipment, equipment, Robots, medical equipment, green facilities, parking equipment, etc.

Product series	1. Single Row Four Point Contact Ball Slewing Bearings 2. Single Row Crossed Roller Slewing Bearings 3. Double Row Ball Slewing Bearings 4. Three Row Roller Slewing Bearings 5. Thin Section Slewing bearings (Light type). 6. Thin Section Slewing Bearings (Flange type)
Outside Diameter	300 - 6000 mm
Bore Size	120 - 5500 mm
Material	50Mn, 42CrMo

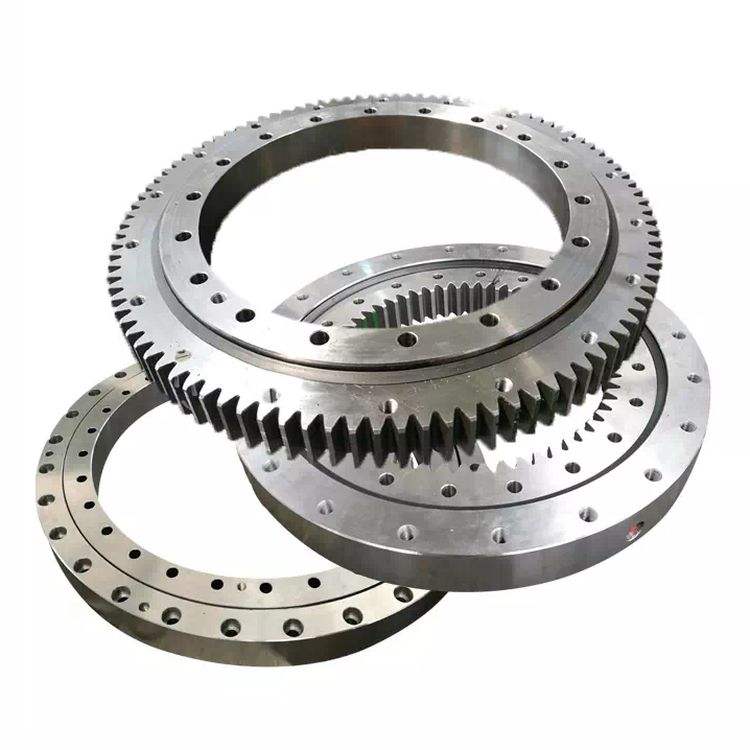

Gear Options	External gear Internal gear Without gear
Rolling element	Ball or roller
Features	High Load Carrying, High-Speed, High Precision, Low Noise
Place of Origin	China
Warranty	1 year
Delivery Time	7-15 days
Payment Terms	L/C,T/T,Western Union
OEM/ODM	Available
Packaging Details	1:Filling with rust-proof oil 2:Packing with protective layers 3:Fixed in wooden box

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
