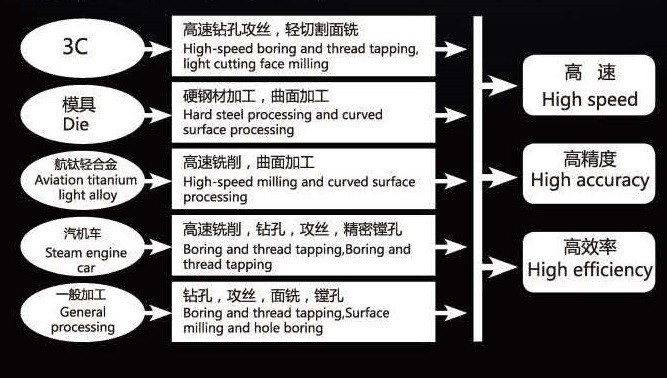

The spindle head of boring and milling can match with several types of spindle and can be applied to several processing conditions, including boring, milling, drilling, tapping, twisting, grinding, etc. The spindle head of boring and milling can be installed on various machine production lines, common machine reformation and combination center machine. The accuracy of processed products is high, transmission is easier, design is more appealing and scientific.
Characteristics
•Dynamic sealing non-touching multi-maze waterproof structure is adopted in the design of spindle head to prevent external impurity of cutting fluid or dust, cutting scraps, etc. during production and processing, protect bearing from contamination and assure service lifespan and bearing accuracy.
•Central water outtake rotating joint can be equipped at the end of the spindle, which can be widely used in deep hole cutting and high-speed milling.
•The real roundness of the spindle head is<0.004mm, which is easy for high-speed operation, high dynamic-static accuracy and good stability.
•Standard alloy steel material is used for the spindle and goes through standard technology procedures, including hammering, several rounds of rough processing and finishing, re-finish machining, final finish grinding and cutting etc., to ensure durability and accuracy of the spindle.
•Housing is cast with accurate die and iron of high toughness and processed by means of manual vibration aging and natural aging to reduce stress and increase deformation resistance performance and stability.
•Compact structure, high mechanical efficiency, low noise, low vibration and high accuracy.
•Stable operation, no impact, prolongation of service life of spindle.
Our product can be adapted. Please give us the required model name so we can provide you the most accurate quotation.
This chart if for reference, if you need different features, provide us all relevant details for your project and we will be glad to help you finding the product matching your need at the best quality with the lowest price.
Please note the price and the MOQ may vary regarding the product you chose: do not hesitate to contact us to know more!

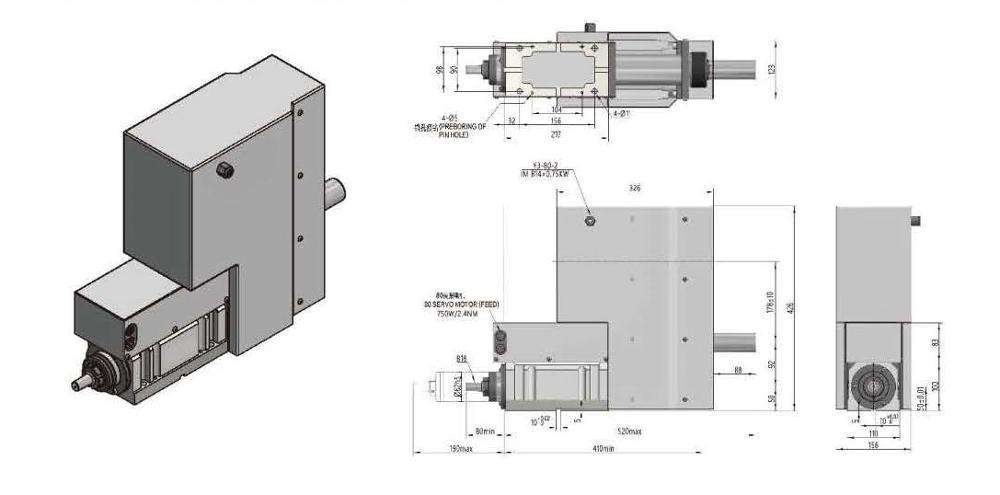

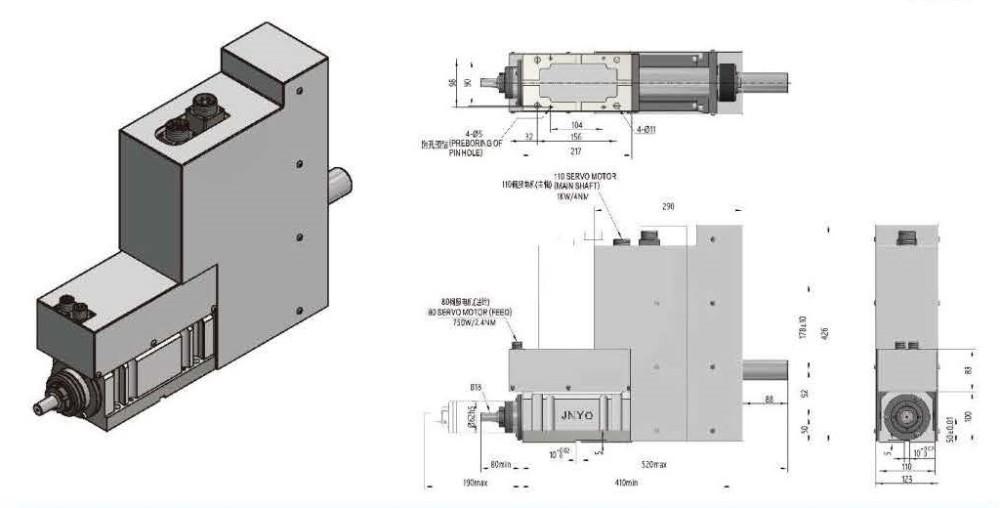

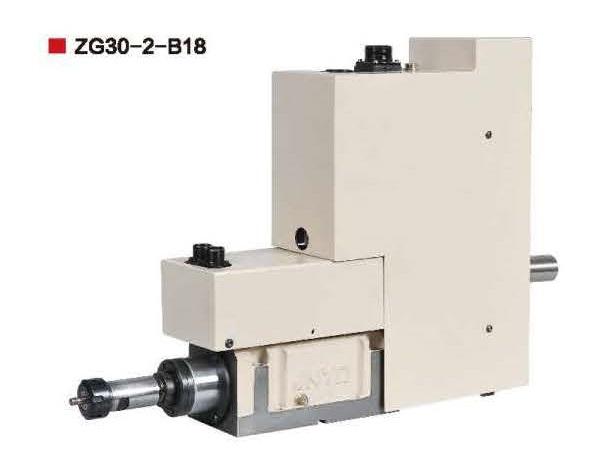

ZG30-2 power head is designed into dynamic-seal non-contact multiple labyrinth waterproof structure, so as to prevent external invasion of cutting fluid or dust, cuttings and other foreign matters during production and processing. It guarantees that bearing is not polluted and ensure its lifespan and precision. Many spindle forms can be matched, the sliding sleeve can be controlled for stretching by matching the servo feed motor, and the sliding table configured additionally can be replaced easily. It can be used for many processing occasions, such as drilling, tapping and hinging. B18 is the short morse taper of MT2# and can be equipped with drill chuck matched with the taper of B18 turning ER25 tool handle, and Ø1 - 16mm cutter of straight shank is clamped. The cutting is easier by virtue of unique functional advantage
•The motor power and speed can be configured with speed ratio of triangular belt, synchronous belt and poly V-belt according to requirement
•Customization of power head with special specification can be accepted
Low carbon steel, C45, 20CrMnTi, 42CrMo, 40Cr, stainless steel. Can be adapted regarding customer requirements.
Blacking, galvanization, chroming, electrophoresis, color painting, ...
High frequency quenching heat treatment, hardened teeth, carbonizing, nitride, ...
We Can Provide You:
◆ On-time Delivery of a wide variety of products
◆ Exceptional product solutions and service
◆ Quality guarantee
◆ Local technical support
◆ Fast response to customers: Feedbacks in 24 hours
"Quality is priority" Raydafon people always attach great importance to quality controlling from the very beginning to the end. Our factory has gained CE, VB, SGS & ISO certificates.
Raydafon Transmission Group is a group corporation manufacturering all kinds of transmission components. We have 3 factories and 2 abroad sales corporations.
Our company manufactures sophisticated boring and milling power head, numerical control (hard rail and wire rail) sliding table and numerical control machine. We provide modular combination design and manufacturing scheme to effectively improve production capacity in accordance with product characteristics required for any industry.
The products provided by Jingyao Numerical Control Company are manufactured at the vertical and horizontal machining center and are scanned using three-dimensional detectors. The hardness text shall be made for main parts after thermal treatment. The products have very high machining precision, easy transmission, specious surface and reasonable design. The manufactured product is widely used in the auto parts, engine parts, agricultural machinery, engineering machinery, textile machinery, water heating fittings, pipe fittings, chemical equipment parts, project and mould manufacturing industry.
Since products are on the market, they have been highly recommended by both domestic and foreign customers.
The company mainly sells control parts, driving parts, cutting tools (measuring implement) and other precision parts of domestic and overseas brands. On the basis of the resource superiority of taking full advantage of the "Chinese cutting Tool and Measuring implement Market " "Chinese Mechanical and Electrical Hardware city", "Taizhou Automation Equipment Market", and by combination with the internal technology experience, the company will provide on-line and off-line (O2O) one-stop purchasing platform and establish distribution departments in major cities.
Company tenet: creation of value for customer, creation of opportunities for employees, and creation of benefits for the enterprise. We firmly believe that we are able to open up a new situation where we can get win-win results and mutual benefits with new and old customers through unremitting efforts.
