CW WH Series Arc-contract Series Worm Gear Box Speed Reducer Gearbox CWS CWU CWO WHT WHX WHS WHC

Raydafon Group's CW WH Series Arc-contract Worm Gear Box Speed Reducer Gearbox, including CWS, CWU, CWO, WHT, WHX, WHS, and WHC models, offers efficient power transmission for industrial applications. Built with high-quality materials and precision engineering, it ensures durability and smooth operation, ideal for machinery in manufacturing and automation. Experience reduced downtime and enhanced performance, standing out with superior reliability and compact design. Trust Raydafon for innovative solutions that drive productivity and satisfaction.

Send Inquiry

Product Description

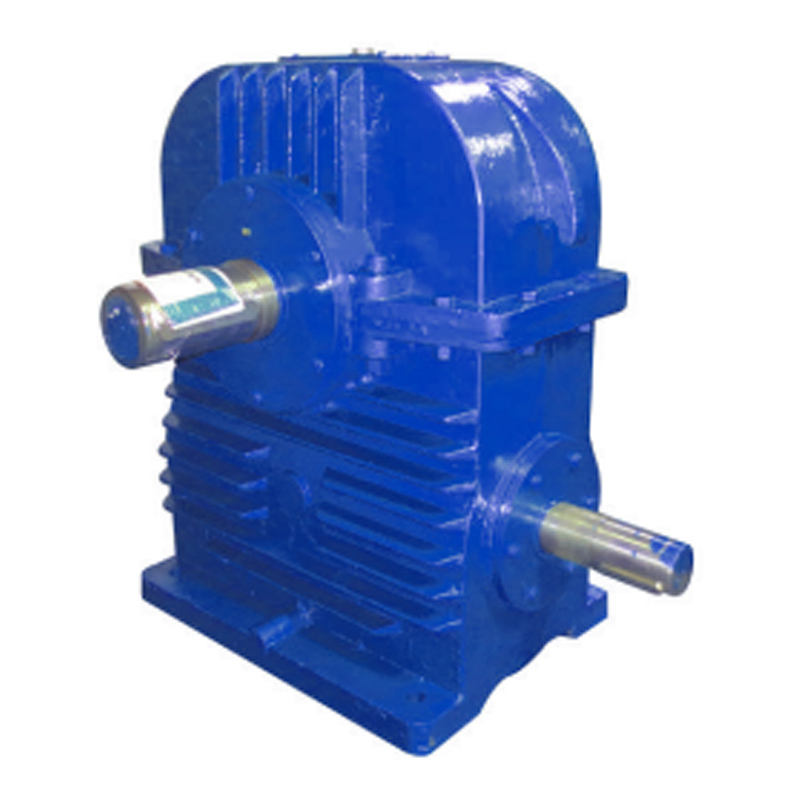

CW arc-contract worm reducer

The CW radical gear cylindrical worm decelerators are produced according to GB9147-88 professional standards of P.Rof china, which include three series specified as CWU,CWS,CWO.The products are applied in metallurgy, mining, craning, transportation, cement, building, chemical, industry, textilinglight industry and energy industry as mechanism.

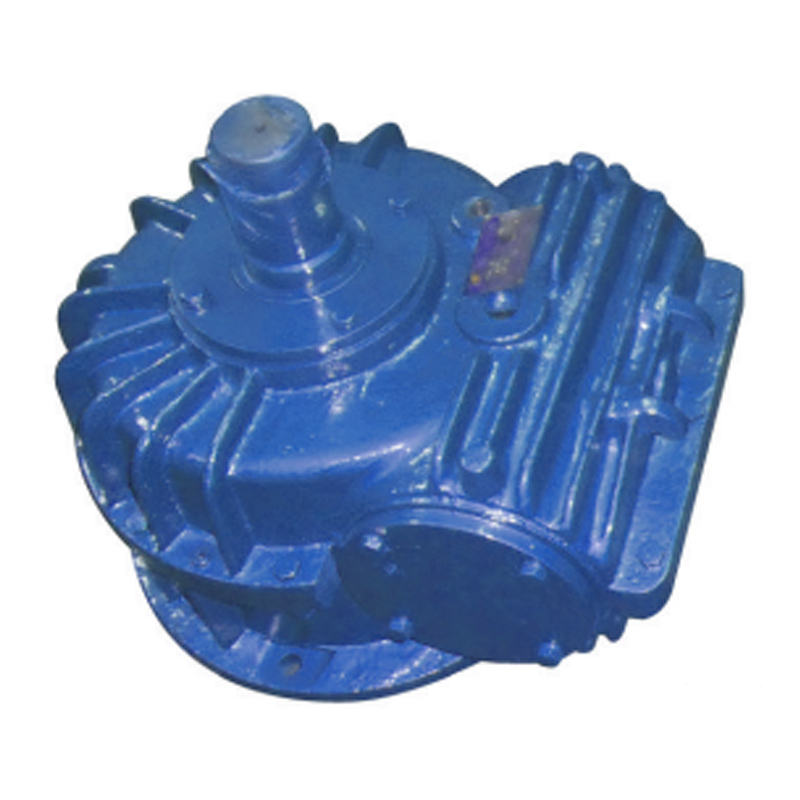

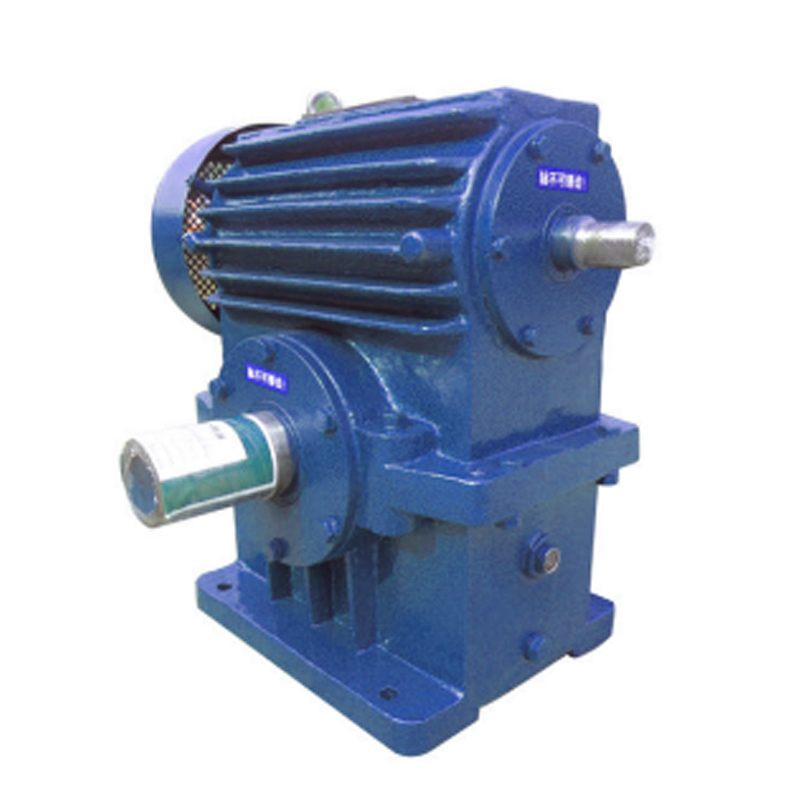

WH arc-contract worm reducer

WH series arc tooth cylindrical worm reducer apply to standard (JB2318-79)Type: WHT (general Typel, WHX (worm below worm gear), WHs (worm on worm gear), and WHc (worm beside wormgear). The products are mainly applied in metallurgy, mining, craning and transportation, chemical industry and building asdecelerating mechanism.

*Type*	Parameters
CWU CWS CWO	Center distance	63 80 100 125 140 160 180 200 225 250 280 315 355 400 450 500
CWU CWS CWO		Ratio	5 6.3 8 10 12.5 16 20 25 31.5 40 50 63
WHT WHX WHS WHC	Center distance	80 100 125 140 160 180 200 225 250 280 315 355 400 450 500
WHT WHX WHS WHC		Ratio	8 10 12.5 16 20 25 31.5 40 50
