Compression Vacuumt Packaging Machine for Quilt, Pillow, Down Jacket, Flying Package

Compression Vacuumt Packaging MachineScope of application:Compression packaging machine is used to compress and pack flufy items such as absorbent paper, down quit, space quilt, pilow, cushionclothing, sponge, etc. it can reduce the packaging space and volume, but does not change the shape of the it......

Send Inquiry

Product Description

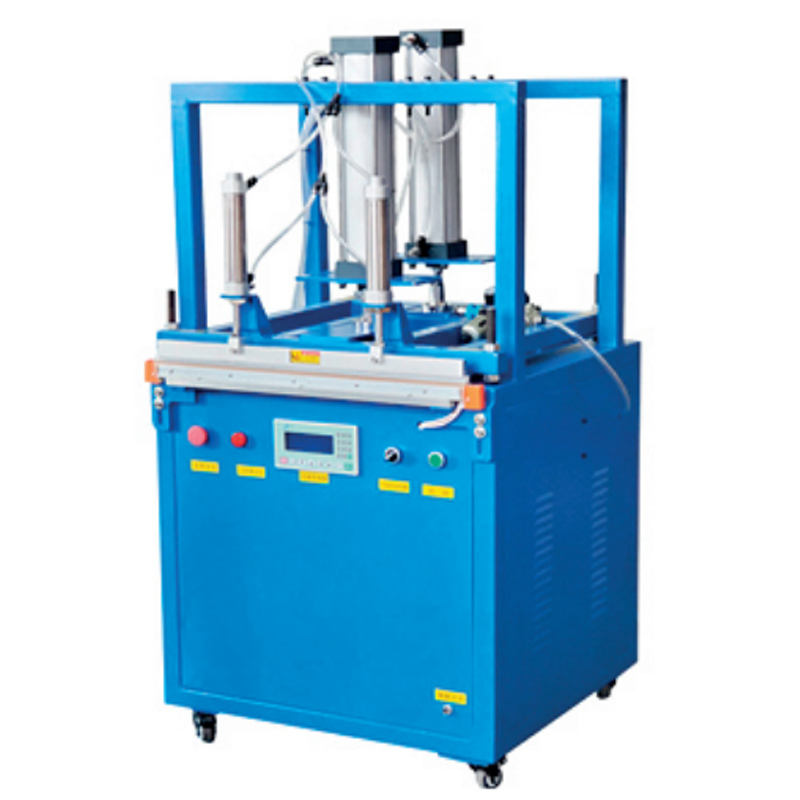

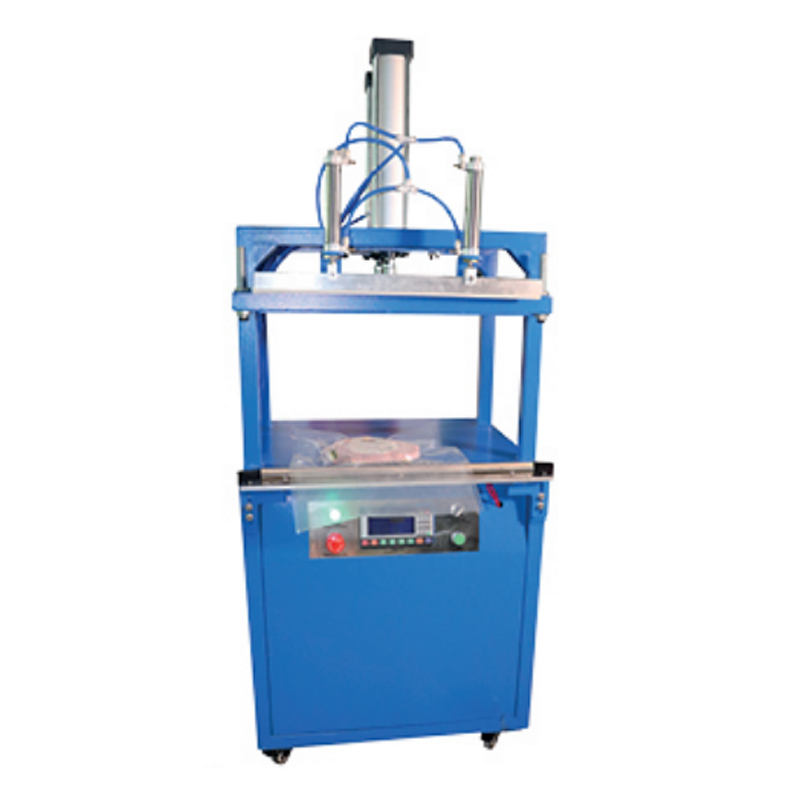

Compression Vacuumt Packaging Machine

Scope of application: Compression packaging machine is used to compress and pack flufy items such as absorbent paper, down quit, space quilt, pilow, cushionclothing, sponge, etc. it can reduce the packaging space and volume, but does not change the shape of the item, flat and beautiful, moisture.proof and dust-proof,reduce storage and transportation costs.

Characteristic 1. Cylinder workc not only the pressure is increased, but the pressing is stable and even.

2. There is a positioning device on the bottom plate: it is required to press each packaged object to a certain thickness, not the more defated the better, so as to be more symmetrical when packing.

3. The sealing strip moves up and down with the upper platen: the sealing strip is fixed on the frame by a gantry type

4.Special production with special specifications.

Model	SN-600Z	SN-800Z
Bag size	(L)600*(W]600mm	(L)800*(W]800mm
Bag speed	3-6PCS/MIN	3-6PCS/MIN
Packing material	plastic bag vacuum bag	plastic bag vacuum bag
Power voltage	220v 50Hz/60HZ 1KWW	220v 50Hz/60HZ 1KWW
Machine size	(LxWxH)700x700x1780mm	(LxWxH)900x900x1785mm
Machine weight	150 kg	180 kg
Stroke height	300mm	300mm
Equipment air pressure	0.6-0.8mpa	0.6-0.8mpa

Production Line	Multi-Lanes Granule Paking Machine	Small Packing Series	High Speed Powder Parking Machine
			Multi-Lanes Powder Paking Machine		High Speed Liquid Packing Machine
			Multi-Lanes Liquid Paking Machine		High Speed Granule Packing Machine
			Full Automatic Inner and Outer Bag Production Line		Granule/Powder/Liquid Packing Machine
			Full Automatic Multi-row Bagging Carton Parking And Carton Wrapping Film Machine		Full Auto Ulitrasonic Sealing&Packing Machine
		Full Automatic Granule/Powder/Liquid Two-In-One Cartoning Production Line	Give The Bag Series	8 Station Vacuum Premade Bags Weighing And Packing Machine
		Full Automatic Multi Column Bag Parking Orderly Soring,Boxing And Carton Parking Production Line	Give The Bag Series		Horizontal Premade Bag Powder Packing Machine
Shaped Series	lrregular Sachet Back Seal Packing Machine	Pillow Series	Horizontal Packing Machine(Upper/Down Film)
		lrregular Sachet Back-Side Sealing Machine	Tea Bag Serise	Filter Paper Tea Bag Packing Machine
		Full Punch Irregular Bag Granule/Powder /Liquid Seal Packing Machine			Triangular Mag With Inner And Outer Bag PackingMachine
Big Pillow Packing Series	Vacuum Bag Liquid Packing Machine			Drip Coffee Packing Machine
		Vacuum Bag Granule Packing Machine	Point Series	Point Packing Machine
		Big Model Powder Packing Machine	Canned Labeling Series	Automatic Cups Filling Sealing Machine
		Big Volume Bag Liquid Packing Machine	Give The Bag Series	8 Heads Filler Servo Control Filling Machine
		Combination weigher packing machine			Round Bottle Labeling Machine
Coupling Bag Series	Double Lane(Side by Side)Of Granule/Liquid Packing Machine			Multi-Head Following Capping Machine Vibrating Disc Capping Machine
Coupling Bag Series		Three Line bags Of Liquid Machines

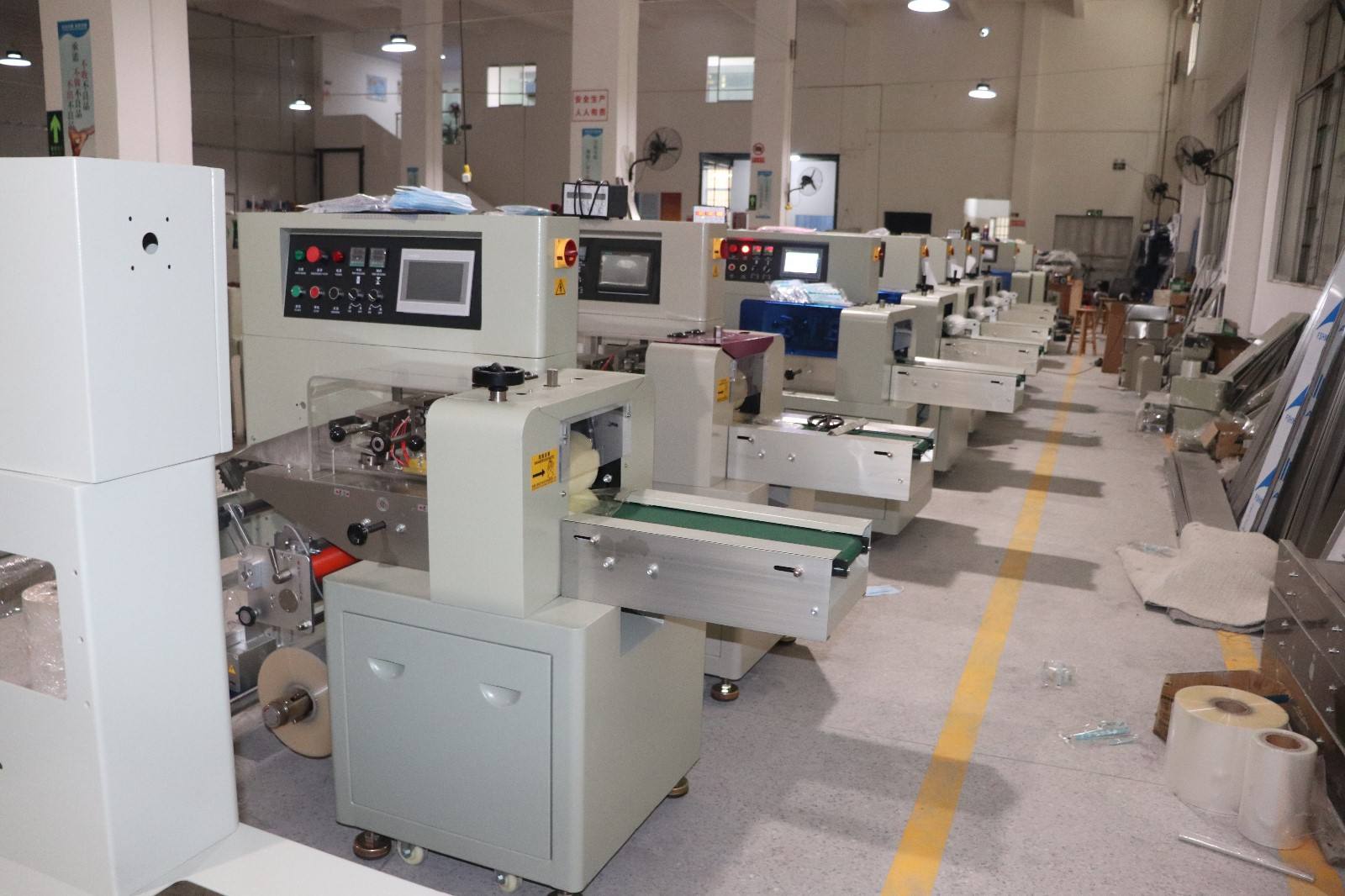

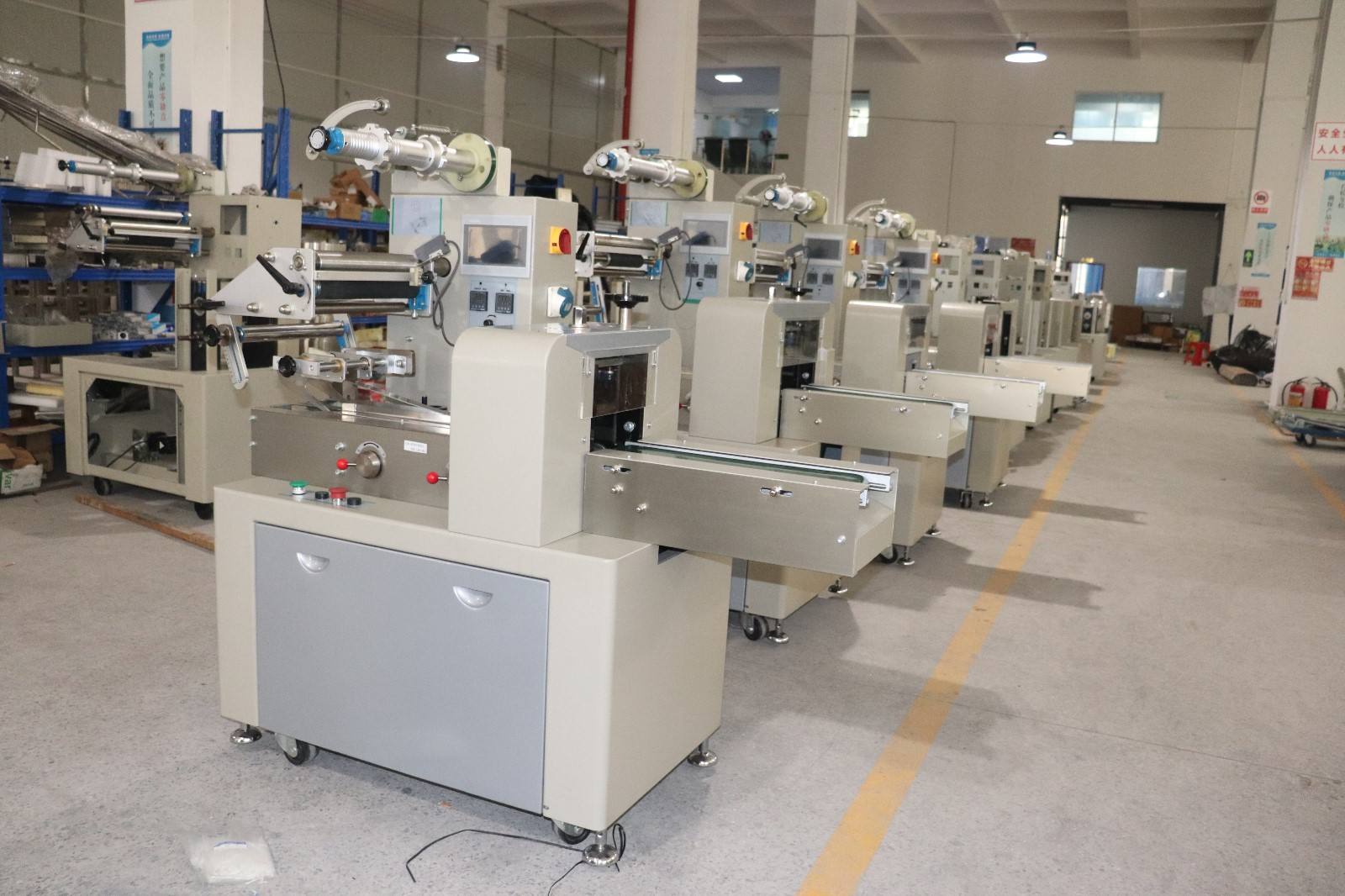

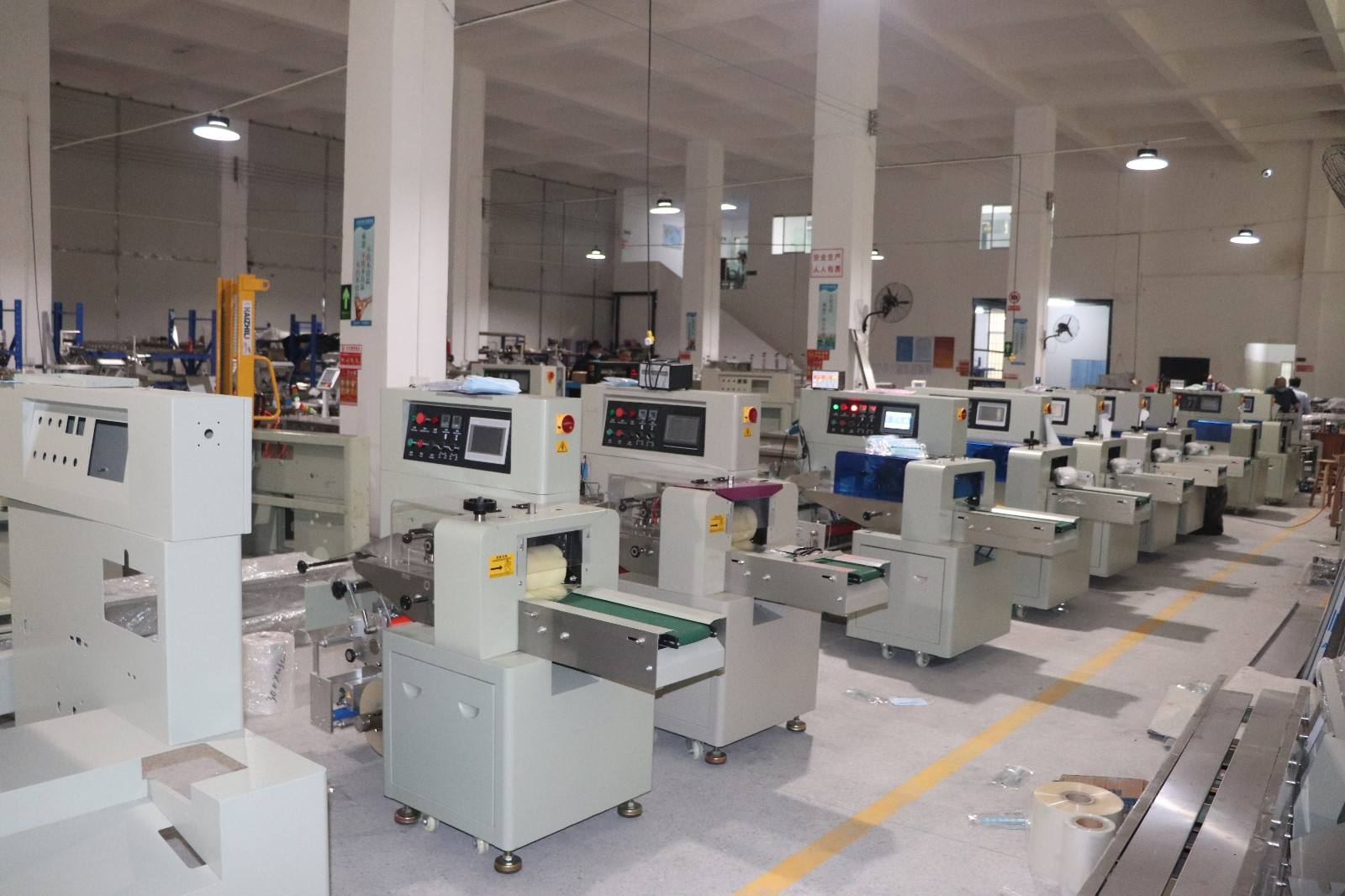

Raydafon Packaging Equipment Co., Ltd. is a company that integrates research and development An enterprise that integrates manufacturing and sales. The company is located in Panyu, Guangzhou Building B35, Huachuang Industrial Park, Shiji Town, District. Covering an area of approximately 6000 square meters, deep With over 20 years of experience in the packaging equipment industry, we can directly design according to customer needs a modern enterprise specializing in the design and manufacturing of professional packaging equipment.

The company's independently developed multi column liquid, particle, and powder packaging machine. liquid Body and particle vacuum packaging machine, ultra high speed packaging machine, ultrasonic non-woven Packaging equipment such as cloth packaging machines are in a leading position.

Our company's packaging equipment is widely used in chemical, daily chemical, food, and medical industries Industries such as pharmaceuticals and health products. Currently, CE certification and TUV certification have been obtained SGS certification and over 20 national patents.

The company has multiple high-end CNC machines, which are regularly organized based on structural principles and equipment Training on planning schemes, market feedback, etc., to enhance the comprehensive skills of production technicians Strength enables each technician to accurately familiarize themselves with the machining process of each component The requirement for processing quality has led all employees to respect production and quality Respect the good situation of the product and comprehensively improve the comprehensive efficiency of production.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
