Chinese Manufacturers Material Handling Belt Conveyor Line Parts Tape Self-aligning Idler for Mining Construction Industry
Purpose and scope of useTapered self-aligning rollers, also called self-aligning rollers or automatic belt-aligning rollers, are a special type of roller used in conveyor belt systems. Unlike standard rollers that simply support the belt, tapered self-aligning rollers are designed to automatically c......
Purpose and scope of useTapered self-aligning rollers, also called self-aligning rollers or automatic belt-aligning rollers, are a special type of roller used in conveyor belt systems. Unlike standard rollers that simply support the belt, tapered self-aligning rollers are designed to automatically correct belt mistracking (when the belt is off-center) and guide it back to the correct position. It plays a vital role in maintaining the stability and service life of the conveyor system.

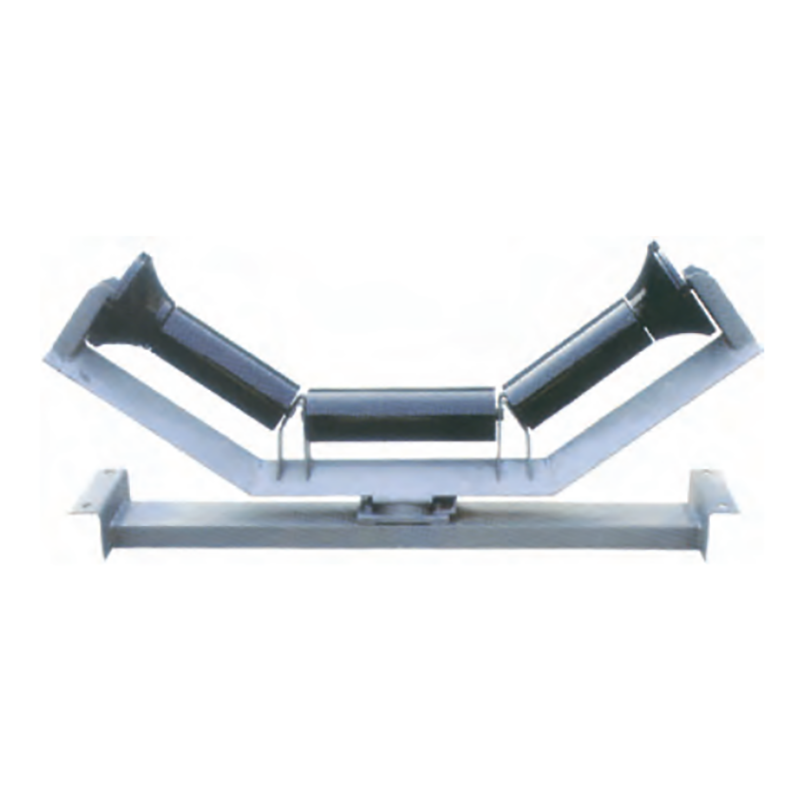

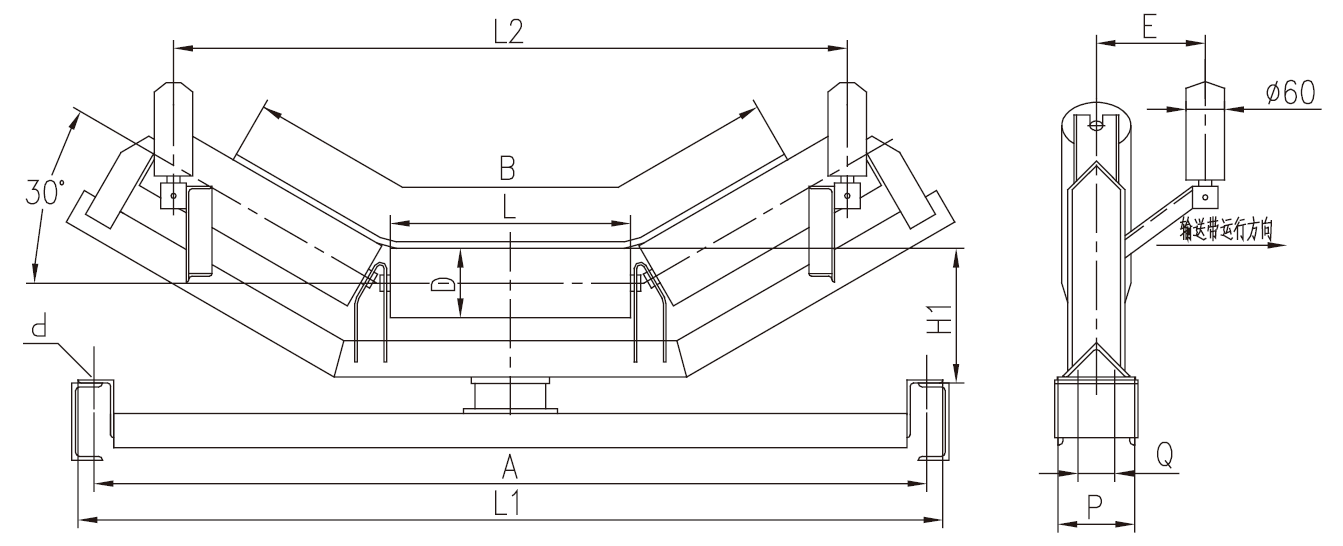

Tapered Rollers: Idlers consist of a center pivot mechanism and two (or more) rollers that are slightly tapered, or angled inward from the center. This taper creates a differential force when the belt begins to misalign.
Pivot Mechanism: The entire idler frame is mounted on a center pivot point (usually a swivel bearing or pivot pin), allowing it to fine-tune with belt movement.
Drive Arms/Levers: Some designs incorporate drive arms that extend beyond the edge of the belt. When the belt misaligns and contacts one of the drive arms, it triggers the idler to pivot, initiating corrective action. Other designs rely solely on the differential friction of the tapered rollers.
Rugged Construction: Like all conveyor idlers, they are designed to withstand the harsh conditions of material handling and are typically made of steel with sealed bearings to keep out dust and moisture.
Performance Benefits
Automatic belt mistracking: This is its most important benefit. They continuously and automatically monitor and correct belt mistracking, eliminating the need for frequent manual adjustments and reducing operator intervention.
Reduced belt damage and wear: Mistracking causes the edge of the belt to rub against the conveyor frame, chute or other components, leading to premature wear, abrasion and damage. By keeping the belt centered, self-aligning rollers significantly extend the life of the conveyor belt.
Improved conveyor system efficiency: Mistracking belts can lead to material spillage, increased friction, increased power consumption and potential downtime. Automatic alignment ensures that the system runs smoothly and efficiently, minimizing losses.
Enhanced safety: Mistracking belts can cause material spillage, create slip hazards and entanglement risks. By keeping the belts on track, these rollers contribute to a safer working environment.
Reduced downtime and maintenance costs: By preventing belt damage and eliminating frequent manual adjustments, self-aligning rollers reduce the need for expensive belt replacement and maintenance interventions.
Optimize Material Flow: A properly aligned belt ensures material remains centered, prevents spillage and maintains consistent flow rates, which is critical to overall process efficiency.
ApplicationsMining and Quarrying: For conveying bulk materials such as coal, ore, gravel and sand, where heavy loads and abrasive conditions can easily cause belt misalignment.
Aggregate and Cement Plants: Ensure continuous and efficient transport of raw materials and finished products.
Power Plants: In coal conveying systems, achieving accurate and reliable delivery of fuel.
Steel Mills: Conveying hot or heavy materials, where belt stability is critical.
Ports and Terminals: In ship loading and unloading systems and bulk material handling facilities.
Agricultural Operations: In large-scale grain handling, fertilizer transport or other bulk agricultural conveyors.
Manufacturing and Logistics: In heavy-duty assembly lines or distribution centers, wide or long conveyor belts are used to transport products.
Any conveying system with long distances or large volumes: Any situation where consistent belt tracking is required is critical to efficiency, safety and longevity.
For more details, please click here to contact us!
Raydafon Group Co., Ltd. manufacturing of transmission and transportation machinery for more than 20 years, The company has a modern factory building area of over 18000 square meters. The company mainly engages in the design and manufacturing of various transmission machinery products. The products cover DT II (A), DT II, TD75, DJ high-angle belt conveyors, circular tube belt conveyors and various conveyor accessories
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
FOR MORE DETAIL, PLEASE CONTACT US.
