China Wholesale Websites WPEDO Special Hot Selling High Transmission Gearbox Wps Worm Gearbox with Motor

Product Information Product Information WP series reducer, worm is made of 45 # high quality steel by heat treatment, and worm wheel is cast with tin bronze. It has good wear resistance, especially in bearing capacity. It is mainly suitable for deceleration transmission of various mechanical eq......
Product Information









China Wholesale Websites WPEDO Special Hot Selling High Transmission Gearbox Wps Worm Gearbox with Motor

China Wholesale Websites WPEDO Special Hot Selling High Transmission Gearbox Wps Worm Gearbox with Motor



WP series reducer, worm is made of 45 # high quality steel by heat treatment, and worm wheel is cast with tin bronze. It has good wear resistance, especially in bearing capacity. It is mainly suitable for deceleration transmission of various mechanical equipment such as plastics, metallurgy, beverage, mine, lifting and transportation, chemical construction and so on.

FEATURES
--Drive smoothly, vibration, impact and noise are small, deceleration ratio is large, versatility is wide, and can be used with a variety of mechanical equipment.
--Large transmission ratio can be obtained by single-stage transmission, and the structure is compact. Most types of reducers have better self-locking performance. Braking devices can be saved for mechanical equipment with braking requirements.
--The meshing friction loss between worm tooth and worm gear tooth surface is larger, so the transmission efficiency is lower than that of gear, easy to heat and high temperature.
--Higher requirements for lubrication and cooling.
--Good compatibility, worm gear and worm are manufactured according to national standards, bearing, oil seal and other standard parts are used.


For more models, please click here!














Applicable IndustriesManufacturing Plant
Gearing ArrangementWorm speed reduce
Output Torque63-6050N.M
Input Speed1500RPM
Output Speed1.7-7.5RPM
Place of OriginChina
ChinaZhejiang
Brand NameEPG
Product nameSpeed Reducer
Ratio1:200,300,400,500,600,800,900
Weight19-450 KG

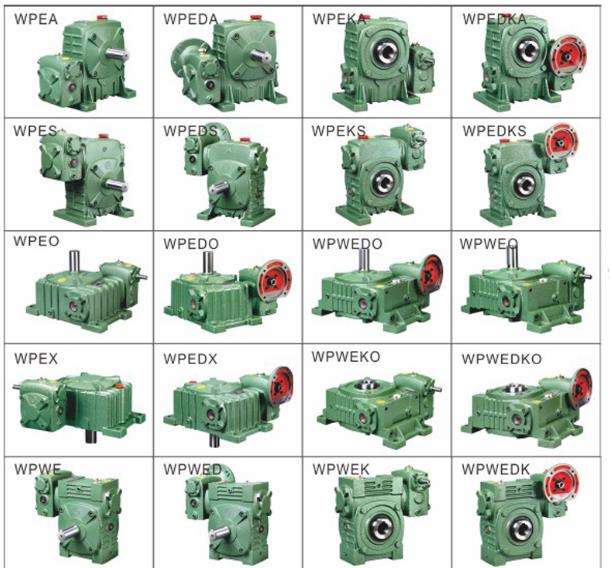

Product Display


China Wholesale Websites WPEDO Special Hot Selling High Transmission Gearbox Wps Worm Gearbox with Motor

China Wholesale Websites WPEDO Special Hot Selling High Transmission Gearbox Wps Worm Gearbox with Motor

China Wholesale Websites WPEDO Special Hot Selling High Transmission Gearbox Wps Worm Gearbox with Motor

China Wholesale Websites WPEDO Special Hot Selling High Transmission Gearbox Wps Worm Gearbox with Motor
