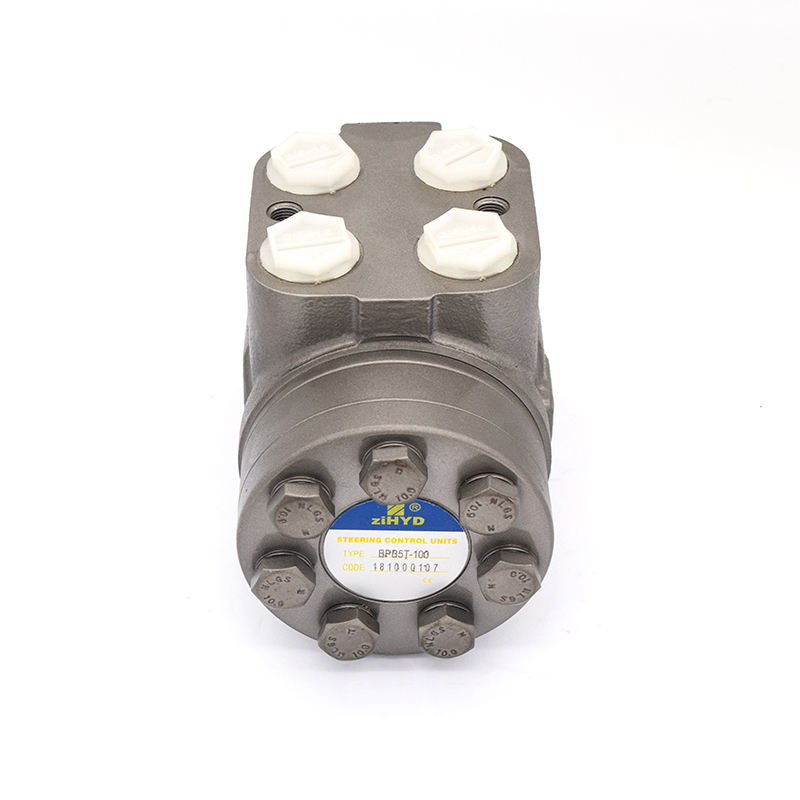

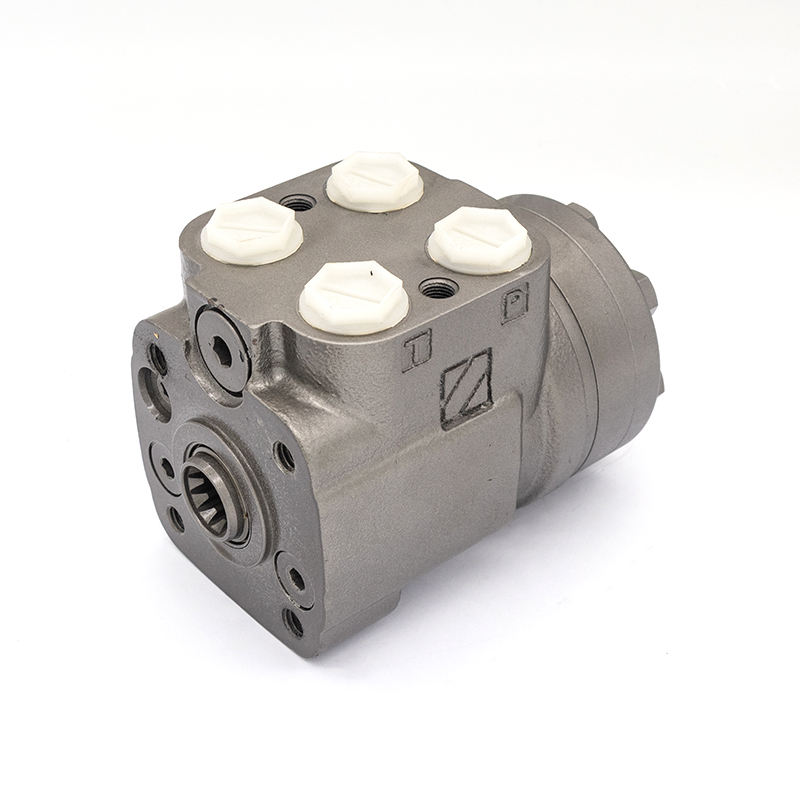

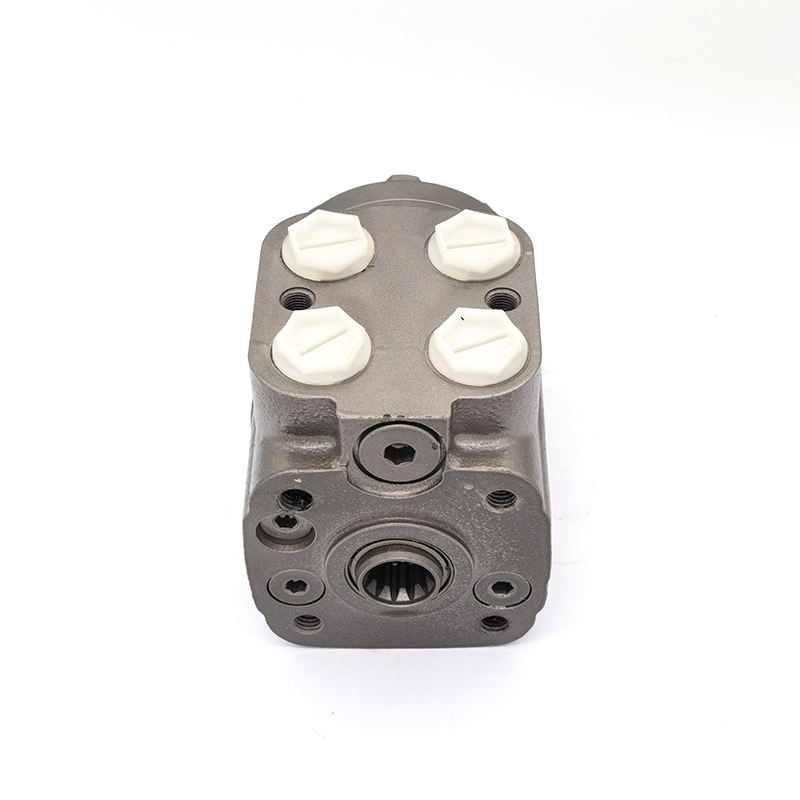

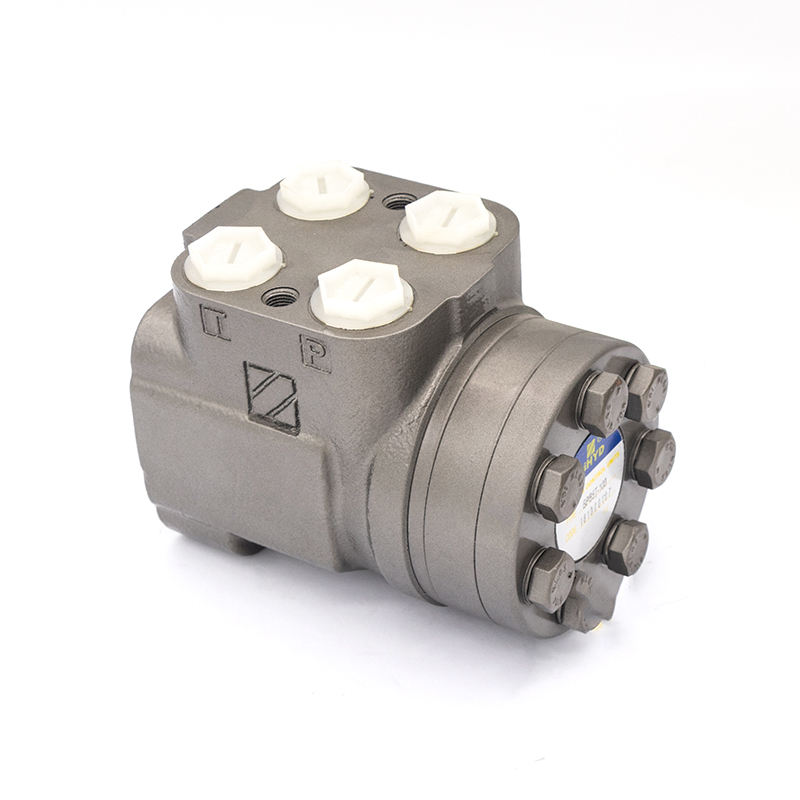

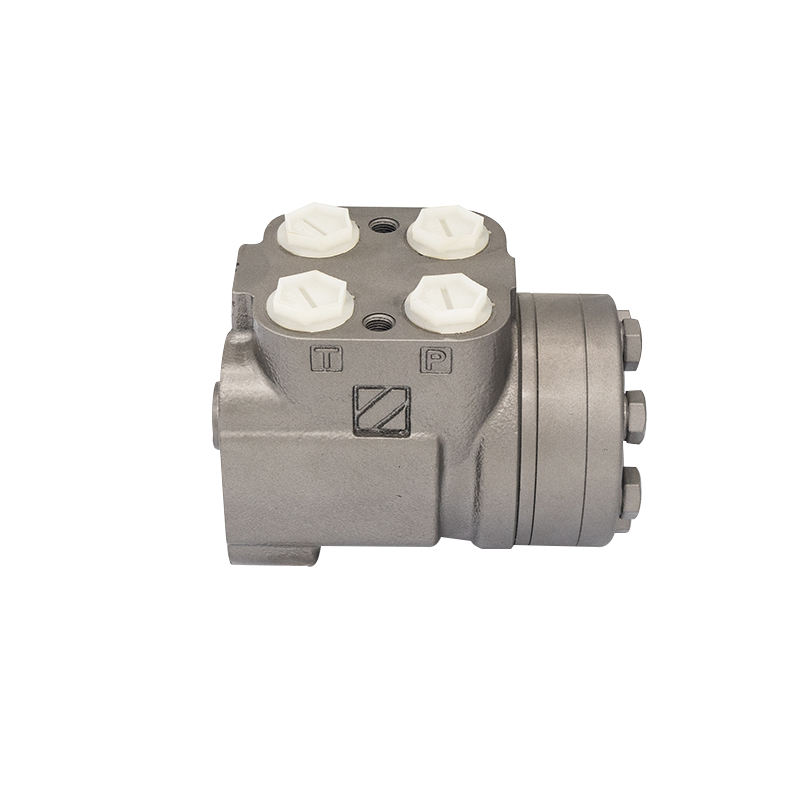

China Supplier Factory Exporter Hydrostatic Steering Control Units Valve for Wheel Loader

ParametersTypeBQAS1DisplacementmL/r80100125160200Rated Flow L/min10 12.5 16 2012.5 16 20 2516 20 25 31.520 25 31.5 4025 31.5 40 50Max. Input Pressurebar17.5Max.Cont.Pressure in Line Tbar2.5Relief Valve Pressure Settingbar6, 8, 10, 12, 14, 16, 17.5Shock Valves Pressure Settingbar12, 10, 14, 16, 18, 2......

Send Inquiry

Product Description

Parameters		Type
Parameters		BQAS1
Displacement	mL/r	80	100	125	160	200
Rated Flow	L/min	10 12.5 16 20	12.5 16 20 25	16 20 25 31.5	20 25 31.5 40	25 31.5 40 50
Max. Input Pressure	bar	17.5
Max.Cont.Pressure in Line T	bar	2.5
Relief Valve Pressure Setting	bar	6, 8, 10, 12, 14, 16, 17.5
Shock Valves Pressure Setting	bar	12, 10, 14, 16, 18, 20, 23.5
Power Steering Torque	N.m	1.6~2.4
Max.Manual Steering Torque	N.m	130
Dimension L	mm	133	136	139	144	149
Weight	kg	6	6.1	6.2	6.4	6.5
