China Professional Manufacture W 2200 Series Walterscheid Replacement PTO Shaft
W 2200 series PTO Shaft Replacement of WalterscheidLubrication frequency is 50 to 100 hoursMeet the requirements specified in EC 89/392 EECComply with EN12965 safety standardCE mark availableMaximum dynamic capacity 540 rpm: 20 kW, 335 NmMaximum dynamic capacity 1000 rpm: 31 kW, 295 NmValue at worki......

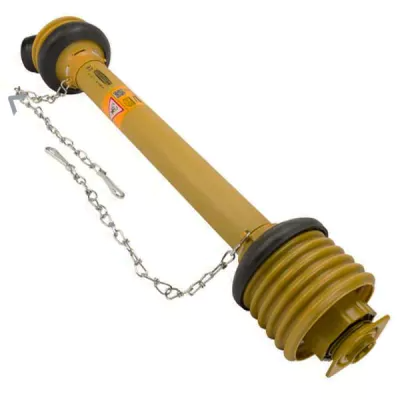

W 2200 series PTO Shaft Replacement of Walterscheid
Lubrication frequency is 50 to 100 hours
Meet the requirements specified in EC 89/392 EEC
Comply with EN12965 safety standard
CE mark available
Maximum dynamic capacity 540 rpm: 20 kW, 335 Nm
Maximum dynamic capacity 1000 rpm: 31 kW, 295 Nm
Value at working angle of 5 ° and service life of 1000 hours
Specifications Of W 2200 Series PTO shaft
Connection outside diameter tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
Consists of
* Pto shaft with shield and slip clutch K32B (60 daNm) * Declaration of conformity * Instruction manual
Locking type by tractor side
Collar lock
Attachment tractor side
Quick disconnect yoke
Connection Ø machine side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Locking type by machine side
Collar lock
Attachment machine side
Radial pin clutch
Size code
W2200
Length
710 mm
Power per 540 rpm
20 kW
Power per 1000 rpm
31 kW
Cross joint cap diameter tractor side
24 mm
Cross joint length tractor side
61 mm
Cross joint cap diameter machine side
24 mm
Cross joint length machine side
61 mm
Clutch type
K32B
Max clutch torque
600 N·m
Outer tube profile
1
Outer tube wall thickness
3 mm
Outer tube large outside diameter
48 mm
Inner tube profile
Ov
Inner tube wall thickness
4 mm
Inner tube large outside diameter
40 mm
Profile tube shape
Lemon
Max static torque
1850 N·m
Tractor PTO shaft assembly and replacement parts
Tractor PTO shaft: If you are looking for a complete assembly, we provide you with guarantee. We provide a large number of PTO drive shafts designed in North America and Italy. Their length and spline configuration meet your needs.
CV PTO assembly: CV (constant speed) PTO shaft can be used for most tractors and implements. These products balance the tractor's power input and shaft output to provide greater stability when engaged.
Cross and bearing kit: The cross and bearing assembly is the universal joint that constitutes the core of the PTO drive shaft system. This part is the power distribution point from the PTO components to the connecting equipment.
Half-axle assembly: We have various 48 "and 60" Weasler axle PTO assemblies. The center and shaft end length components have square and rectangular design options.
Additional components: If the PTO shaft components begin to show signs of wear, please save the cost of purchasing new components by replacing individual components. We have a series of new protective devices and protective bearings, inner and outer tubes, yokes, pins and universal clutches.
How does the PTO shaft work?
How the PTO shaft works

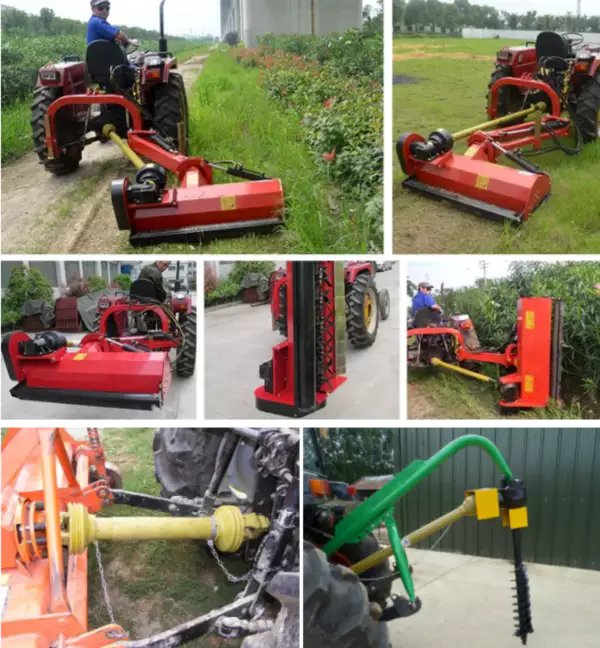

Many agricultural equipment lack independent power, which is the role of tractor PTO.
Each end of the PTO shaft is connected to the tractor and the machine. The tractor PTO shaft is operated by a simple switch and can rotate between 540 and 1000 RPM, depending on the equipment. When engaged, the shaft draws power and torque from the tractor transmission to provide the correct power for your implement and enable you to work.
The PTO shaft has different dimensions. You need to find a shaft that matches the coupling on the traction equipment. It should be easy to connect the tool to the tractor. If the equipment must be lifted off the ground to connect the shaft or the shaft is too long, forced connection may damage both. If you have an existing PTO shaft at hand, it is easy to confirm your length. Close and measure the distance between the PTO yoke and the yoke.
PTO shaft and agricultural gearbox
Agricultural gearbox and PTO shaft: These components work together to transfer mechanical power between agricultural tractors. The PTO shaft converts engine energy into hydraulic pressure. This is why the tractor pulls heavy loads. During normal operation, it can reduce the risk of damage to the tractor and operator. If used properly, it is an important part of the tractor, but it may also have defects. When selecting agricultural gear boxes, the durability and mechanical properties of products and materials should be considered. The durable gearbox can be used for many years to avoid repeated replacement. A high-quality agricultural gearbox will be durable for many years to come. You don't want to replace it temporarily. This may be expensive, so please consider your needs when purchasing agricultural gearbox and PTO shaft. HZPT wholesales PTO shafts and agricultural gearboxes at low prices! If you are interested, please contact us immediately!
Why choose us?
We have more than 14 years of spare parts experience, especially in power train parts. We have deeply participated in the auto parts business of Hangzhou, China's largest manufacturer of imported parts. We provide products with good cost performance for different customers around the world. We maintain good relations with local products through win-win policies. The factory provides high-quality and fast products; We provide high-quality and fast service; Customers provide their customers with high-quality products and services.
This is a healthy and powerful equilateral triangle to keep the Hangzhou Circuit moving forward.
We are one of the major manufacturers and wholesalers of PTO spare parts for light and heavy vehicles. We adopt advanced technology and high-quality raw materials to provide products of various sizes, shapes, designs and capacities. Our products are known for their ease of maintenance, and we deliver them in a cost-effective and durable manner. Therefore, these products are provided according to the given information of customers.
We also supply agricultural gearbox:https://planetary-gearboxes.en.Raydafon/productgrouplist-200696697/Agricultural_Gearboxes.html?spm=a2700.shop_index.88.62
For more details, please click here to contact us!
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
