China Manufacture Cast X Type X348 X458 X658 X678 Rivetless Drop Forged Chain Bar Loop Chains With High Quality

Rivetless Drop Forged Chain is highly regarded as one of the strongest chains ever developed, and has found widespread application in many industries. Because materials do not tend to pack in its open struc- ture, Rivetless Drop Forged Chain is used extensively for flight conveyors. Its design permi......

Send Inquiry

Product Description

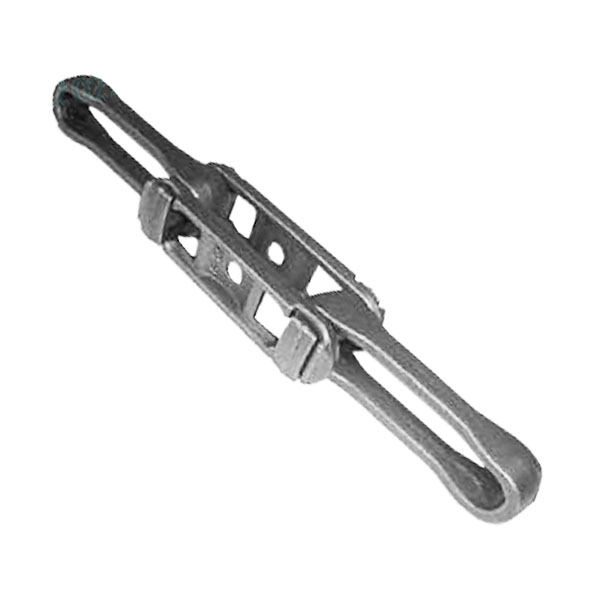

Rivetless Drop Forged Chain is highly regarded as one of the strongest chains ever developed, and has found widespread application in many industries. Because materials do not tend to pack in its open struc- ture, Rivetless Drop Forged Chain is used extensively for flight conveyors. Its design permits both horizontal and vertical operation over irregular routes, making it particularly adapt- able for trolley conveyor service. Special features of this chain in- clude maximum strength without ex- cessive weight, and resistance to lengthening even after extensive op- eration.

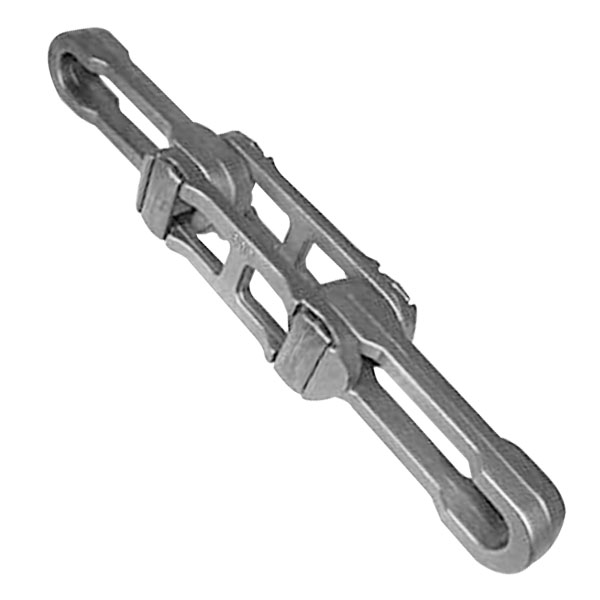

X-TYPE X-Type is furnished with all components heat treated, and is designed to have increased flexibility, trans- verse strength, and better operating performance.

	A-L CHAIN NO.	PITCH IN INCHES	LINKS PER 10 FEET	WEIGHT PER FOOT LBS.	AVERAGE ULTIMATE STRENGTH—LBS. Head Treated Steel*	CHAIN CONSTRUCTION
3.031" PITCH CHAIN	X348	3.031	40	2.2	24,000	Special Pin
4.031" PITCH CHAIN	X458	4.031	30	3.2	48,000	Special Pin
4.031" PITCH CHAIN		468	4.031	30	7.5	70,000	Special Pin
6.031" PITCH CHAIN	X658	6.031	20	2.6	48,000	Special Pin
		X678	6.031	20	6.7	85,000	Special Pin

		698	6.031	20	11.4	130,000	Special Pin
9.031" PITCH CHAIN	998	9.031	13.3	9.0	130,000	Special Pin
		9118	9.031	13.3	16.0	220,000	Special Pin
		9148	9.031	13.3	27.0	300,000	Special Pin
3.031" PITCH CHAIN	S348	3.031	40	2.4	24,000	Riveted
4.031" PITCH CHAIN	S458	4.031	30	3.5	48,000	Riveted
4.031" PITCH CHAIN	S468	4.031	30	7.9	80,000	Riveted
9.031" PITCH CHAIN	S9118	9.031	13.3	20.4	220,000	Riveted

REGULAR TYPE Regular Type is furnished with only the T-head pins heat treated. These pins are symmetrical and may be reversed when worn.

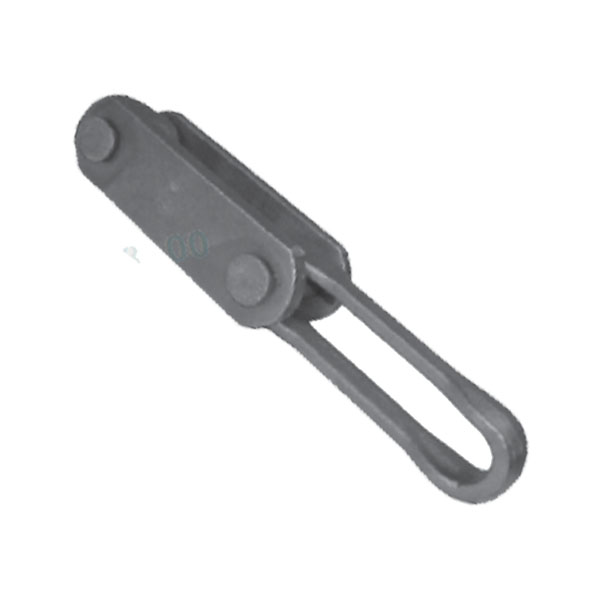

S-TYPE Barloop chain is manufactured with a standard rivet- less block link and fabricated steel sidebars. Barloop chains offer the advantage of a flat steel sidebar for welding attachments. The pins are a riveted style to keep the sidebars locked, eliminating the chance of chain coming apart when slack is present and reducing wear between the pin and sidebar.

we are specialised in producing Agricultural Roller Chain, Flat Top Chain,Caterpillar Track Chain,Hollow Pin Chain,Conveyor Chain for Beer Filling and Packing Line,Paver Chain,Attachment Sidebar Elevator Chain,Bucket Elevator Chain (Cement Mill Chain),Forging Scraper Chain,Loading Chain for Automobile Industry,Loading Chain for Metallurgical Industry,Conveyor Chain for Mine Machinery,Trencher Chain,Sugar Mill Chain,Double Flex Chain,etc. Welcome calls and emails to inquiry!

Contact us: We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you. We try our best to reply to your emails as soon as possible, however, due to high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Please allow 24 business hours for us to response.

^{For more types,Please click here!}

Please click on the photos below to visit their websites.

Q:What is the strength of your company?
A:We have a engineer team,who have well experienced on products and machine designs.We can help you to solve the problem you meet.

Q:How about you quality?
A:We have our own prcoessional factory and worker,so believe that our products have advange over our competitors.

Q:What is you MOQ?
A:Minimum order quality is 1 piece.

Q:Could you produce customized product according to your drawing or sample?
A:Yes.We have abundant experience in the production of non-standard products.

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.

We can accept a variety of payment.
1) TT, 30% deposit , 70% before shippment.
2) L/C at sight. (high bank charge, not suggest , but acceptable )
3) 100% Western Union in advance. (specially for air shipment or small amoun)
4) Small order by paypal.

Hot Tags: China Manufacture Cast X Type X348 X458 X658 X678 Rivetless Drop Forged Chain Bar Loop Chains With High Quality - Buy Rivetless Drop Forged Chain,X Type Cast Chain,X Type X348 X458 X658 X678 Rivetless Drop Forged Chain Bar Loop Chains Product on Raydafon
