B Series Bridge Type Gantry Machining Center CNC Lathe for Processing Aluminum Alloy Structural Components

B series Bridge Type Gantry Machining CenterHigh speed, fast movement speed can reach 80m/min, maximum acceleration can reach 0.7g;High efficiency, equipped with up to three linear axes and three rotating axes, completed in one go, with six sided machiningHigh precision, X-axis 3200mm travel, full t......

Send Inquiry

Product Description

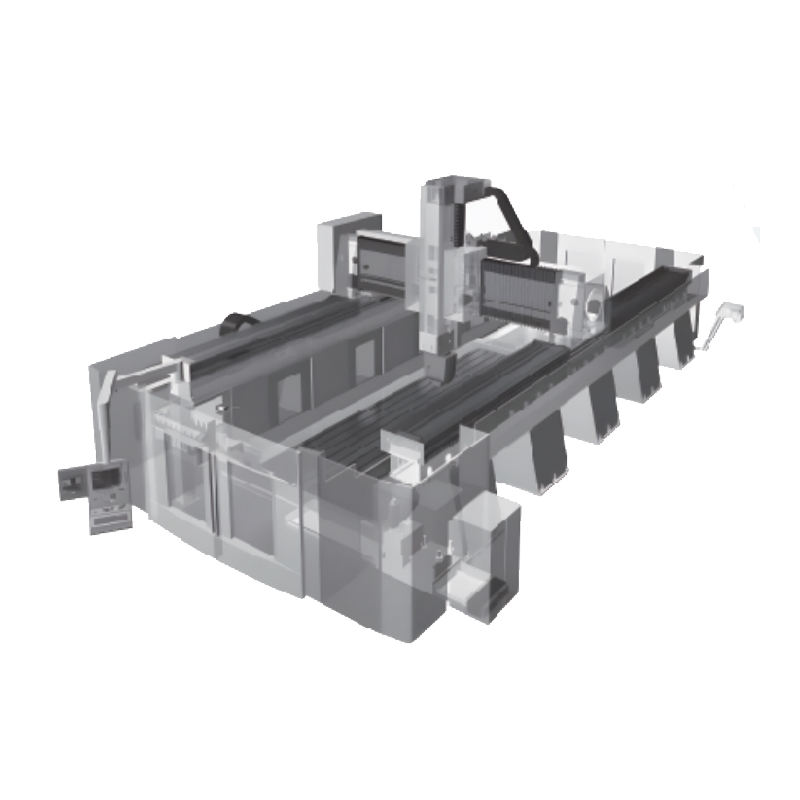

B series Bridge Type Gantry Machining Center

High speed, fast movement speed can reach 80m/min, maximum acceleration can reach 0.7g; High efficiency, equipped with up to three linear axes and three rotating axes, completed in one go, with six sided machining High precision, X-axis 3200mm travel, full travel positioning accuracy up to 0.008mm;,

This series of products can handle the processing of the vast majority of large and medium-sized aluminum alloy structural components. It can complete the entire process of milling, drilling, boring and other processing techniques for aluminum alloy structural components in all directions with one clamping. This product combines multiple characteristics such as high speed, high precision, and high efficiency, and is suitable for the processing of welding/die-casting aluminum alloy structural components in the new energy vehicle industry, especially the processing of chassis components for new energy vehicle battery packs.

		BM2030	BMU2030	BMF2030	BL2030	BLU2030	BLF2030
Workbench size	mm	2000*3000	2000*3000	2000*2500	2000*3000	2000*3000	2000*2700
Width of Passing Dragon Gate	mm	2600	2600	2600	2800	2800	2800
Distance from spindle end face to workbench	mm	50-800	950	-165-+735	50-1300	50-1300	-165-+1085
Linear axis travel (X/Y/Z axis)	mm	3100/2300/750	3100/2300/900	3100/2300/900	3200/2300/1250	3200/2300/1250	3200/2300/1250
Rapid movement speed of linear axis	m/min	50/48/48	50/48/48	50/48/48	80/80/48	80/80/48	80/80/48
Rotary axis rotation range (A/B/C axis)	°	-	±110°/±360°	±110°/±360°/±180°	-	±180°/±180°	±180°/±180°/±90°
Rapid movement speed of rotary axis	°/s	-	180°/180°	180°/180°/90°	-	180°/180°	180°/180°/90°
Spindle taper hole	-	BBT40	HSK63A	HSK63A	HSK63A	HSK63A	HSK63A
Spindle speed	rpm	15000	18000	18000	20000	24000	24000
Spindle power	kW	5/7.5	11/15	11/15	15/18.5	19/21	19/21

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter

Raydafon is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Raydafon not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Raydafon is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

Raydafon has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
