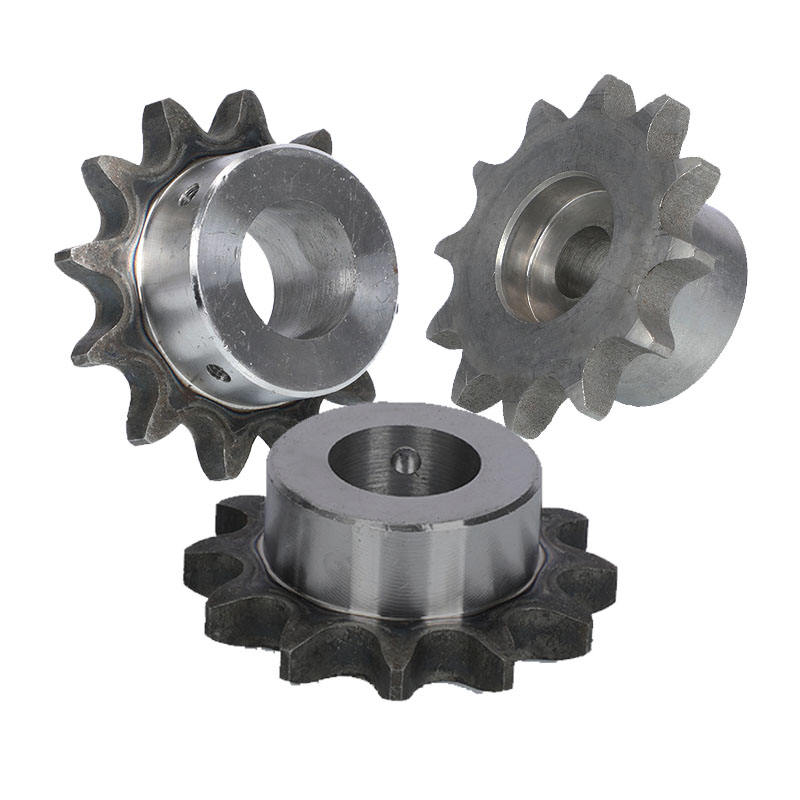

Ansi/din Standard Gear Wheel Stainless Steel Taper Lock Qd Drive Double Pitch Weld-on Finished Bore Roller Chain Sprocket

Raydafon Group's ANSI/DIN standard gear wheel sprocket, made from durable stainless steel, offers superior performance with taper lock, QD drive, double pitch, weld-on, and finished bore features. Ideal for industrial applications, it ensures reliability and efficiency, solving wear issues and boosting productivity for professionals seeking top-quality chain drive solutions.

Send Inquiry

Product Description

High precision sprocket customization

Quick quotation, high precision, short delivery time, quality assurance

Standard	ANSI,DIN,ISO
Surface treatment	Zinc Plating, Chrome plated, Black oxide Treatment, Spray Paint, Mirror Finish, Sand-blasting and so on.
Heat treatment	Hardening and Tempering, High Frequency Quenching, Carburizing Quenching and so on.
Material	C45,stainless steel,POM,A3,plastic and so on

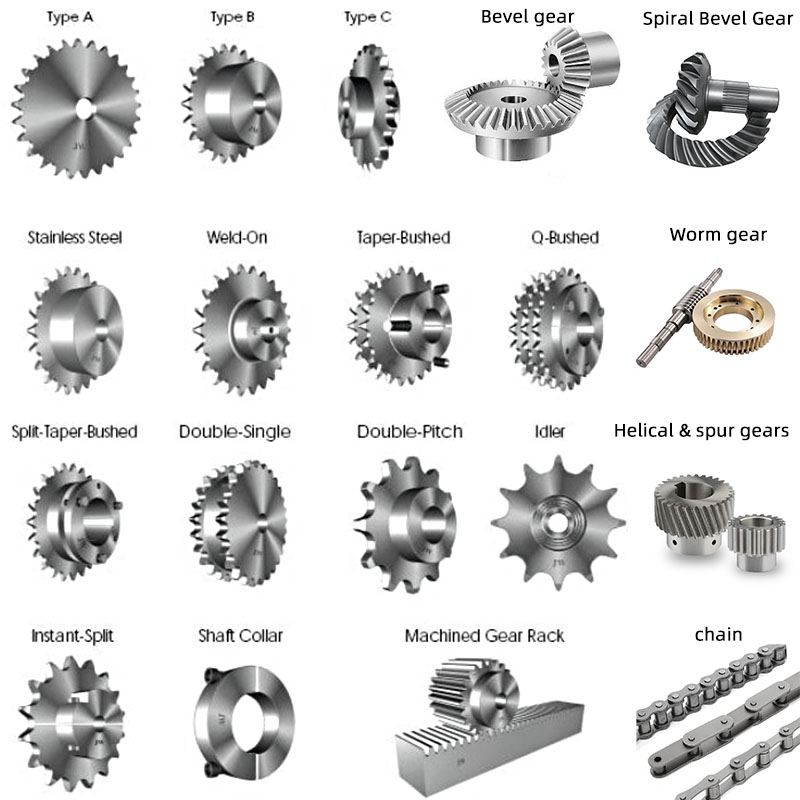

Sprocket type	Type A sprockets :Plate (without Hub)
		Type B sprockets:One side with hub
		Type C sprockets: Double side with hub
		Finished bore sprockets:With the inner hole ,keyway and screw
Sprocket size	ANSI: 25/35/41/40/50/60/80/100/120/140/160/180/200/240
		DIN/ISO:04C/06C/085/08A/10A/12A/16A/20A/24A/28A/32A/36A/40A/48A
		DIN/ISO:04B/05B/06B/08B/10B/12B/16B/20B/24B/28B/32B/36B/40B/48B
