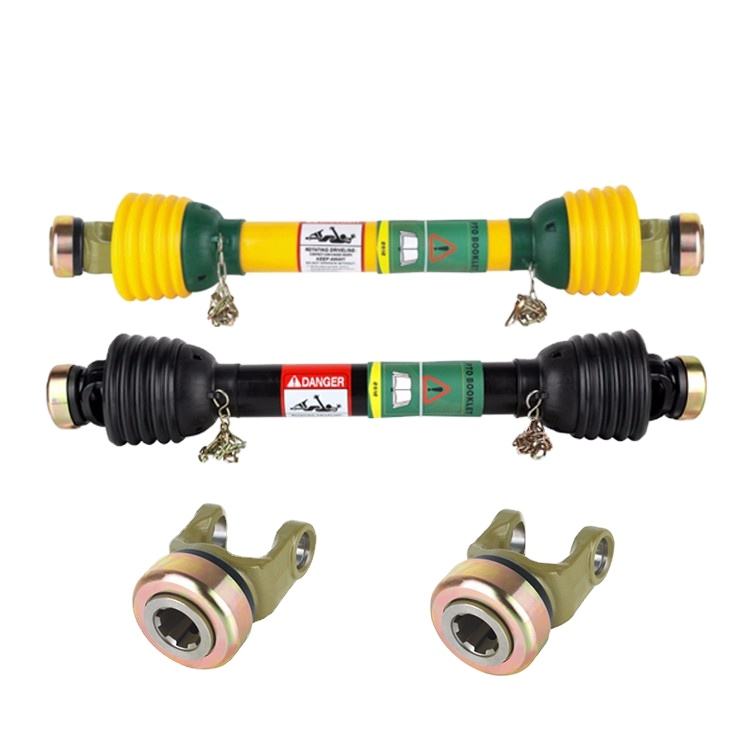

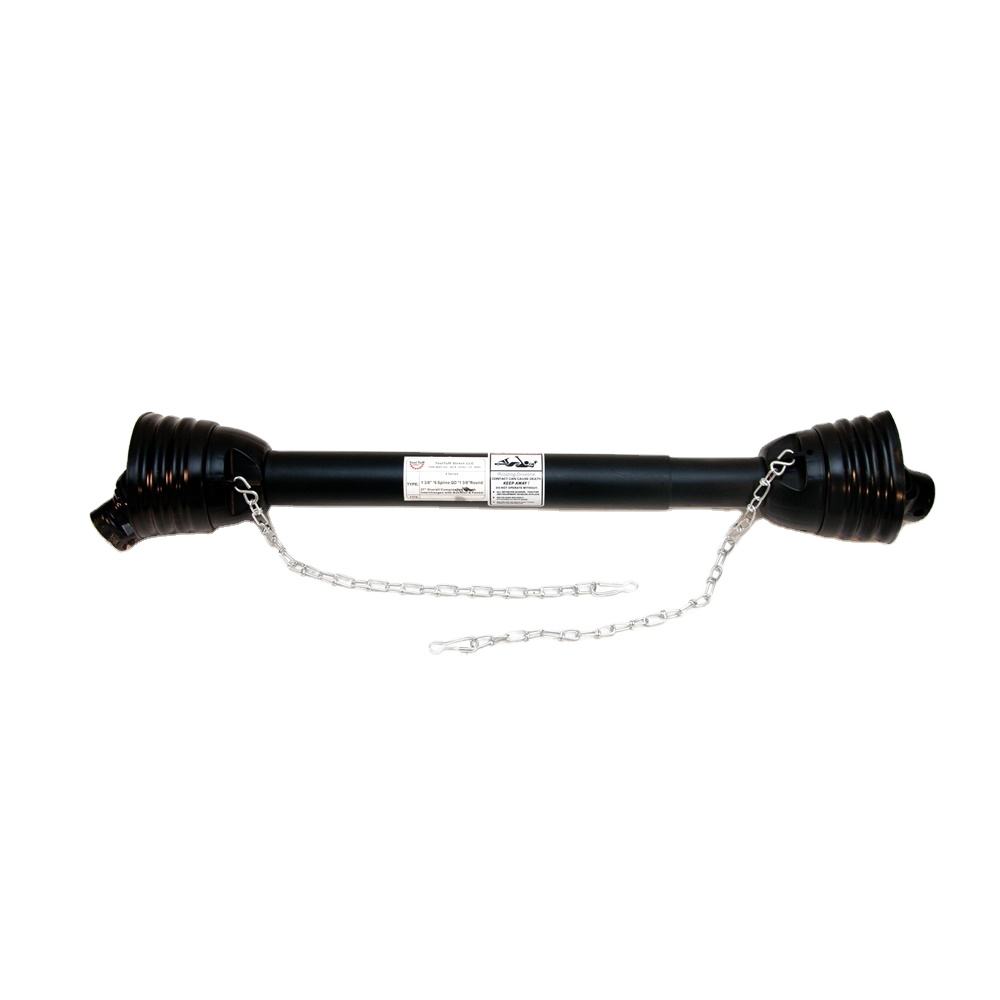

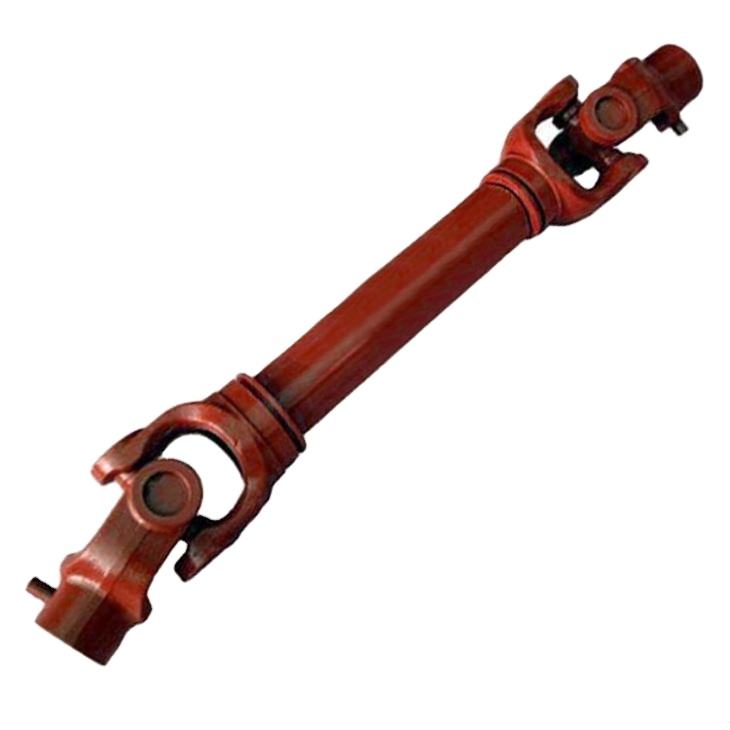

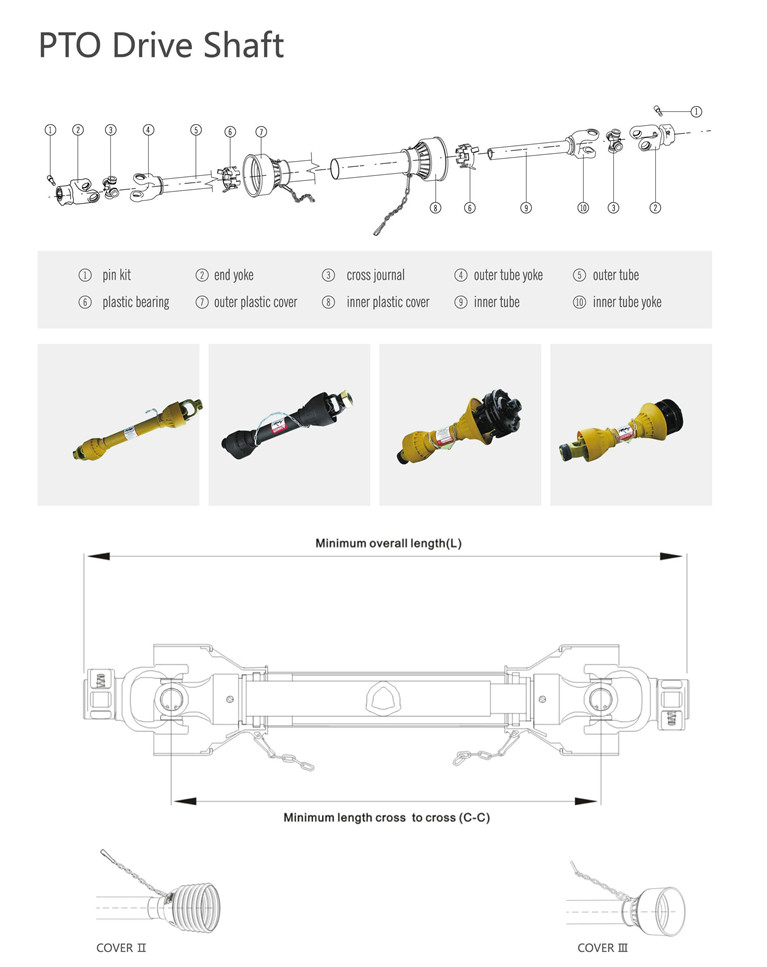

Agricultural Yoke Tractor Rotavator Pto Cardan Shaft With Spline

FunctionPower transmissionUseTractors and various farm implementsYoke Typepush pin/quick release/ball attachment/collar/double push pin/bolt pins/split pinsProcessing Of YokeForgingPlastic CoverYW;BW;YS;BSSeries1S;2S;3S;4S;5S;6S;7S;8S;9S;10S;38S;48S;36Tube TypeTrianglar/star/lemonProcessing Of TubeC......

Send Inquiry

Product Description

Function	Power transmission
Use	Tractors and various farm implements

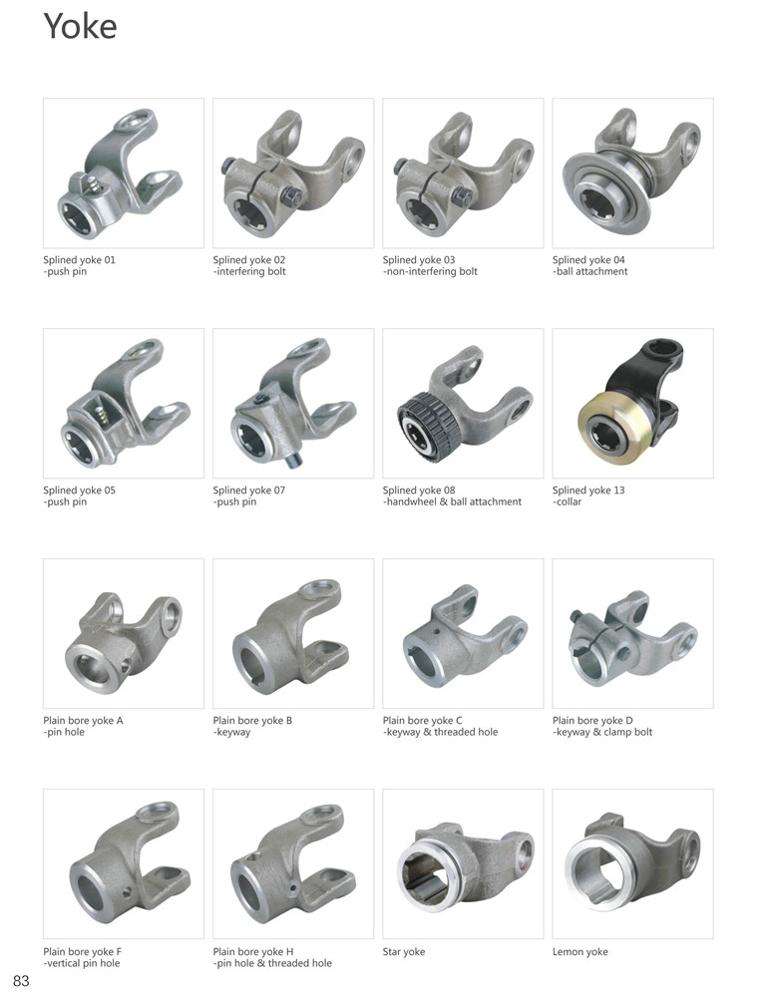

Yoke Type	push pin/quick release/ball attachment/collar/double push pin/bolt pins/split pins
Processing Of Yoke	Forging
Plastic Cover	YW;BW;YS;BS

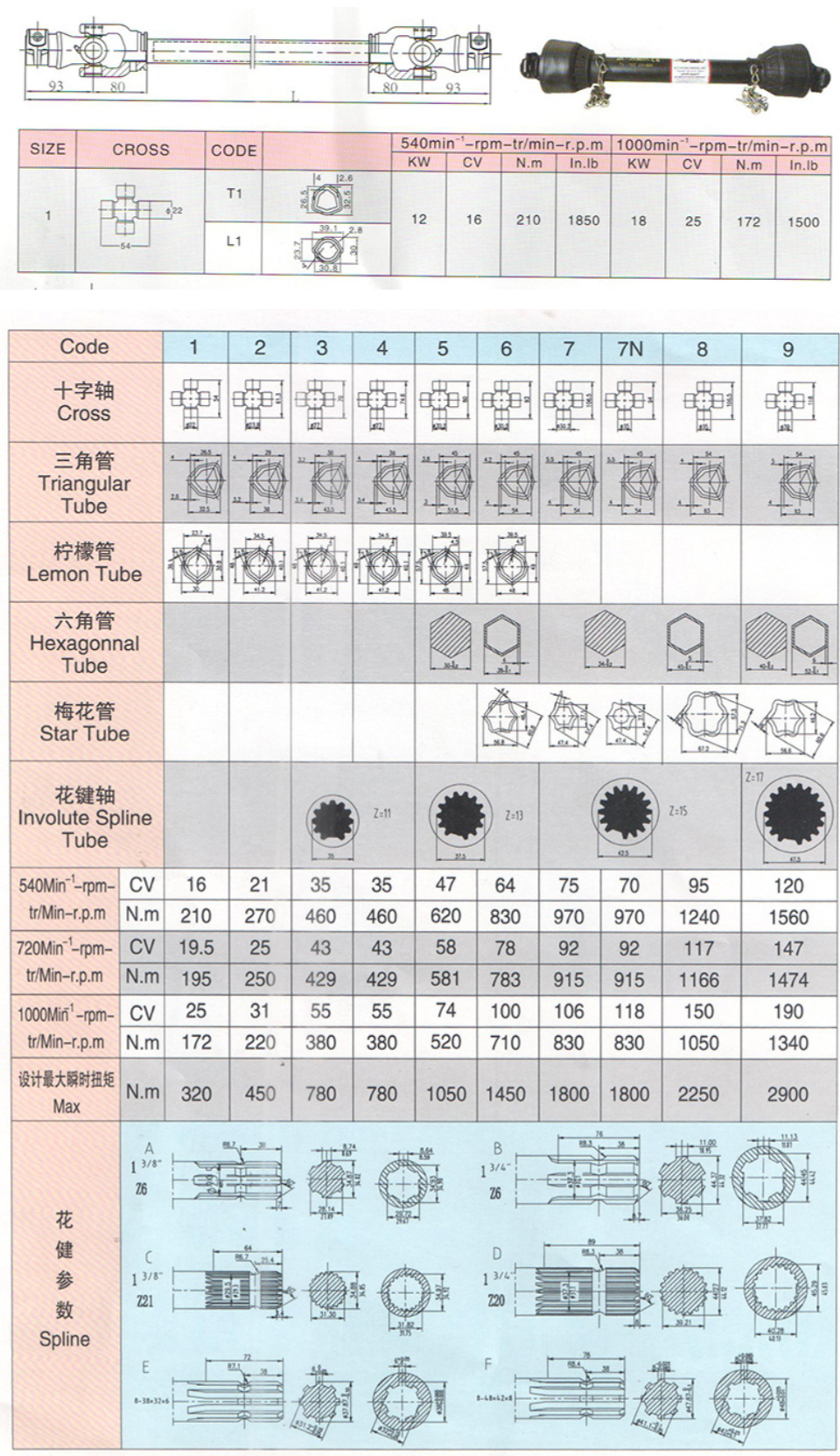

Series	1S;2S;3S;4S;5S;6S;7S;8S;9S;10S;38S;48S;36
Tube Type	Trianglar/star/lemon
Processing Of Tube	Cold drawn
Spline Type	1 3/8" Z6; 1 3/8 Z21 ;1 3/4 Z20;1 1/8 Z6; 1 3/4 Z6; 842488; 832386

Materlal and Surface Treatment
Cross shaft	Heat treatment of 20Cr2Ni4A forging
Bearing cup	20CrMOTi forging heat treatment
Flange fork	ZG35CrMo, steel casting
Spline shaft	42GrMo forging heat treatment
Spline bushing	35CrM0 forging heat treatment
Sleeve body	42CrMo forging
Surface treatment:	spraying
Flat key, positioning ring	42GrMo forging

●The above are standard models and materials. If you have special supporting requirements, you can customize production according to customer needs. Please click here to consult us！

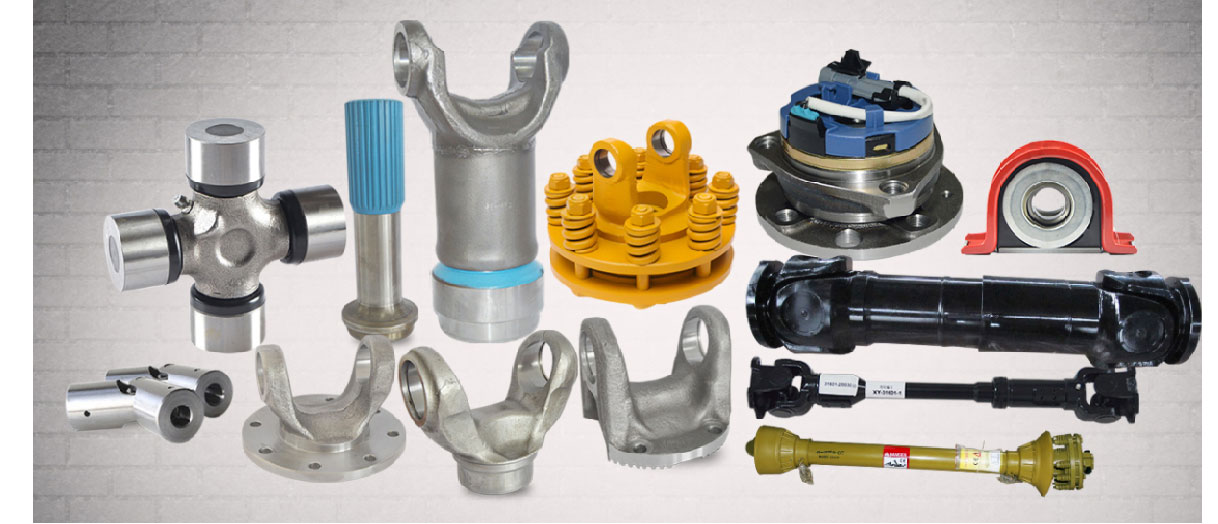

Raydafon GROUP CO., LTD. IS SPECIALIST IN MAKING ALL KINDS OF MECHANICAL TRANSMISSION AND HYDRAULIC TRANSMISSION LIKE: PLANETARY GEARBOXES, WORM REDUCERS, IN-LINE HELICAL GEAR SPEED REDUCERS, PARALLEL SHAFT HELICAL GEAR REDUCERS, HELICAL BEVEL REDUCERS, HELICAL WORM GEAR REDUCERS, AGRICULTURAL GEARBOXES, TRACTOR GEARBOXES, AUTO GEARBOXES, PTO DRIVE SHAFTS, SPECIAL REDUCER & RELATED GEAR COMPONENTS AND OTHER RELATED PRODUCTS, SPROCKETS, HYDRAULIC SYSTEM, VACCUM PUMPS, FLUID COUPLING, GEAR RACKS, CHAINS, TIMING PULLEYS, UDL SPEED VARIATORS, V PULLEYS, HYDRAULIC CYLINDER, GEAR PUMPS, SCREW AIR COMPRESSORS, SHAFT COLLARS LOW BACKLASH WORM REDUCERS AND SO ON. FURTHERMORE, WE CAN PRODUCE CUSTOMIZED VARIATORS, GEARED MOTORS, ELECTRIC MOTORS AND OTHER HYDRAULIC PRODUCTS ACCORDING TO CUSTOMERS’ DRAWINGS.
