Agricultural Kubota Tractor Parts Driveline Yoke Tube Cover Steel Cardan Drive Pto Shafts With Split Clutch for Bush Hog

Function: Drive Shaft Parts & Power TransmissionUsage: Kinds of Tractors & Farm ImplementsYoke: TypeDouble push pin, Bolt pins, Split pins, Pushpin, Quick release, Ball attachment, Collar…..Processing Of Yoke: ForgingPlastic Cover: YW; BW; YS; BS; EtcColor: Green; Orange; Yellow; Black Ect.S......

Send Inquiry

Product Description

Function: Drive Shaft Parts & Power Transmission

Usage: Kinds of Tractors & Farm Implements

Yoke: TypeDouble push pin, Bolt pins, Split pins, Pushpin, Quick release, Ball attachment, Collar…..

Processing Of Yoke: Forging

Plastic Cover: YW; BW; YS; BS; Etc

Color: Green; Orange; Yellow; Black Ect.SeriesT1-T10; L1-L6;S6-S10;10HP-150HP with SA,RA,SB,SFF,WA,CV Etc

Tube Type: Lemon, Triangular, Star, Square, Hexangular, Spline, Special Ect

Processing Of Tube: Cold drawn

Spline Type: 1 1/8″ Z6;1 3/8″ Z6; 1 3/8″ Z21 ;1 3/4″ Z20; 1 3/4″ Z6; 8-38*32*6 8-42*36*7; 8-48*42*8;

T Series Triangular Tube

Series	540tr./min					1000tr./min
Series		Kw	Pk	Nm	Kw	Pk	Nm	MP(NM)
T1	12	16	210	18	25	172	320
T2	15	21	270	23	31	220	450
T3	22	30	390	35	47	330	640
T4	26	35	460	40	55	380	780
T5	35	47	620	54	74	520	1050
T6	47	64	830	74	100	710	1450
T7	55	75	970	87	118	830	1800
T7N	55	75	970	87	118	830	1800
T8	70	95	1240	110	150	1050	2250
T38	78	105	1380	123	166	1175	2500
T9	88	120	1560	140	190	1340	2800
T10	106	145	1905	170	230	1650	3500

L Series Lemon Tube

Series	540 tr./min					1000 tr./min		MP(NM)
Series		Kw	Pk	Nm	Kw	Pk	Nm	MP(NM)
L1	12	16	210	18	25	172	320
L2	15	21	270	23	31	220	450
L3	22	30	390	35	47	330	640
L4	26	35	460	40	55	380	780
L5	35	47	970	54	74	520	1050
L6	47	64	830	74	100	710	1450
L32	39	53	695	61	83	580	1200

S Series Star Tube

Series	540 tr./min					1000 tr./min		MP(NM)
Series		Kw	Pk	Nm	Kw	Pk	Nm	MP(NM)
S6	47	64	830	74	100	710	1450
S7	55	75	970	87	118	830	1800
S8	70	95	1240	110	150	150	2250
S38	78	105	1380	123	166	166	2500
S32	39	53	695	61	83	83	1200
S36	66	90	1175	102	139	139	2000
S9	88	120	1560	140	190	190	2800
S10	106	145	1905	170	230	230	3500
S42	79	107	1400	122	166	166	2500
S48	133	180	2390	205	277	277	4200
S50	119	162	2095	182	248	248	3700

G Series Gear Spline Tube

Series	540 tr./min					1000 tr./min		MP(NM)
Series		Kw	Pk	Nm	Kw	Pk	Nm	MP(NM)
G2	15	21	270	23	31	220	450
G4	26	35	460	40	55	380	780
G5	35	47	620	54	74	520	1050
G6	47	64	830	74	100	710	1450
G7	55	75	970	87	118	830	1800
G8	70	95	1240	110	150	1050	2250
G38	78	105	1380	123	166	1175	2500
G42	79	107	1400	122	166	1175	2500
G50	119	162	2095	182	248	1740	3700

Click here for more discounts!

PTO SHAFT INSTALLATION INSTRUCTION

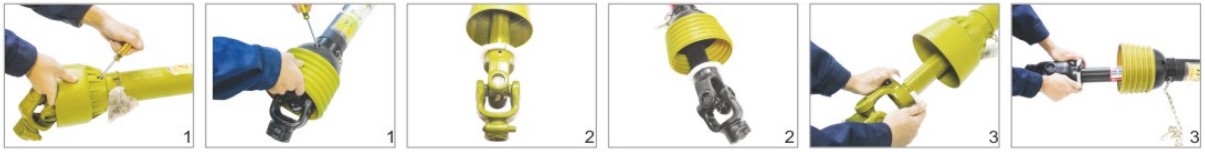

Install assembly

1 press-fit plastic pipe and plastic cap,
2 fill the groove on the horn with oil

3. Slide the nylon bearing into the groove 4. Align nylon bearing and plastic protective cover

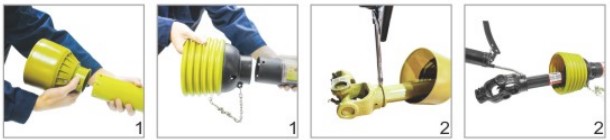

Disassembly

1. remove the nylon bearing clamp (three places) with a screwdriver, and then separate the steel pipe and plastic protective cover.
2. Take off the nylon bearing from the groove of the yokes.
3. repeat the above-mentioned steps for the other side.

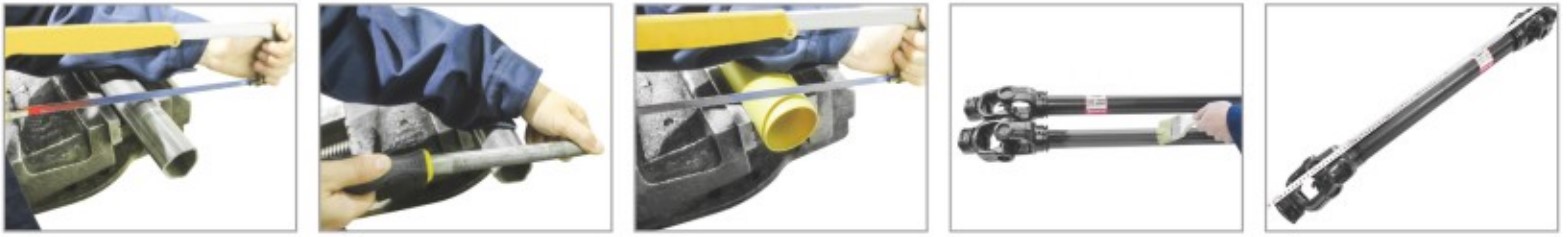

SHORTENING THE PTO DRIVESHAFT

1. Remove the safety shield.
2. Shorten the inner and outer tubes according to the required length, and the inner and outer tubes shall be shortened by the same length at one time
3. Deburr edges of the drive tubes with a file and remove all filings from the tubes.
4. Shorten the inner and outer plastic pipes according to the required length, and the inner and outer plastic pipes shall be
shortened by the same length at one time.
5. Grease the internal drive tubes and reassemble them with a safety shield.
Check the minimum and maximum length of the driveshaft installed on the machine. In working condition, the drive tubes should overlap 2/3 length and the plastic tube should never be separated

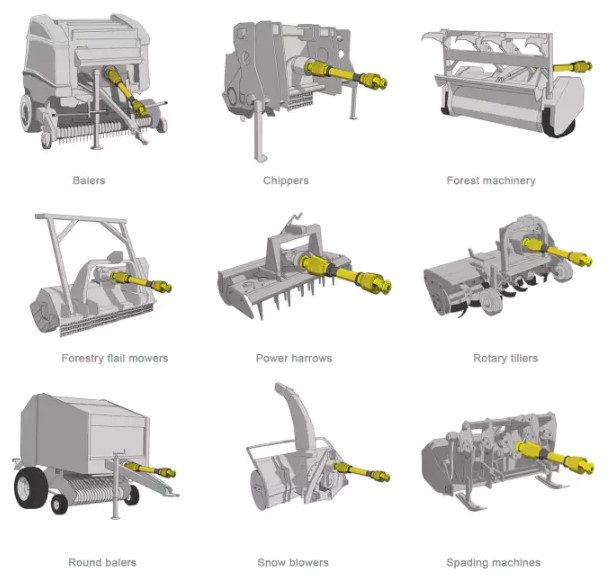

In fact, PTO innovation mainly comes from the wisdom of farmers. The tractor engine is used as a PTO to operate jackhammers or other equipment. Other applications of PTO include: wood chipper Hay baler Harvester Mechanical arm Water pump

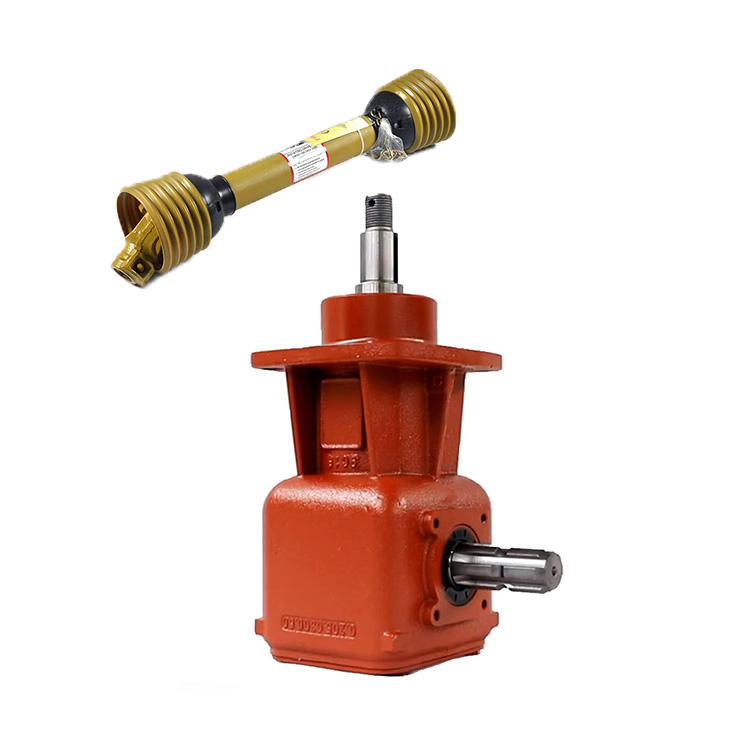

We Also Supply Agricultural gearboxes. If you also need the agricultural gearboxes, click here

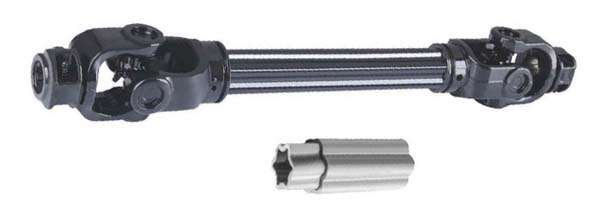

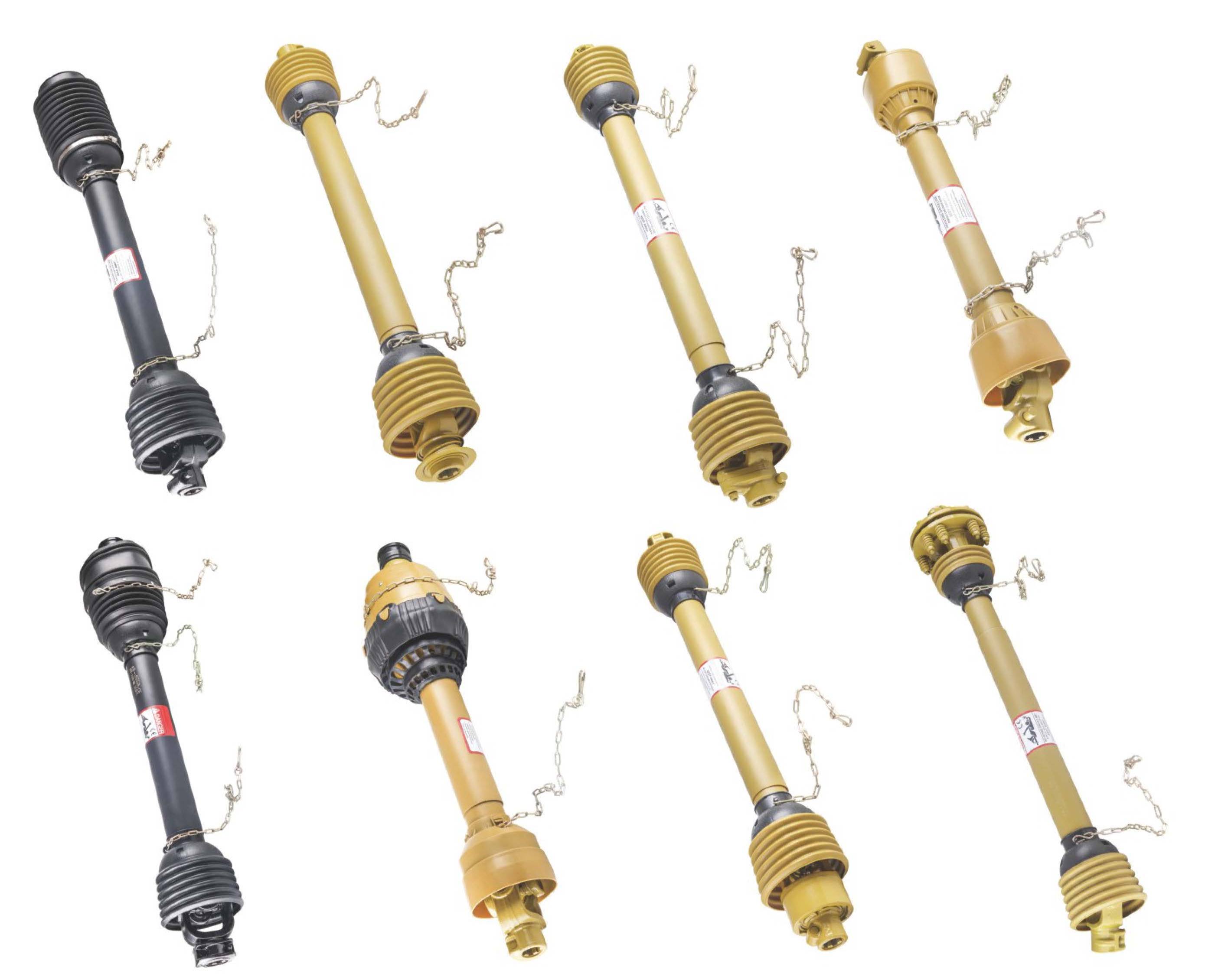

We also provide components of PTO shaft. Click the picture to learn more

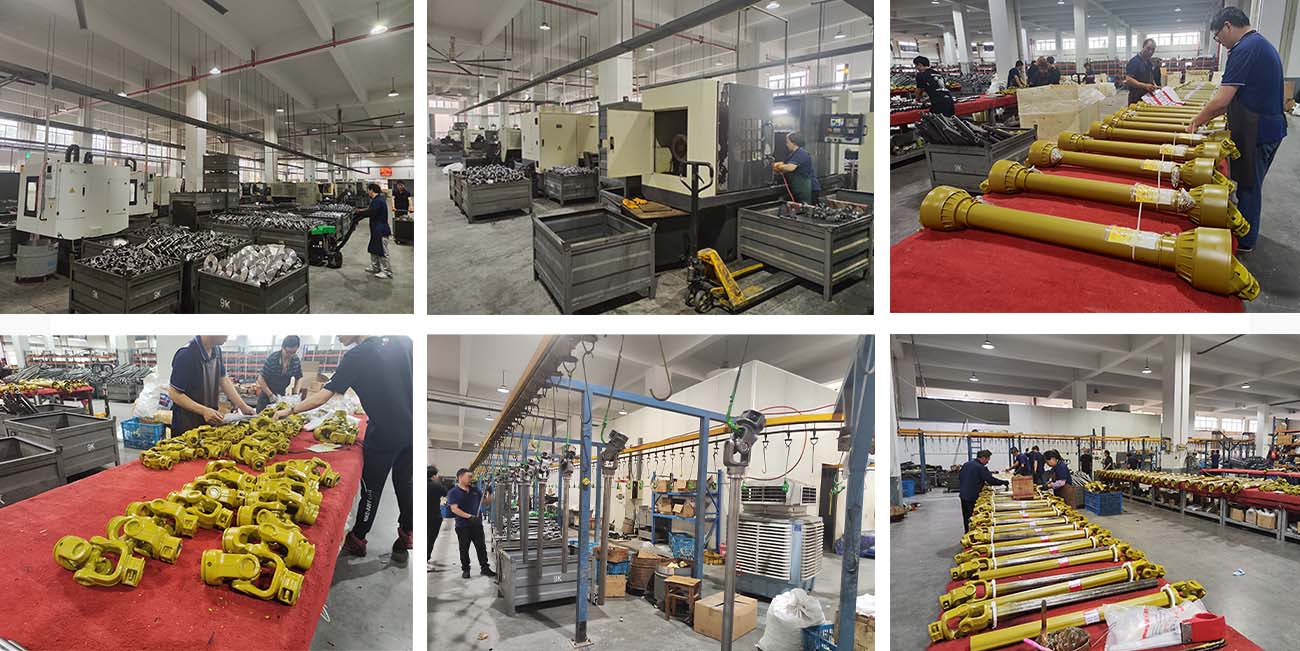

Raydafon covers an area of more than 12000 square meters and employs more than 100 people. We specialize in developing, manufacturing, and selling PTO shafts, industrial universal shafts, automobile drive shafts, universal joint coupling shafts, universal joints, etc. The annual turnover is 60 million yuan and 9 million US dollars, increasing year by year. Our products enjoy a high reputation among customers in Europe, the United States, Asia, Australia, and North America.

We are the top three professional OEM suppliers of many agricultural tool factories in the domestic market. Raydafon transmission shaft adheres to our “QDP” principle: quality first, rapid delivery, and competitive price. We have obtained CE, TS / 16949, and ISO9001 certification, and have systematic production equipment and a QC team to ensure our quality and delivery. We warmly welcome friends from all walks of life to visit and establish mutually beneficial long-term cooperative relations.
