9 Inch Compact Post Hole Auger for Tractor 3 Point Post Hole Diggers with 2 Round Shaft

9-inch compact cylindrical drilling auger for tractors, 3-point cylindrical drilling machine with 2 "round shaftThe 9-inch compact pile hole auger is a tool for drilling holes on the ground, which is usually used for setting fence piles or planting trees and shrubs. It is a smaller version of t......

Send Inquiry

Product Description

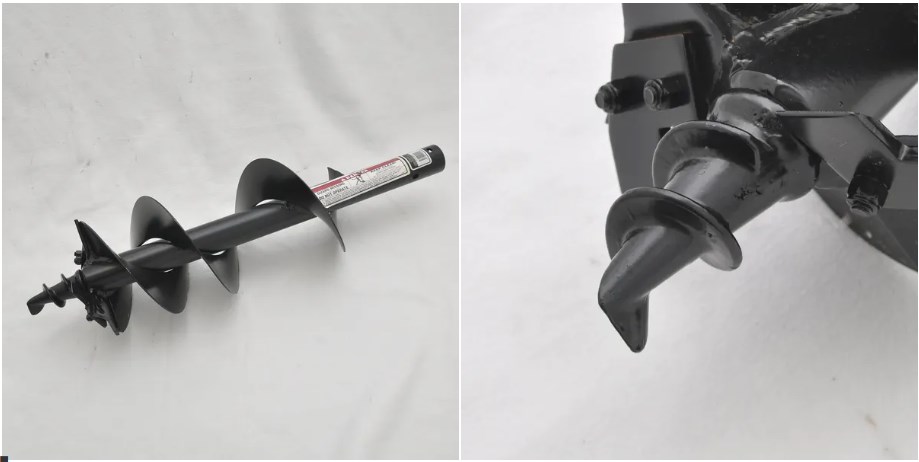

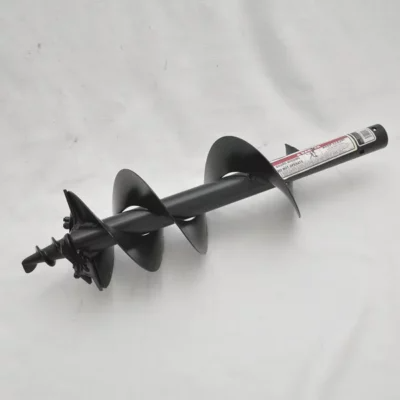

9-inch compact cylindrical drilling auger for tractors, 3-point cylindrical drilling machine with 2 "round shaft

The 9-inch compact pile hole auger is a tool for drilling holes on the ground, which is usually used for setting fence piles or planting trees and shrubs. It is a smaller version of the standard pile hole excavator, which is more flexible in design and easier to use in a narrow space. The size of 9 inches refers to the diameter that can be drilled with the auger. It is important to use the correct size auger in the work to ensure correct and stable installation.

9 inch compact cylindrical auger specifications -Length 36“ -Alternate sides -9 "diameter -The design length is short, which is suitable for small tractors (Class 0) -Use double 1/2 "bolts to connect to 2" round gearbox shaft (not included) -It is applicable to our Model 400 compact pile excavator or other brands. -Light, compact screw conveyor. -It is applicable to the pile excavator installed on the tractor, which requires a screw conveyor with a standard 2 ″ shaft.

Some of the best augers for sale after drilling

Auger Diameter	Duty & Length	Weight	SKU
6"	Compact - 36"	21	23-033
9"	Compact - 36"	32	23-035
12"	Compact - 36"	43	23-037

6"	Standard - 48"	23	23-032
9"	Standard - 48"	34	23-034
12"	Standard - 48"	49	23-036

6"	Heavy - 48"	31	23-040
9"	Heavy - 48"	42	23-041
12"	Heavy - 48"	60	23-042
18"	Heavy - 48"	99	23-043
24"	Heavy - 48"	125	23-044

For more details, please click here to contact us!

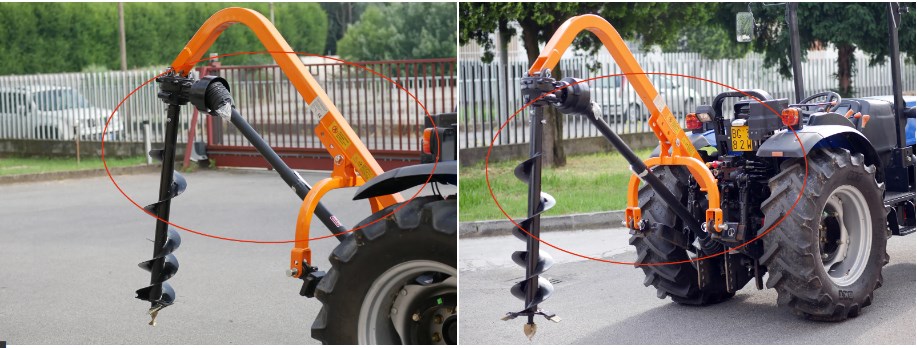

Post Hole Auger for 3 Point Post Hole Diggers

Model	Model 400 Compact	Model 650 Standard Duty	Model 1000 Heavy Duty	Model 1500 Extra Heavy Duty
SKU	24-0361	24-0362	24-0318	24-0337
Category	0 & 1	1	1	1 & 2
Boom Length	56"	60"	72"	72"
Tubing Diameter	2-7/8"	2-7/8"	2-7/8"	3-1/4"
Draw Pin Width	20"	27"	27"	32-1/2"
Drive ine	Series 1	Series 1	Series 4	Series 4
Gearbox	2.9:1	2.9:1	2.9:1	3.18:1
Auger Diameters	6", 9", 12" (3' lengths)	6", 9", 12"	6", 9", 12", 18", 24"	6", 9", 12", 18", 24"
Weight	150 bs	160 bs	200 bs	235 bs
SKU	24-0361	24-0362	24-0318	24-0337
Features	4 Positions	3 Positions	4 Positions	4 Positions

Characteristics of 9 inch compact tractor drilling auger The 9-inch compact tractor pile hole screw conveyor is usually made of high-quality materials with light and durable design, long service life and high performance. These tractor pile drills are ideal for digging holes for fence piles, tree planting and other similar tasks. Some common features of the auger after drilling on a 9-inch compact tractor include: Dimensions: The tractor rear drill auger is compact in design and is very suitable for use with small tractors. Its small size also makes it easy to operate in a narrow space. Power: The 9-inch compact tractor pile hole auger is powered by the tractor's PTO, which provides the necessary power to rotate the pile hole auger and drill holes on the ground. Speed: After drilling, the auger can usually drill holes on the ground in a few minutes, making it a fast and efficient drilling tool. Durability: Most 9-inch compact tractor rear hole augers are made of high-quality steel, so they are durable. Depth: The auger can drill to a depth of about 3 feet after drilling 9 inches, which is the ideal choice for many small projects. Compatibility: The 9-inch rear hole screw conveyor is designed for various tractors, making it a common tool for farmers, landscape designers and other professionals. Ease of use: The auger of the 9-inch compact tractor is easy to operate and control after drilling. Even the novice tractor operator can quickly master it. Maintenance: After proper maintenance, the auger of the 9-inch compact tractor can be used for many years after drilling, which is a wise investment for those who often need to drill.

Operating instructions for auger after drilling

The drilling rig of the tractor can be used to drill holes in the soil, for fence posts, tree planting or other agricultural purposes. The following are the operating instructions for the auger after the tractor is drilled: Operating instructions for auger after drilling 1. First, connect the drilled auger to the rear of the tractor. The pile hole auger should be connected to the three-point hitch at the rear of the tractor. 2. Start the tractor and engage the power take-off (PTO shaft). The PTO shaft is normally engaged by pulling the lever or pressing the button. 3. Place the auger after drilling at the position to be excavated. Lower the auger after drilling into the soil and engage the auger by opening the auger. 4. Use the power of the tractor to push the auger down into the ground after drilling so that it can dig the soil. During excavation, stop and lift the auger after drilling out of the hole regularly to remove dirt accumulated in it. 5. Continue to dig until the drilling reaches the required depth. Once the required depth is reached, stop the auger after drilling and lift it out of the hole. 6. Remove the drilled auger from the tractor and set it aside. Fill the hole with soil to fix the column or plant trees. 7. Finally, clean the auger after each use and store it properly to prevent rust or damage. Remember to observe all safety precautions when operating the auger after drilling. Wear appropriate clothes and equipment, and always pay attention to the surrounding environment.

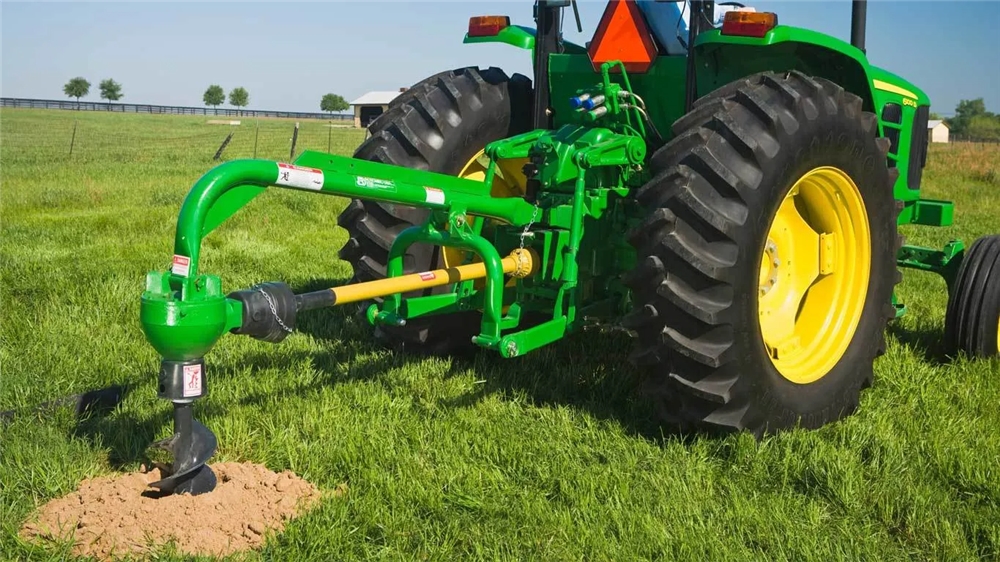

Tractor power take-off and compact cylindrical hole auger

The PTO (power take-off) shaft is used to transfer power from the tractor to accessories, such as compact drilled rear augers. Augers are used to drill holes on the ground for fence posts, tree planting and other applications. To use the compact drilled auger with the tractor, you need to connect the auger to the PTO shaft of the tractor. The PTO shaft transmits the tractor's power to the auger, which rotates to drill into the ground. It is important to select the PTO shaft and the drilled auger that are compatible with the tractor specifications (including horsepower and speed ratings). When using the auger after drilling with the tractor, be sure to follow the manufacturer's instructions for safe operation and maintenance. It is also recommended to wear personal protective equipment, such as gloves, goggles and strong shoes.

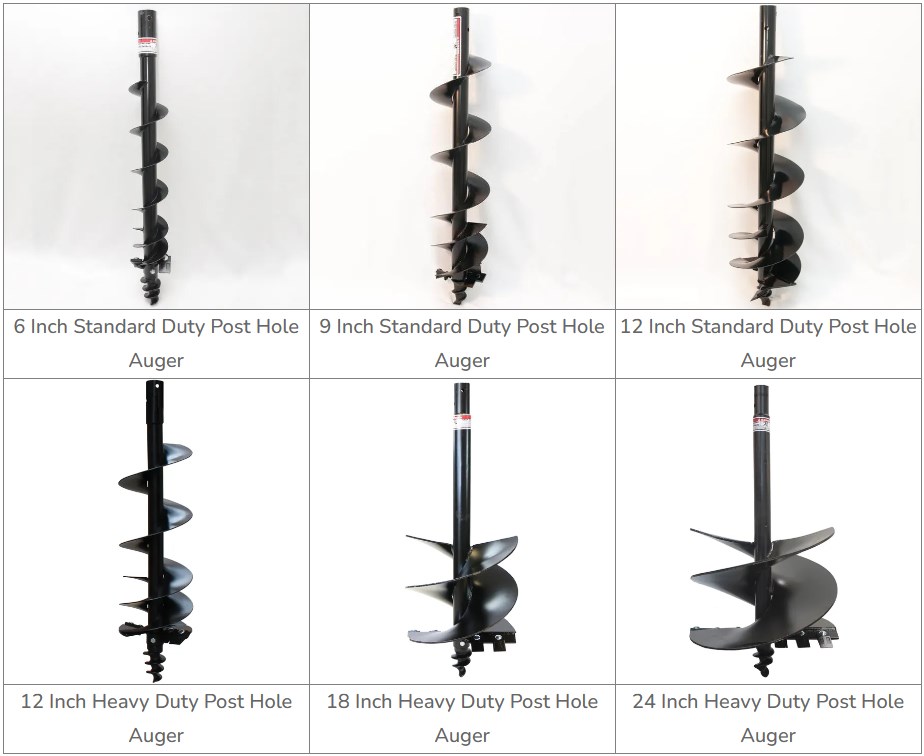

We also provide other sizes of augers after drilling

We have various sizes of rear hole augers to choose from, including 4-inch rear hole auger, 6-inch rear hole screw drill, 8-inch rear hole screw drill, 9-inch rear hole bolt, 12-inch rear hole auger, 18-inch rear hole drill and 24-inch rear hole drill. It is worth noting that soil and surface conditions will affect the ease of excavation, and different auger sizes after drilling may be more suitable for different projects. It seems that the most common auger size after drilling is between 4 and 12 inches, and some larger sizes can be used to dig deeper or wider holes. When selecting the size of the auger after drilling, it is important to consider the size of the column or object to be installed, as well as the soil type and depth. It is also important to note that larger post-drilling augers require more power to operate and are usually more expensive.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
