210V ar transmission ac motor speed controller 4000w ac motor with gearbox 220v 3 phase .5hp electric motor reduction gearbox
1.High modularization design: May equip with various motor or other power input conveniently.
2.Transmission ratio: Fine division, wide scope.
3.Form of installation: The position to be installed is not limited.
4.High strength, compact: The box body is made of high strength cast iron
5.Long life: Under the condition of correct type chosen (including choosing suitable operation parameters) normal operation and maintenance, the life of main parts of speed reducer should not be less than 20000 hours.
6.Low noise
7.High efficiency: The efficiency of single machine is not less than 95%.
Motor Specification:
|
|
Three Phase Gear Motor |
Single Phase Gear Motor |
|
|
Three Phase Gear Motor |
Gear |
All built-in gears are high precision processed by high grade special alloy steel and through carburizing and quenching. |
|
|
Material of gear case |
Alloy steel moulded shapement (shaft dia. 18,22,28), cast iron moulded shapement (32,40,50) |
||
|
Lubrication |
The machine is injected with high class lubrication inside when dispatched, so no need to add. |
||
|
Motor |
Power |
220/380V |
110/220V |
|
Frequency |
50/60Hz |
50/60Hz |
|
|
Cooling type |
Fully-enclosed external fans |
||
|
Starting type |
Directly starting under total pressure |
Continuous rotation starting, Capacitor starting |
|
|
Housing material |
Superb alum alloy stainless steel |
||
|
Insulation degree |
F, B degree |
||
|
Protective degree |
IP54 for Aluminum junction box, IP20 for Steel junction box |
||
|

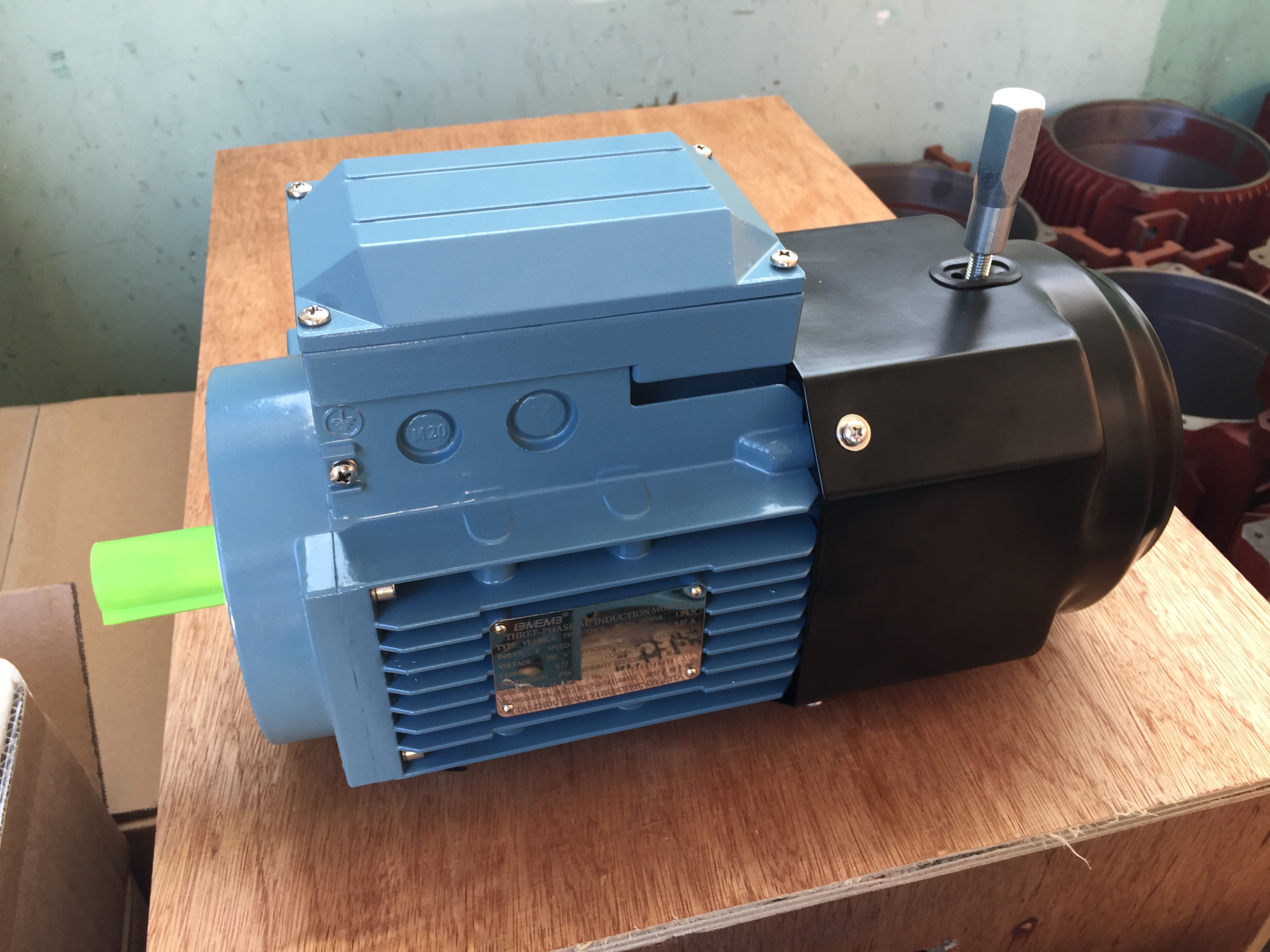

Brake |
Working mode |
No excitation magneto type brake (Power interrupt brake) |
|
|
Voltage |
DC90-110V attached AC220V,AC110V rectifier |
||
|
Common Environment |
Temperature |
-10 ~ +40 centigrade |
|
|
Humidity |
Below 90% (noncondensable) |
||
|
Site |
Indoor, the altitude below 1000m |
||
Packing Details: Standard carton/Pallet/Standard wooden case
Delivery Details : 7-20 working days upon payment
1.Payment Term: TT, L/C
2.Delivery time: about 30 days from receive payment.
3.We accept customized products as per your special requirement.
4.Guidelines for the Selection:Usually we can select one machine which is suitable for you with some informations from you,such as ratio/motor speed/mounting dimension/ out torque etc.
5.If the minimum order amount is in excess of $10000, there are preferential.
Q1: What information should I tell you to confirm the product?
A:Model/Size, Transmission Ratio, Shaft directions & Order quantity.
Q2: What can i do if I don't know which one I need?
A:Dont worry, Send as much information as you can, our team will help you find the right one you are looking for.
Q3: What is your product warranty period?
A:We offer one year warranty since the vessel departure date left China.
Q4: Are you trading company or manufacturer ?
A: We are factory.
Q5: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q6: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q7: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
