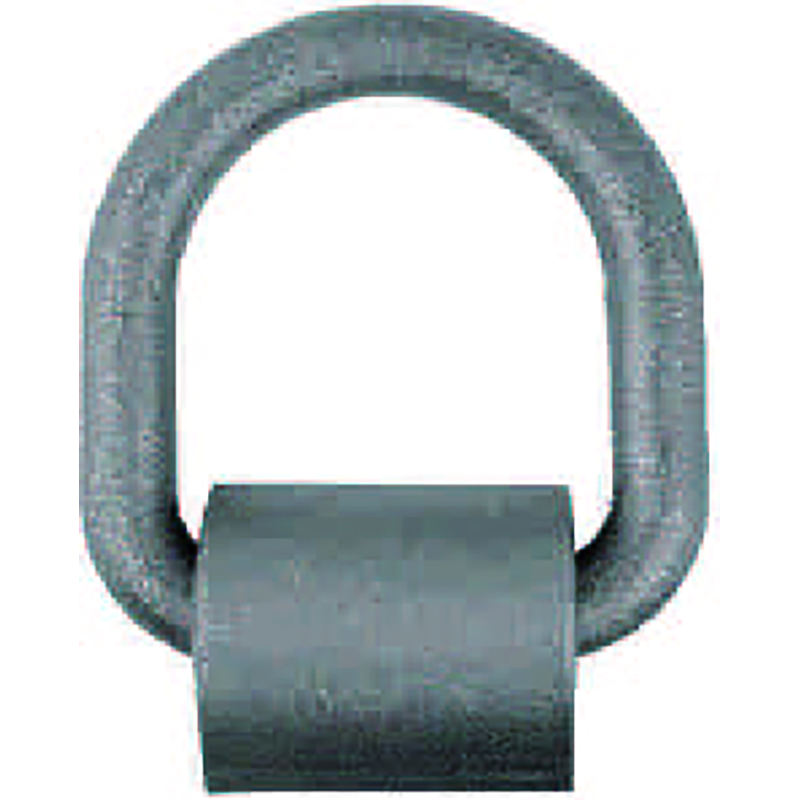

1BJY-DR-05 Trailer Parts and Accessories Maximum 47000LBS Load Trailer Weld-On Forged D Ring

Raydafon Group's 1BJY-DR-05 Trailer Parts and Accessories: A weld-on forged D-ring with a maximum 47000LBS load capacity, ideal for heavy-duty towing. Its durable forged steel construction and superior design ensure safety and reliability. Perfect for trailer owners and professionals, it delivers peace of mind and solves attachment challenges. Choose Raydafon for unmatched quality in trailer accessories.

Send Inquiry

Product Description

JY NO.	Description	Diameter	Interior Dimensions	Working Load	Maximum Load
1BJY-DR-01	1" Lashing Ring 3"X4"- Wele on	1"	3"3-1/2"4"	15586LBS	47000LBS
1BJY-DR-02	1" Lashing Ring 3"X4"-Weld On Bulk	1"	3"3-1/2"4"	15586LBS	47000LBS
1BJY-DR-03	1" Lashing W/ 360° Rotation	1"	3"*3"	15586LBS	47000LBS
1BJY-DR-04	Forged Ged Lashing Ring 1"-55°	1"	3"*3-1/2"	15586LBS	47000LBS
1BJY-DR-05	Forged Ged Lashing Ring 1"-55° Bulk	1"	3"*3-1/2"	15586LBS	47000LBS
1BJY-DR-06	Lashing Ring 1" - Weld On	1"	3"*3"	15666LBS	47000LBS
1BJY-DR-07	Lashing Ring 1/2" - Weld On	1/2"	2-1/4"*2-1/2"	4000LBS	12000LBS
1BJY-DR-08	Lashing Ring 1/2" - Weld On Bulk	1/2"	2-1/4"*2-1/2"	4000LBS	12000LBS
1BJY-DR-09	Lashing Ring 1/2"-Bolt On 3/8" Hole	1/2"	/	4000LBS	12000LBS
1BJY-DR-10	Lashing Ring 3/4" - Weld On	3/4"	3"*3"	8833LBS	26500LBS
1BJY-DR-11	Lashing Ring 5/8" - Weld On	5/8"	3"*3"	6000LBS	18000LBS
1BJY-DR-12	Lashing Ring 5/8" - Weld On Bulk	5/8"	3"*3"	6000LBS	18000LBS

Applications of Trailer Weld-On Forged D Rings

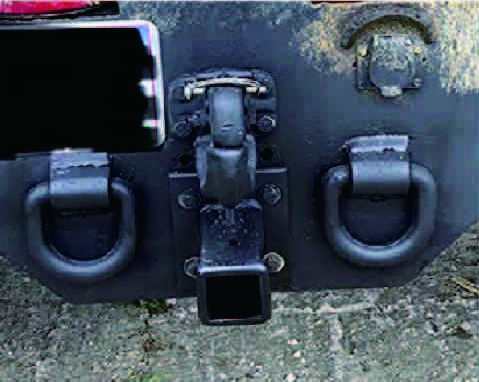

Trailer weld-on forged D rings are sturdy and versatile attachment points commonly used in various industries, particularly in transportation. These rings are welded directly onto trailers, providing a secure anchor point for tie-downs, chains, or ropes to secure loads during transit.
Primary Applications:
Securing loads: D rings are used to attach chains, cables, or straps to trailers, providing a strong and reliable connection
for loads of all sizes and weights.
Creating tie-down points: They can be strategically placed around the trailer to create numerous tie-down points, ensuring that loads are securely fastened.
Reinforcing existing anchor points: Weld-on D rings can be used to reinforce existing anchor points on trailers, providing
additional strength and durability.

Specific Use Cases:
Flatbed trailers: Used to secure various types of cargo, including lumber, equipment, and machinery.
Enclosed trailers: Utilized to secure loads within enclosed trailers, such as furniture, motorcycles, or ATVs.
Utility trailers: Employed to attach various items, from lawnmowers to building materials.
Boat trailers: Used to secure boats to trailers, providing additional safety measures.
Construction trailers: Employed to attach equipment and materials to construction trailers.
