150FK Series 4 Side Sealing Packing Machine for Paper Aluminum Plastic Pure Aluminum Aluminized Pearl Film Packing Material

4 Side Sealing Packing MachineEquipment performance1. The color touch screen operation interface is simple to operate; Parameter setting is convenient and fast.2. Adopting a scientific three-axis servo drive system, the bag length is set and cut in one step, saving time and film;3. PLC programmable ......

Send Inquiry

Product Description

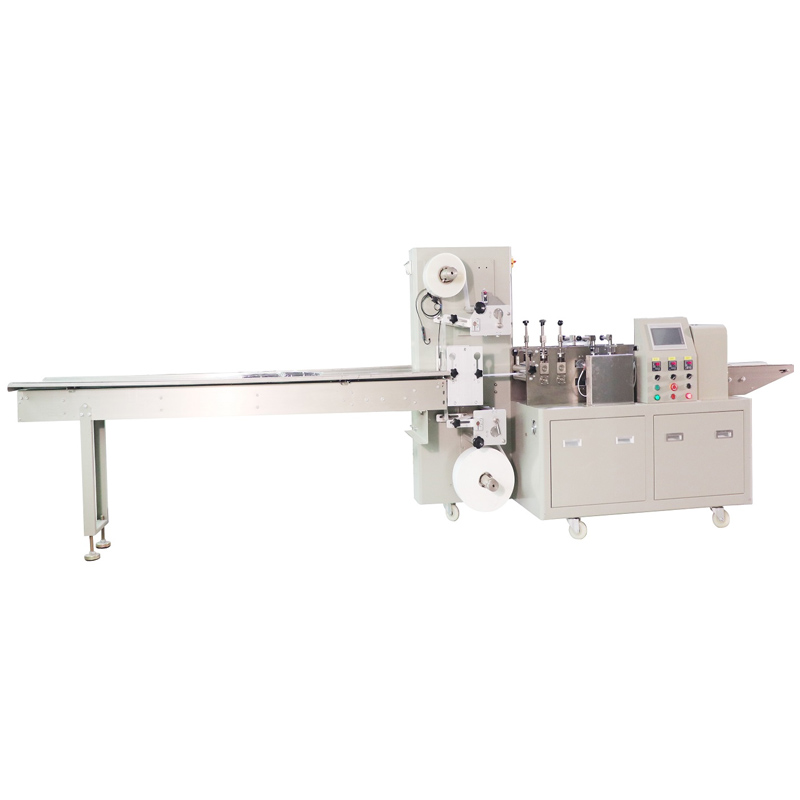

4 Side Sealing Packing Machine

Equipment performance

1. The color touch screen operation interface is simple to operate; Parameter setting is convenient and fast. 2. Adopting a scientific three-axis servo drive system, the bag length is set and cut in one step, saving time and film; 3. PLC programmable controller intelligently controls the operation of the whole machine, with advantages such as precise film feeding, stable material transportation, and precise cutting. 4. Independent column type mold frame, mobile synchronous heat sealing system, more uniform and stable sealing surface temperature, tight edge sealing, and durability. 5. Packaging materials with different thicknesses and materials have wider adaptability and versatility. 6. All controls are implemented by software, facilitating functional adjustments and technological upgrades, and never falling behind. 7. Automatic sensing of material length, automatic product packaging, no product downtime waiting, no need to adjust bag length.

This device uses two types of materials: single material film and dual material packaging ---Single material four side sealing packaging machine: suitable for double-sided printing of packaging bags with the same packaging material using a single material axis and a roll of film ---Double material four side sealing packaging machine: For packaging bags made of one material, use double material shafts with two rolls of film on top and bottom for bag making

Conventional process flow Product transportation → bagging → bag making → sealing → cutting → transportation of packaged products

Model	150FK
Bag size	W ≤180mm
Bag speed	40-100 bags/min
Packing material	paper aluminum plastic, pure aluminum, aluminized, pearl film, coated paper, etc., Φ≤350mm
Air consumption	≥30m3/h (self-provided), pressure: 0.6-0.8Mpa
Power voltage	220v 50Hz/60HZ 5.5KW
Machine size	(L×W×H) 4000×1300×1600mm
Machine weight	600 kg

Production Line	Multi-Lanes Granule Paking Machine	Small Packing Series	High Speed Powder Parking Machine
			Multi-Lanes Powder Paking Machine		High Speed Liquid Packing Machine
			Multi-Lanes Liquid Paking Machine		High Speed Granule Packing Machine
			Full Automatic Inner and Outer Bag Production Line		Granule/Powder/Liquid Packing Machine
			Full Automatic Multi-row Bagging Carton Parking And Carton Wrapping Film Machine		Full Auto Ulitrasonic Sealing&Packing Machine
		Full Automatic Granule/Powder/Liquid Two-In-One Cartoning Production Line	Give The Bag Series	8 Station Vacuum Premade Bags Weighing And Packing Machine
		Full Automatic Multi Column Bag Parking Orderly Soring,Boxing And Carton Parking Production Line	Give The Bag Series		Horizontal Premade Bag Powder Packing Machine
Shaped Series	lrregular Sachet Back Seal Packing Machine	Pillow Series	Horizontal Packing Machine(Upper/Down Film)
		lrregular Sachet Back-Side Sealing Machine	Tea Bag Serise	Filter Paper Tea Bag Packing Machine
		Full Punch Irregular Bag Granule/Powder /Liquid Seal Packing Machine			Triangular Mag With Inner And Outer Bag PackingMachine
Big Pillow Packing Series	Vacuum Bag Liquid Packing Machine			Drip Coffee Packing Machine
		Vacuum Bag Granule Packing Machine	Point Series	Point Packing Machine
		Big Model Powder Packing Machine	Canned Labeling Series	Automatic Cups Filling Sealing Machine
		Big Volume Bag Liquid Packing Machine	Give The Bag Series	8 Heads Filler Servo Control Filling Machine
		Combination weigher packing machine			Round Bottle Labeling Machine
Coupling Bag Series	Double Lane(Side by Side)Of Granule/Liquid Packing Machine			Multi-Head Following Capping Machine Vibrating Disc Capping Machine
Coupling Bag Series		Three Line bags Of Liquid Machines

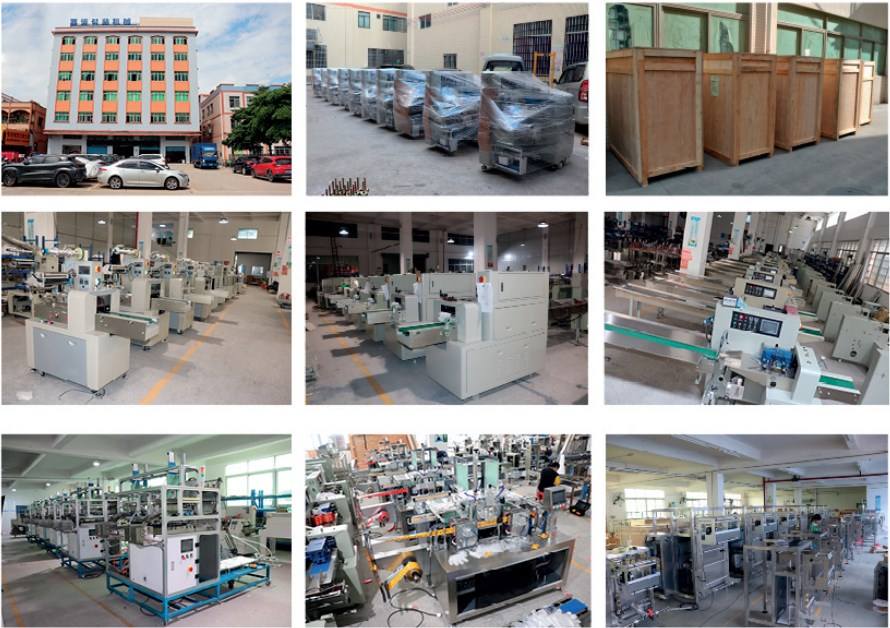

Raydafon Packaging Equipment Co., Ltd. is a company that integrates research and development An enterprise that integrates manufacturing and sales. The company is located in Panyu, Guangzhou Building B35, Huachuang Industrial Park, Shiji Town, District. Covering an area of approximately 6000 square meters, deep With over 20 years of experience in the packaging equipment industry, we can directly design according to customer needs a modern enterprise specializing in the design and manufacturing of professional packaging equipment.

The company's independently developed multi column liquid, particle, and powder packaging machine. liquid Body and particle vacuum packaging machine, ultra high speed packaging machine, ultrasonic non-woven Packaging equipment such as cloth packaging machines are in a leading position.

Our company's packaging equipment is widely used in chemical, daily chemical, food, and medical industries Industries such as pharmaceuticals and health products. Currently, CE certification and TUV certification have been obtained SGS certification and over 20 national patents.

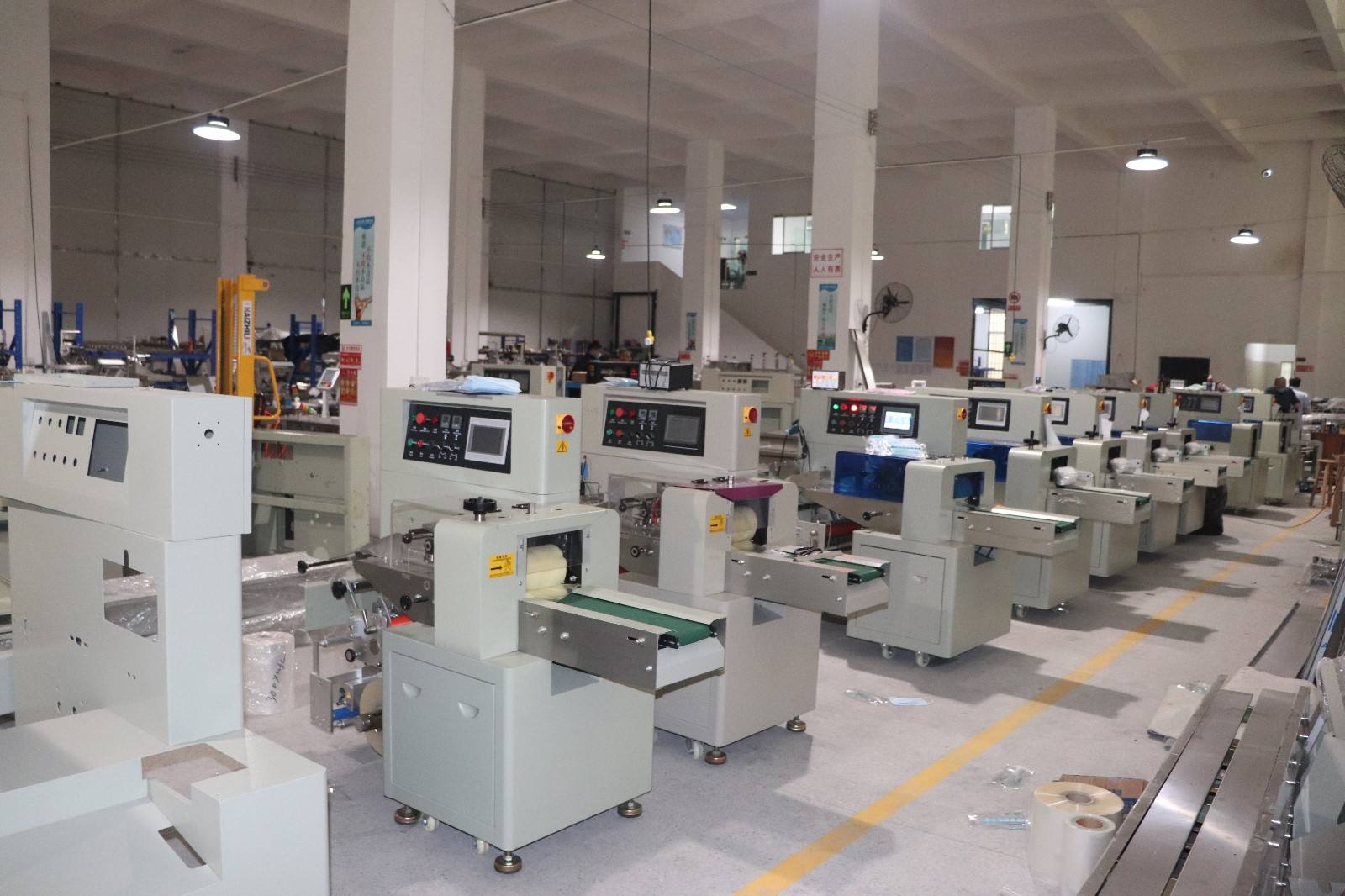

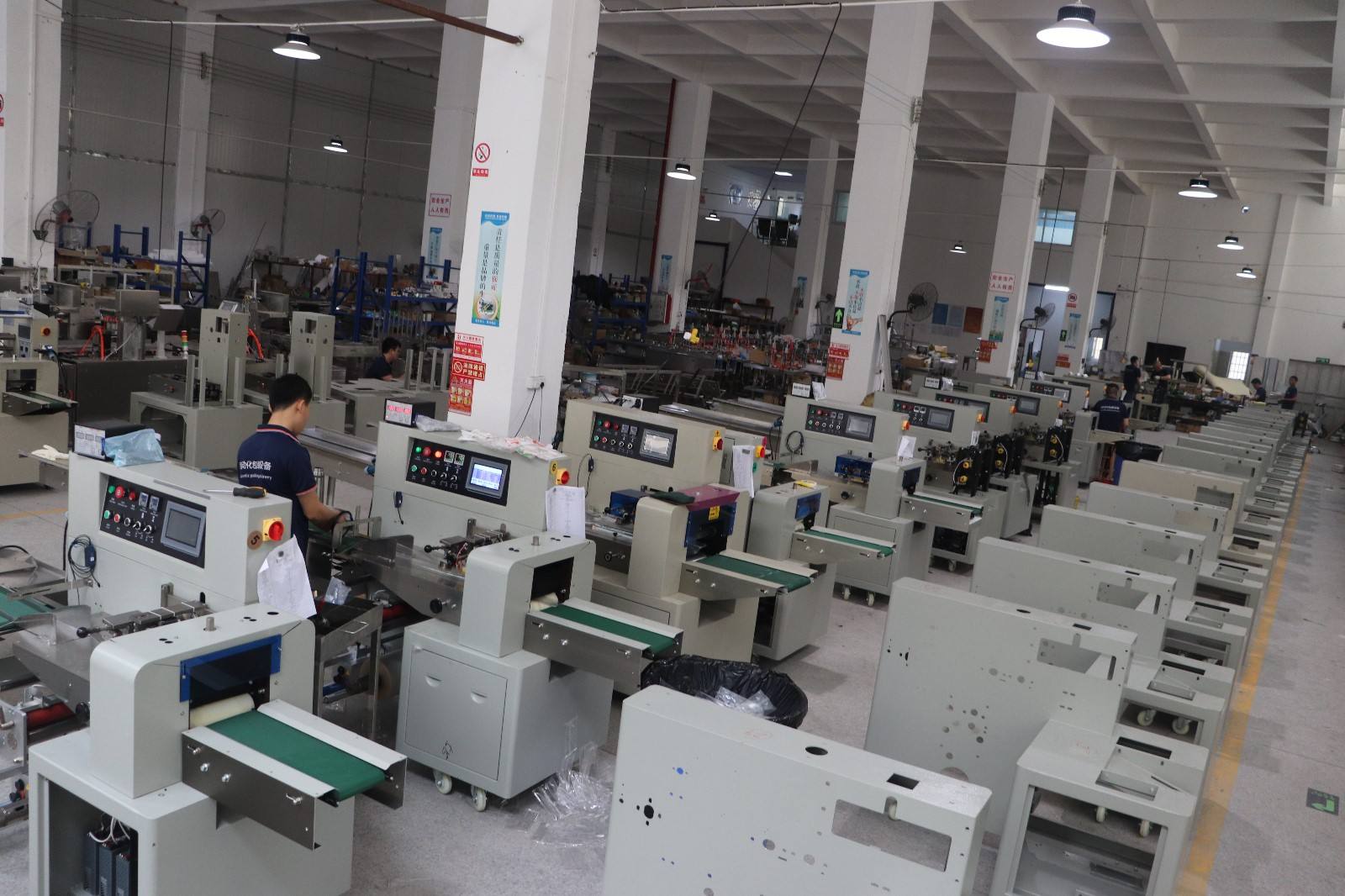

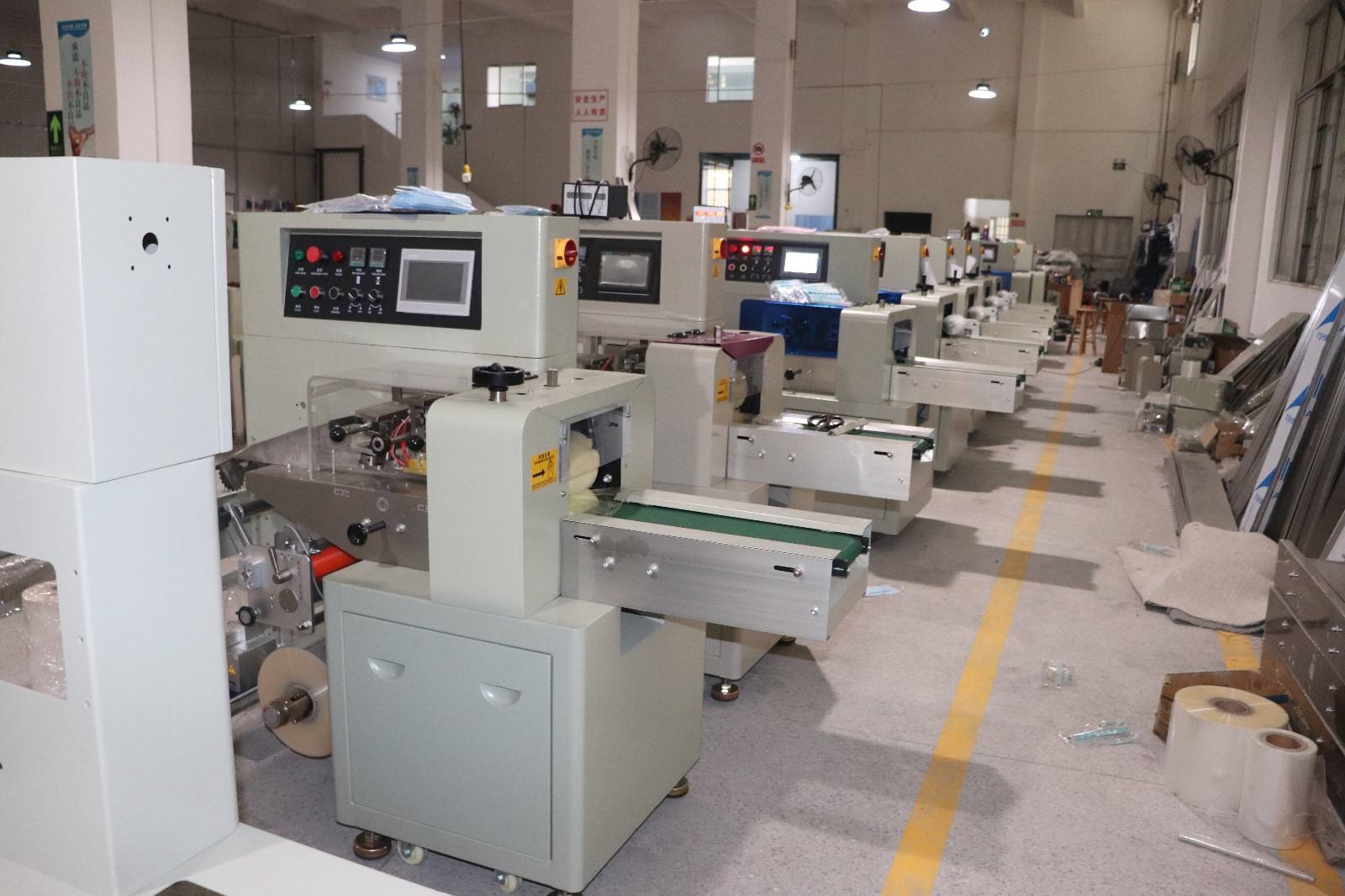

The company has multiple high-end CNC machines, which are regularly organized based on structural principles and equipment Training on planning schemes, market feedback, etc., to enhance the comprehensive skills of production technicians Strength enables each technician to accurately familiarize themselves with the machining process of each component The requirement for processing quality has led all employees to respect production and quality Respect the good situation of the product and comprehensively improve the comprehensive efficiency of production.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
