100 Torque Arm Cast Iron Replacement for Nmrv 025-150 Worm Gearbox Smooth Speed Ratio Running Vertical Reducer Gearbox

Features of Worm Reducer /Gearbox1.Common mounting dimensions.2.Aluminum and cast iron housing.3.Worm and worm wheel transmission.4.Compact structure and light-weight.5.Wide range of accessories.Benefits of Worm Gearbox / Reducer1.Unique housing design will distinguish you from other competitors.2.M......
Send Inquiry
Product Description
100 Torque Arm Cast Iron Replacement for Nmrv 025-150 Worm Gearbox Smooth Speed Ratio Running Vertical Reducer Gearbox

Features of Worm Reducer /Gearbox
1.Common mounting dimensions.
2.Aluminum and cast iron housing.
3.Worm and worm wheel transmission.
4.Compact structure and light-weight.
5.Wide range of accessories.

Benefits of Worm Gearbox / Reducer
1.Unique housing design will distinguish you from other competitors.
2.Multiple choice for oil seal.
3.The dimensions can be customized according to customer's requirements.
Type
Worm Gear Speed Reducer / Gearbox / Reductor
Model
NMRV 25/30/40/50/63/75/90/110/130/150/185
Ratio
1:5/7.5/10/15/20/25/30/40/50/60/80/100
Input hole size
9MM,11MM,14MM,19MM,24MM,28MM,38MM,customized
Output hole size
11MM,14MM,18MM,25MM,28MM,35MM,42MM,45MM,50MM,customized
Color
Customized Color
Input flange
flange, large round flange, small round flange
Other accessories
Output flange, output shaft, torsion arm, etc
Packing
Carton, Honey Comb Carton, Wooden Case with Wooden Pallet
Usage
Industrial Machine, Food Stuff, Ceramics, Chemical, Packing, Dyeing, Wood Working, Glass, etc.
Flange
IEC standard flange or customized dimensions
Housing Material
Aluminum&Cast iron
Size
11 sizes(MRV25~MRV185)
Power
0.06~22 KW
Nominal torque
≤2548 N.m
100 Torque Arm Cast Iron Replacement for Nmrv 025-150 Worm Gearbox Smooth Speed Ratio Running Vertical Reducer Gearbox
Please tell us what you need:

1, Confirmed model: nmrv30, nmrv40, nmrv50, nmrv63, nmrv75, nmrv90, nmrv110, nmrv130 and so on
2, Confirm the reduction ratio: 5:1, 10:1, 15:1, 20:1, 25:1, 30:1, 40:1, 50:1, 60:1, 80:1, 100:1
3, Confirm the input hole and output size: please refer to the detailed size table for the specific size
4, Confirm the size of motor flange: there are two kinds of large flange (B5) and small flange (B14), choose one.
5, Confirm the diameter of motor shaft hole: 11mm, 14mm, 19mm, 24mm, 28mm, 38mm
6, Confirm the motor specification: the standard configuration is a three-phase 380V motor with a speed of 1400rpm. If necessary:
single phase 220 V motor, variable frequency motor, brake motor, 6-level motor, the price is determined separately.
Other accessories
100 Torque Arm Cast Iron Replacement for Nmrv 025-150 Worm Gearbox Smooth Speed Ratio Running Vertical Reducer Gearbox

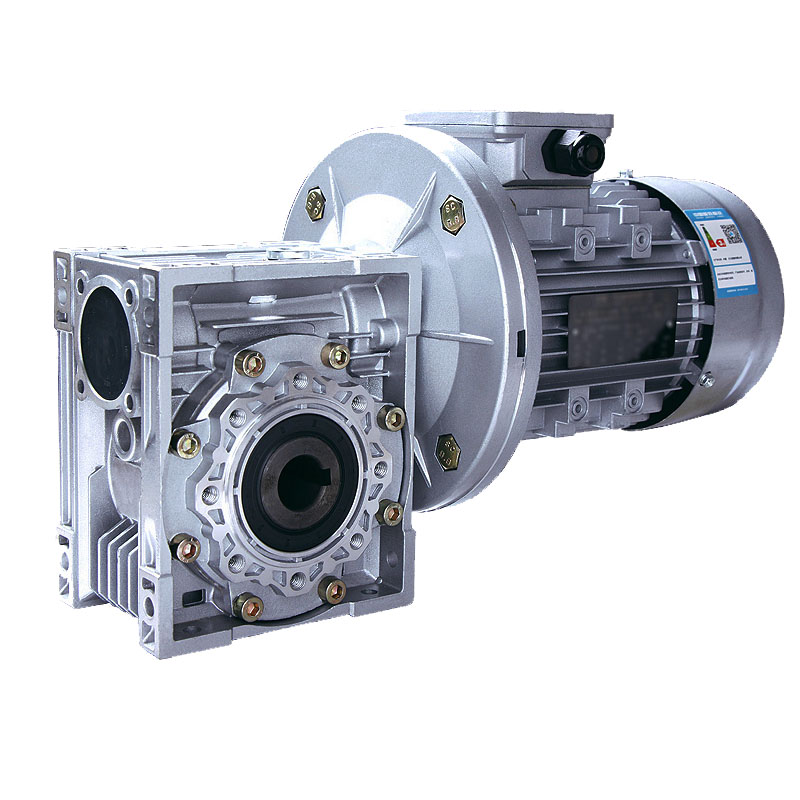

Matching motor
100 Torque Arm Cast Iron Replacement for Nmrv 025-150 Worm Gearbox Smooth Speed Ratio Running Vertical Reducer Gearbox
