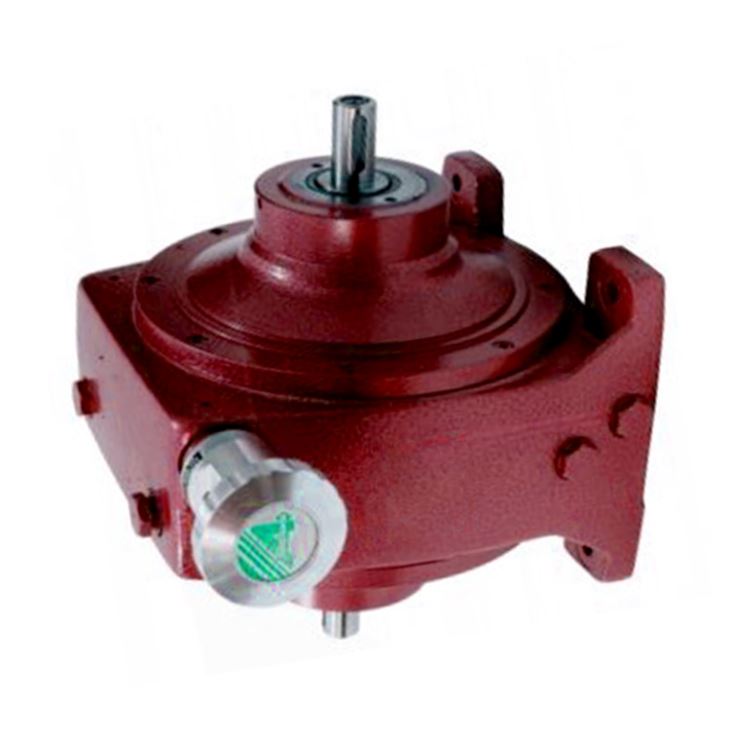

XL-2 Type Agricultural Gearbox

Raydafon Group's XL-2 Type Agricultural Gearbox is a durable, high-performance solution for farmers, enhancing tractor efficiency with advanced design and robust materials, reducing downtime and boosting productivity in demanding agricultural applications.

Send Inquiry

Product Description

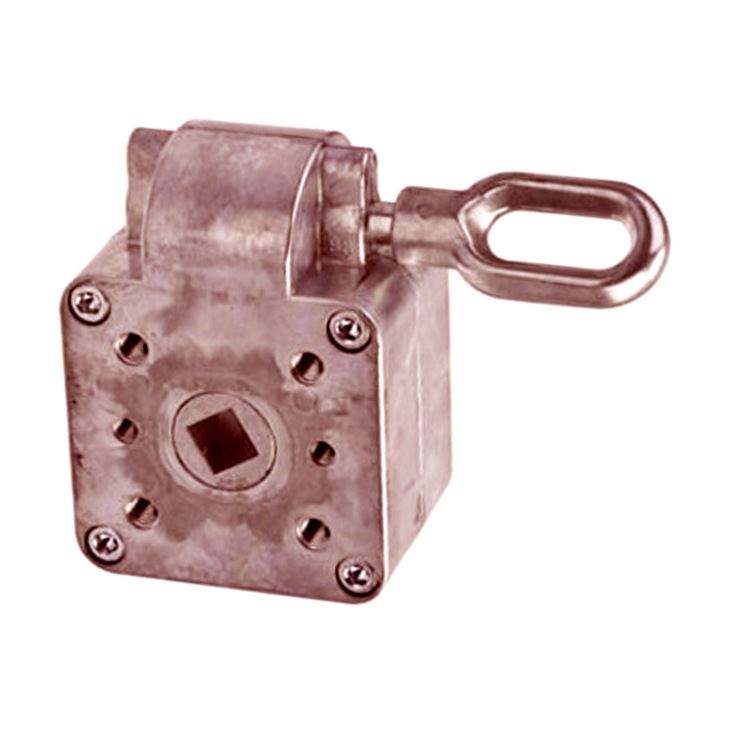

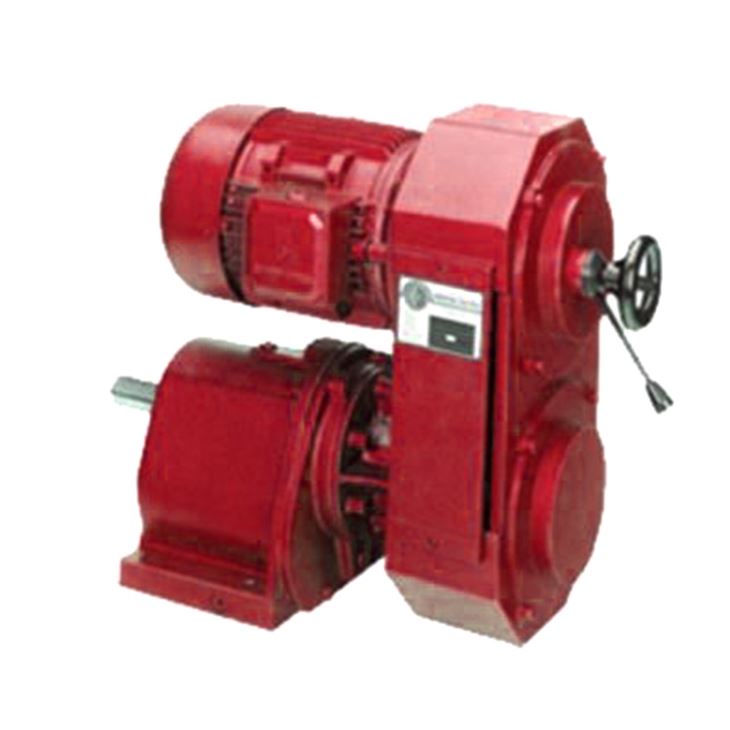

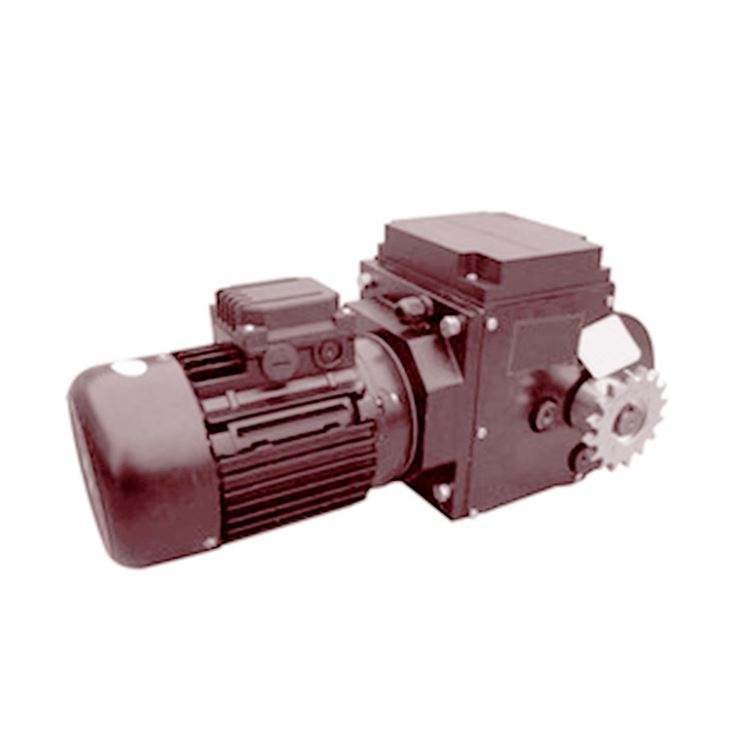

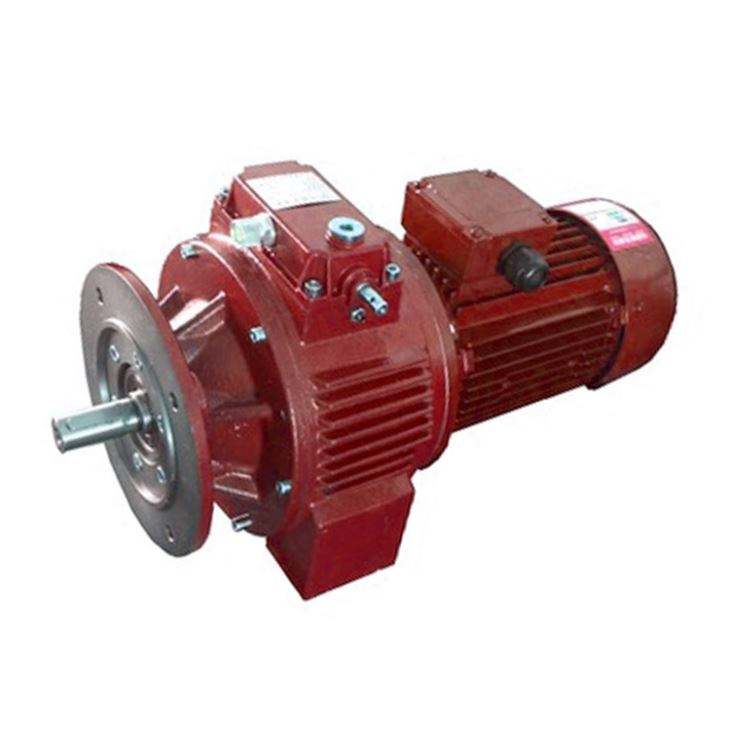

Greenhouse Gearbox and Reducer Gear Motors for Greenhouse

Our greenhouse reducer and gearbox series is suitable for all kinds of greenhouse skylights, side windows, roll shading film, edge film, insulation quilt, northern straw curtain and so on.In order to meet different customers and different structural needs, the series has been developed. The center distance is from 30 to 100mm, the speed ratio is from 150:1 to 1800:1, the limit range is from 0.5 to 60 rpm, and the torque is from 150N.m to 2000N. .m.This type of greenhouse geared motor has the characteristics of compact structure, large speed ratio, large torque, light weight, low noise, good sealing, absolutely reliable limit, long service life, good self-locking performance and low price.Through large-scale, long-term use of various greenhouse reducer companies, reliable quality, advanced technology, won numerous accolades. Maintenance free unique and compact Unique expansion chamber High quality and reliable Easy-to-program limit switch

Feature

Maximum drive torque of 150 Nm or 450 Nm.Rotational speeds of 3 or 5 rpm for a mains frequency of 50 Hz or 3.6 or 6 rpm for a mains frequency of 60 Hz in case of application of 4-pole electric motor.Protection class IP65.Can be used in ambient temperatures of 0-60°C.Suitable for discontinuous use, operating class s3-30%, maximum activation time 25 minutes.Equipped as standard with 16-tooth galvanised chain coupling 5/8"x3/8".FT85 motor assembly flange for installation of IEC standard motor (EN 50347).Maximum switching range of limit switch system 40 or 64 revolutions of the drive shaft.IP68 M16x1.5 cable gland for cable feedthrough (5-9 mm cable).

Product Paramenters

GEAR RATIO	INPUT RPM	OUTPUT RPM	INP.POWER HP	INP.POWER KW	OUT.TORQ.Nm	GEAR SPECIFICATION	WEIGHT	LUBRICATING OIL
01:03.3	540	1755					Kg 9	TYPE	QUANTITY 1
01:02.8	540	1501					Kg 9	SAE.90EP
01:01.9	540	1026					Kg 9
01:01.4	540	729					Kg 9
1:01	540	540	15	11	189		Kg 9
1.35: 1	540	400	15	11	255		Kg 9
1.90: 1	540	284	9.5	7	240		Kg 9
2.78: 1	540	194	6	4.5	210		Kg 9
3.25: 1	540	166	6	4.5	245		Kg 9
